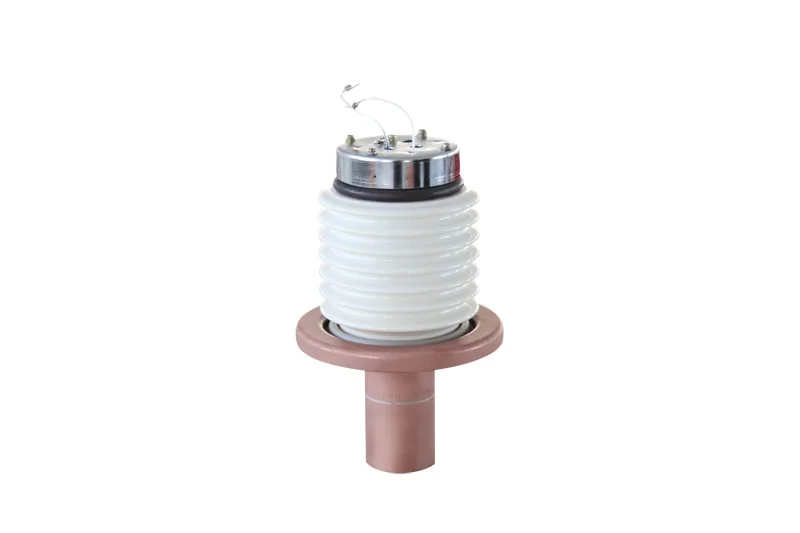

Yushi STG 3505HZ Panoramic Cone Target Corrugated Ceramic X Ray Tube Dimension 132*223 X ray Beam conical Angle 40*360 degree
- Category: >>>
- Supplier: YUSHI INSTRUMENTS
Share on (60522309510):
Product Overview
Description
Product Description
3505G Directional Ceramic X-Ray Tube
The corrugated ceramic X-Ray Tube developed by our company is a basic device for assemble portable X-Ray detectors both in domestic and overseas. It can be used in domestic XXG series of detector, and can also substitute E7598, I-670R2, E-7599, I-870A and E-7536 ceramic X-ray tubes. This product has the advantages of small size, long operating life, strong impact resistance, strong transillumination ability and good imaging quality, etc.

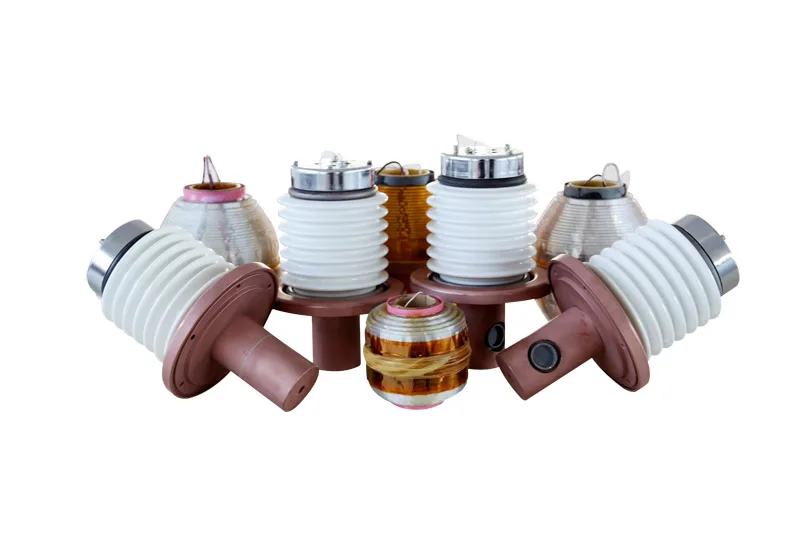

Detailed Images

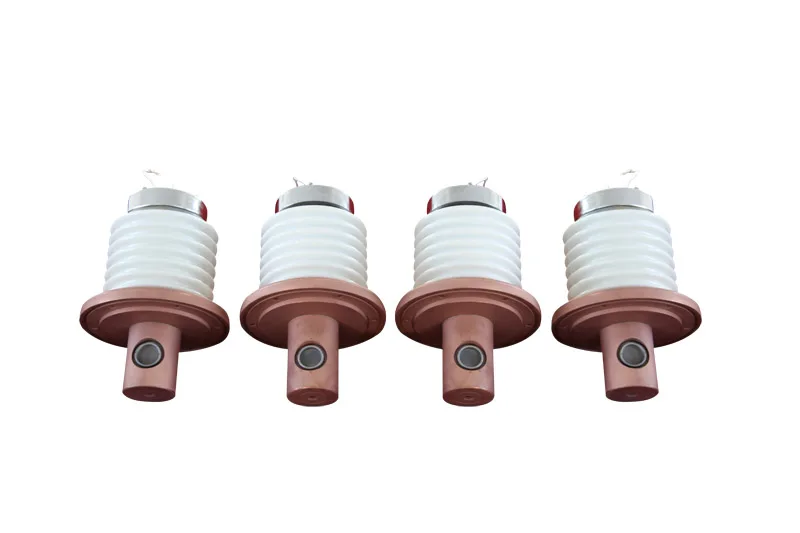

Panoramic Ceramic X-Ray Tube

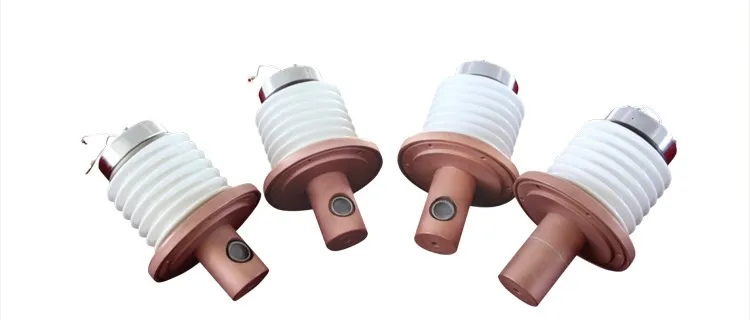

Directional Ceramic X-Ray Tube
Specifications
Items | Testing Condition | Model | |||||
STG-2505G | STG-3005G | STG-3505G | |||||
STG-2505H | STG-3005H | STG-3505H | |||||
STG-2505HZ | STG-3005HZ | STG-3505HZ | |||||
Tube Voltage | Positive Pulse | 250KV | 300KV | 350KV | |||
Tube Current | 5mA | ||||||
Peak Inverse Voltage | Negative Pulse | 150KVP | |||||
Max. Filament Current | Valid Value | 4.0A | |||||
Focus Size | Pinhole Imaging Method | 2.0×2.0 | 2.5×2.5 | 2.5×3.0 | |||
1.0×1.9 | 1.0×2.4 | ||||||
1.0×2.0 | 1.0×2.5 | ||||||
X-Ray Radiation Angle | Directional | 40° | |||||
Panoramic Flat Target | 25°×360° | ||||||
Panoramic Cone Target | 40°×360° | ||||||
Dimension | Directional | Ф132×193 | Ф132×203 | Ф132×213 | |||
Panoramic Flat Target | Ф132×203 | Ф132×213 | Ф132×223 | ||||
Panoramic Cone Target | Ф132×203 | Ф132×213 | Ф132×223 | ||||
X-Ray Window Size | Directional | Ф18 | |||||
Panoramic Flat Target | 12 | ||||||
Panoramic Cone Target | 14 | ||||||
Weight | Directional | 3.6 | 3.8 | 4.0 | |||
Panoramic Flat Target | 3.5 | 3.7 | 3.9 | ||||
Panoramic Cone Target | 3.5 | 3.7 | 3.8 | ||||
Sealing Groove Size | Ф126×Ф120×2.5 | ||||||
Mounting Hole Center | Ф110 | 6-M5 General Distribution | |||||
Target Material | Tungsten | ||||||
Anode Diameter | Ф46 | ||||||
Insulation Mode | SF6 Gaseous Insulation (0.35-0.56mpa) | ||||||
Cooling Type | Radiator Forced Air Cooling | ||||||
Service Life | ≥500 Hours | ||||||
