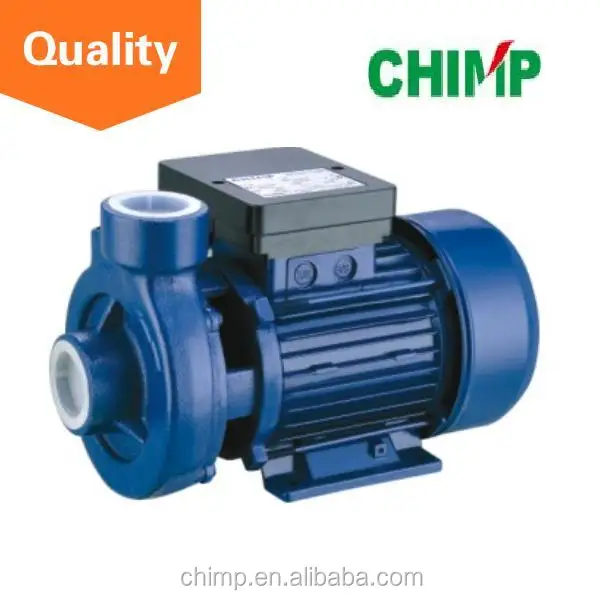

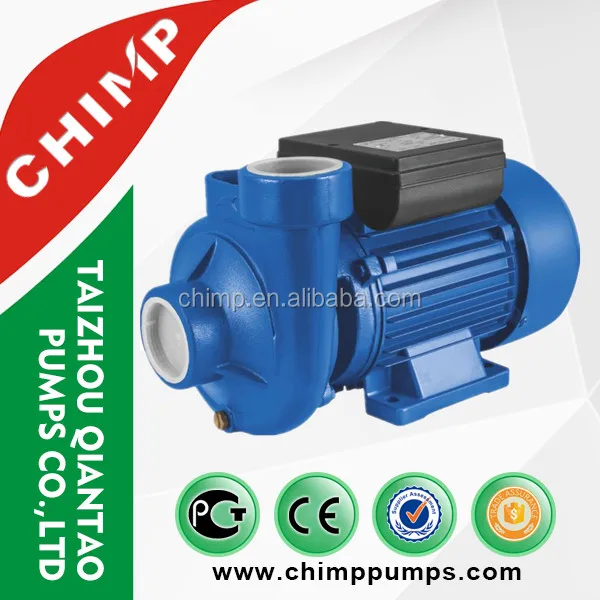

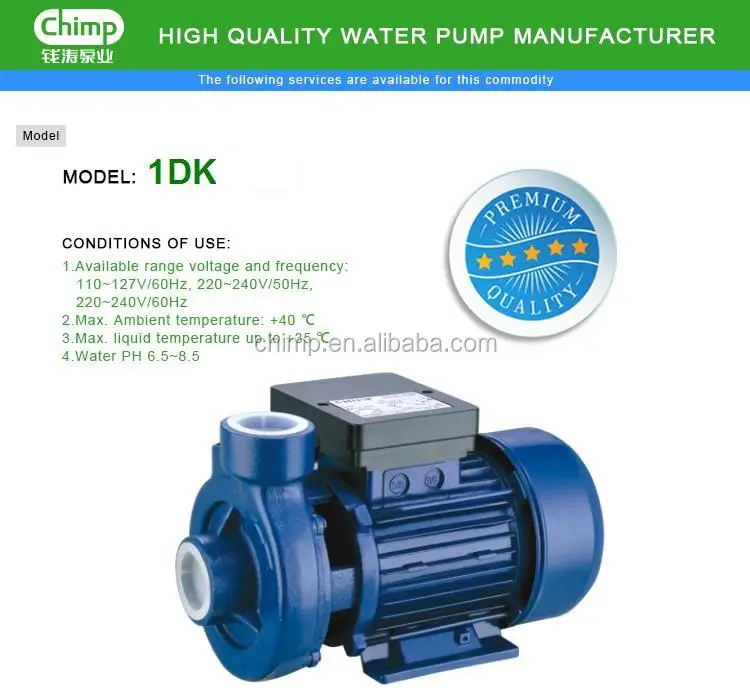

 DK series single phase motor centrifugal water pump for urban water supply



PUMP

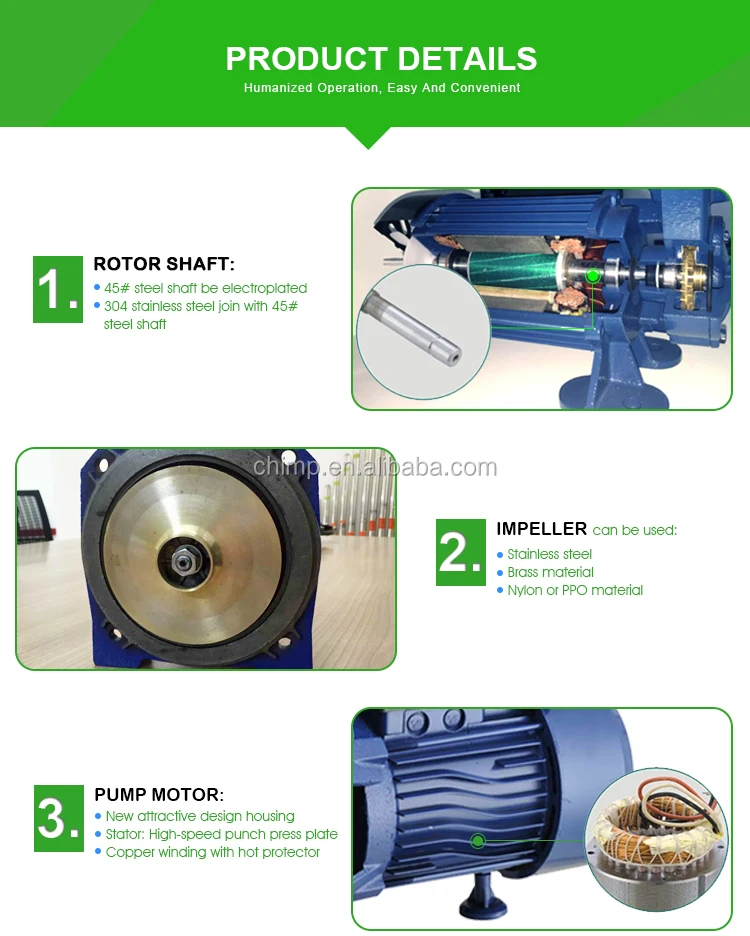

Cast iron pump body and support

Stainless steel / Brass impeller

Max. Liquid temperature: +40℃

Max.Suction:+8m

MOTOR

Motor with copper winding

Shaft: Stainless steel welded shaft / 45# steel be electroplated

Insulation class: B or F

Protection class: IPX4

Max. ambient temperature: +40℃

Cooling: External ventilation

PUMP INSTALLATION AND APPLICATIONS

It can be used to transfer clean water or other liquids similar to water in physical and chemical properties. It is suitable for industrial use and urban water supply, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure bossting for cold and hot water, and supporting equipment etc.

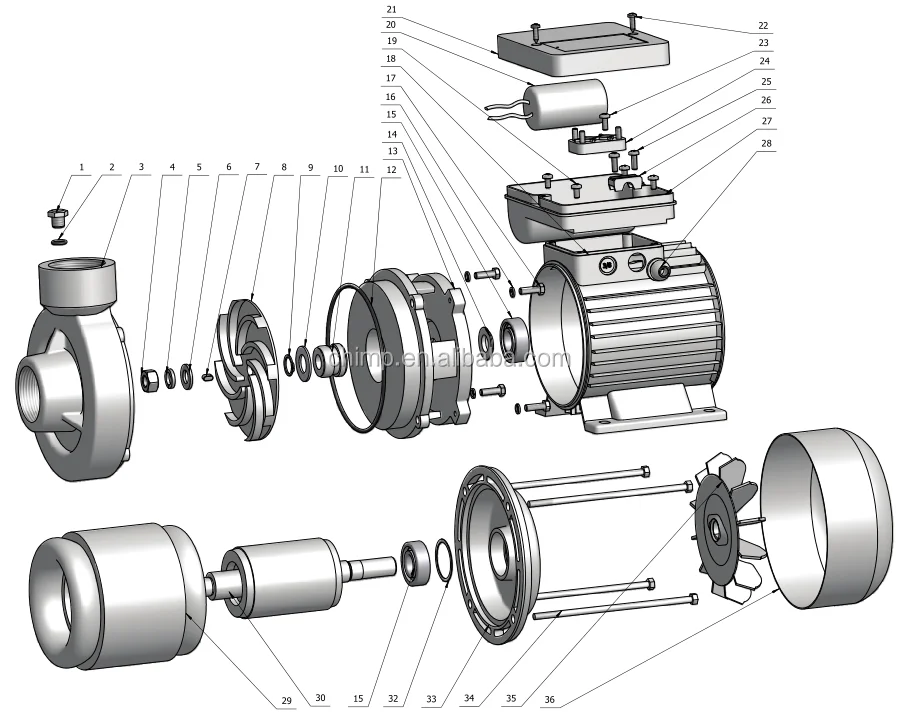

EXPLOSIVE VIEW

NO.	DESCRIPTION	NO.	DESCRIPTION	NO.	DESCRIPTION	NO.	DESCRIPTION
1	Charge plug	10	Washer	19	Screw	28	Fairlead
2	"O" ring	11	Mechanical Seal	20	Capacitor	29	Wound stator
3	Pump casing	12	"O"ring	21	Terminal box	30	Rotor
4	Nut	13	Pump support	22	Screw	32	Split ring
5	Spring washer	14	Drops guard	23	Screw	33	Back cover
6	Washer	15	Bearing	24	Terminal board	34	Bolt
7	Key	16	Spring washer	25	Screw	35	Fan
8	Impeller	17	Bolt	26	Cable presser	36	Fan cover
9	Snap ring	18	Motor husing	27	Terminal cover





PRODUCTS TECHNIQUE





MODEL	POWER		MAX.FLOW	MAX.HEAD	MAX.SUCT	INLET/OUTLET	GW	PACKING DIMENSION(MM)
	kW	HP	(l/min)	(M)	(M)	(inch)	(kgs)
1DK-14	0.37	0.5	75	14	8	1"X1"	8	220X155X190
1DK-20	0.55	0.75	90	20	8	1"X1"	11.5	315X210X220
1.5DK-20	0.75	1.0	220	16	8	1 1/2"X1 1/2"	13	305X175X210
2DK-16	1.1	1.5	400	16	8	2"X2"	16.5	355X220X265
2DK-20	1.5	2.0	450	20	8	2"X2"	17.8	370X215X240

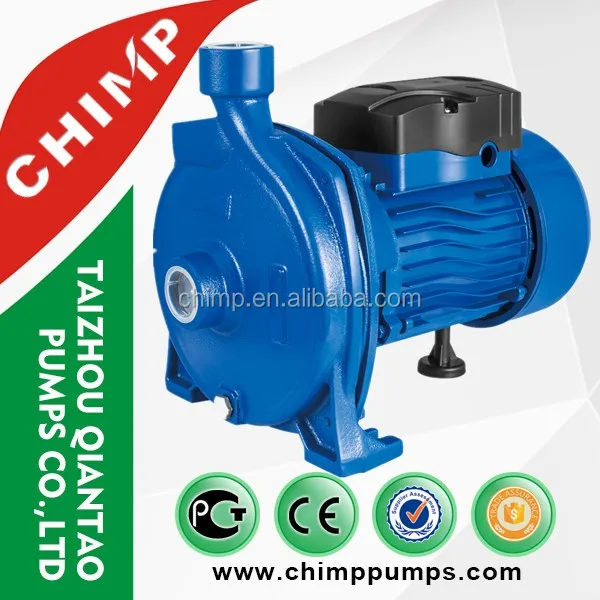

CM20	0.75	1.0	260	20	8	1 1/2"X1 1/2	14	310X175X225
CM30	1.1	1.5	390	25	8	1 1/2"X1 1/2"	15	390X240X295
CM70	1.5	2.0	400	30	8	2"X2"	24.5	445X240X295
BG30N	1.5	2.0	400	35	8	2"X2"	25	465X255X310
BG50N	2.2	3.0	460	40	8	2"X2"	26	485X260X320



Company Information







Taizhou Qiantao Pumps Co., Ltd(CHIMPPUMP) is a modern enterprise with a combination of development, production, service. It is specialized in producing electric pump and motor with more than 50 series and 1000 specification







 1.more than 20 years experience of munufacturing pumps and motors
2.the factory cover an area of 70000 square meters
3. five professional production line for surface pump, submersible pump, deep well pump and electric motors
4. production capacity: 80000pcs per month
