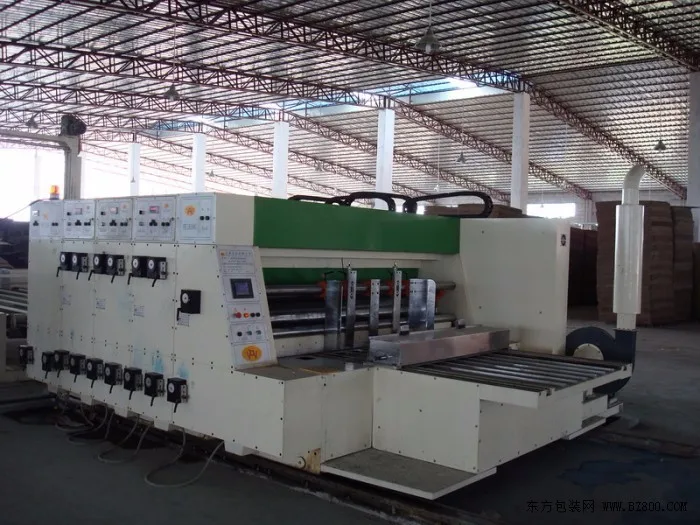

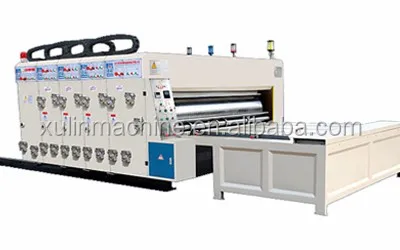

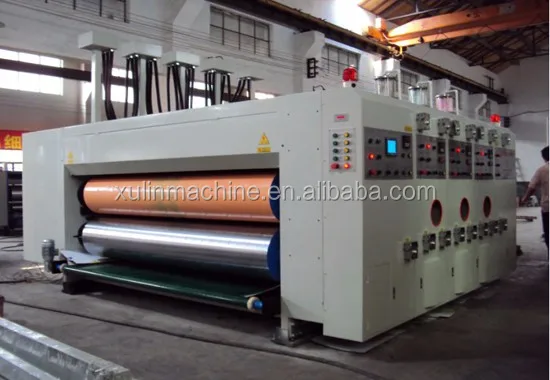

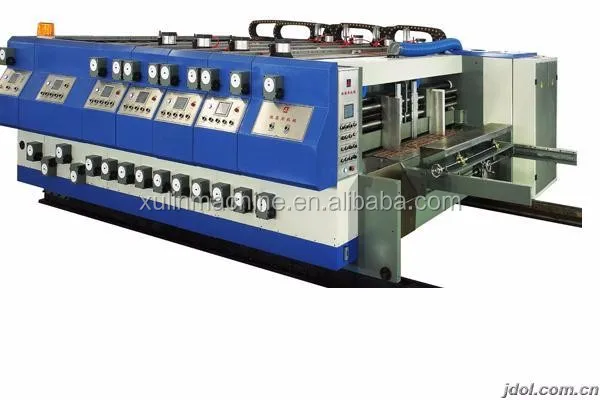

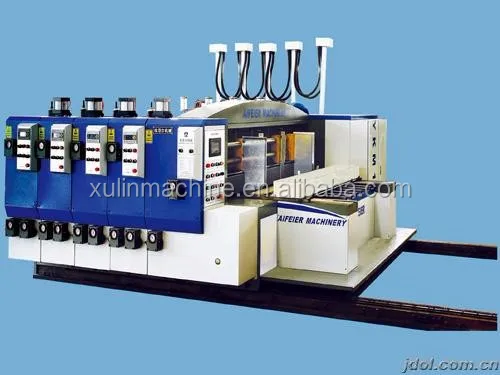

Corrugated carton box printing slotting machine price ,with doctor blade and ceramic anilox rollers

Product Application

Use and Characteristics:

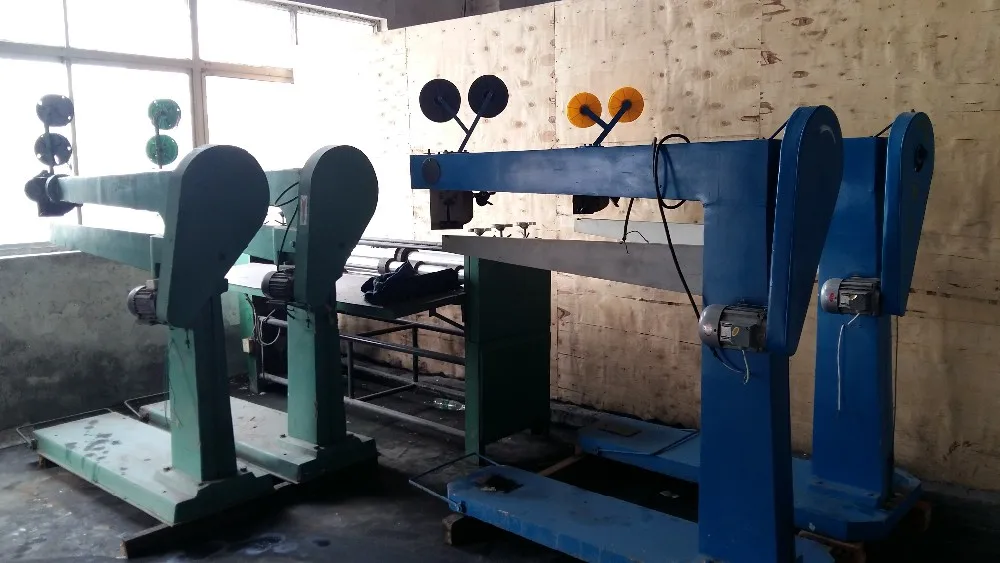

This series corrugated paperboard separating paper rolling line cutting corner opening slot machine, is a comprehensive production equipment which integrate several process such as cutting corner, rolling line and slicing side, the main characteristic is feeding single paperboard by hand, general flexural paperboard is applicable too.

Phase Electrically:

Slotting tool apron can be turned 360 degree positive and reverse, circularly adjusted, adopt motor micro-adjusting equipment, convenient to operate, accurate adjusted size, locking reliable and slotting accuracy.

Taiwan showdown brake motors,coded pulse monitor, sensitive and accurate, microcomputer show, memory is memory and automatic zero adjustment phase (choose) function.

Slotted synchronized adjustments on the line and save time. Lubricating system adopt the type of spraying self-lubricate.

Main Features

Function and Characteristics:

●Chain feeding model ,Gravure registering is convenient and correct with a clutch between the worktable and unit;

●Motorized detachment and combination, pneumatic locking and loosening of printing units.

●Printing and Slotting phase was adjustment the planetary gear structure 360° electric phase,show with digit;

●Whole machine was used the gear pump automatic lubrication;

●Ink roller and printing pressure roller was connected by cross slide to ensure a stable running.

●Whole machine axle,roller with rigid chrome and grinded surface;

●Whole machine electric parts was used the international famous brand

●Whole machine bearing was used the Harbine Bearing Group.

●Photoelectric counting,pre-setting order quantity,plan produce.

Machine Parts

Name: Die cutting

Brand: Xulin

Original: China

Main Features

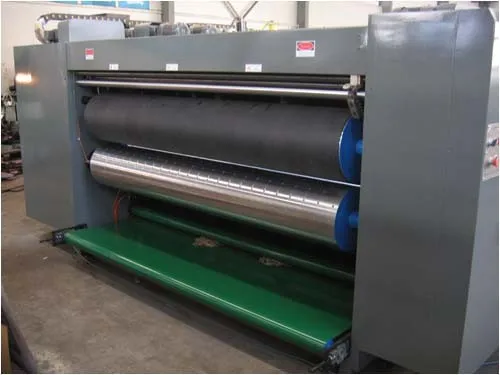

Name: Pringting

Brand: Xulin

Original: China

Machine Parts

Name: Flat Die cutting
Brand: Xulin
Original: China
Domestic famous engines, strong driving force, low fuel consumption

Main Features

The slotting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).
The slitting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).
