Air Pneumatic air Flow Control Valve Quick Exhaust Valve Quick Ftting QE 04 Thread 1/2 Inch BSP

Product Overview

Description

GOGO ATC Pneumatic air flow control valve Quick exhaust valve

Quick ftting QE-04 thread 1/2 inch BSP





* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * **



1.Specification



Model:QE-04
Port size:1/2" BSPP
Effective area:71mm2
Operting temperature range:0~60°C
Fluid:air
Material:aluminum alloy
Operating pressure:0~10.2kgf/cm2
Normal operating pressure:1.5~8kgf/cm2

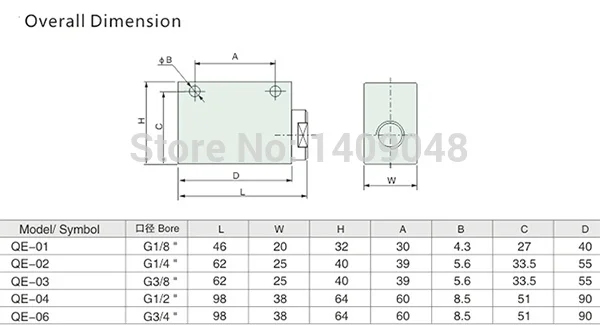

2.Dimensions

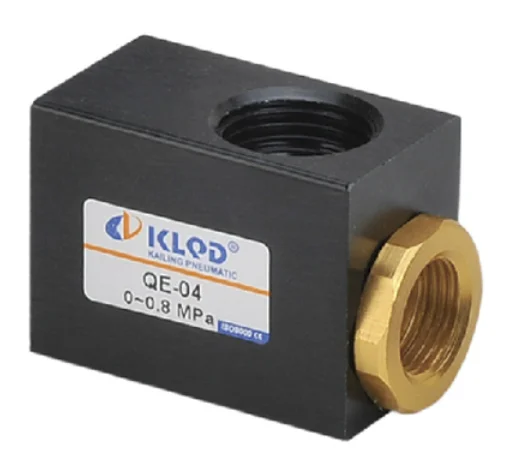

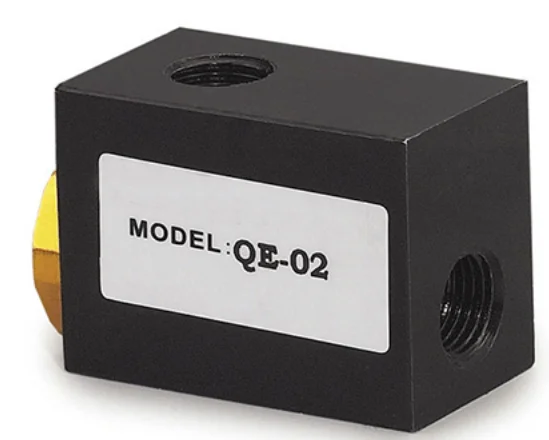

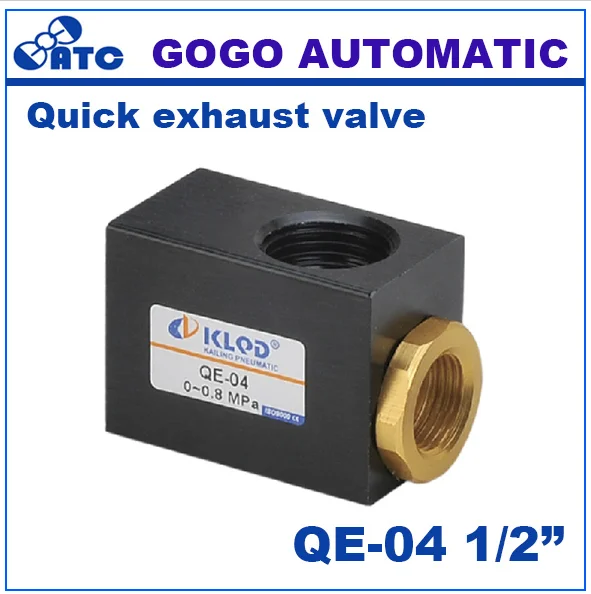

3.PICTURE
