Manual Kraft Paper Die Cutting and Perforating Machine for Small Plant

Product Overview

Description

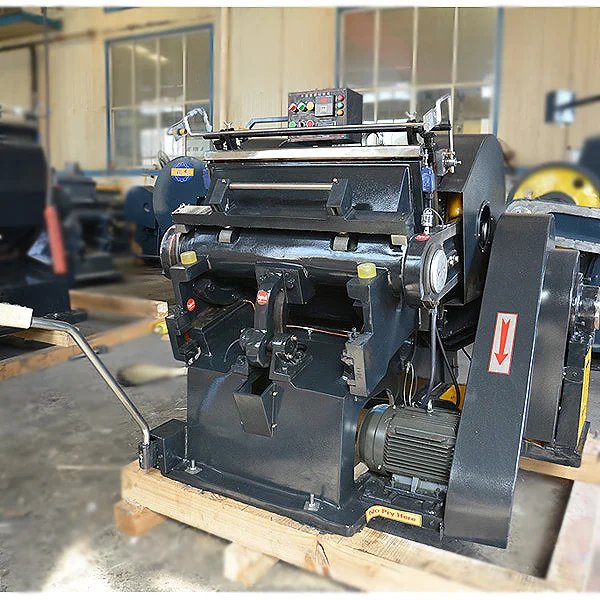

Manual Kraft Paper Die Cutting and Perforating Machine for Small Plant





Machine Introduction

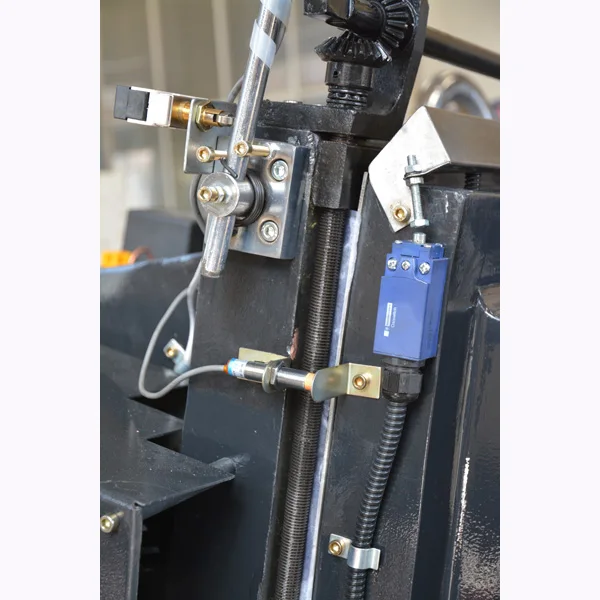

1) Equip with four insurance parts and four functions. The insurance part including gantry insurance,

triangle insurance, hand shank insurance and automatic light-operated insurance to makes the

machine safety and reliable.

2) The brake clutch adopts electric suction plate brake clutch to keep the braking sensitive and

reliable.

3) Adjustable template makes the plate loading, unloading more easily. Disposition: Centralized oil

supplying.

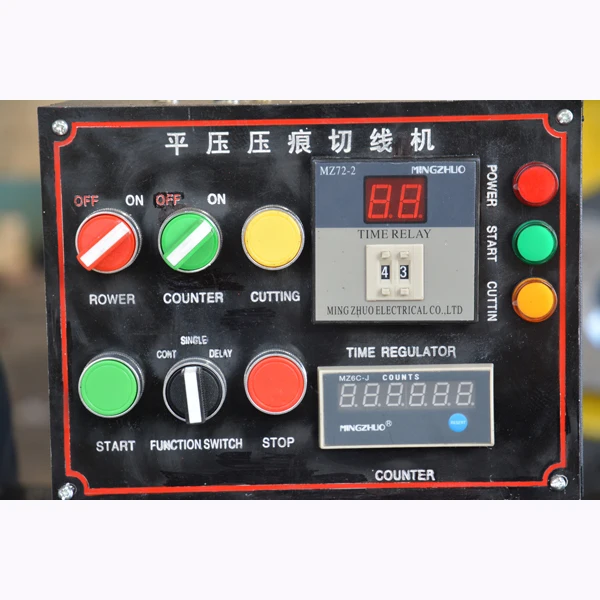

4) Three functions including single piece pressing cutting, continuous pressing cutting and time-delay when start machine, the delay time can be adjusted.



Main Technical Parameters:



Item	Parameters
Model	ML-750
Usage	Paper/leather/plastic die cutting
Max effective cutting Size	750*520mm
Working speed	28±2 pieces/min
Creasing length	<15m
Motor power	2.2kw
Net weight	2000kg
Overall size	1260*1350*1280mm



Available Size

Certificate





Raw material



Products Show



Exhibition Show



 Sino Corrugated Shanghai 2015:



Machine weight	2000kg
Machine size	1260*1350*1280mm, so one 20' container can contain five sets while one 40' container can cantain ten sets.
Packing Item	PE film wrapping, can also do wooden pallet or wooden case according to your requirement.









PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.





   Established in 2004, our factory specialized in the manufacturing of Die Cutting Creasing Machines and Hot Foil Stamping Machines. Located in Dongguang County, Hebei Province, we enjoy convienience access to major transportation networks of Beijing and Tianjin. Our factory covers an area of 20,000 square meters and has around 60 staff members. Furthermore, all our machines manufacturered with advanced equipment and strict QC procedurers in order to ensure high quality.



   With stable and timely supply, credible quality and sincere service, our paper cup die cutting machine sell well in both domestic and overseas market...





1. Are you a factory or trading company?

Ruijie Machinery is a factory and manufacturer in this field about 11 years since 2004.



2. What is the terms of payment you accept?

We usually accept the T/T payment, we need 30% of total amount as deposit, pay the 70% balance before delivery.



3. Where is your factory located ? How can I visit there?

Our factory located in Dongguang County,Hebei Province,China., near to the capital city Beijing and port Tianjin. You can fly to Bejing airport directly and we will pick you up there.



4. How does your factory do regarding quality control?

Quality is priority.We always regard great importane to quality controlling from the very small detail(even a small screw we will choose the best quality) from the begining, and we also have a strict QC team and a professional machine making team.



5. Why we choose Ruijie Machinery?

Exporting to over 40 countries, we have gained a lot of experience that enable us to meet more and more customers.
