Aluminium window frame making machine/CNC Milling Machine
- Category: >>>
- Supplier: Shandong Mingmei Cnc Machinery Co. Ltd.
Share on (60522745371):
Product Overview
Description
Aluminium window frame making machine/CNC Milling Machine/Aluminum drilling milling machin
Contact: Jessica Skype: falconhatred
Whatsapp/line/cell phone: +86132253170262
1. Feature
1.1 This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, chamfering,engraving plane surface and other procedure.
1.2 Main spindle adopt air cooling electric main axis, 3 KW power, 0~18000/min, have the function of high precision, high safety and high reliable.
1.3 Adopt Taiwan SYNTEC CNC control system. Have professional CAD-CAM programming software. It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.
1.4 Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.
1.5 The worktable can overturn 180°.-90°~0°~+90°,Clamping one time profile can realize three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.
1.6 Adopt manual pump oil supply system, blades adopt system control spray cooling device.
1.7 The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.
1.8 The main components adopt steel structure and they are all through aging treatment.
2. Parameter
2.1 | Power supply | 50Hz 380V or As Customer Specification |
2.2 | Cutting motor power | 6kw |
2.3 | Operation air pressure | 0.5~0.8MPa |
2.4 | Max Motor rotary speed | 18000r/min |
2.5 | X axis journey | 3000mm |
2.6 | Y axis journey | 500mm |
2.7 | Z axis journey | 350mm |
2.8 | X axis speed | 50000mm/min |
2.9 | Overall dimension | 4180*1600*2200 |
2.10 | Weight | 1400kg |

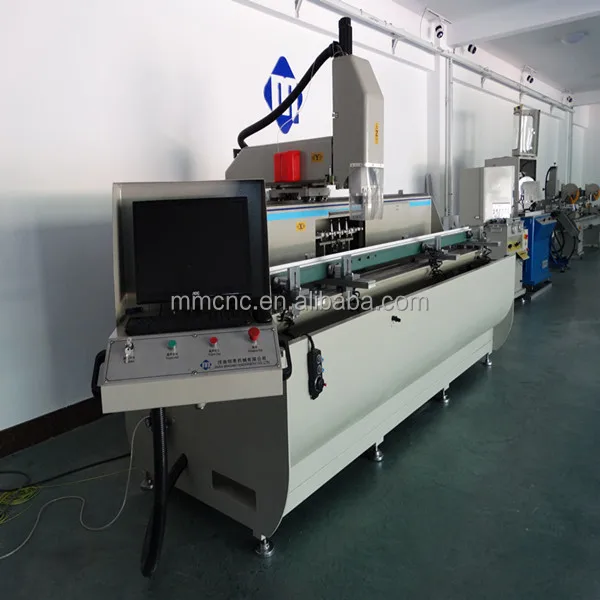

CNC Drilling milling machine is in our Show Room
Video Link
https://youtu.be/6YPB940s0j8 3 Axis CNC Processing Center For Aluminum Profile
https://youtu.be/xwDwG8uYSig 5 Axis Aluminum Processing Center MMCNC
https://youtu.be/mrBwrv2yiqo 5 Axis Thick Aluminum Profile Processing Center
https://youtu.be/LmU9itjttDo 1.2 and 3 CNC Aluminum Drilling Machine back to home point
https://youtu.be/gFBLDN2STGw 1.2 and 3 meters CNC Drilling Milling Machine Operation Connector electric and compressed air
https://youtu.be/Sgs33TXK22U 3 Meters CNC Drilling Machine How to set up tool R and Z
https://youtu.be/yO3X2pV5Qos 1.2 meters and 3 meters Aluminum Profile CNC Drilling Milling Machine Start to working
https://youtu.be/dl5RVGqn56c 6 Meters CNC Aluminum Process Center Start to working
https://youtu.be/eGtUXDL-68o Notching Saw for aluminum Profile
https://youtu.be/1YBrQfeMZYs Notching Saw For Aluminum Profile
Packaging & Shipping
Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box, just use the tray)
Client andExhibition
Company Information
Founded in 1995, Shangdong Mingmei CNC Machinery Co., Ltd has developed an assembly line for aluminum door, window and curtain wall equipment. With more than twenty years' production experience, Mingmei has become a leading manufacturer on window door machinery in China.
The main products include PVC/Aluminum Double-head Cutting saw, End miller, CNC Drilling milling machine, Copy router, Corner combing machine, Punching machine, bending machine, PVC welder, Corner cleaner, Water slot milling machine as well as CNC Router. and have been exporting to more than 30 countries.
OEM and ODM can be available.
Warmly welcome customers from all over the world to cooperate with us and visit to our factory.
You give us a chance, we will not let you down.
Company and Workshop photos
FAQ
F A Q
1.Are your company a trading one or a factory?
Factory + trade (integration), 21 years' focusing on Aluminum Window and Doors Equipment field.
2.After an order is placed, when to deliver?
Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each machine must be carried out 100% quality examination and test before shipment.
And all machines meet ISO and CE certification.
5. If we don’t know the machine operation, what should we do?
Each of our product provide video training to show you how to install & operate.
