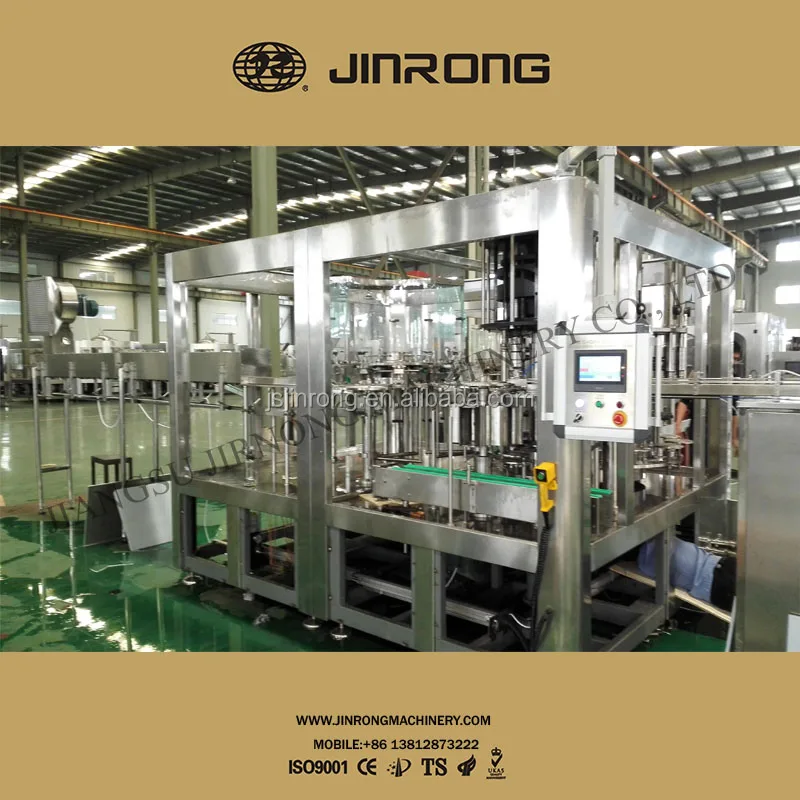

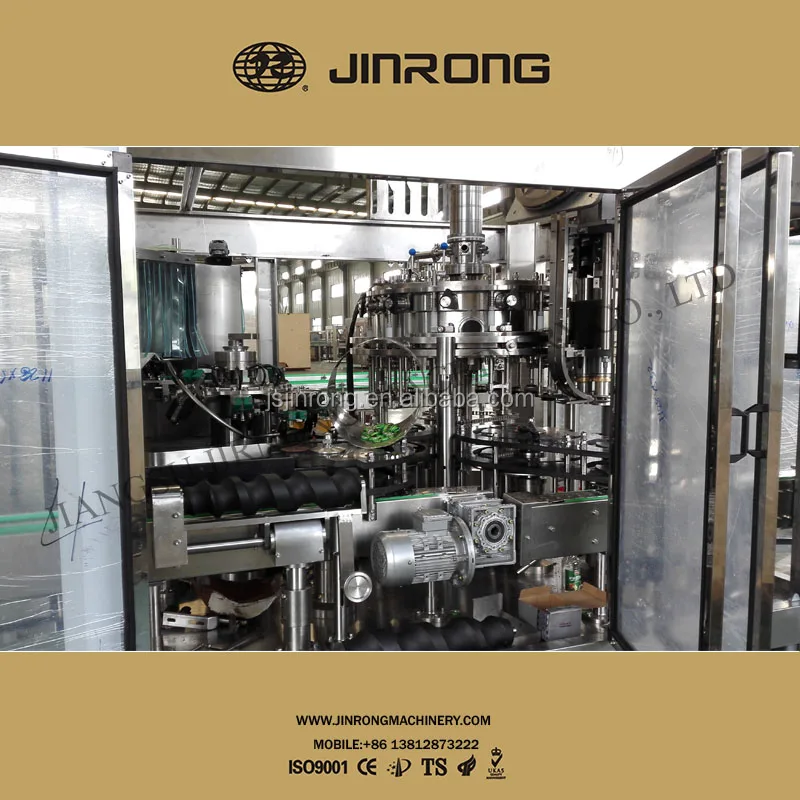

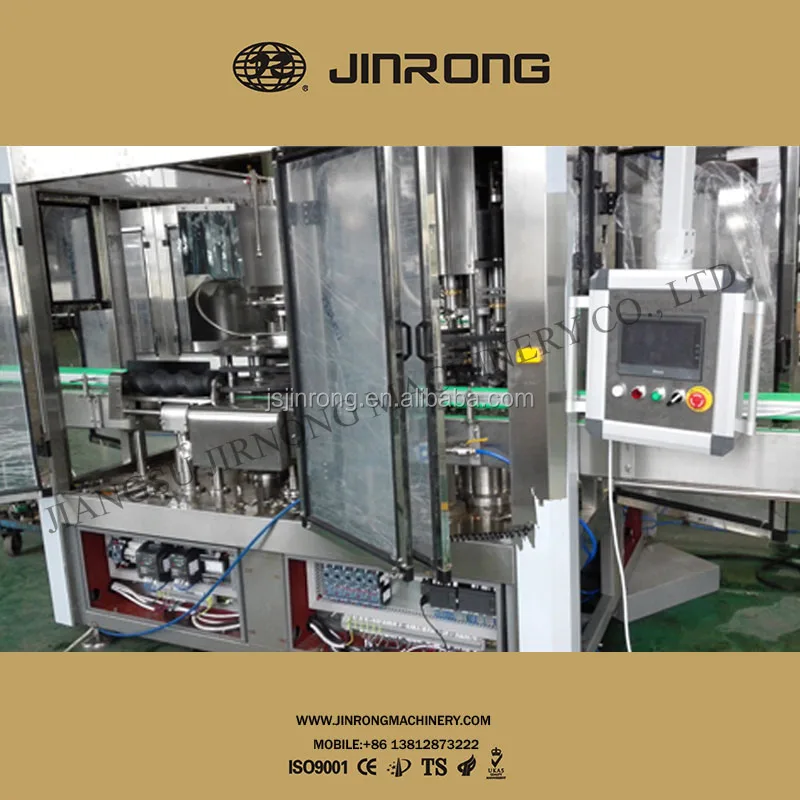

Разливочная машина для газированной воды, 18 головок

Product Overview

Description

1) Model:  JR 18-18-6D

2) Name:  Rinsing, filling & capping machine

3) Rinsing heads:  18

  Filling heads:   18

  Capping heads:   6

4) Capacity:      5000 bottle per hour (for 500ml bottle)

5) Dimension:    2800mm(length)*2050mm(width)* 2200mm(height)

6) Suitable bottle:  PET (sample provided by customer)

  Diameter range:  Φ50mm—Φ115mm

Height range:     160mm—320mm

7) Suitable cap:       plastic

8) Frequency converter:     Mitsubishi

9) Main motor:     4kw

10) Rinsing water pressure:   0.06 MPa < P ≤ 0.2 MPa

11) Pressure of Liquid tank:   ≤0.45Mpa
