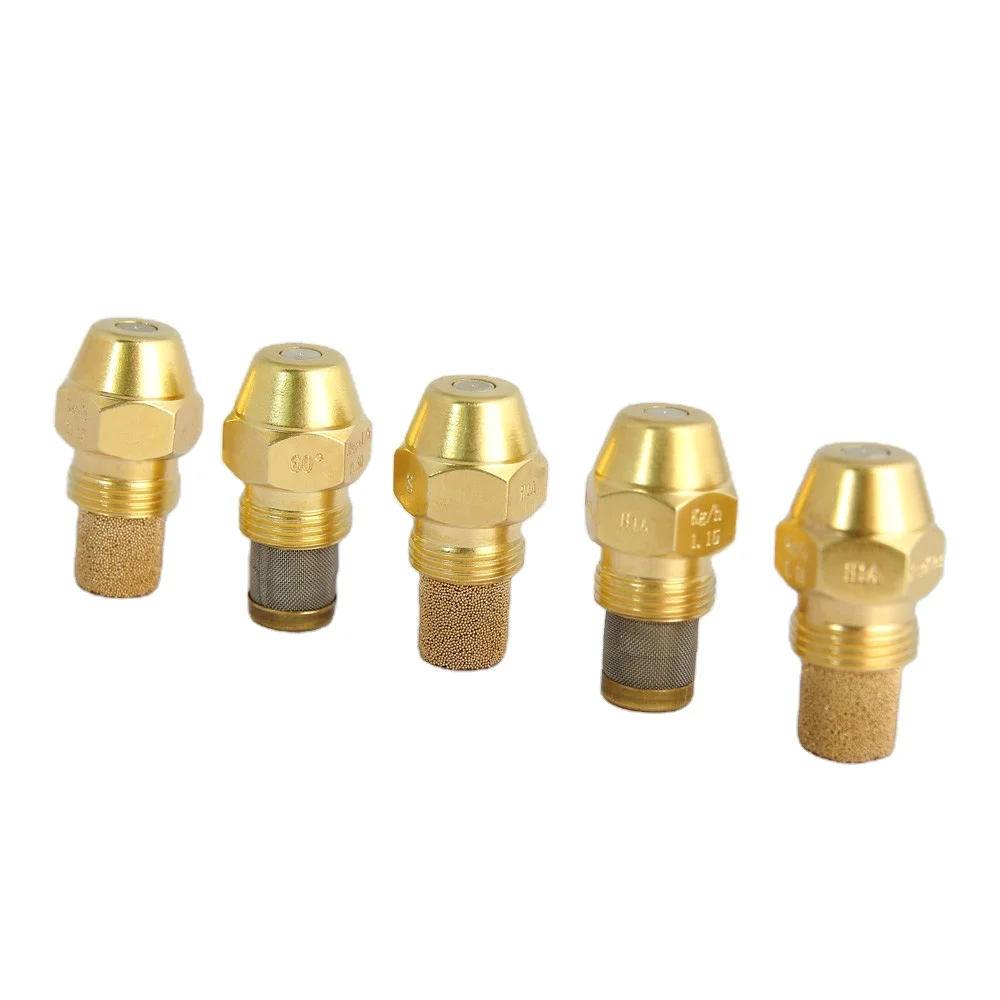

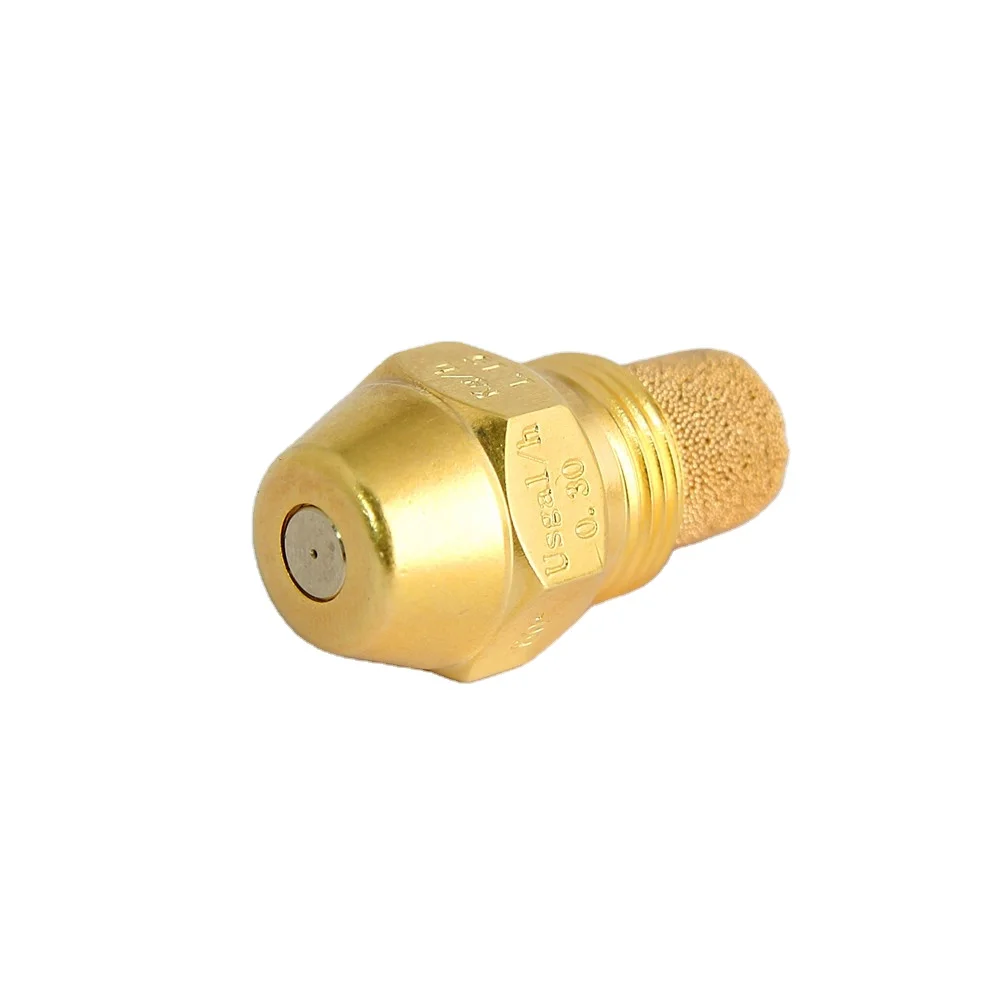

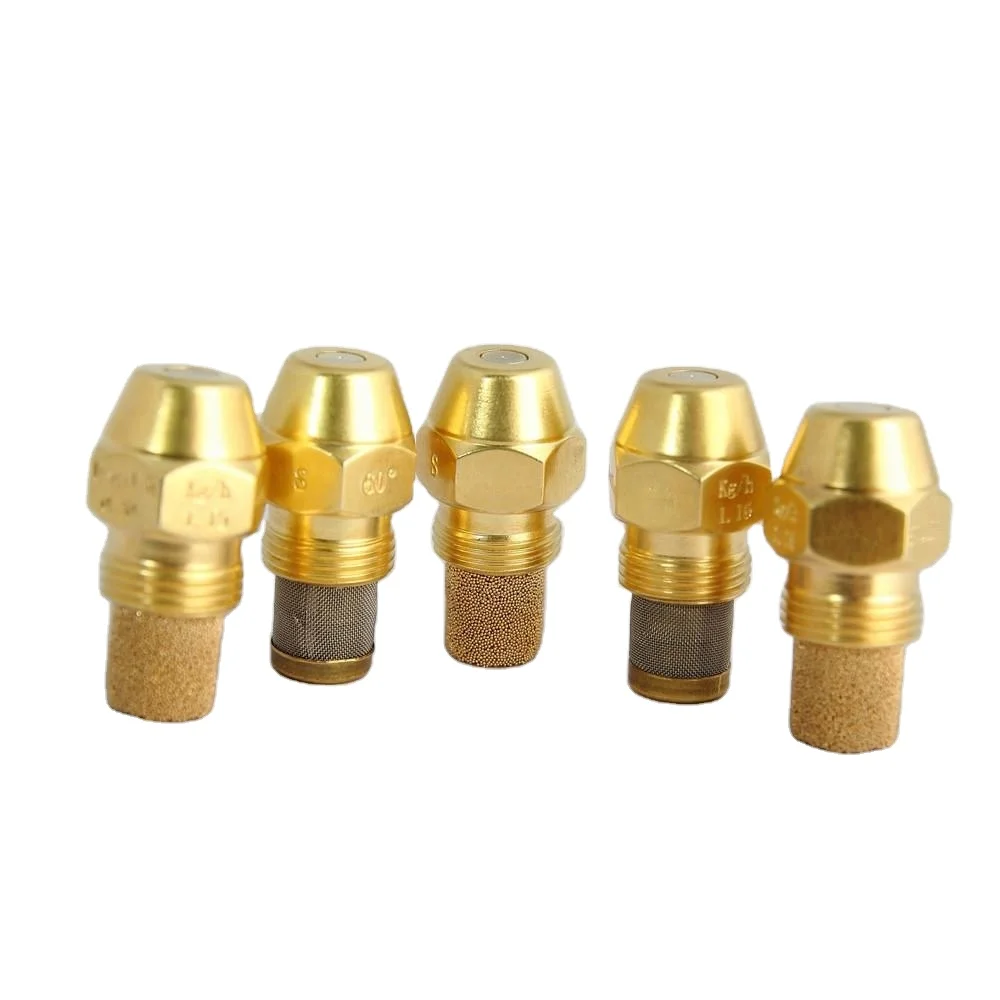

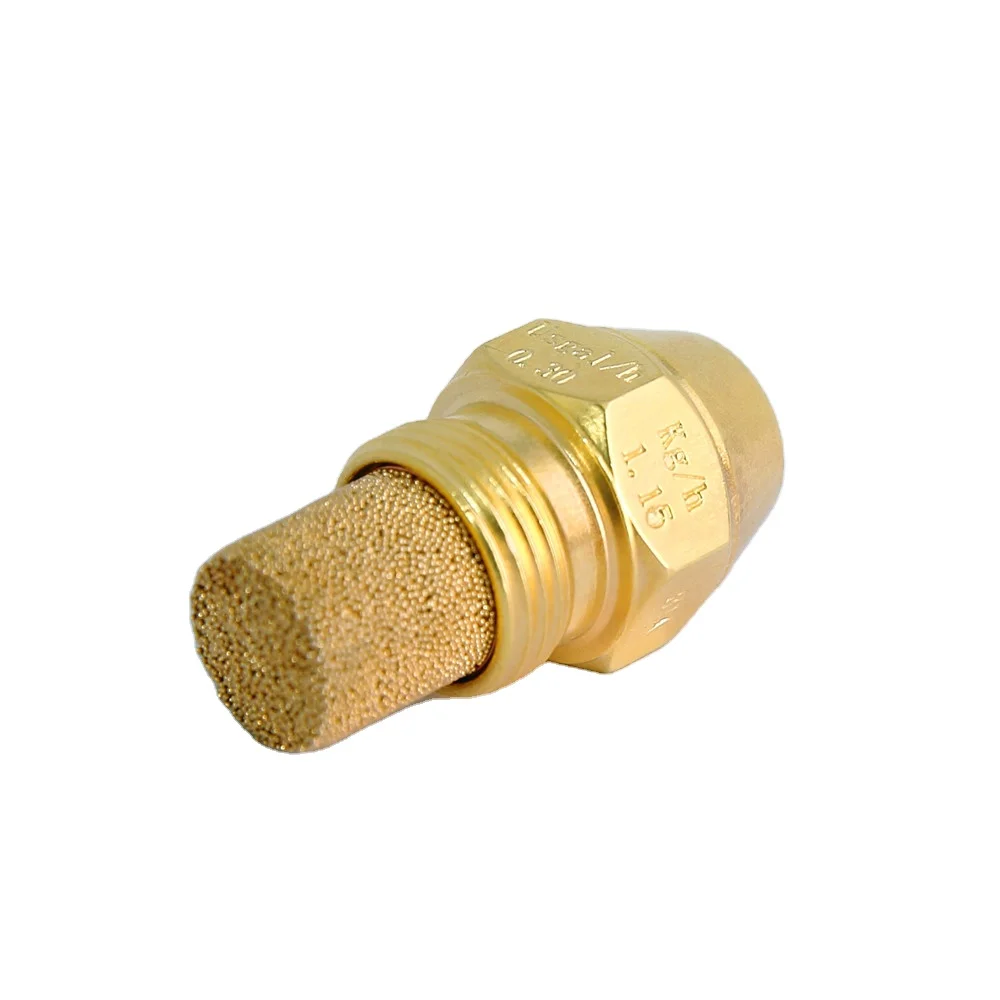

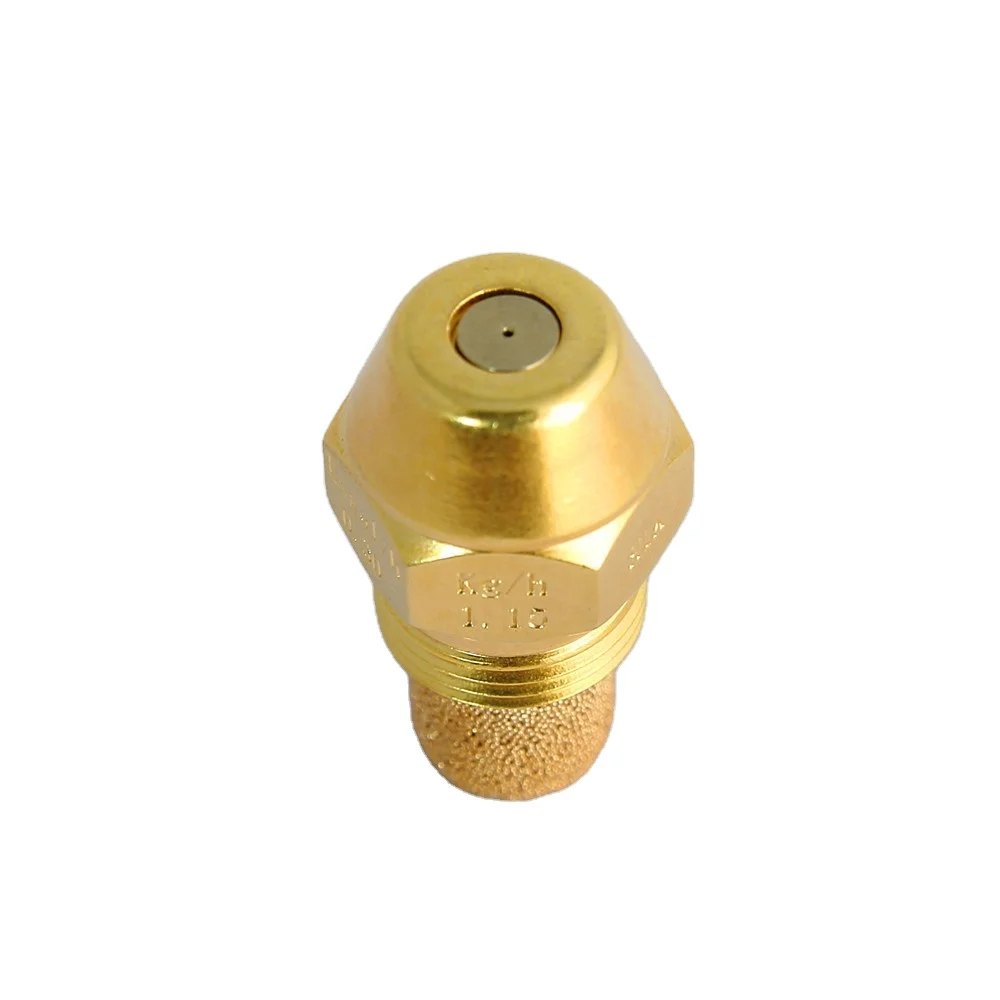

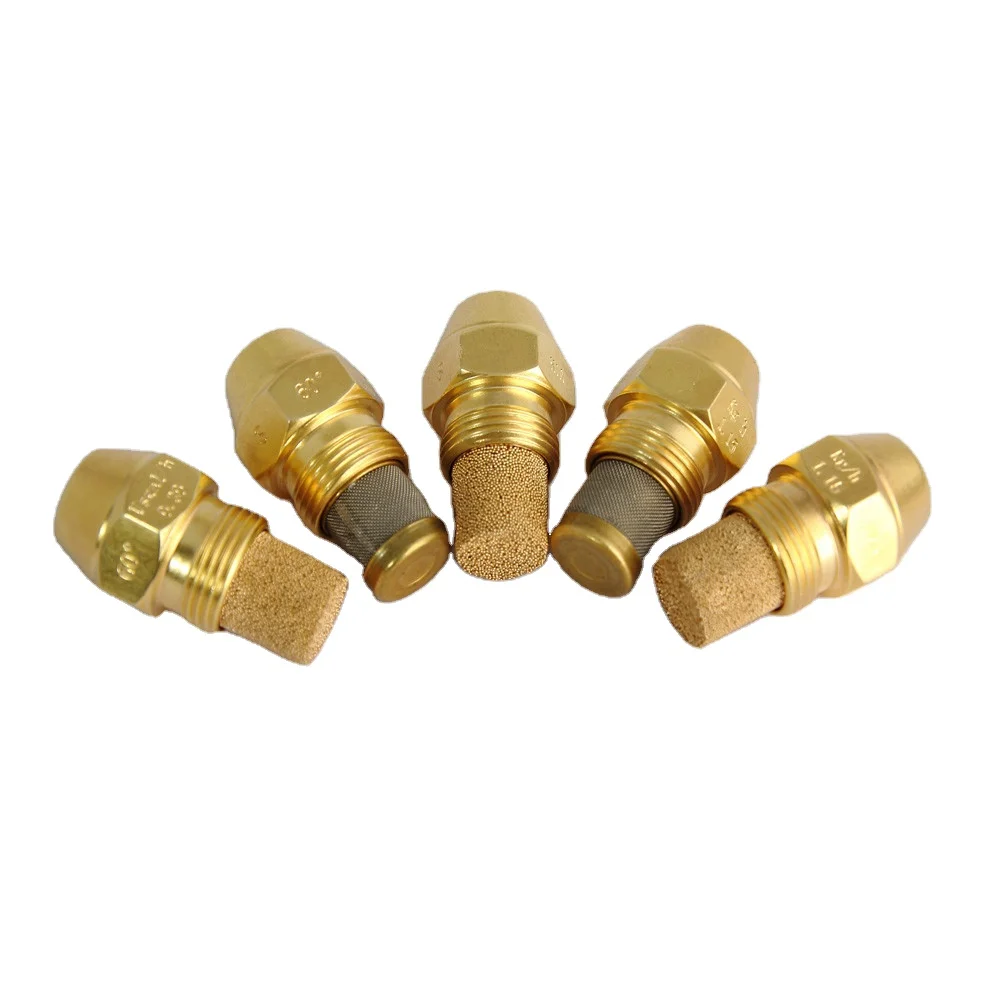

OD Series oil burner nozzle is single fluid nozzle foburning the light oil heavy oil. CYCO provide the OD nozzle with four spray angles:30,45,60 and 80 of three spray pattern : solid cone , semi-solid cone and hollow cone. The capacity for OD you could choose from 0.5usgal to 35usgal.
| Product Description |
| Place of Origin | Guangdong, China (Mainland) |
| Brand Name | CYCO |
| Model Number | OD |
| Condition | New |
| Oil inset | 9/16-24UNEF |
| Material | Brass |
| Certificates | ISO 9001, ISO14001, TS16949 |
| Spray pattern | full cone,Semi-full cone,Hollow cone |
| Air inlet | |
| Spray angle | 30°, 45°, 60°, 80° |
| Capacity | 1.0-21kg/h |
| Height | 200mm |
| Air Pressure | 0.1-0.3 MPa |
| Application | Oil Burning |
|
|
Product Display |


Pls Click the different nozzle pictures as below,
then you will go to the related nozzle page for more information.
Oil burner nozzle Spiral Nozzle Ultrasonic Atomizing Nozzle
Tank Washing Nozzle Hollow Cone Nozzle FD Mist Nozzle
Dry Fog Humidifier Fire Fighting Nozzle Air Atomizing Nozzle
| Production Steps |
