Product Overview

Description


winch relay.jpg



Product Description

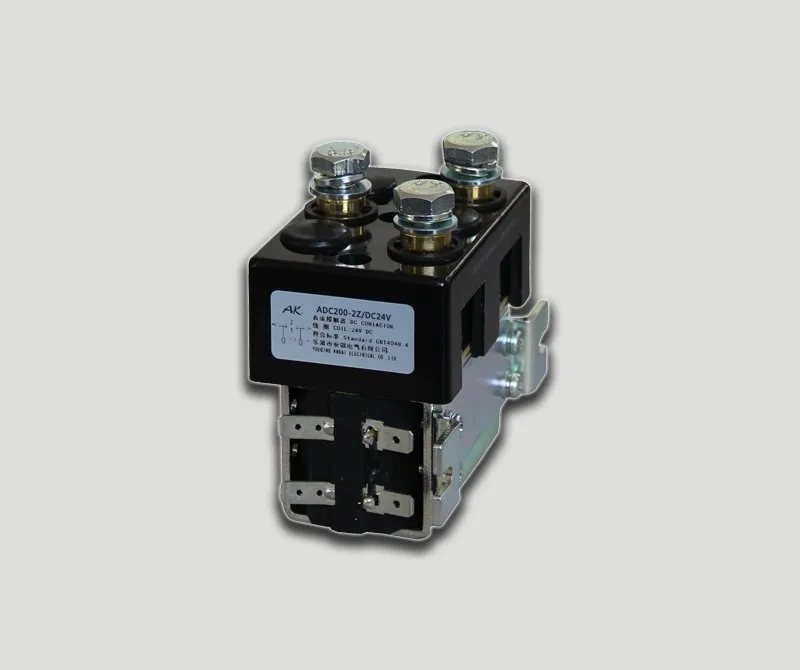

DC182 ADC200-2Z Reach Trucks Winch Relay, 2NO 2NC 72V Winch Relay/













Brand: AK/AOKAI





Name: DC Reversing Contactor





Model: ADC200-2Z/DC182





Rated Voltage: DC12/24/48V





Rated Current: 200A





Connection Mode:  Screw Type





Dimension: 71.5*109*127(mm)





Weight: About 1.8kg






winch relay.jpg






ELECTRIC CONTACTOR


SPECIFICATION





















































































Coil Rated VoltageDC12V, 24V, 36V, 48V
Main Circuit Rated Current (A)200A
Main Circuit Contact Voltage Drop Of (load:100A)

≤80mV


Under (20±5℃), Cooling Pull-in Voltage≤70%
Under (20±5℃), Cooling Release Voltage≥5%, ≤40%
Acceptable Fluctuation Range of Coil Voltage±20%
 Electrify Time≤30ms
 Disconnecting Release Time≤20ms
 The Max Disconnecting Time of Contacts≤5ms
 Insulation Resistance≥50MΩ
 Dielectric Strength50Hz/60Hz 1000VAC/1min
 Overload Current≤7Ie, ≤1s
 Coil Consumption (W)≤24.0W
 Electrical Life                    20000 times
 Mechenical Life 300,000 Times
 Working ModeContinuous
 Contacts Type2 NO and 2 NC
 Contact MaterialAgCdO / AgCuO
Starting Current  ≤4A
Technical StandardGB14048.4-2010

   Battery Powered Winches               Battery Powered Winches     Battery Powered Winches


USAGE ENVIRONMENT





























Altitude≤2KmAmblent temperature-25~+55℃
International protectionIP56Installation typeIII
Way to installAnyVibration2.5g(5~50)Hz
Impact50g,11ms(Half-sine wave)

 Electric Contactor   Electric Contactor       Electric Contactor     Electric Contactor     Electric Contactor


SCHEMATIC DIAGRAM


winch relay.jpg
Electric CONTACTOR        ELECTRIC  CONTACTOR       ELECTRIC CONTACTOR       ELECTRIC CONTACTOR


INSTALLATION DIAGRAM


  Battery Powered Winches       Battery Powered Winches      Battery Powered Winches    Battery Powered Winches


winch relay.png

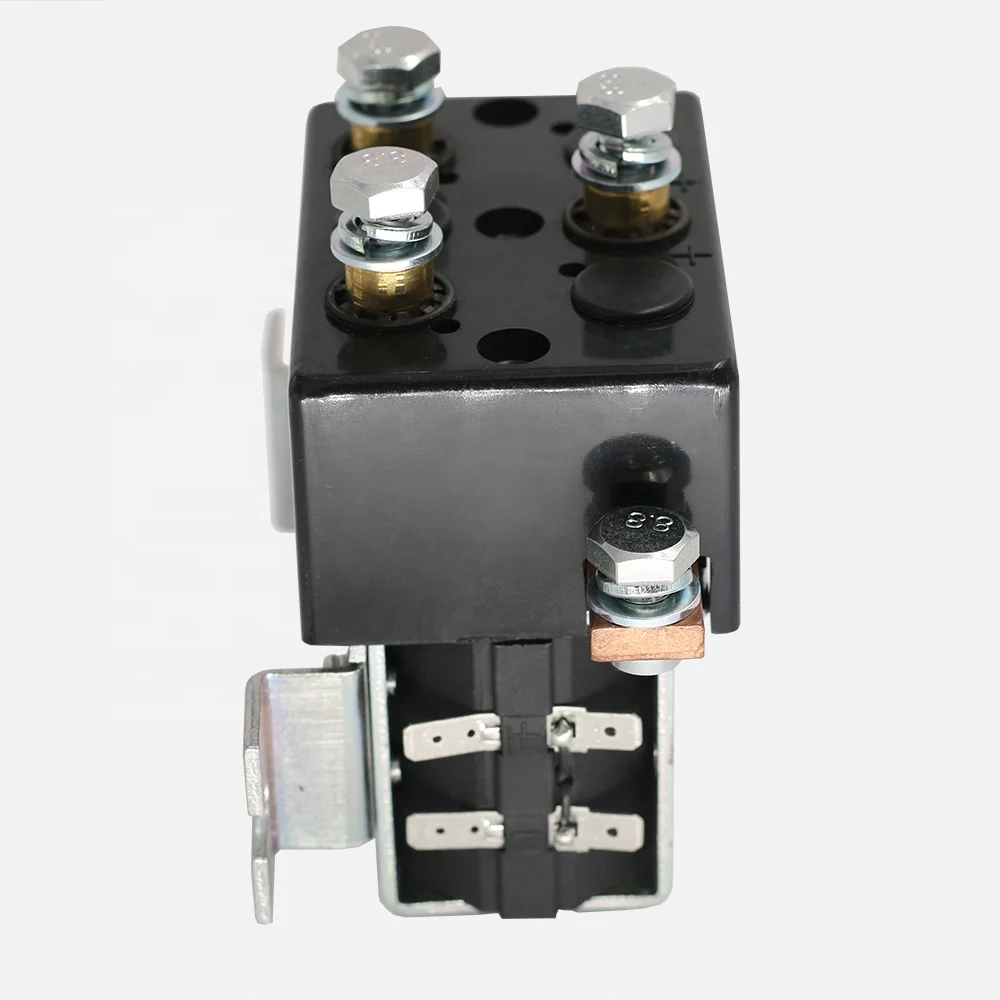

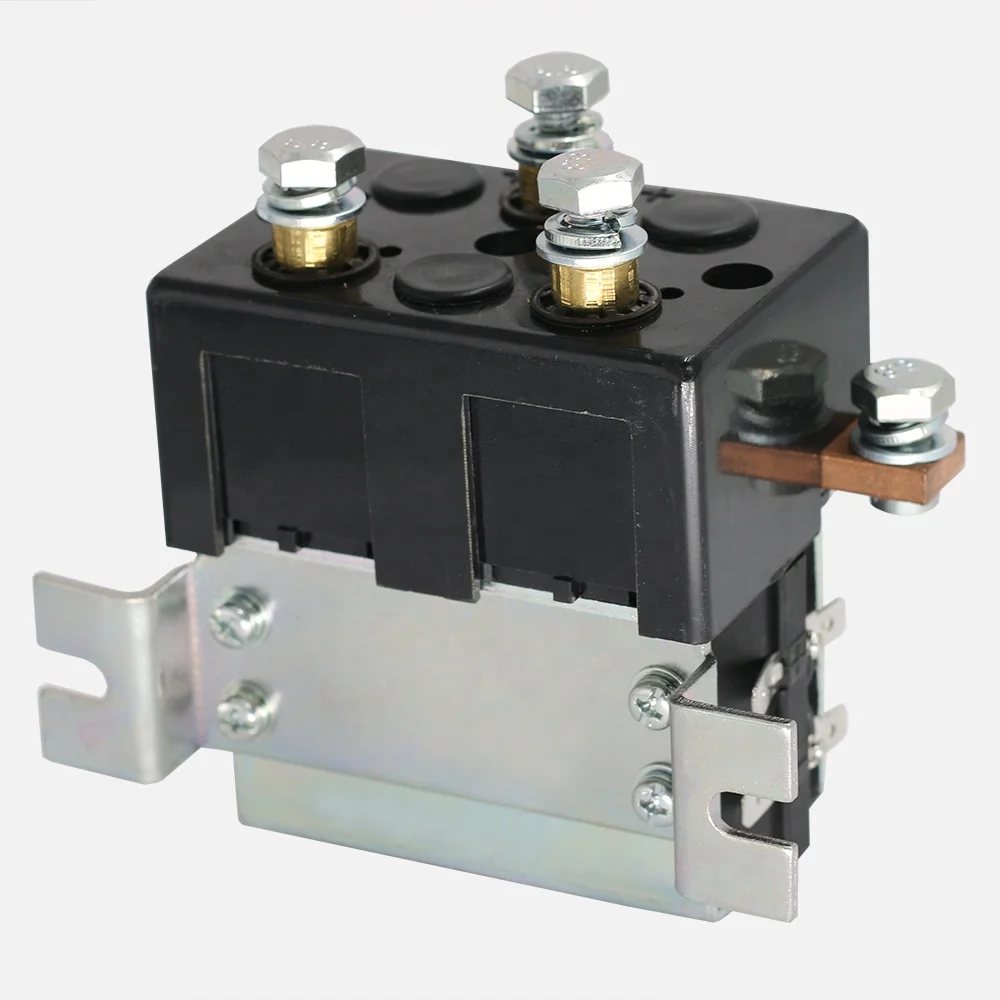

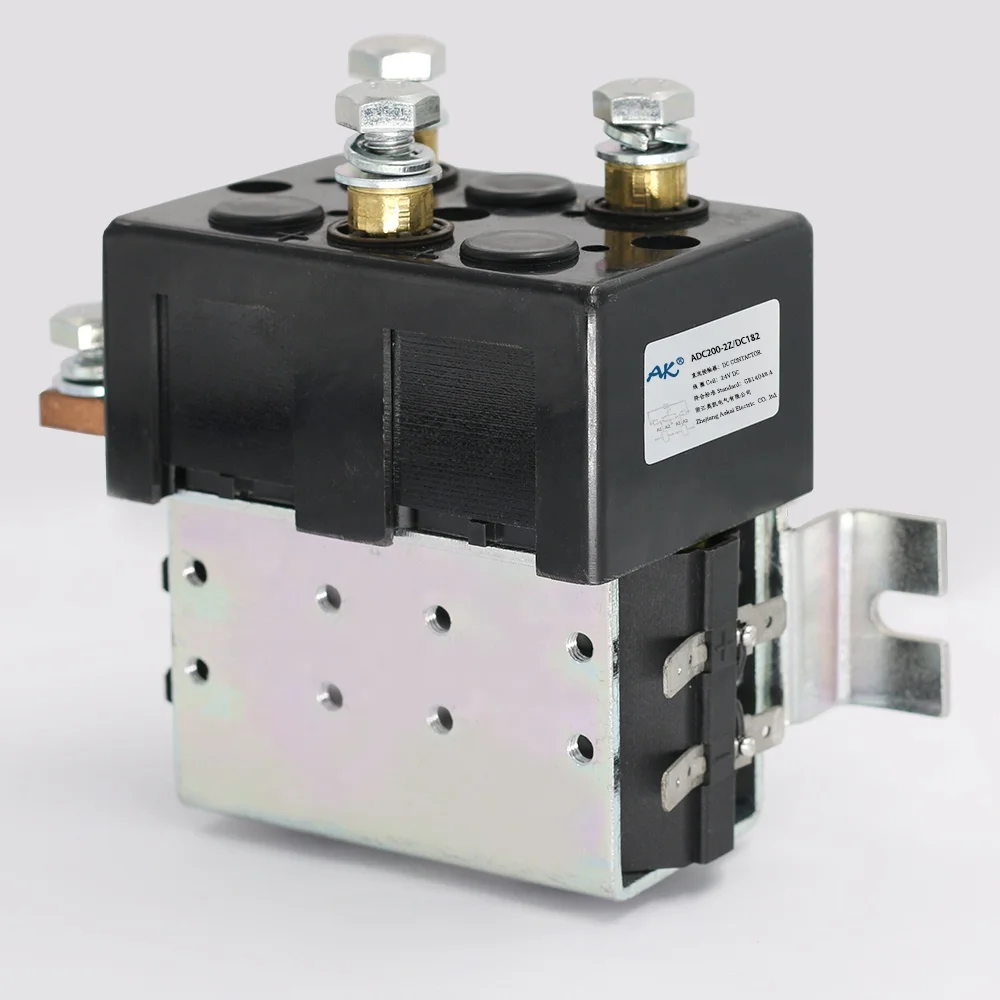

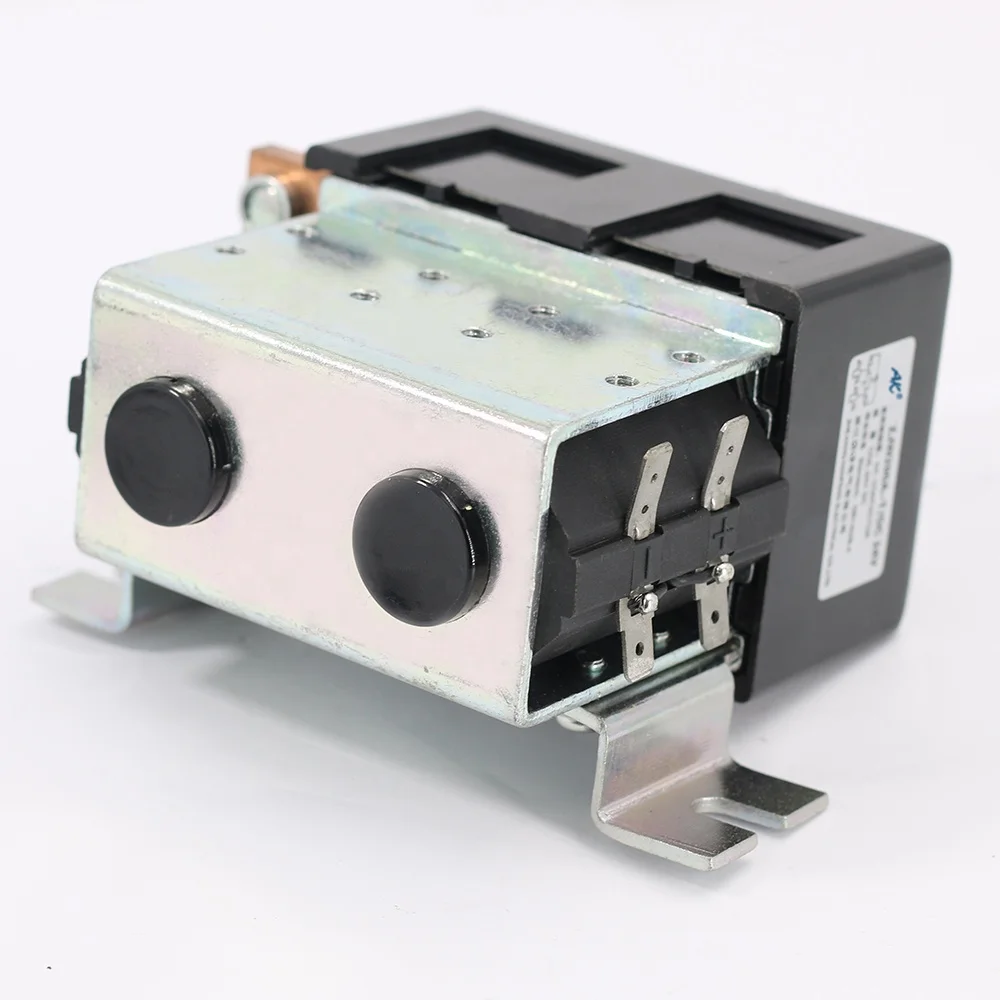

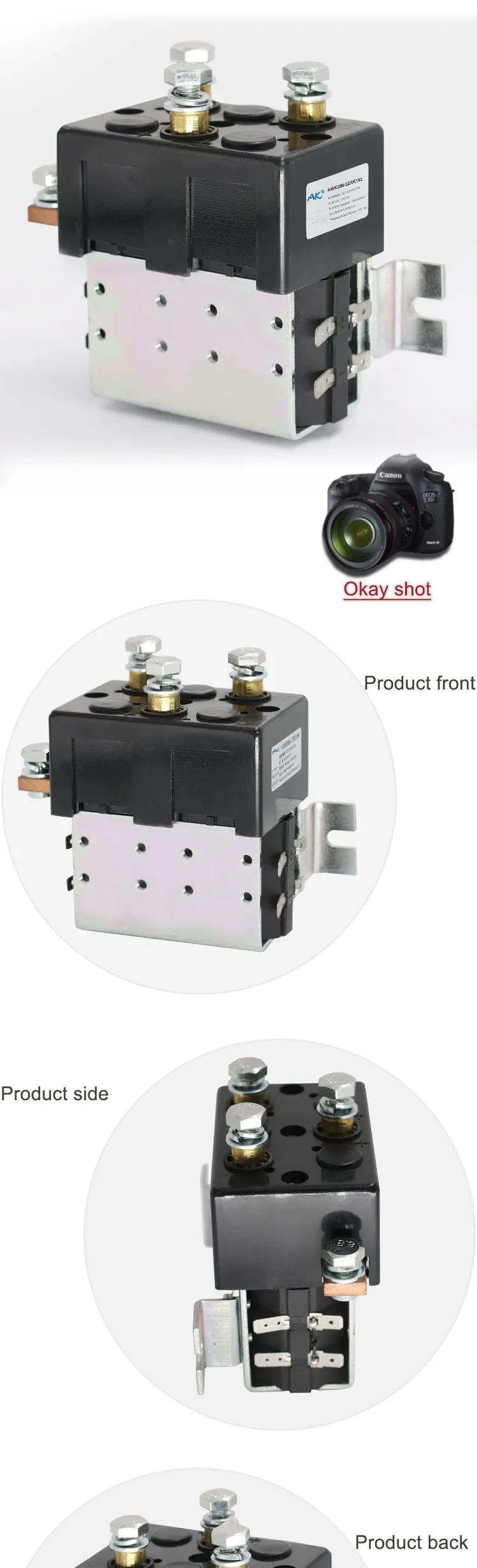

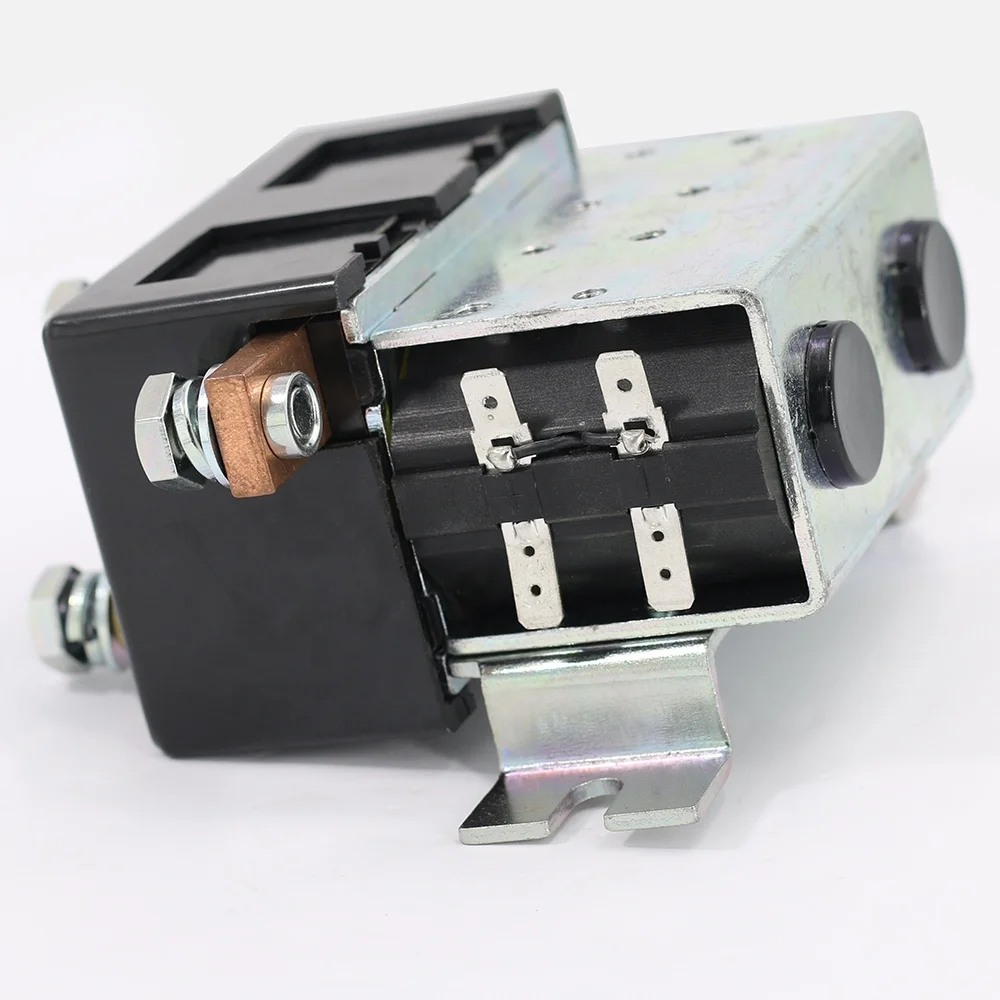

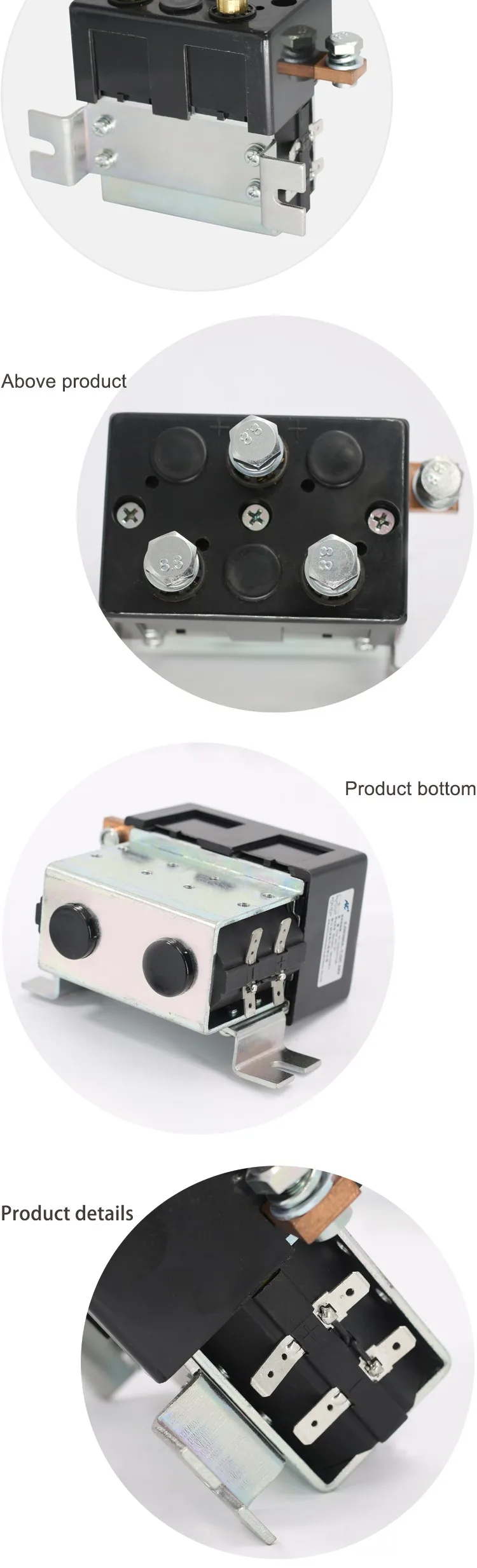

Product Photo Show


winch relay.jpgwinch relay.jpg
