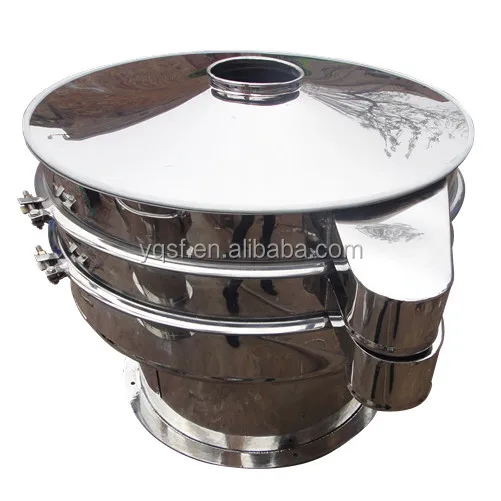

industrial flour sifter/ maize starch sieving machine

Product Overview

Description













 Introduction of Vibrating Screen:



 The XZS series vibration screen is a sorting and separation screening machine , use vibrating motor as vibraion source making processing materials move centrifugally ,and realize screening purpose.  by adjusting eccentric blocks' angles of the motor , can easily change the vibrating force .



Application

The sieve shaker machine is suitable for screening powders , particles and liquids.

Widely used in fertilizer, medicine and powder coatings, paints, cosmetics, oils, resin, ceramic slurry, clay mud, lime, , juices, beverages, sugar, salt, monosodium glutamate, spices , sewage, wastewater treatment processes milk, starch, wheat flour, rice flour, carbon, graphite, manganese powder, lithium carbonate, a co-solvent, fire extinguishing agents and environmental protection industries in the screening, filtering









Features of Sieve Screen:

1. high efficiency in scren separation and filtering precision ,

2. suitable for all kinds of powders ,particles  and liquids,

3. no block of screen nets ,

4.fast and flexible in change of screen

5. environment friendly , the dustproff lid preven powder flow efficiently

6. the feeding-out direction can be selected freely







dustproof lid prevent environment pollution		the sieve outlet can be adjusted to any direction freely
quick release ring make it  easy & fast to change screen		adding bouncing ball for screening fine powders,prevent mesh blockage

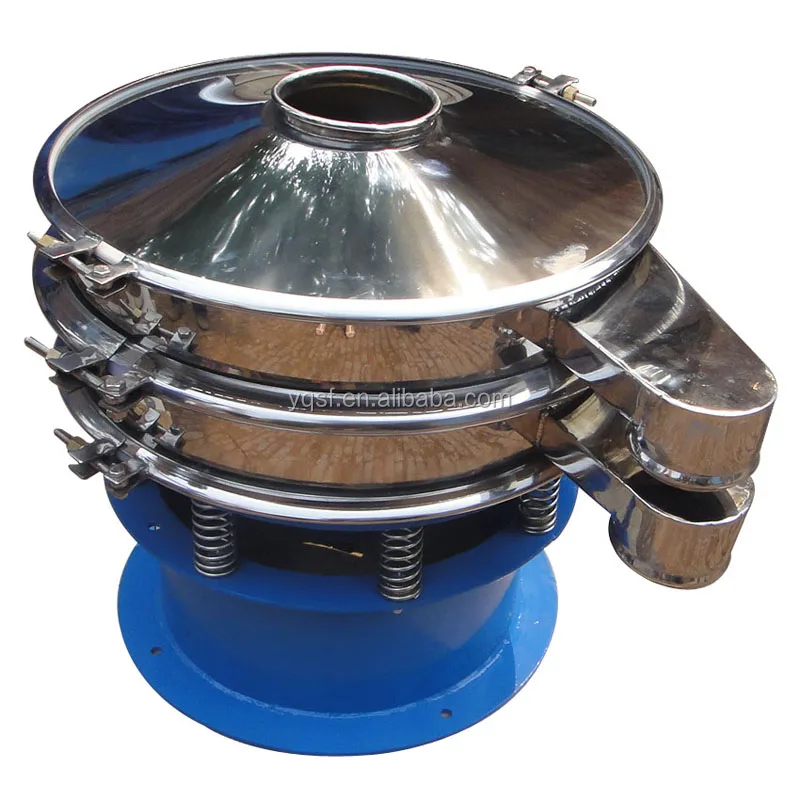

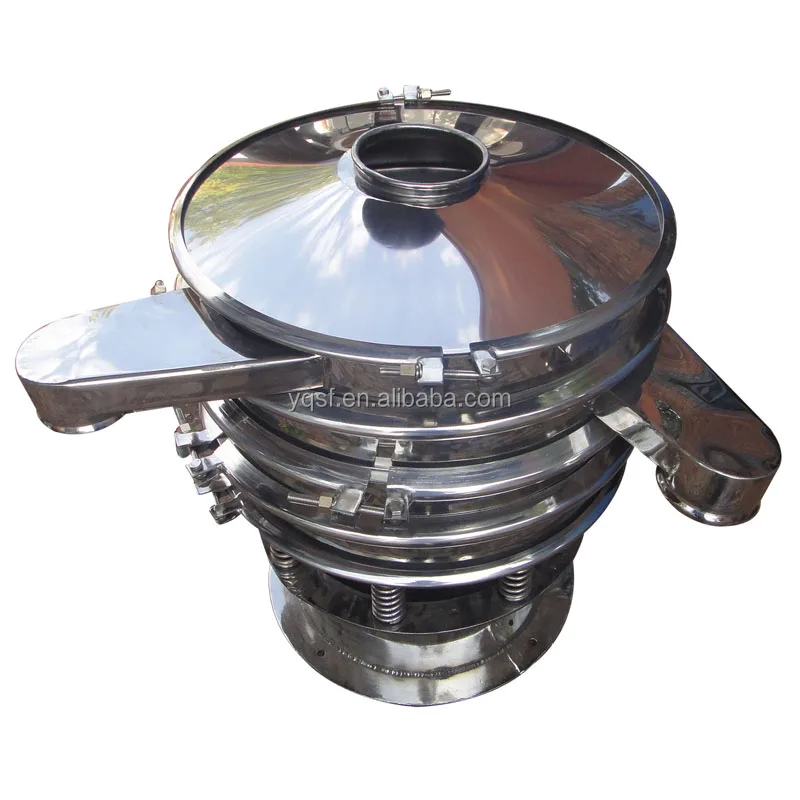

stainless steel 2 layers

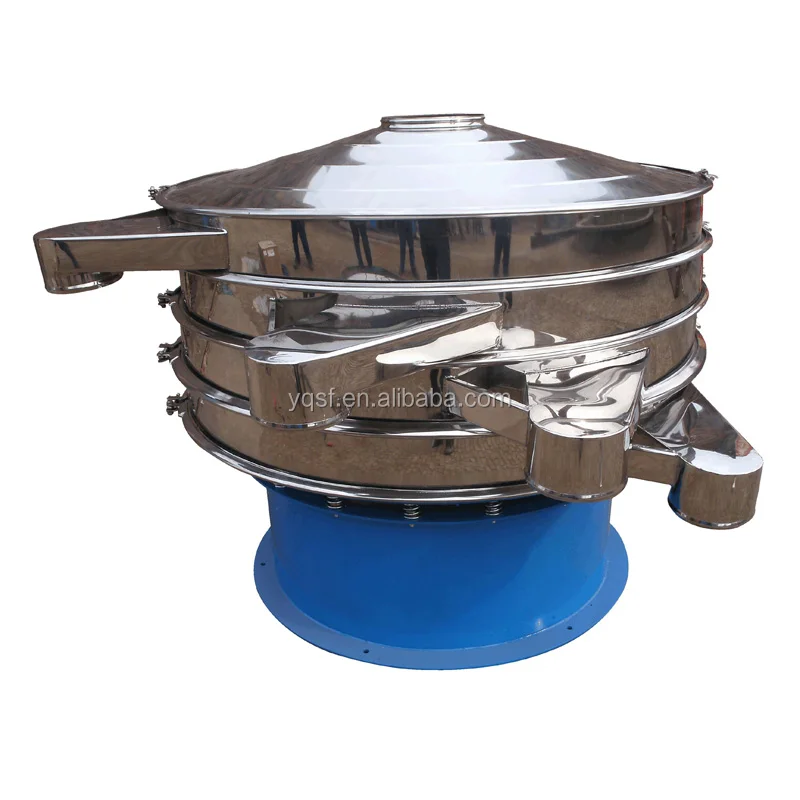

carbon steel  4 layers

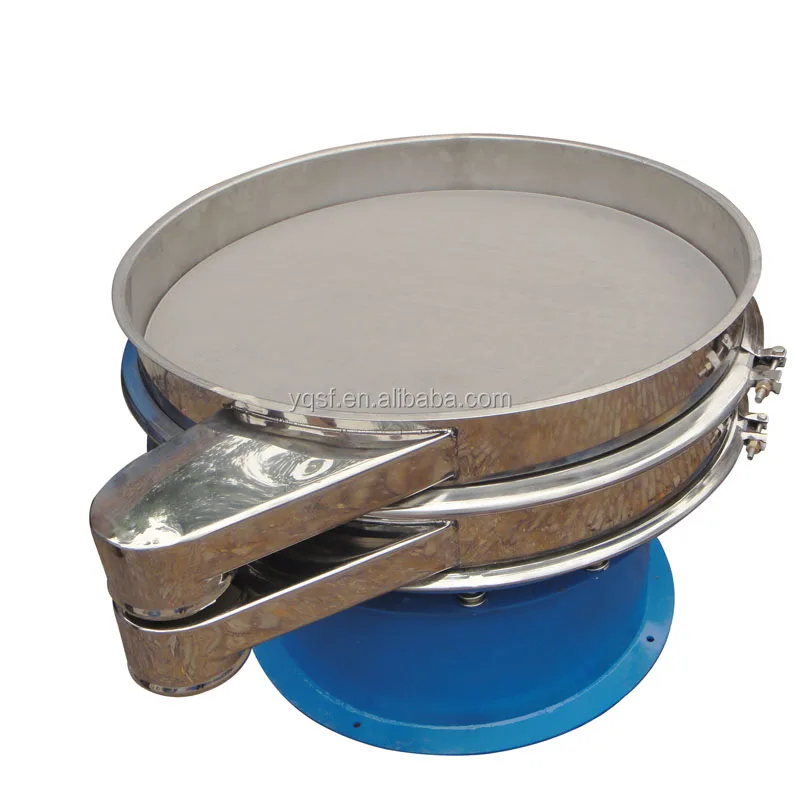

contact part stainless steel single layer with bouncing ball















Vibrating Motor Source of vibrating force , adjust vibrating force by change angles between the two eccentric blocks. Automatic power-off protection in case of short circuit , default phase or unstable voltage











Working Principle of Vibratory Screen
use vertical vibrating motor as vibrating source .there are two accentric blocks fixed on the motor shaft , can produce horizontal, vertical, inclined three dimensional motion. by adjusting the phase angle between th two eccentric blocks, effected different centrifugal force , then material's moving trails changed , and achieve screening purpose













 Parameters of Sifter Sieve





Model	XZS- 500	XZS- 600	XZS- 800	XZS- 1000	XZS- 1200	XZS- 1500	XZS- 1800	XZS- 2000
Dia (mm)	500	600	800	970	1170	1470	1770	1970
Layer	1-3	1-3	1-3	1-3	1-3	1-2	1-2	1-2
Screen Dia (mm)	430	530	730	900	1100	1400	1700	1900
Screen Mesh (mu/inch)	2-500
Maximum particle size(mm)	<20	<20	<30	<30	<50	<50	<50	<50
Vibration time (times/min)	1440
Power(kw)	0.25- 0.55	0.25- 0.55	0.55- 0.75	0.75- 1.5	1.1- 1.8	1.5- 2.2	2.2	2.2











Outer packing	plywood case, which is up to the international standards.
Inner packing	moisture-proof and water-proof membrane.
Delivery	3-5 working days after deposit









Q: How do i select the suiable vibrating screen ?



A: Please confirm the following information , then we will advice you the exact screener machine:



1. what material you are going to screening ?

2. How many  layers you need ?

3. the screen mesh size for each layer you need .

4. what process capacity you need  ( t/h ) ?







vibrating sieve material	full stainless steel , full carbon steel , contact part stainless steel
screen layers	1-5 layers
screen diameter size	450mm--2000mm
screen mesh	2-500mu/inch
voltage	110V-550V , single phase /three phase  , 50HZ/60HZ
