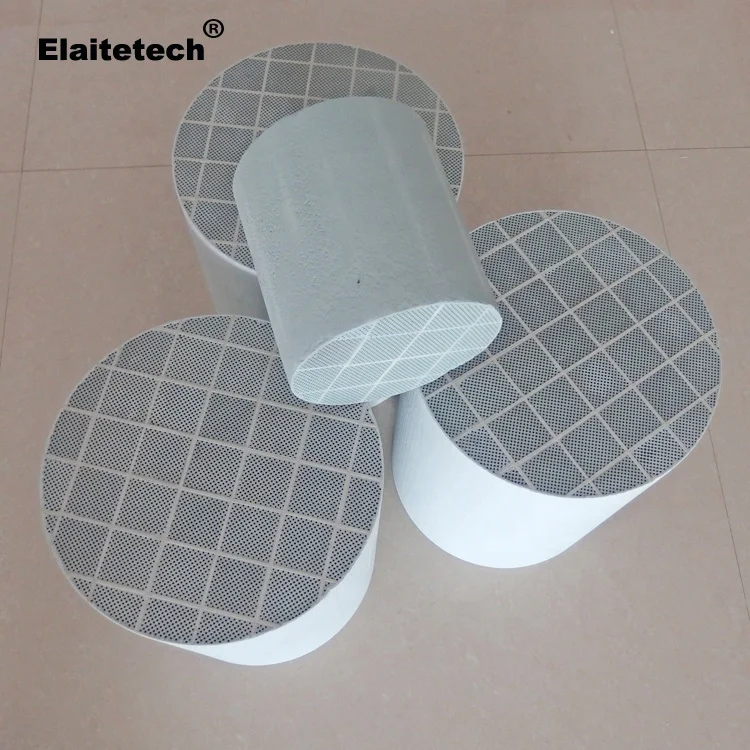

Durable new style wall flow filter DPF diesel particulate filter
- Category: >>>
- Supplier: Nanning Elaiter Environmental Technologies Co. Ltd.
Share on (60523382147):
Product Overview
Description
Product Description
Diesel particulate filter (DPF) is also called wall flow filter. Spreading with catalyst layer is called CDPF (catalytic DPF).
The filtration material researched and used at present is of three types: ceramic, metallic and composite based. The common types are ceramic based (cordierite or silicon carbide) and metallic based (stainless steel wire mesh) diesel particulate filter.
The main composition of tail gas discharge from diesel is carbon particulates. Diesel particulate filter is a setting to reduce emission granule by filtrating which is set in exhaust system in diesel. Its efficiency for carbon particulates filtration is more than 90%. Part of dissoluble organic composition (SOF) (especially high boiling point) may be trapped.
Working Principle

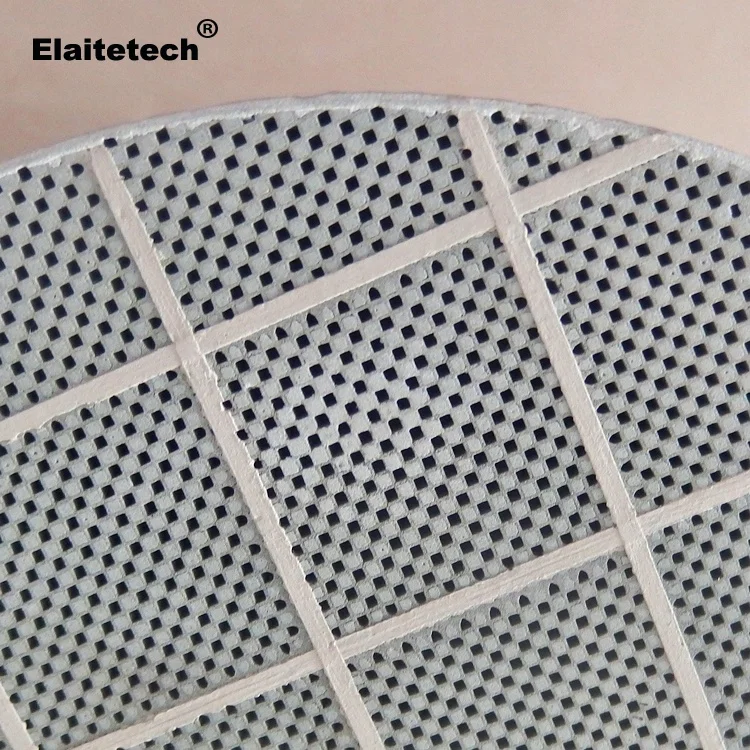

Plugging up two ends of porous beehive ceramic in turns to filtrate PM by ceramic wall.
DPF Regeneration
Burn the particulates by rising the gas temperature in filter to filtrate PM which piled in the filter so as to guarantee the function of filter. The character of particulates in exhaust gas of diesel relates to concentration of oxygen. It will burn in temperature of 550-650°C.
Advantage of DPF
1. Low pressure drop.
2. Low coefficient of thermal expansion.
3. Good thermal shock resistance.
4. High temperature resistance, good resistance to chemical corrosion.
5. High porosity, pore size distribution uniform, high filter specific surface area.
6. Long-term durability performance.
7. High particulate trapping efficiency, suitable for all kinds of regeneration.
Diesel particulate filter is suitable for exhaust gas purification of various kinds of diesel vehicles and ships.
If you want know more things about the DPF, please contact us directly, I will do my best to service for you.

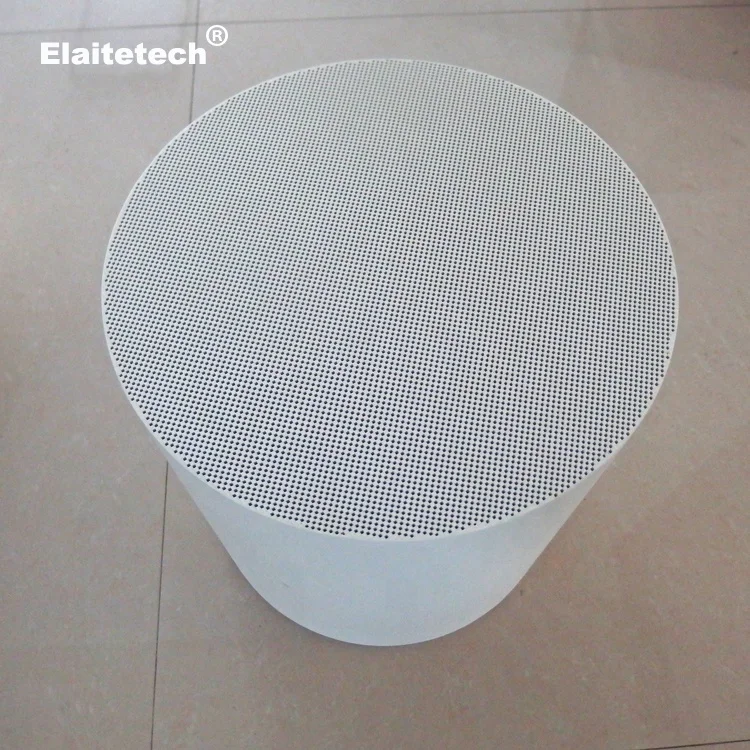

Cordierite DPF
The most common filter is made of cordierite. Cordierite filters provide excellent filtration efficiency, are relatively inexpensive (comparison with Sic wall flow filter). The major drawback is that cordierite has a relatively low melting point.
Chemical & Physical Properties of Cordierite DPF
Property (Uncatalyzed) | Technical index | |
Chemical Composition | SiO2 | 50.9±1% |
AL2O3 | 35.2±1% | |
MgO | 13.9±1% | |
Physical Properties | Compression Strength in normal temperature | ≥10Mpa |
Coefficient of thermal expansion (20-800°C) | ≤1.2×10-6/°C | |
Wall thickness (100 CPSI) | 0.42-0.50 mm | |
Wall thickness (200 CPSI) | 0.30-0.40 mm | |
Apparent porosity | ≥50% | |
Average pore diameter | 10-15 micron | |
Softening temperature | 1400°C | |
Soot-filtration efficiency | ≥95% | |

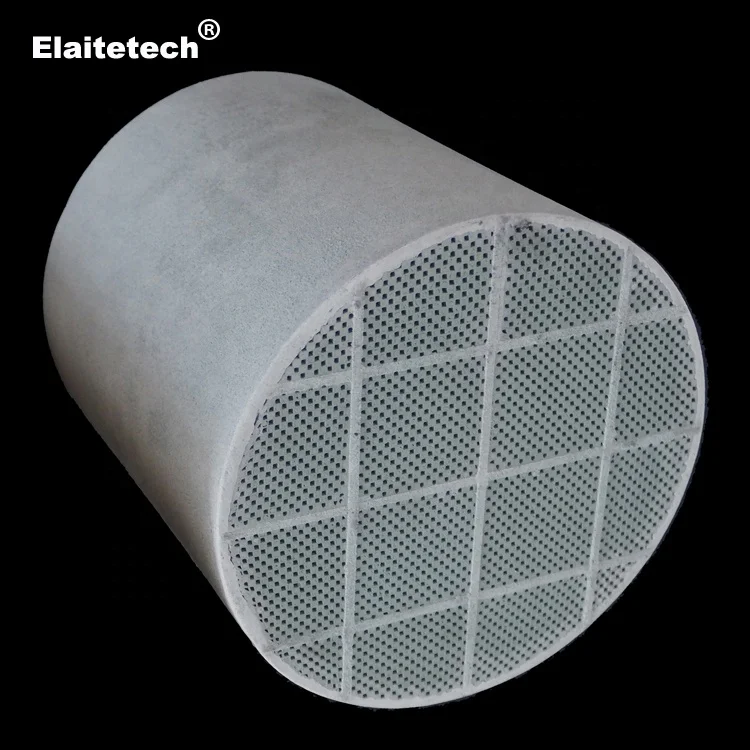

Silicon Carbide DPF
Silicon carbide diesel particulate filters (Sic wall flow filters) have a higher melting point and filtration efficiency (can be up to 95%) than cordierite, they are usually more expensive than cordierite wall flow filters.
Technical data of Sic Diesel Particulate Filter
Item | Units | Technical Index |
SiC Content | % | >90 |
Cell density | CPSI | 200 |
Wall thickness | mm | 0.35-0.41 |
Cell Length | mm | 1.2-1.45 |
Apparent Porosity | % | 42-60 |
Median Pore Size | μm | 12-20 |
Transverse Compression Strength | Mpa | >2.3 |
Vertical Compression Strength | Mpa | 10-18 |
Coefficient of thermal expansion (40-800°C) | 10-6/°C | 4.3-4.4 |
Thermal Conductivity ( 500°C) | W/mK | 14-22 |
Capture Rate | % | >95 |
Bulk Density | Kg/L | 0.8 |
Filter Area | m2/L | 0.75 |
Softening Temperature | °C | 1400 |
