DN 880S Hydraulic Dual Arm Wheelchair Lift for Van and Minibus
- Category: >>>
- Supplier: Changzhou Xinder-Tech Electronics Co. Ltd.
Share on (60523469854):
Product Overview
Description

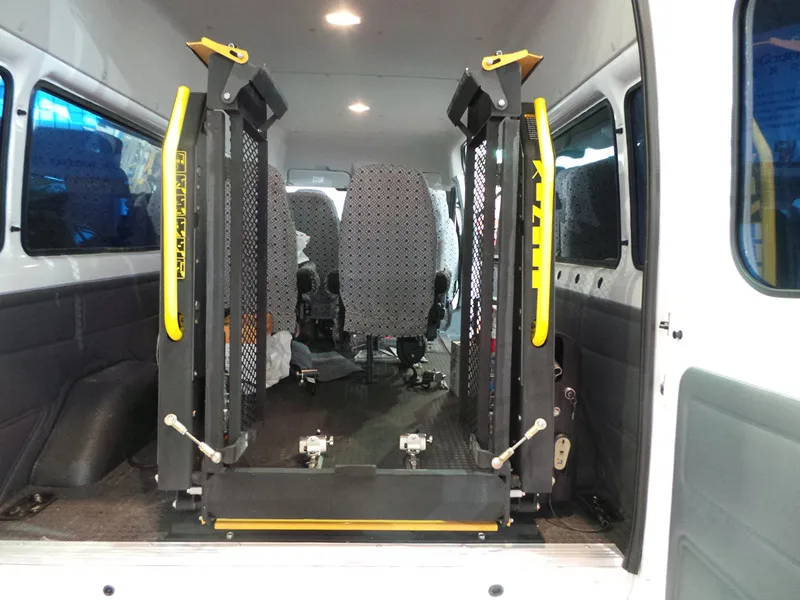

WL-D-880S wheelchair lift
There is electrical &hydraulic control system in WL-D series wheelchair lift, which can operate lift to extend, stow, lift and lower down. Lift performance is controlled by standard controller which can be wire control or remote control. Moreover, there is manual equipment for manual operation.
Maintenance free bearing is used at hinged joint, so that this lift is easy to maintenance. This lift will take up little vehicle space because of the exquisite and compact design and completely steel structure.
The WL-D Series wheelchair lifts are fully hydraulic in operation, for both the fold/unfold and up/down cycles. Lift operation is controlled by the standard hand-held control, the on-lift controls, or the optional remote control.
WL-D Series wheelchair lifts have got CE certificate.

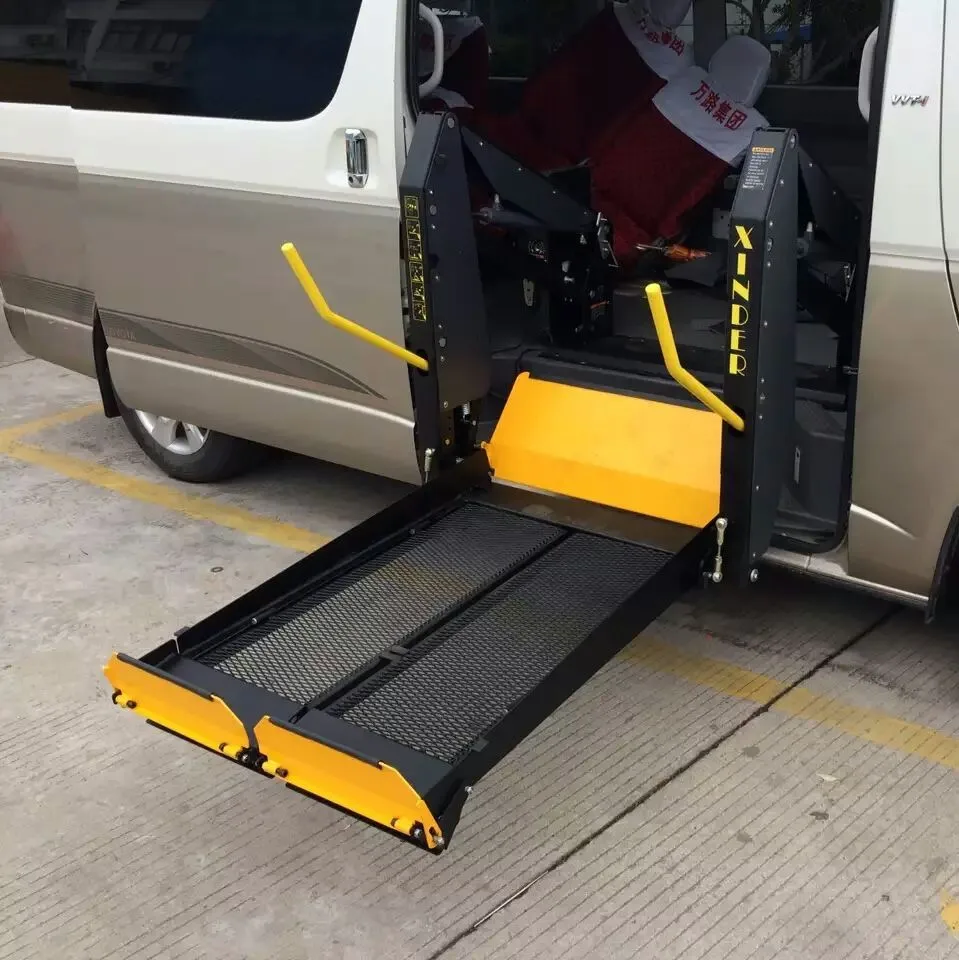

This WL-D-880S wheelchair lift gives new meaning to the term accessibility. The fully automatic split platform folds up and out of the way at the push of a button, leaving the doorway clear. The steel frame and powerful hydraulic pump ensure a fast, secure means of entry and exit. You will find the convenient and easy to operate.
Advantages
exclusive split-platform design allows clear access to the vehicle’s interior
powerful hydraulic pump ensure smooth, stable operation for heavy wheelchairs and scooters
all-steel frame features convenient handrails for increased comfort and security
stable, non-skid platform with automatic inboard and outboard rollstops accommodates most wheelchairs and scooters
pre-lubricated bearings at all major pivot points offer long-term durability
high gloss, polyester powder coat finish resists corrosion
built in manual backup system
Details :
Loading capacty:350 kg
Own weight:135 kg
Electric systerm:12-24 Volt
Max working pressure:14 Map

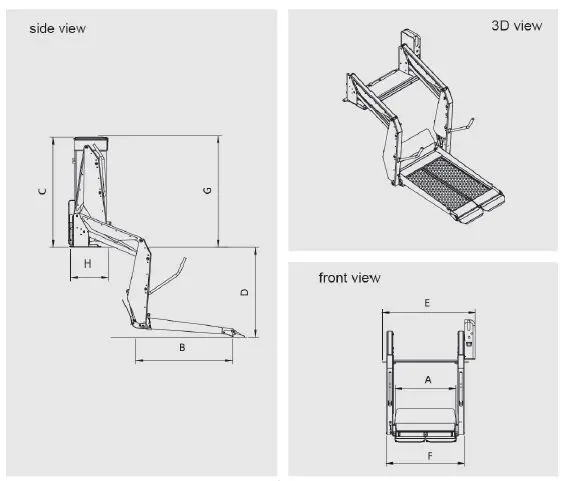

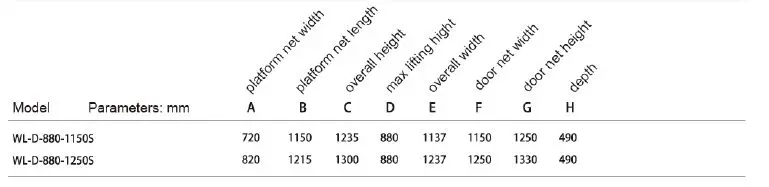

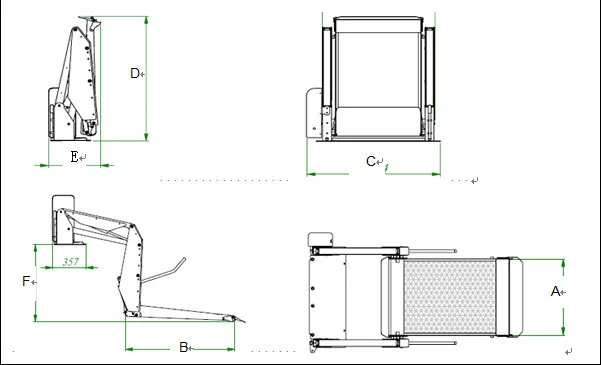

Platform dimension: 1150*720/1250*820mm
Max floor height:880 mm
Auxiliary emergency handpump
