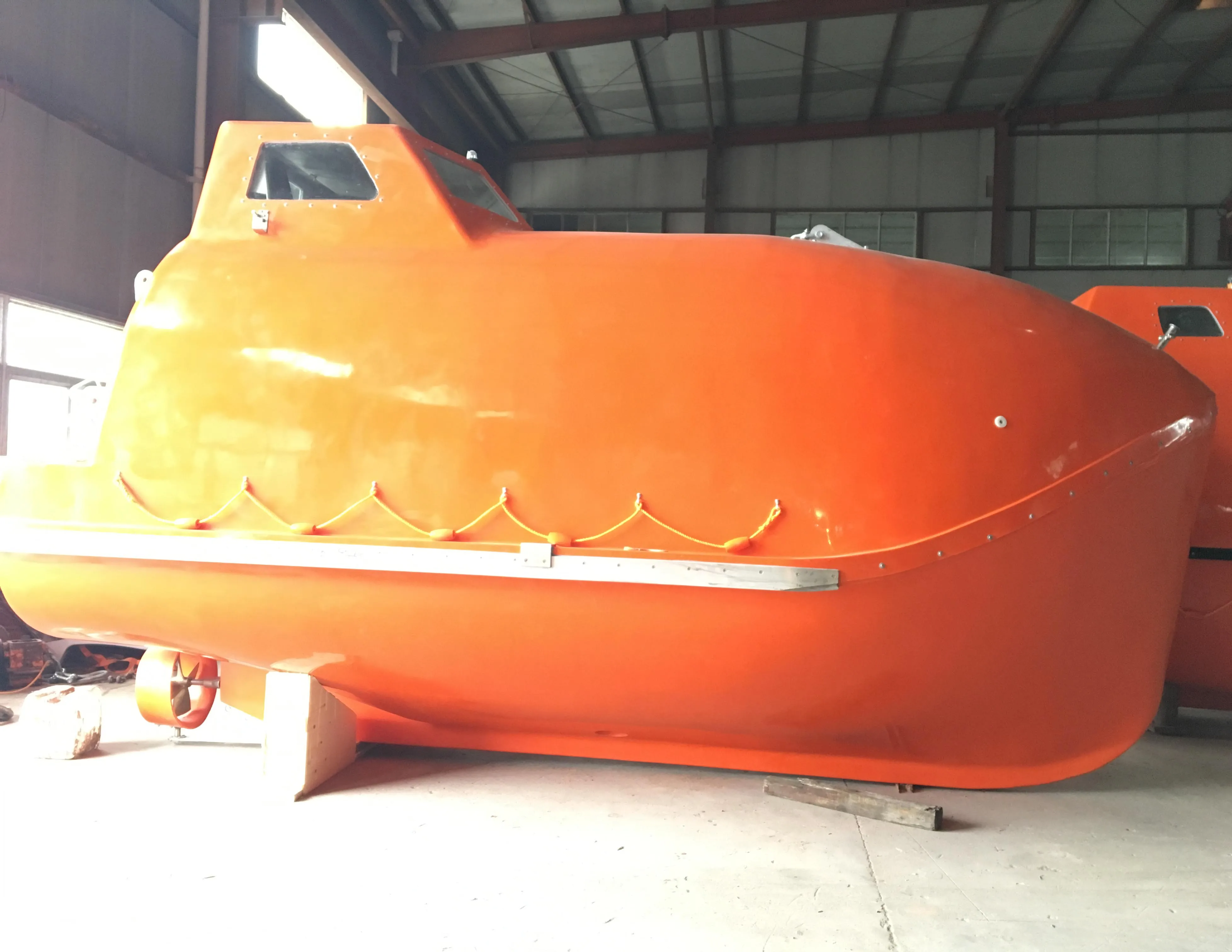

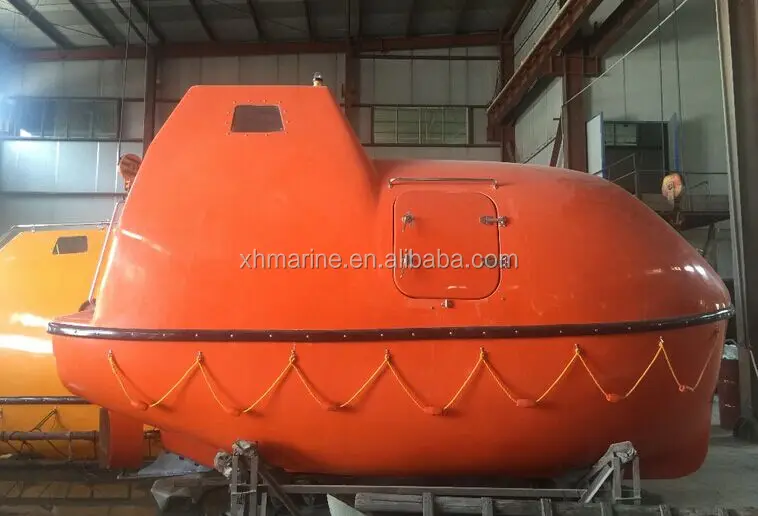

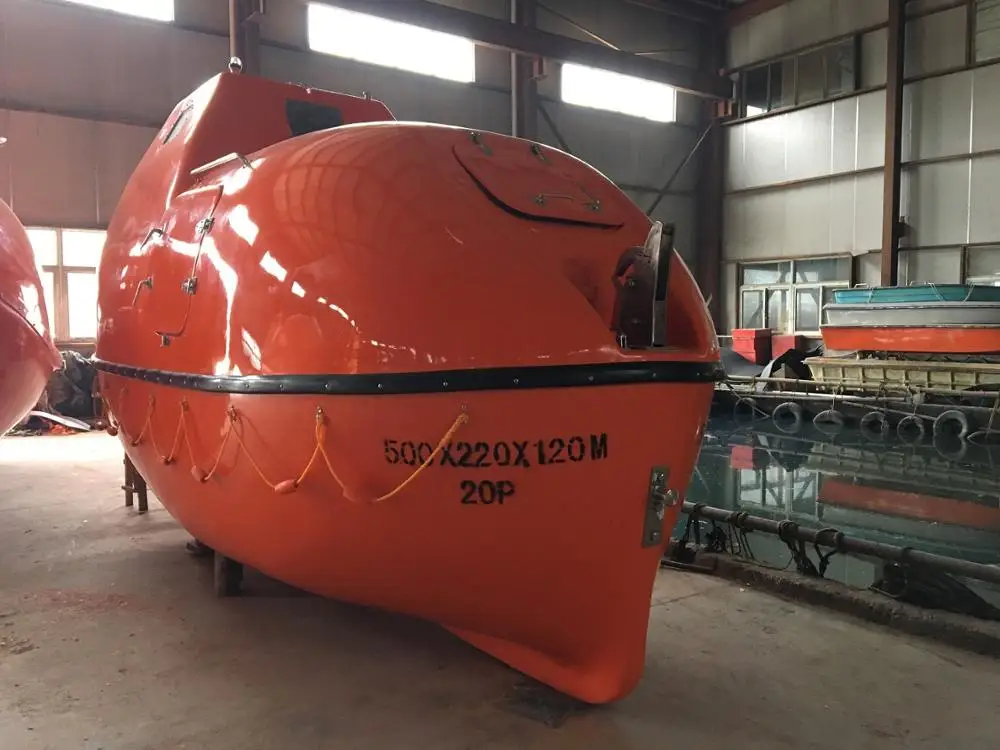

RMRS Approved Fire Resistant 20 Persons Free Fall Lifeboats With Davit

Requirement of the standard for RMRS Approved Fire-Resistant 20 Persons  Free Fall Lifeboats With Davit

Comply with the requirements and rules of SOLAS, and amendment 1996, MSC, 81(70) andMCS218,MSC226,MSC272,MSC274.

Rules and Regulations of RMRS Approved Fire-Resistant 20 Persons  Free Fall Lifeboats With Davit

SOLAS 1974 & 2000 Amendments, LSA Code

Technical requirement of RMRS Approved Fire-Resistant 20 Persons  Free Fall Lifeboats With Davit

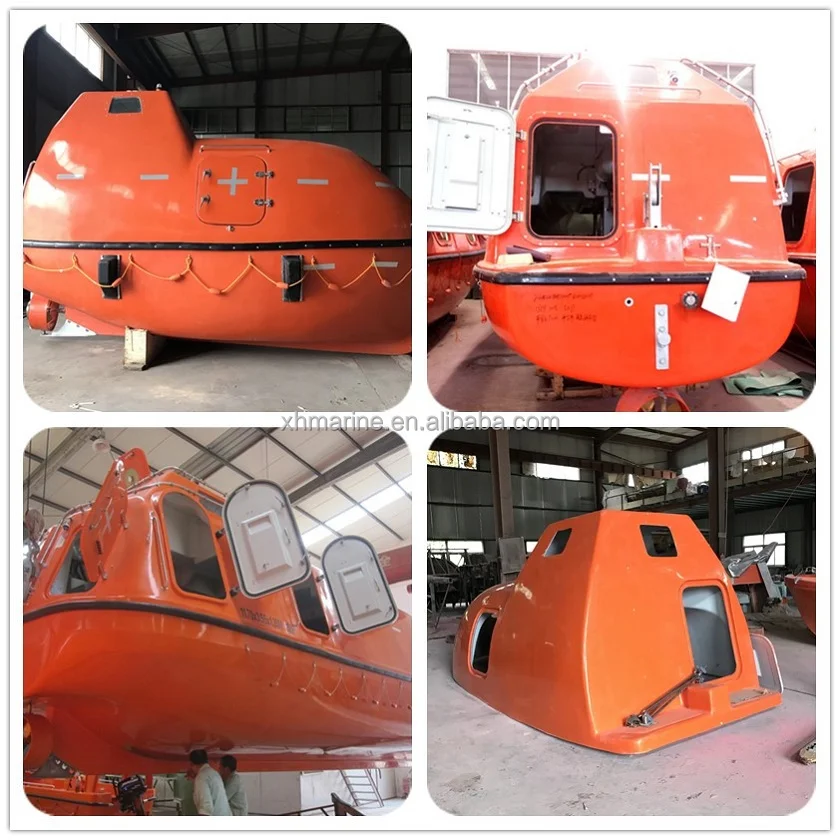

 TOTALLY ENCLOSED FREE-FALL LIFEBOAT(COMMON)

 Engine:

Type:       380J-3

Cooling method Water Cooling of keel

Starting method Two Batteries

Main technical data of RMRS Approved Fire-Resistant 20 Persons  Free Fall Lifeboats With Davit

over length: 6.00m

over breath: 2.32m

total height: 3.10m

capacity: 20P

empty boat weight: 3000kg

total weight: 4650kg

loading temperature: -30~65℃

working temperature(sea water): -1~30℃

speed (full load): 6 knots

outside colour: international orange

max drop distance: 15m

propulsion device of RMRS Approved Fire-Resistant 20 Persons  Free Fall Lifeboats With Davit

Engine type: 380J-3

power: 20.6kW

 rpm (full load): 2800rpm

cooling method: water cooling

start method: two battery

steering method: steering wheel

number of cylinder: 3

type of gear box: SCG025-3

All the tightening parts such as a nut, bolt, etc., should be made of stainless steel (SUS 316), all the weather steel fittings should be made of stainless steel, the material of hull should be FRP.

The inside and outside surface of boat should be smooth.

Equipment

To be supplied according to the requirements of rules and regulations. All the equipment with validity time should be at least one year after the delivery of ship.

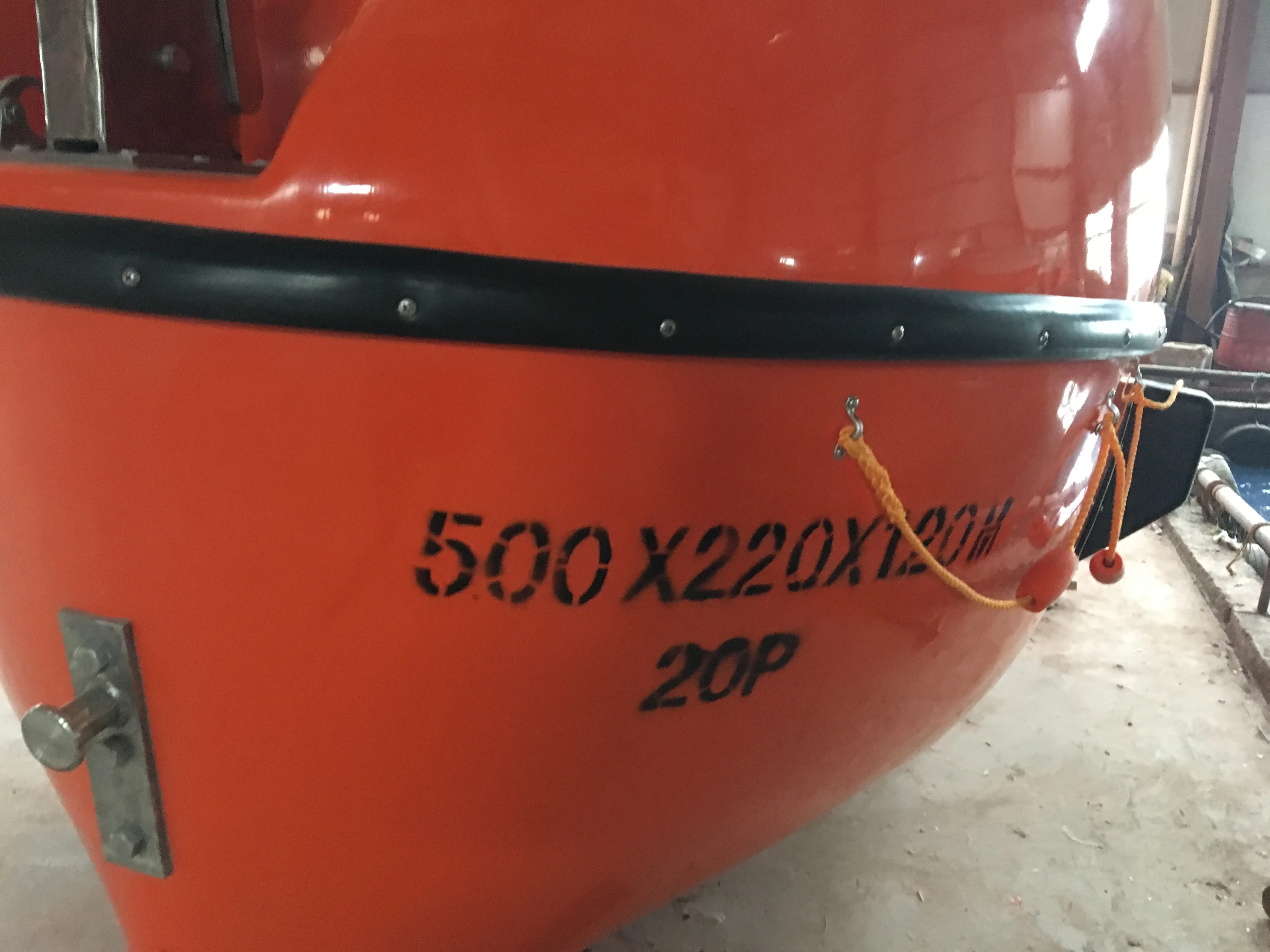

Water proof operation instruction and marks required by SOLAS and IMO should be supplied. The purchaser should inform the seller ship’s name, registry port and call sign one week earlier before delivery and the seller should paint them on the suitable places according to the requirements of SOLAS, including capacity, main dimensions and serial No.

Hook device should be reliable, meet the requirement of rules and regulations.

RMRS Approved Fire-Resistant 20 Persons  Free Fall Lifeboats Datasheet

 If any more details for the Free Fall Lifeboat 20 Persons,please contact us.
