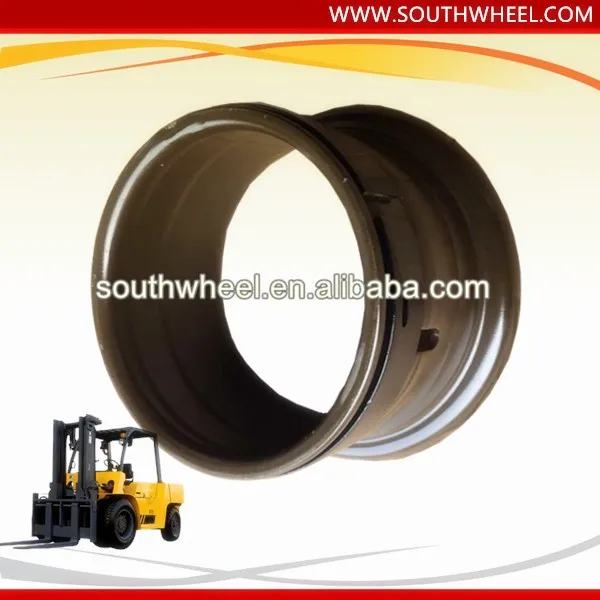

Forklift wheel rims 5.00S 12, 4 piece rim with lock ring, side ring, bead seat

Forklift wheel rims 5.00S-12, 4-piece rim with lock ring, side ring, bead seat

Product Size: 5.00s 12
Rec.Tyre: 7.00-12
Bolt No.: 6
Bolt Dia(mm): 22
P.C.D(mm): 220
B.C.D(mm): 180
Disc Thickness(mm): 10
Brand: SouthWheel
Port of delivery: Shanghai
Payment Term: by T/T, L/C, WU
Delivery Term: Usually within 15 days

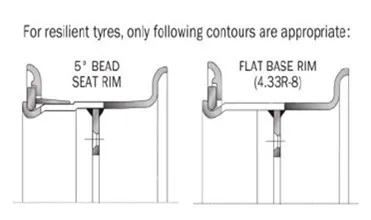

Technical features and dimensions

Glossary

Seat: part of the rim profile that secures the radial fixation of the tire.

Bead Seat Ring: removable ring with the same function as the seat.

Flange: part of the rim profile that secures the axial fixation of the tire

Side Ring: removable ring with the same function as the FLANGE

Lock Ring: removable ring that secures the good position of the rings

Pitch Circle: fictive diameter on which the centers of the stud holes are located

Central Bore: or centre hole, diameter in the disc(can also be used as centering system for the wheel on the axle hub

Offset: the distance from the attachment face of the central disc to the center line of the rim

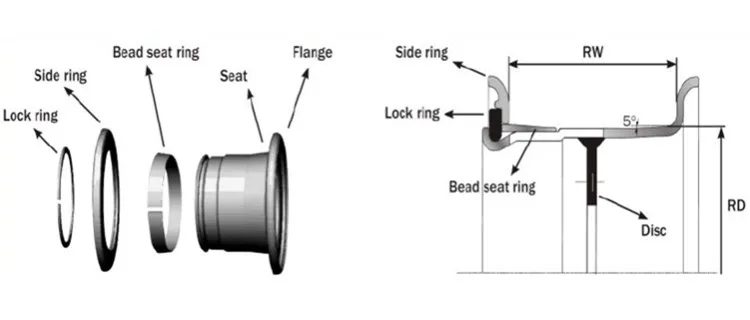

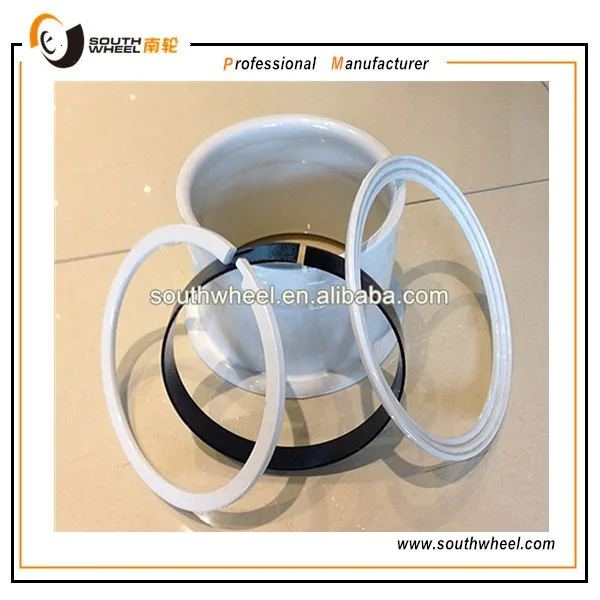

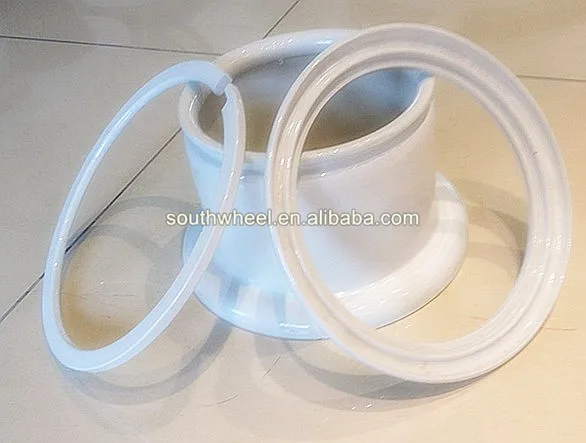

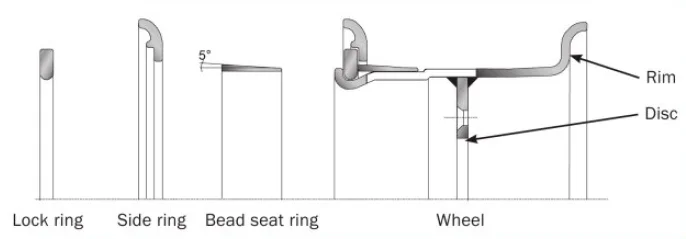

4-Piece lock ring wheels

Rim+Bead Seat Ring+Lock Ring+Side Ring

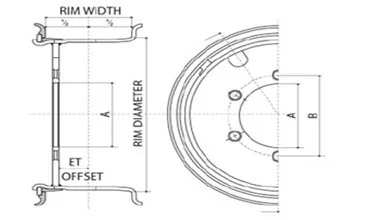

Characteristics of the central disc

A = centre bore diameter

B = pitch circle diameter of hob holes

D = hub hole diameter

E = chamfer diameter of hub hole

Lock ring wheels designation:

A lock ring wheel is characterised by three elements:

Example: 5.00S-12

               5.00: rim width(inch)

               12: rim diameter(inch)
