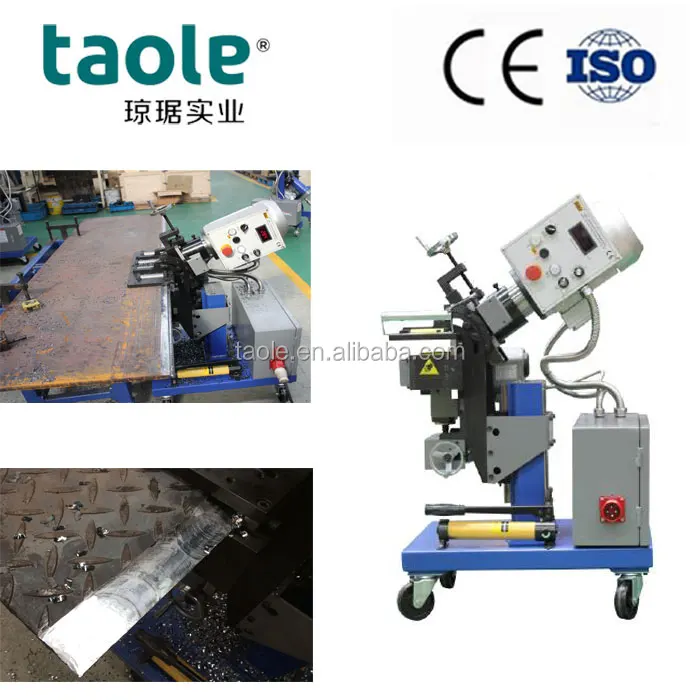

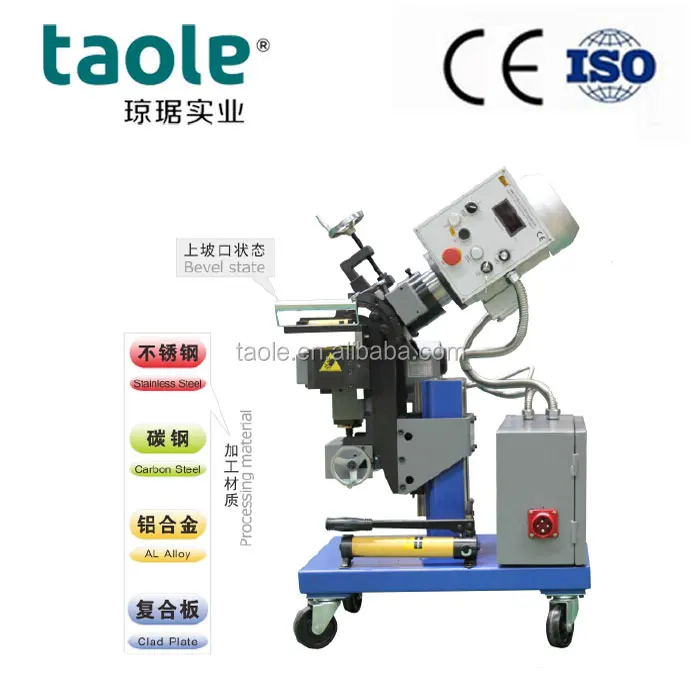

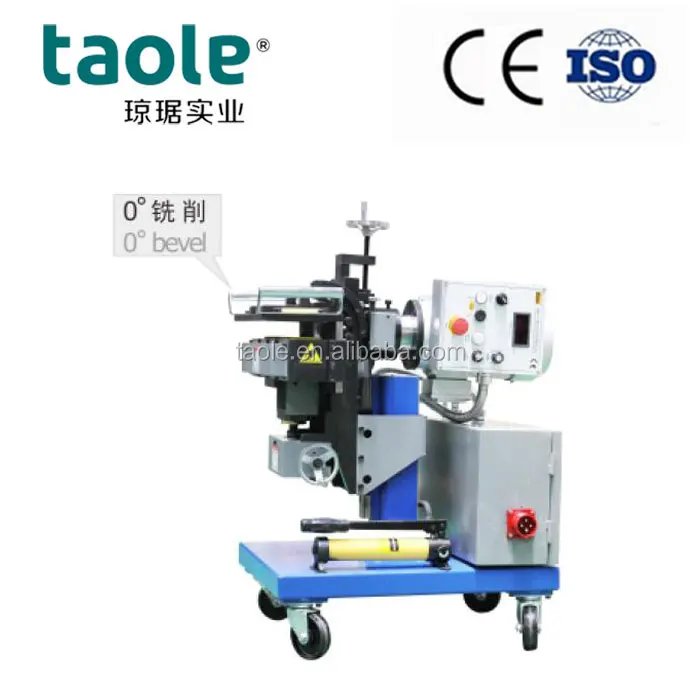

High Quality Vertical Milling Machine Deburring Machine For Sheet Metal
- Category: >>>
- Supplier: Shanghai Taole Machine Co. Ltd.
Share on (60523774461):
Product Overview
Description
Product Name:
Vertical Milling Machine Beveling Angle from 0-90degree Adjustable High Quality Vertical Milling Machine Deburring Machine For Sheet Metal
Product Description
Products Description for Vertical Milling Machine Beveling Angle from 0-90degree Adjustable
This series machine is mainly for Metal Plate Edge chamfering & deburring for welding preperation.It is widely used in welding industry needed such as aerospace, shipbuilding, metallurgy, pressure vessels, petrochemical and welding manufacturing fields, can process low carbon steel, stainless steel, aluminium alloy etc. Surface performance could reach Ra 3.2-6.3 .
Model No. | GMMA-60L | ||
Plate Length (mm) | >300 | Plate Width (mm) | >200 |
Clamp Thickness (mm) | 8~60 | Milling Angle a (°) | 0~90 |
Milling Width w (mm) | 0~56 | Milling Depth d (mm) | 0~15 |
Milling Width e (mm) | 0~50 | Feeding depth f (mm) | 0~15 |
0° Milling width B (mm) | 56 | Single Milling Width (mm) | 15 |
Milling Speed (r/min) | 1050 | Feeding Speed (mm/min) | 0~1500 |
Power Supply | AC380V 50Hz | Total Power (w) | 3400 |
Motor Rotation (r/min) | 1450 | Net Weight (kg) | 195 |
Packaging Details | In Wooden case 800*650*1140 mm ,N/W: 195kg ,G/W: 250kg | ||
Application | Widely used in the aerospace,shipbuilding,metallurgy,pressure vessels,petrochemical and welding manufacturing field. | ||
Features for GMMA Series
1. Safety lock, Rear feed motor design and independent design of electric box. more sage.
2. OL Protection
3. Digital Display, Easy processing with Operation.
4. Feed adjustable,speed adjustable
5. Angle Adjustable in range
6. Milling surface reach Ra 3.2-6.3
7. 7 Models with different advantages as per customer's needs.
8.OEM/ODM available as a manufacture with own designing team and developing department.
9. Self-Moving and Cold working
10.High Efficiency milling Cutters with interchangeable Inserts.
Our Guide:
Before you place order to us, please let us know the following information:
1. Choose the right Model
2. Confirm your electric power supply ( Voltage, frequency and phase)
3. Confirm the milling angel required
4. Confirm the welding joint required (U,V or others)
5. Advise your processing material ( Carbon steel, stainless steel or others)
6. Other special demands about machine
7. The spare parts needed
We have 5 more models for options to meet different requirements, Below Specifications for reference:

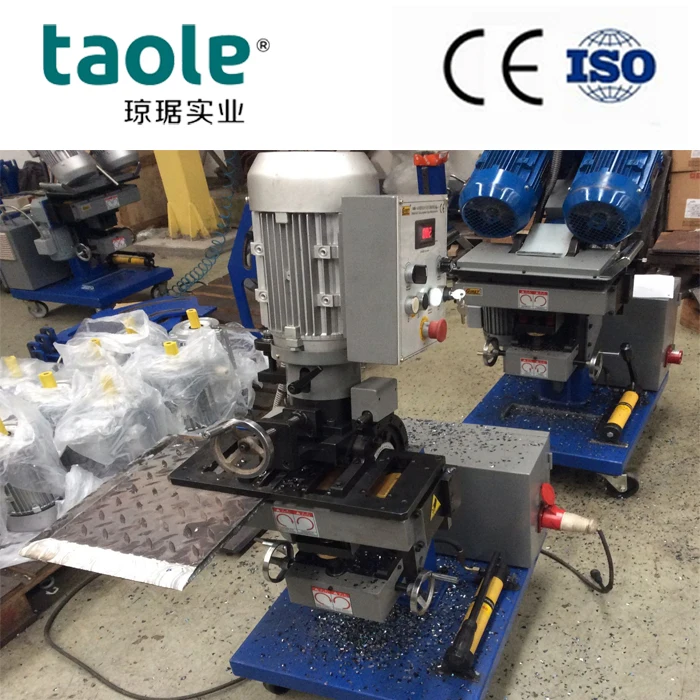

Processing Reference from Customer Site:
Note: If this is not the model you are looking for. Pls kindly check on below link.
1) Plate Edge Beveling Machine for Steel Structure
2) Portable Chamfering & Milling Machine for Holes or Edge
Packaging & Shipping
Metal Processing Machinery, deburring Polishing Machines for Sheet Metal , All machines will be packed in wooden case after Factory Inspection and Testing.
Company Information
Shanghai Taole machinery Co., Ltd. provides high quality Metal Processing Machines like metal plate edge beveling & milling machines, Pipe cutting & beveling machines. We have more than 12 years' service and technical experience in the welding industry, we are one integrated industrial company who owns professional team from Designing, Production, Sales, Aftersales Service.
Certifications
Our Services
1. We are available for ODM/OEM with our own development department.
2. All machines with 1 year guarantee and life-long maintenace service.
3. All machines with Operation manual and special tools
FAQ
Q: How can you guarantee the Good Quality we received?
A :Firstly, We have QC department for Quality control from Raw material till finished products. Secondly, We will do Inpsection during production and after Production. Thirdly, All our products will be tested before packing and sending out. We will send Inspection or testing video if customer not coming for checking personly.
Q: What about warrenty?
All our Products having 1 year warrenty and Life-Long Maintenance. We will provide you with free technical support.
Q: Do you provide any help regarding Products Operation?
A: All machines within products introduction, Manuals in English which is having all the operation suggestions and Maintenance proposals during using. Meanwhile, We could also support you with other way, Like provide you Video, Show and teach you while you are in our factory or Our engineers in your factory.
Q: Can I get Spare Parts?
A: We will enclose some quick wear parts with your order , As well some needed tools for this machine which is free will be send together wtih your Order. We have all spare parts drawing within the Manual. You could just tell us your spare parts No. In future. We could support you all the way.
Q: How Can I get more details about this machine or silimars?
A: Pls write down your questions and requirements in to below inquiry box. We will check and reply you by Email or Phone in 8 Hours.
