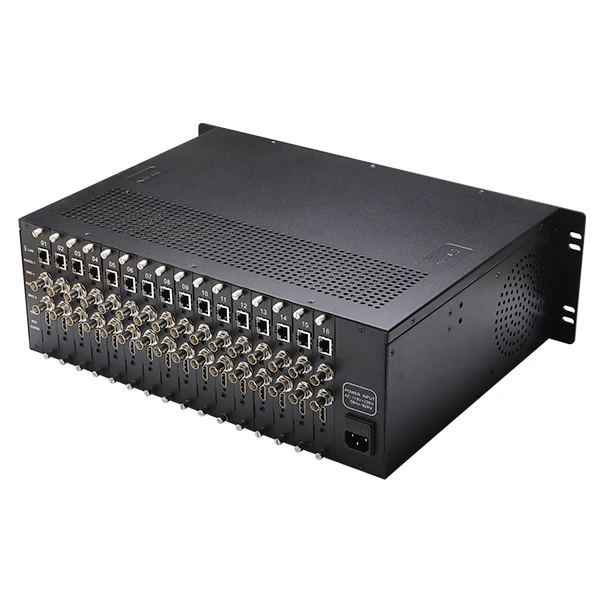

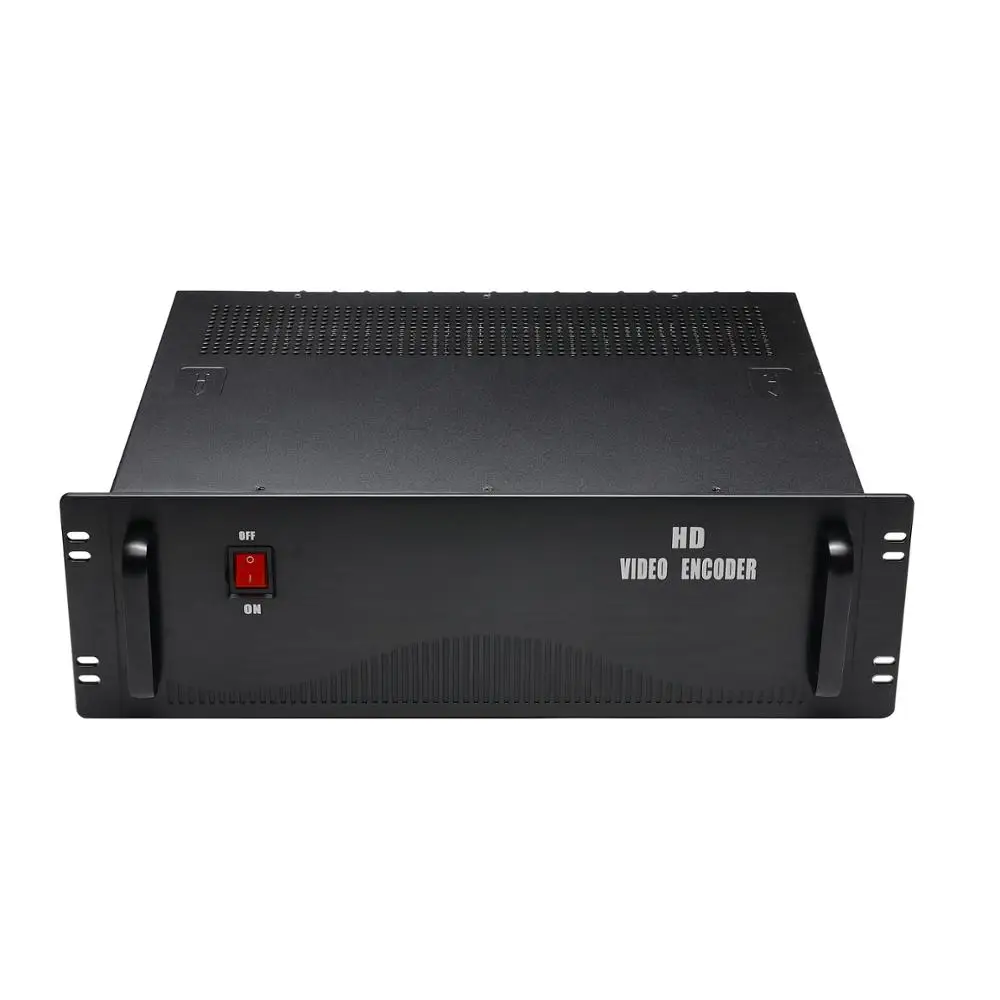

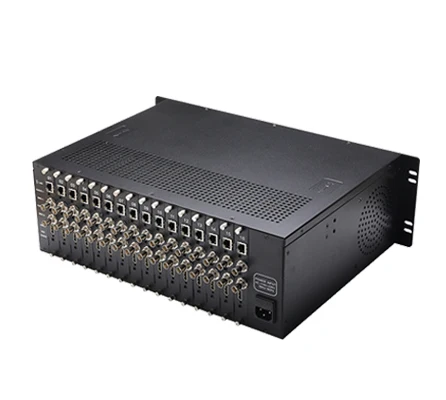

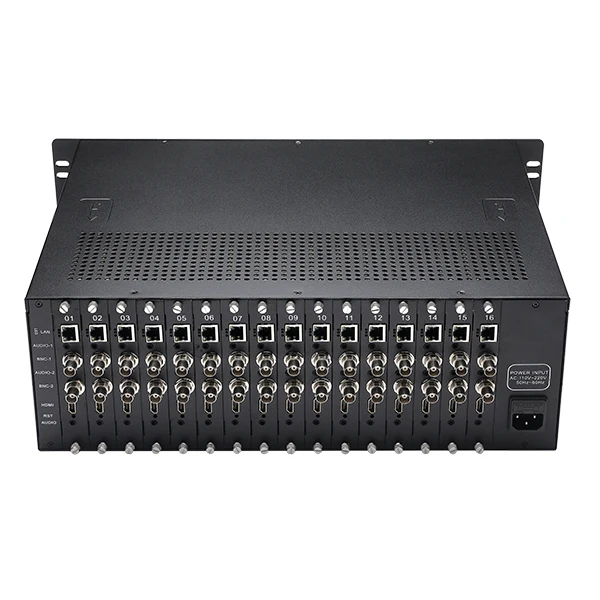

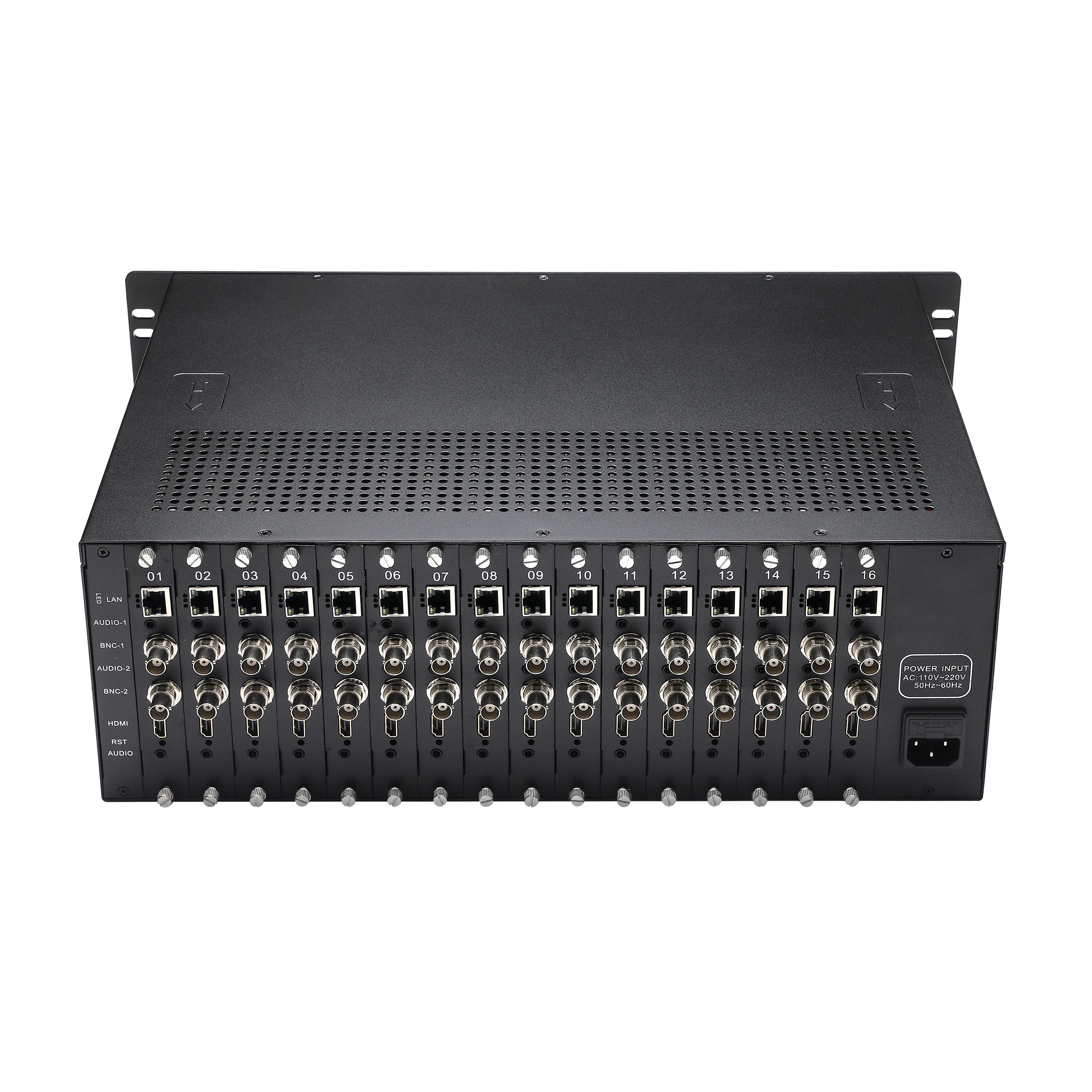

H.265 H.264 16 channels HDMI SDI 32 channel BNC AV CVBS hotel IPTV streaming HD 1080P IP video encoder iptv
- Category: >>>
- Supplier: Shenzhen Haiwei Vision Technology Co. Ltd.
Share on (60523793896):
Product Overview
Description
Products Description
16*HDMI 32*CVBS ENCODER IPTV
Professional-Class Live Broadcast Encoder
Why Choose Haiwei ?
In 2018, Haiwei obtained the “high-technology enterprise certification”（National certification）.
1.8 years experience in R&D and production.
2.Delivery fast as source manufacturer.
3.SDK offered for integrated project.
4.Certifications:CE,FCC,KC,ROHS,CCC.etc.
5.Supported OEM
Gigabit Ethernet
Dual H.264 streams output

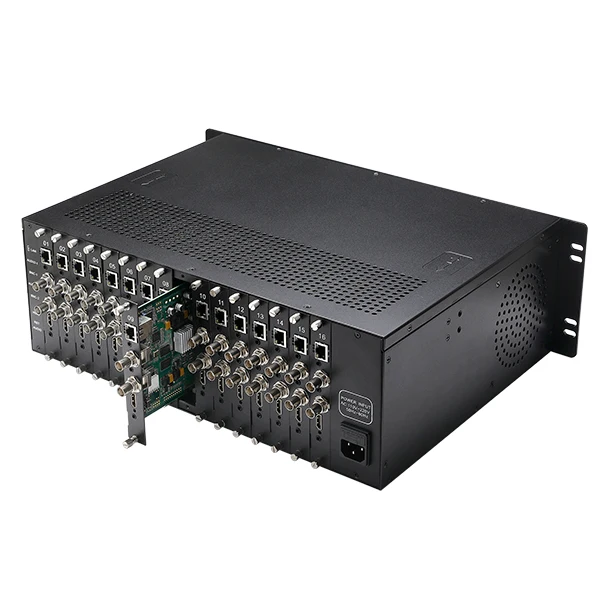

16 Hot-plug modules
Optional HDCP function
UP to 1920x1080 @30/60 (2 version)
Line in audio,Output:MP3, AAC, G.711
Bit Control: CBR/VBR 16KBIT/S ~ 12MBIT/S
Product model | H1632B 16 channel HD HDMI + 32 channel AHD CVBS encoder | ||||||
Input | 16 channel HDMI input, 32 channel CVBS input, 48 channel 3.5 audio input | ||||||
Output | 16 channel IP signal output,48 streaming output | ||||||
Input resolution | 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i And other conventional resolution | ||||||
Coding standard | H.265/H.264 | ||||||
Encoded size | 640*360~1920*1080 | ||||||
Video bit rate | Rate control: CBR/VBR 16KBIT/S~48MBIT/S | ||||||
Video frame rate | 5-60 FPS | ||||||
OSD | Text, images | ||||||
Audio coding | AAC/MP3/ G.711 | ||||||
Audio bit rate | 64Kb/s~384Kb/s | ||||||
Sampling rate | 32000,44100 etc | ||||||
IP Output | 16 RJ45 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol | ||||||
Network protocol | Supports SRT,HTTP, RTSP, RTMP, ONVIF, UDP, multicast, unicast | ||||||
Configuration management | Support IE configuration, remote upgrade | ||||||
Support Most Live Streaming Platforms
Multi-protocol, multi-platform, all-round live marketing
Support SRT/HLS/RTSP/RTP/RTMP/DHCP, ONVIF, HTTP, UDP unicast, multicast and other protocols, as long as the live broadcast platform, support the above protocol, you can be broadcast
Application
Hotel IPTV System
Digital TV Broadcasting System
IPTV & OTT system
Internet TV
Digital Signage Project
Remote Video Conference
Video Monitoring
Live Streaming
Digital TV Broadcasting System
Digital TV Programs Transmission
Head-end system of Digital TV branch network
CATV Broadcasting system
Edge side of Digital TV backbone network

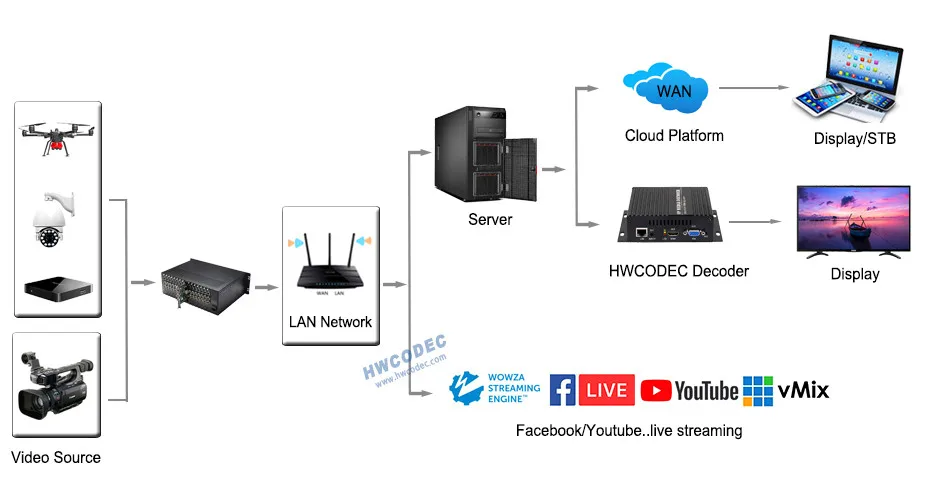

Connection Schematic Diagram
About Haiwei
Haiwei is leading video streaming solutions provider in China, mainly for broadcast, webcaster, Multimedia platform, sports, IPTV operator, IPTV project for Hotel/ enterprises, military project, and city's construction. Haiwei provide SDK for integration project, can be tailored to each customer's unique market needs, and developed "IP finder", "Multi devices manager", "APP for smartphone" for different use.
