Structure:
1.Filter material: PP thermal spray fiber membrane
2.Diversion layer: the long fiber non-woven polypropylene
3.Central tube: polypropylene, strengthen heat resistant lining tube
4.The shell/end cover: polypropylene
5.Gasket/ring: silicone rubber/EPDM/fluorine rubber/package apply four fluorine rubber
6.Filter area:≥0.60M²@Φ69,10inch
Characteristics:
1.The highest working temperature:
1)General PP casing and center pole,≤65℃.
2)PP shell,jack lining ≤85℃.
3)High molecular weight PP casing,strengthen lining tube of heat
resistant,jack lining,≤95℃.
2.Maximum working pressure difference:
1)Positive pressure difference 4bar@23℃.
2)Reverse pressure difference 24bar@23℃.
3.Steam sterilization
121℃@30min.
| Ordering Information | |
Please tell us: 1.Filter media or filter material 2.length(eg:10,20,30,40,60 inch etc) 3.Filtration accuracy(eg:0.5,1,5,10,30um etc) 4.quantity 5.Interface Type and seal ring(eg:222normal and Silicone Rubber.) |

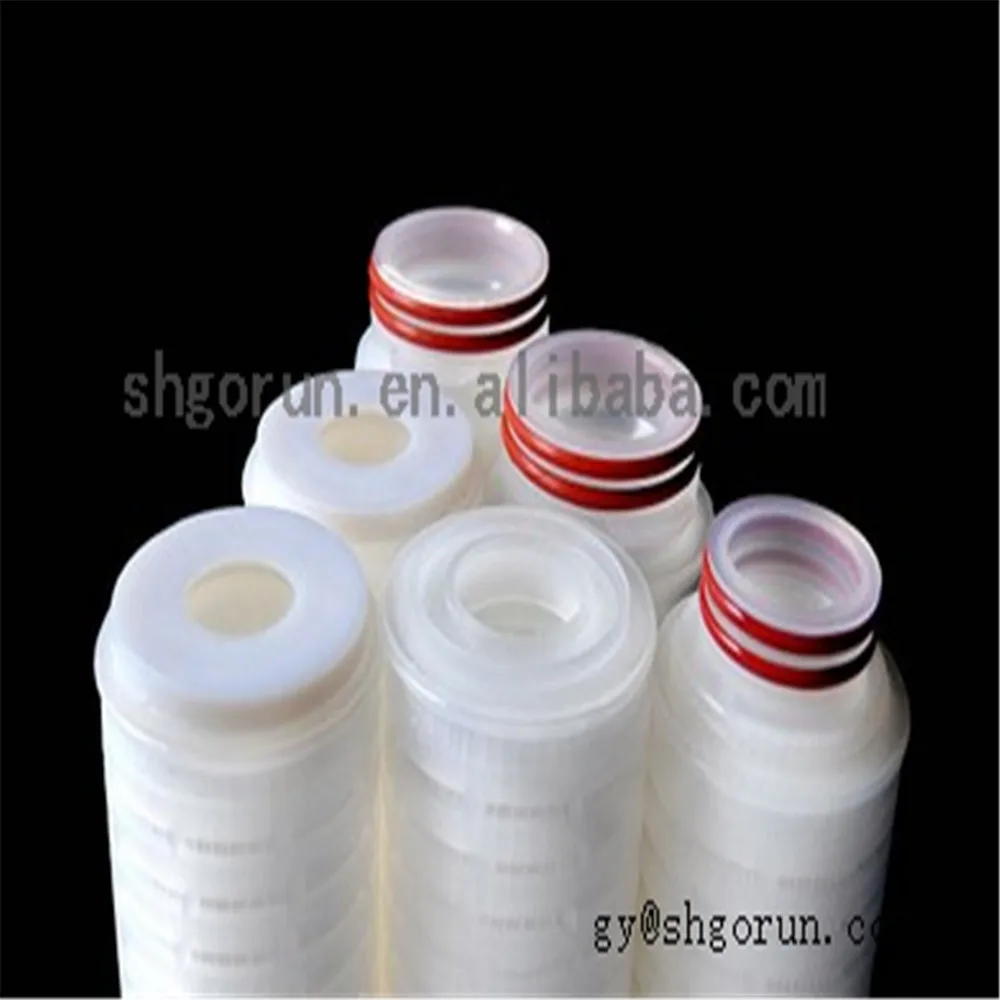

| Attached:Interface Type and seal ring | |
| Up and cap | Cylindrical sharp corner,Triangular fin,Bulkhead,Two flat port,Two flat steel liner,One flat port/one bulkhead,Heat resistance type. |
| Down port | 222normal,226normal,222outer steel ring,226outer steel ring, 22special, 226special, 215normal,220normal,222inner steel liner,226inner steel liner |
| Seal ring | Silicone rubber,Fluorine rubber,EPDM rubber,NBR,Outer tetrafluoroethylene rubber |

| Product Features | Application |
| 1.Low-cost, economy |
A variety of prefiltered water systems, food, beverages, alcohol, water filters,solvents,acids, alkalis filters, industrial water purification filter water filter Boiler. |
| 2.Stable trapping effect | |
| 3.Excellent chemical stability | |
| 4.High quantity of pollutants received | |
| 5.Can be cleaned, scrubbed, reused | |
| 6.High mechanical strength, Fiber is not easy to fall off | |
| Ordering Information | |
Please tell us: 1.Filter media(or filter material)2.length 3.Filtration accuracy 4.quantity 5.Interface Type and seal ring. | |



1.PES,PP,PTFE,PVDF,Nylon plated filter cartridges;
PP melt blown filter cartridges;
String wound filter cartridges;
Stainless steel filter cartridges;
Titanium power sintered filter cartridges;
Liquid filter bag etc.
2.Stainless steel membrane filter.
3.CIP cleaning system
4.RO water treatment system

1.OUR COMPANY
1.Shanghai Gorun Machinery technology Co,. Ltd derived from Shanghai Geshi filtration company which is founded on 1993.
2.It is committed to the installation and commissioning of pharmaceutical, food, chemicals, electronics and other industrial equipment design, production and supporting the project.
3.Our core product is certficated by authority third-party,meet GMP ,America FDA standard,CE,ISO900,SGS,TUV.
4.Main products:Filteration equipment,Filter cartridge,CIP system,Water treatment system,Stainless steel tanks,Heat exchanger

2.OUR MANUFACTURING
We have nearly 3,000 square meters of GMP compliance with regulatory requirements, the use of the partition process, logistics flow separation filter closed clean production workshop,with dozens (sets) automation, semi-automatic filter production line (equipment), with an annual output capacity above one million of various types filter .

3.OUR CUSTOMERS
Our customers are from all over the world. Customers favorable comments based on our high-quality products, professional and efficient services.

| 1: Are you manufacturer or trading company? | Gorun is a professional manufacturer. |
| 2.Payment Term | T/T,D/P,D/A,L/C,Western Union,Paypal,Cash etc. |
| 3.Shipping : | If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS. |
| For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference. | |
| 4.Sample: | 1) For our first cooperation, buyer afford the sample fee and shipping cost. |
| 2) For our old customer, we will send free sample , even though new designs sample, when have stocks. | |
| 3) Sample delivery date is within 1-2days, if have stocks; Customer design is about 3-7 days | |
| 6. Lead Time: | The normal lead time for water purifier filter cartridge is 5-10days, which depends on your quantity. |
