Product Overview

Description

[Unidrum Lever Metric Push-Pull and Pull-Only Hand Control]



Description:                               Applications:                            Output End  Configurations

Unidrum Lever                               • Medium to light duty                 Codes:
Industrial Metric Push-Pull                throttle compactors                   1 Threaded Swivel
and Pull-Only Hand Control           • Valve dump control                    2 Grooved Swivel
                                                           jackhammers                           3 Threaded Swivel
                                                       • Hydraulic valve control              4 Grooved Swivel
                                                           concrete cutters                       5 Threaded Cap
                                                       • Backhoe throttle                        6 Grooved Cap

Features:                                                                      Material:

• Adjustable friction lock                                                   • Zinc Based
• 5 to 1 mechanical advantage                                            Die-Cast Body,
• Adjustable mechanical stops                                             Drum and Lever

                                                                                         • Internal Long Life
                                                                                              Nylon Bearings
                                                                                         • Optional Black
                                                                                              Powder Coat
                                                                                              Paint Finish


[Hand Control Industrial]

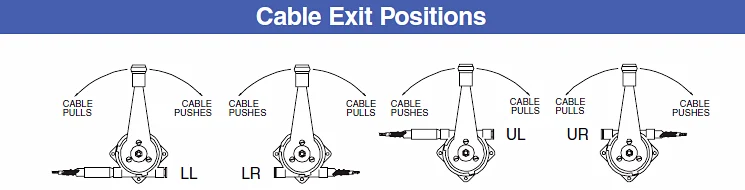

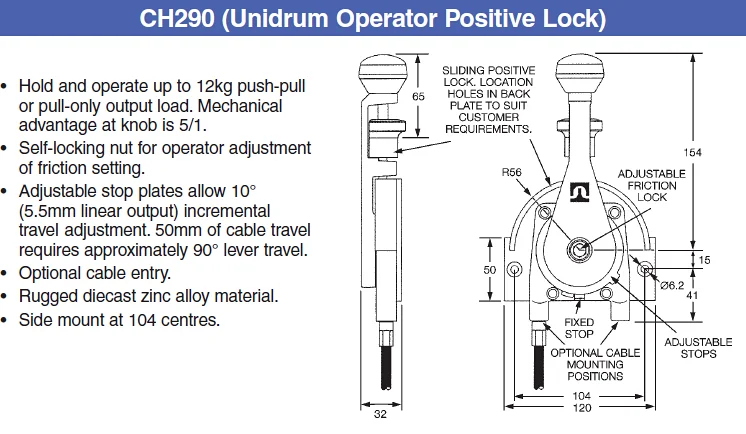

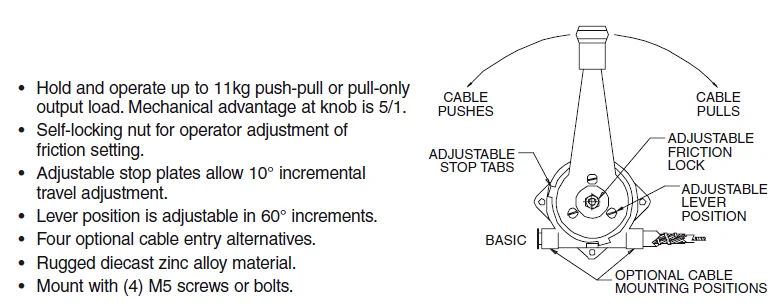

A control head designed primarily for hand throttle applications on commercial and industrial vehicles, and also suitable for many other uses. Compact and efficient for imparting light-to-medium pull-only or push-pull loads through flexible conduits and innermembers. Unidrum controls hold and operate up to 12kg push-pull or pull-only output loads. Mechanical advantage at knob is 5 to 1. There is a self locking nut for operator adjustment of friction setting. The adjustable stop plates allow 10° (5mm linear output) incremental travel adjustment. 50mm of cable travel requires approximately 90° lever travel. 75mm of cable requires approximately 135° lever travel. The lever position is adjustable in 60° increments to provide optimum operating range. Optional cable entry offers four mountings/directions of operation alternatives. Also available with a smaller handle for light duty applications or with a locking handle.

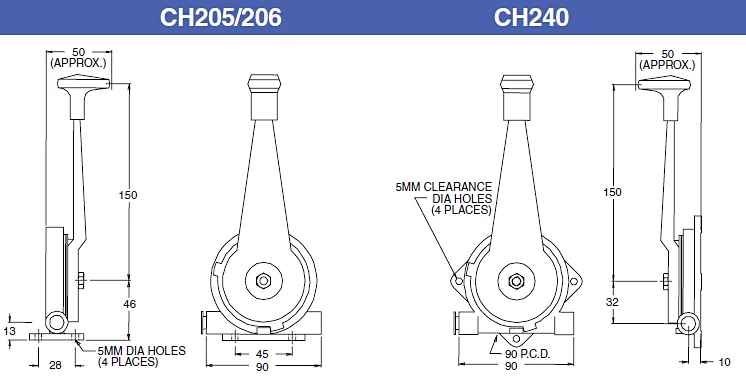

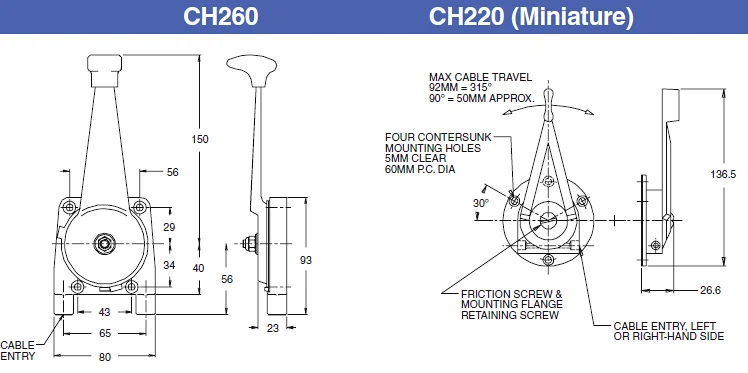

[Unidrum Lever]





All line art dimensions are represented in millimeters

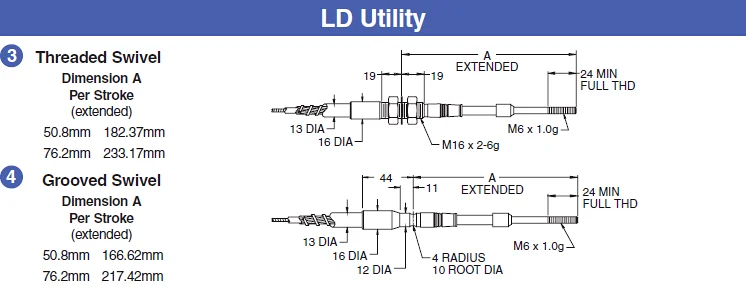

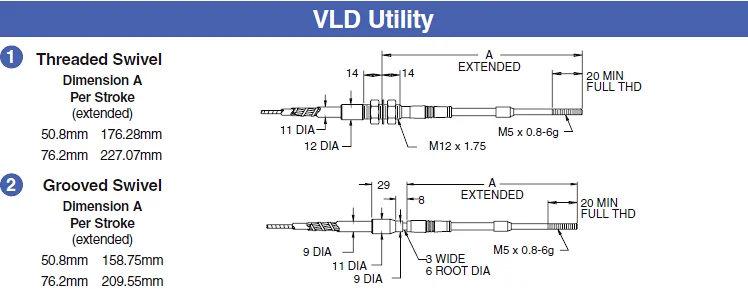

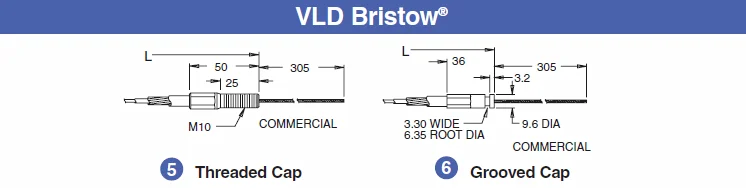

[Output End Configurations]



All line art dimensions are represented in millimeters

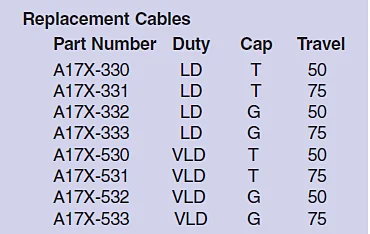

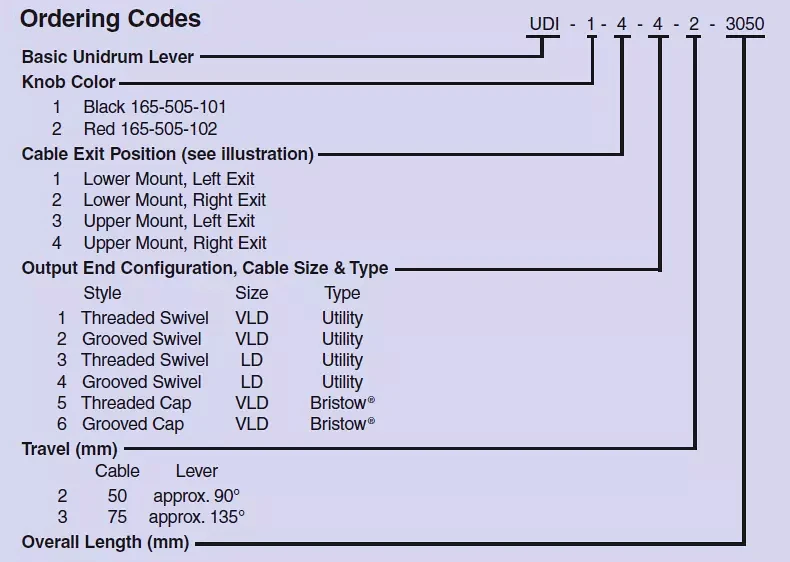

[Unidrum Lever Order Code]
