40KW On grid system wind solar hybrid power controller with dump load
- Category: >>>
- Supplier: Zhejiang Bangzhao Electric Co. Ltd.
Share on (60523926292):
Product Overview
Description

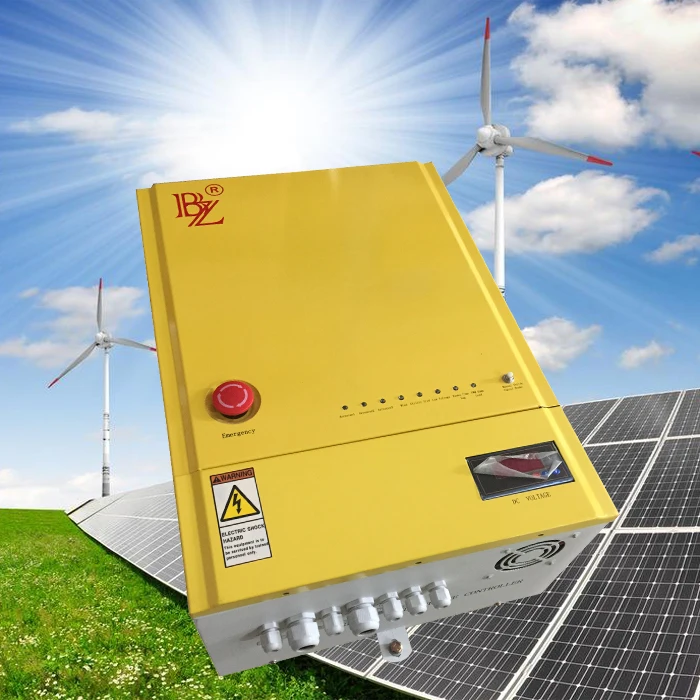

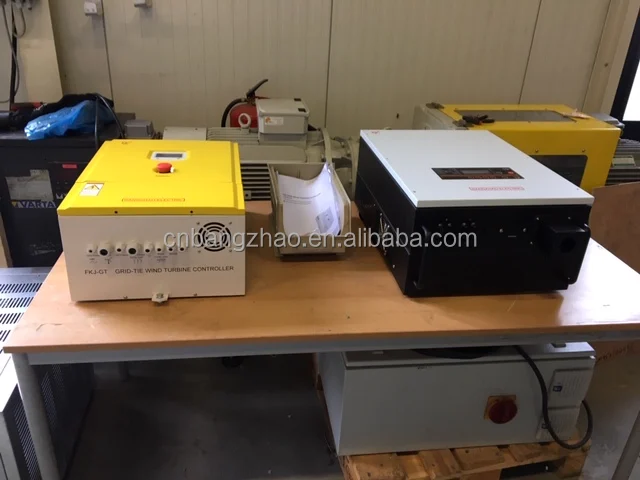

40KW On grid system wind solar hybrid power controller
Product Description
The product is manufactured according the JB/T6939.1-2004 industrial standard and GB/T 19115.1-2003 national standard also with users’ technical requirements.
Two sets of control systems:PWM constant voltage system and three-phase dump load system.
PWM constant voltage control is 120% of the rated power of the wind turbine. In case exceeding of PWM’s capacity, the three-phase dump load will automatically start immediately. After 10-20 minutes, the three-phase dump load will stop and the wind turbine will re-start to resume power supply to ensure the safe running of the overall wind turbine generation system.
When the strong or super-strong wind conditions, the controller can conduct constant voltage output to ensure the inverter safety running.
When the condition of disconnected grid-connected inverter, the controller can conduct constant voltage output and wait for inverter resumption.
The three-phase dump load of the controller will automatically start and the inverter will stop grid output when the power grid is off. As soon as the grid power resuming, the controller stops three-phase dump load and the inverter will resume power supply.
For the different wind turbine generator type, the controller can be equipped with mechanical yawing, furled empennage, mechanical or hydraulic, pneumatic, electric magnetic and other brake functions.
The inside of the controller is equipped with surge arrester. Contain the over voltage into the wind turbine under the bearable voltage of the equipment or system. On another way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment.
The below LED status indication can be found on the front panel: indications of wind turbine, dump load, three-phase dump load delay time, under pressure, grid power and DC output voltage.
Voltmeter indication: Indicate the controller DC output voltage.
The controller is equipped with emergency stop switch; in case of emergency, press down the emergency stop button in the front panel to cut off all power supply of the controller and the wind turbine will immediately carry out three-phase dump load.
The controller is equipped with manual three-phase dump load switch. To using this switch, the wind turbine will carry out three-phase dump load forcibly.
Technical Parameters of the BWGT model Grid-tie Wind Solar Hybrid Controller
Type | 50KW |
Wind turbine rated power | 40KW |
Wind turbine Max. power | 80KW |
Solar panel rated power | 10KW |
Function | Rectifier, control, dc output |
Display mode | LCD |
Display content | Wind turbine voltage, wind turbine current, wind turbine power, Solar panel voltage, solar panel current, solar panel power, DC output voltage, output current, output power |
PWM constant voltage | ≥600dc |
3-phase dump load voltage 1of the wind turbine | 640±5Vdc |
3-phase dump load voltage 2 of the wind turbine | 650±5Vdc |
Time-lapse of the wind turbine 3-phase dump load | 12-20 min |
Low-voltage | ≤200Vdc |
PWM dump load fuse | 63A |
Solar fuse | 25A |
DC output fuse | 80A |
Work environment temperature | -30-60°C |
Relative humidity | <90% No condensation |
Noise (1m) | <40dB |
Degree of protection | IP20(Indoor) |
Cooling method | Forced air cooling |

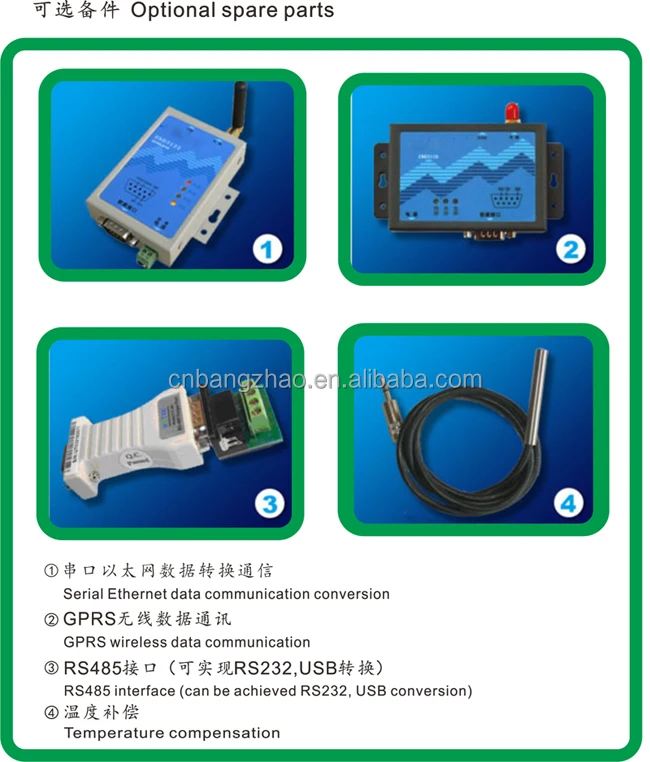

*Communication interface (optional) | RS485/USB/GPRS/Ethernet |
*Temperature compensation(optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C |
Size of the controller | 725*570*310 mm |
Weight of the controller | 42Kg |
Size of the dump load | 810*580*950 mm |
Weight of the dump load | 90Kg |
*Above parameter only for reference
1. Could be custom made to user specifications. 2. Could have solar power control subject to user demand.
