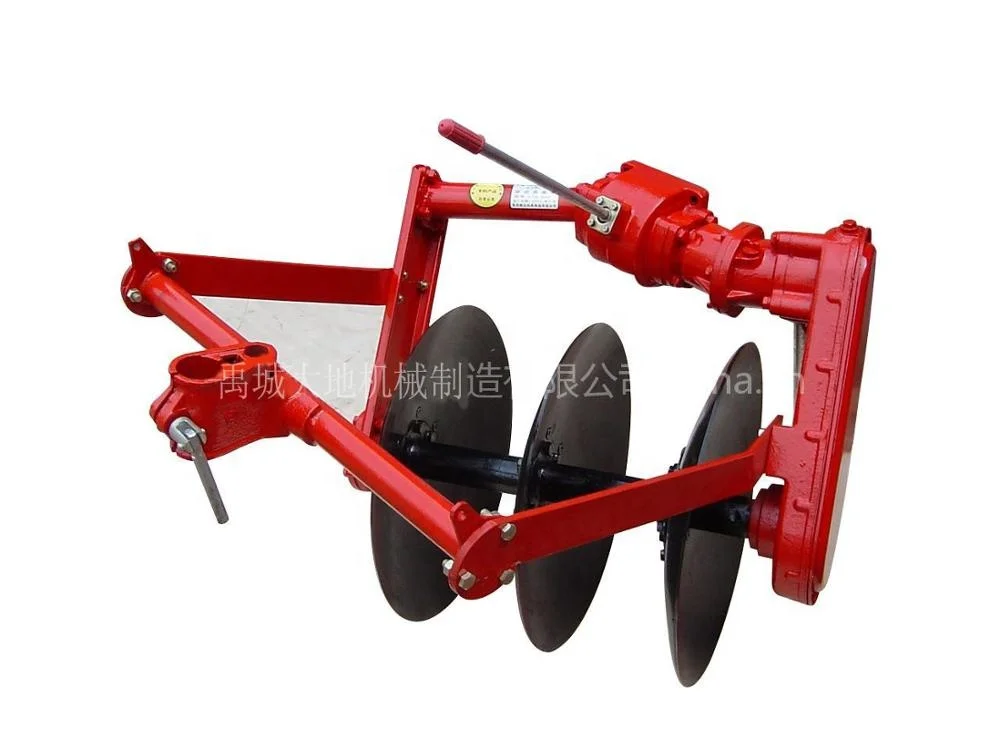

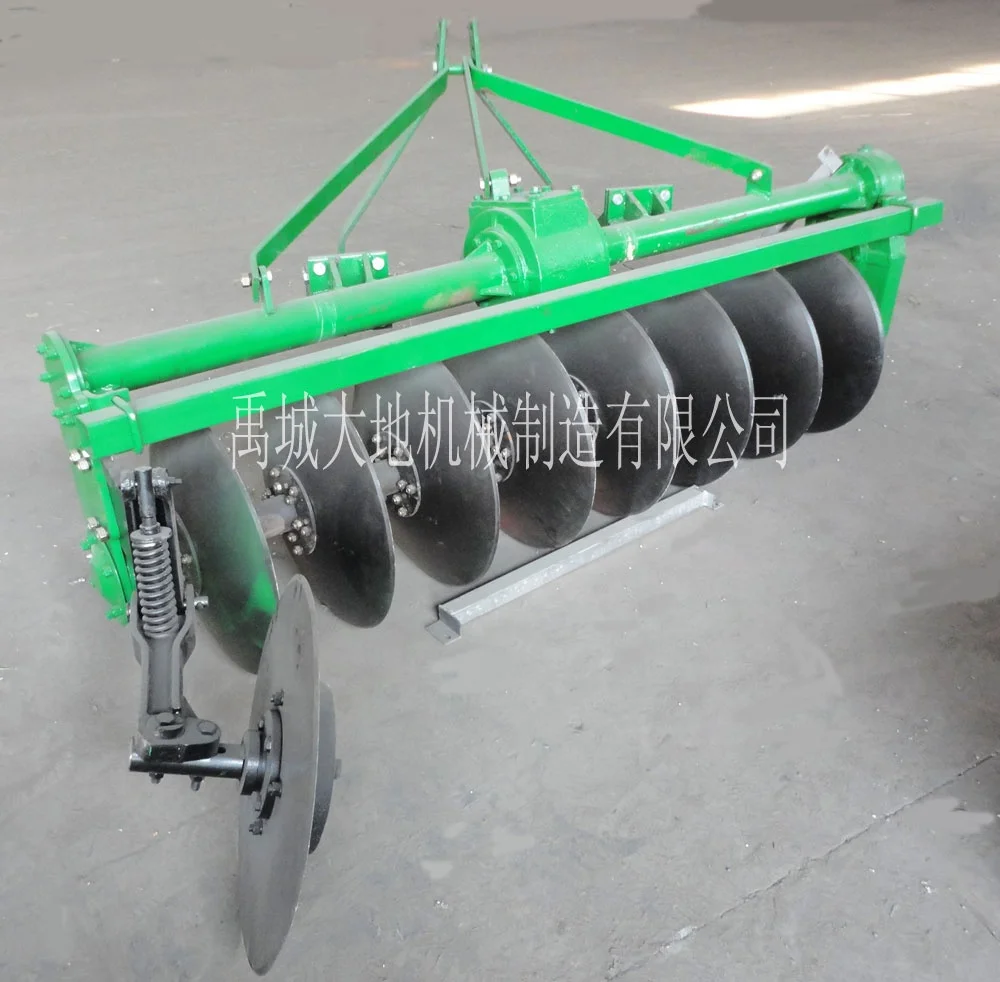

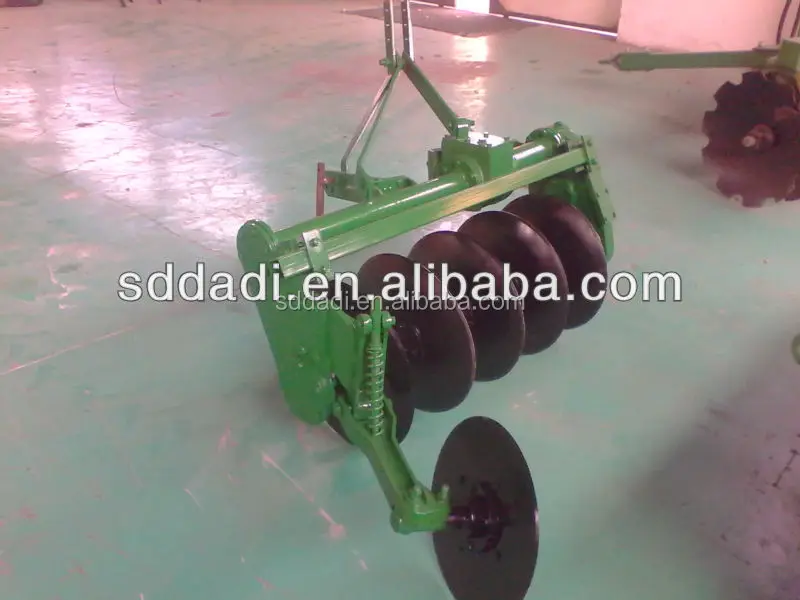

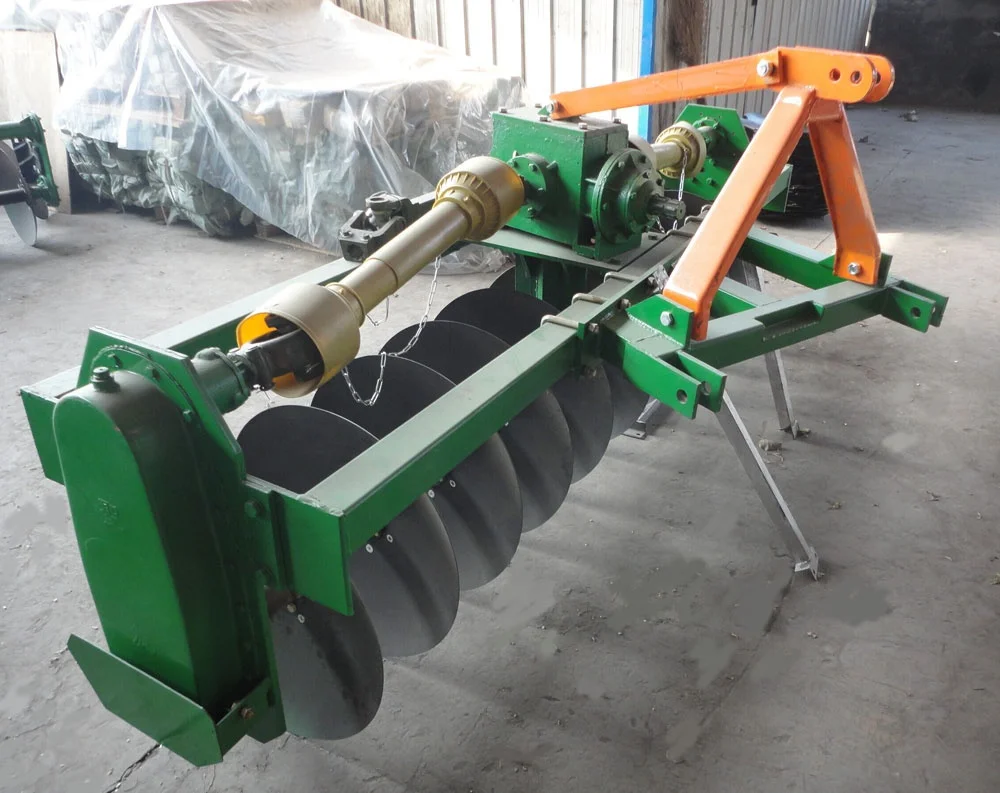

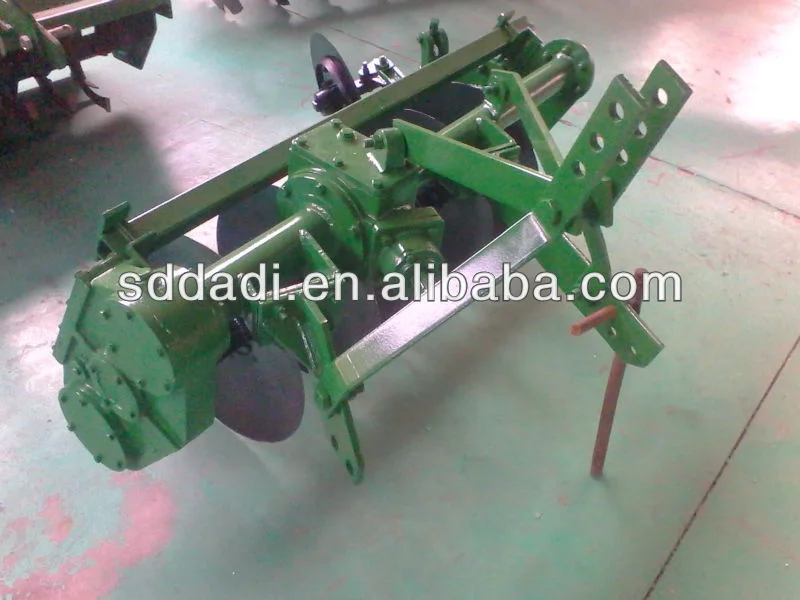

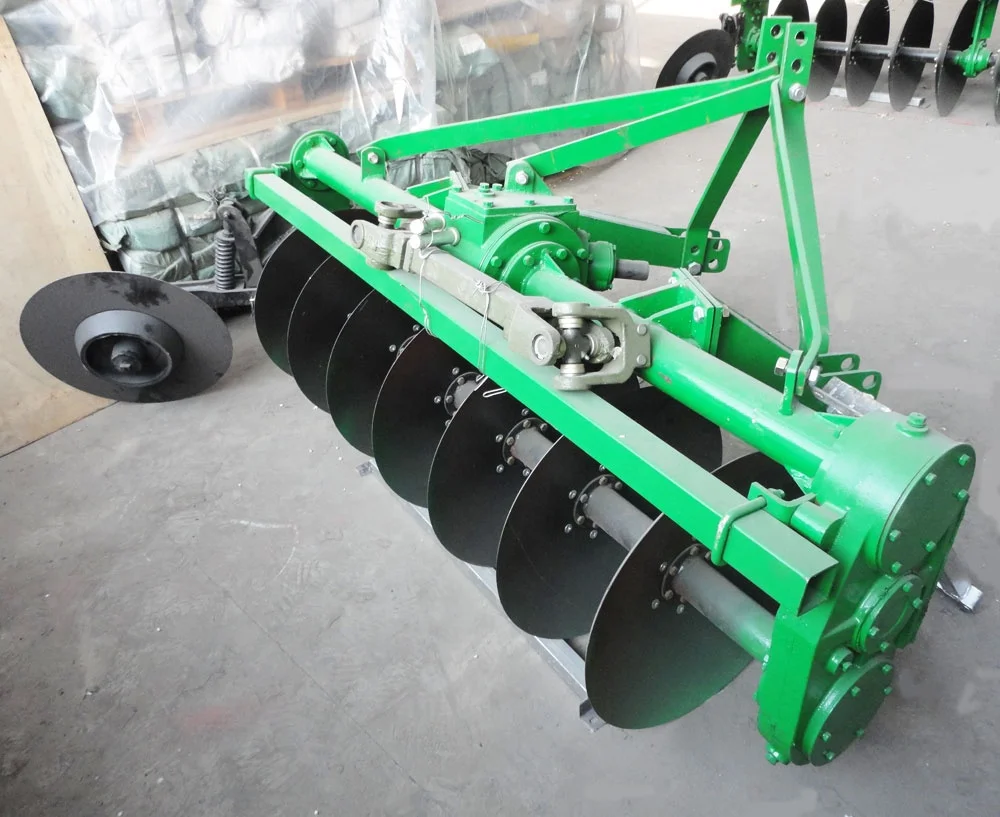

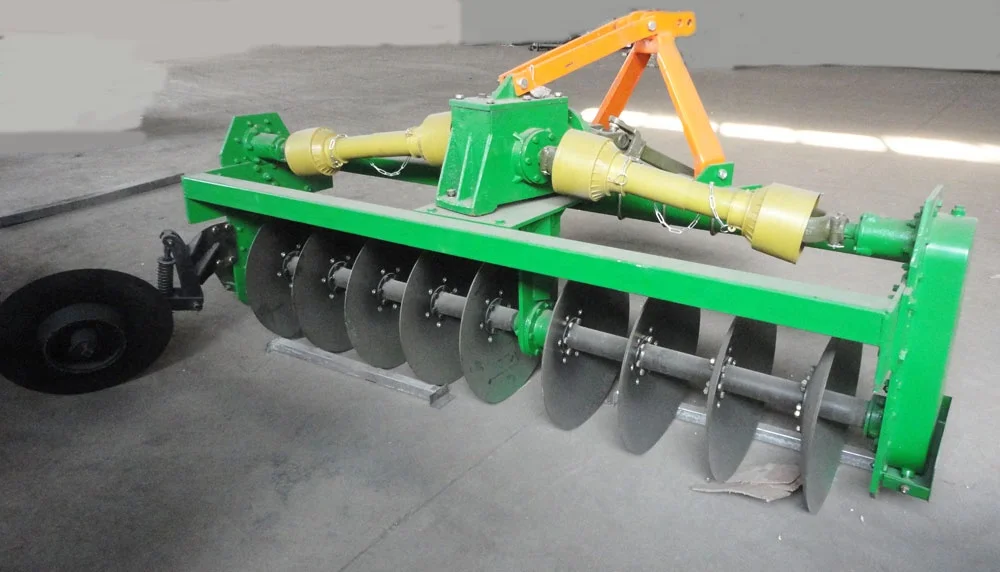

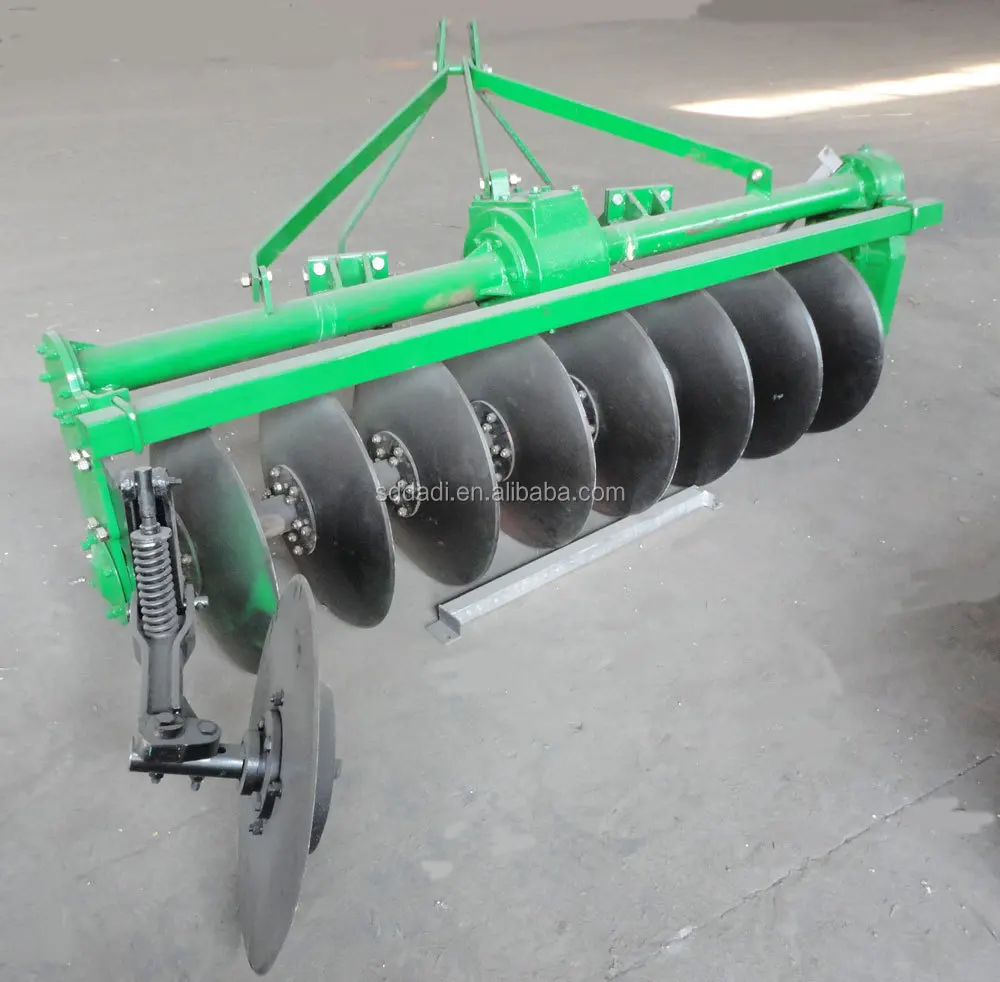

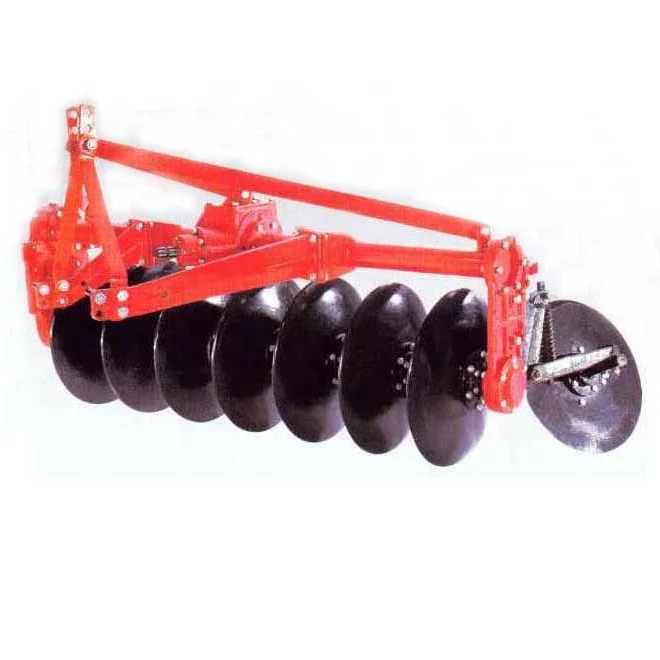

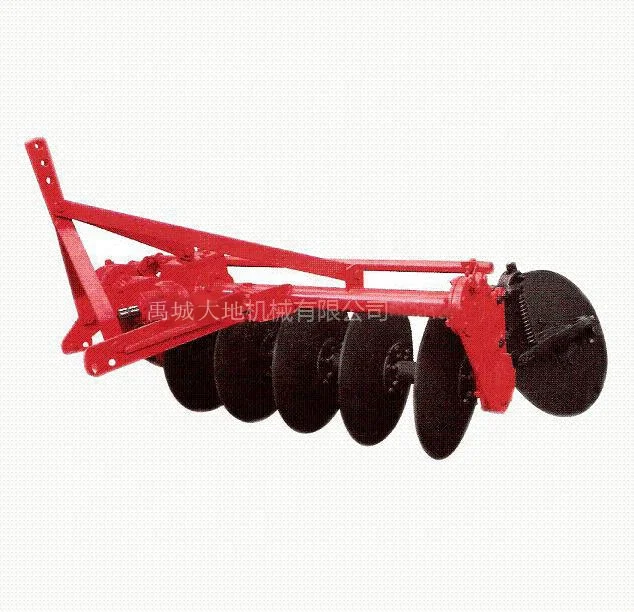

agricultural tractor rotary driven disc plough
- Category: >>>
- Supplier: Yucheng Dadi Machinery Co. Ltd.
Share on (60524329657):
Product Overview
Description

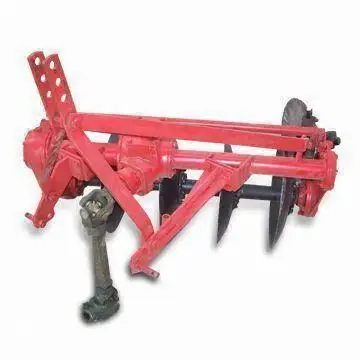

agricultural tractor rotary driven disc plough
The disc plough are mainly used for tillage on dry cultivated or fallow land ,especially on high yield ’manure land, wheat and rice stubble fields. They have the characteristics of small resistance and easy operation etc.
Main Specifications:
| Model | 1LQY-322 | 1LQY-422 | 1LQY-522 | 1LQY-622 | 1LQY-722 | 1LQY-822 | 1LQY-922 | |
| Matched power(hp) | 12~20 | 20~28 | 25~30 | 40~50 | 50~60 | 60~70 | 70~90 | |
| Cultivating width(cm) | 66 | 88 | 110 | 132 | 154 | 176 | 198 | |
| Dia. Of disc(mm) | 500 | 500 | 500 | 560 | 560 | 560 | 560 | |
| Thickness Of disc(mm) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Number of disc(Pcs) | 3 | 4 | 5 | 6 | 7 | 8 | 9 | |
| Cultivating depth(cm) | 12~20 | |||||||
| Output speed(r/min) | 540~740 | |||||||
| Working speed(km/h) | 3~4 | |||||||
| Oil cost(kg/acre) | 0.60~0.75 | |||||||
| Ajustable range of machines’dilination angle | ±5° | |||||||
| Weight(kg) | 216 | 240 | 276 | 321 | 357 | 393 | 416 | |
| O.D.(mm) | length(L) | 855 | 965 | 1075 | 1210 | 1325 | 1440 | 1555 |
| width(W) | 1145 | 1365 | 1585 | 1805 | 2025 | 2245 | 2465 | |
| Height(H) | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | |
