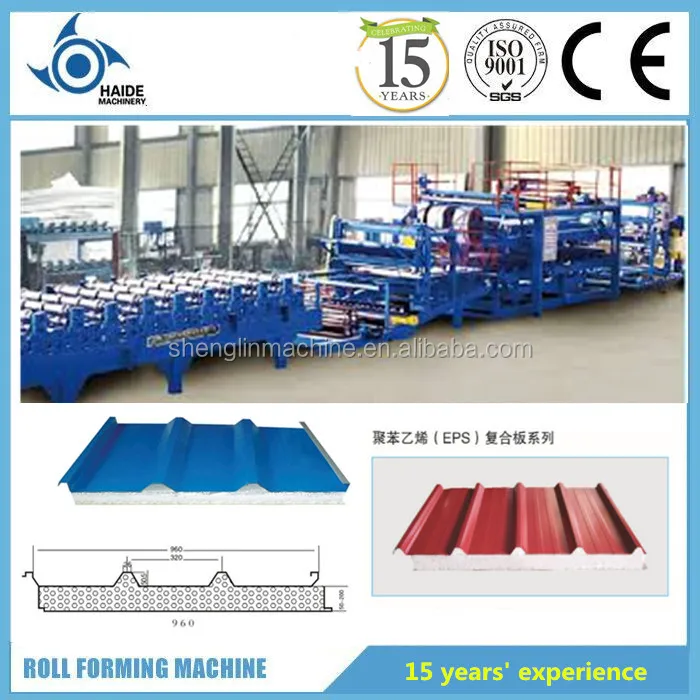

                Big Sale!sandwich panel production line EPS sandwich panel making machine


   Our company is a cold forming automatic production line manufacturer.which with greatest strength powerful technical force and complete sets of equipment.our company has been engaged in manufac than ten years .we have developed more than ten series of steel rol forming machines.such as production lines for wall&roof sheet ,color steel tile ,C&Z shape production line ,glazed tile.floor board .all kinds of sandwich panels,curving machine for roof sheets .etc.

We passed authentication of ISO9001:2008. CE.


 Working Flow:

Layout of the EPS sandwich panel production line01.jpg

Technical parameter:

1. Installation dimension of machine: 36m*3.6m*2.4m

2. Forming speed: 0-4m/min

3. Main motor power: 32kw

4. Total weight : 14T

5. Control system: PLC control system full automatic control

6. Voltage : 380 v/5phase

7.Annual production of this line (eight ours a day )is about 600000 square meters .

8 .Delivery time : 30 working days after received advanced payment

9.  the thickness of upper steel plate:  0.286-0.6mm

10. the feeding width of  steel plate :1000/1200mm

11 the effective width :980 mm

12Coil inner diameter:500mm, 600mm  coil weight: 3000-5000kg

13. EPS core material  the thickness: 47-247mm

14 material :EPS   rockwool

15workshop size :48*10*5




 Roll forming machine:

 Steps of forming roller: 13steps

Diameter of shaft: 70mm

Thickness of Middle plate: 16mm

Main body of machine: 350mm H steel

Chains: 1 inch

part of EPS sandwich roll forming machine.jpg

Other Parts

part of sandwich machine.jpg

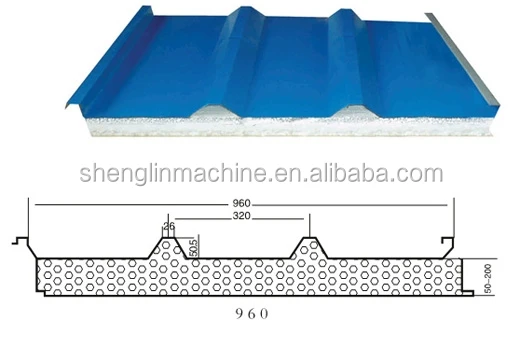

Sample of EPS Noise Barrier steel sheet :

The technical parameters just a reference,we can according customer's request make it.






Widely use about insulation sandwich panel:



Packaging & Shipping

Seaworthy export standard packing for the machine. All machine parts are well fastened and fixed by blocks and wire ropes.

Normally one machine needs two 40 feet containers for shipping.


Our Services

Installation and training:

1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.

Our Service:

1.Customer's Design,Size,Color,Logo are accepted.

2.With 15 years professional manufacture experience.

3.Prompt Delivery&Competitive Price.

4.Main Makets:Middle East,Europe,North American,Africa,Southeast Asia.

After-sales  Service:

1.We provide the technical support for whole life of our machines.

2.If buyer need the technican to go aboard ,we will arrange the technican.but the buyers should takes all the cost,including Visa,roundtripticket etc.


1 The machine can according to your requirement to set the color

2 Within in one year if any parts go broken we will send new ones to replace for free

3 If you want to learn more about the product please login our website or contract to us.
