Flow Capacity: 0.5-90Nm3/min Pressure Dew Point: 2-10℃ Air cooled Type
Features:

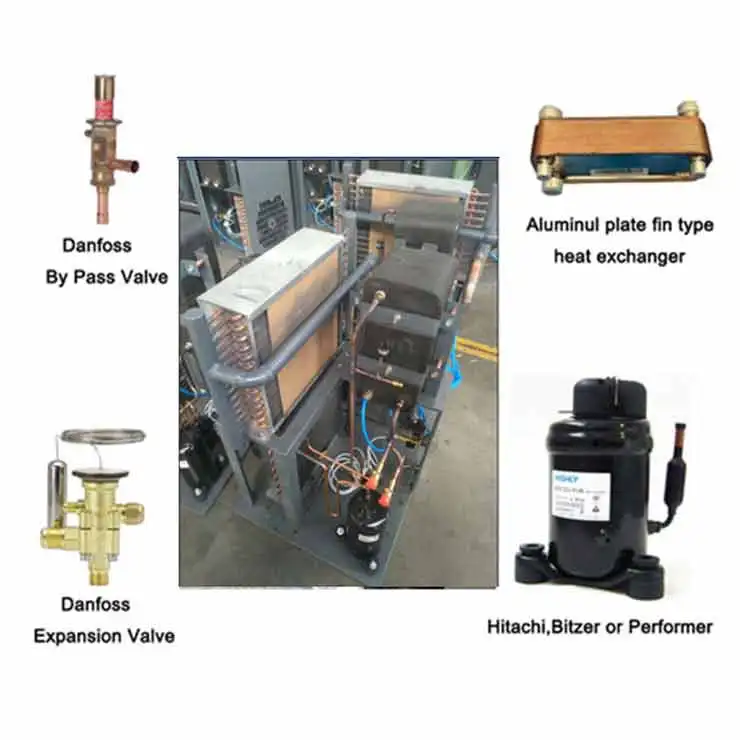

1.Normal operation within ambient temperature of 50 degreee 2.Using air as the cooling medium with convenience and economy 3.Counter flow design in heat exchanger with high efficient and small size 4.3-stage separation patented design in steam separator:direct colliion type,low speed centifugation and stainless wire demist.The result is 99% separation efficiency and low dew point. 5.Famous brands refrigeration compressor,such as Performer,Bitzer,Copeland with steady running,low noise,high cop,energy saving and long life 6.Famous refrigerated control components like Danfoss,Emerson,Sporlan 7.Real-time display the operation parameter
Technical Parameters:
Refrigerated Compressed Air Dryer
Model
Flow Capacity (Nm3/min)
Voltage (V)
Fan Power (W)
Pipe Diameter
Air Inlet Pressure (Mpa)
Net Weight (Kg)
Length (mm)
Width (mm)
Height (mm)
Air Flow (N3/h)
SLAD-0.5NF
0.65
220
1x67
G1/2"
0.6-1.0 MPa
45
750
430
610
760
SLAD-1NF
1.2
220
1x67
G1"
70
780
450
610
760
SLAD-2NF
2.5
220
1x95
G1"
110
800
460
720
1580
SLAD-3NF
3.6
220
1x150
G1"
130
950
480
720
3150
SLAD-4.5NF
5
220
1x240
G1 1/2"
150
1170
540
750
5580
SLAD-6NF
6.8
220
2x150
G1 1/2"
160
1350
520
753
6300
SLAD-8NF
8.5
220
2x195
G2"
200
1100
670
1098
8470
SLAD-10NF
10.9
380
2x195
G2"
250
1200
670
1098
8470
SLAD-12NF
12.8
380
2x195
G2"
300
1200
670
1048
8470
SLAD-15NF
16
380
2x190
DN65
320
1460
750
1630
8470
SLAD-20NF
22
380
2x240
DN65
420
1670
800
1663
11160
SLAD-25NF
26.8
380
2x240
DN80
550
1820
800
1713
11160
SLAD-30NF
32
380
2x380
DN80
650
1900
860
1875
15240
SLAD-40NF
43.5
380
3x240
DN100
2200
2200
930
1941
16740
SLAD-50NF
53
380
3x380
DN100
2450
2450
900
2110
22860
SLAD-60NF
67
380
4x380
DN125
2140
2140
1450
1787
30480
SLAD-80NF
90
380
4x550
DN125
2070
2070
1600
2029
42400

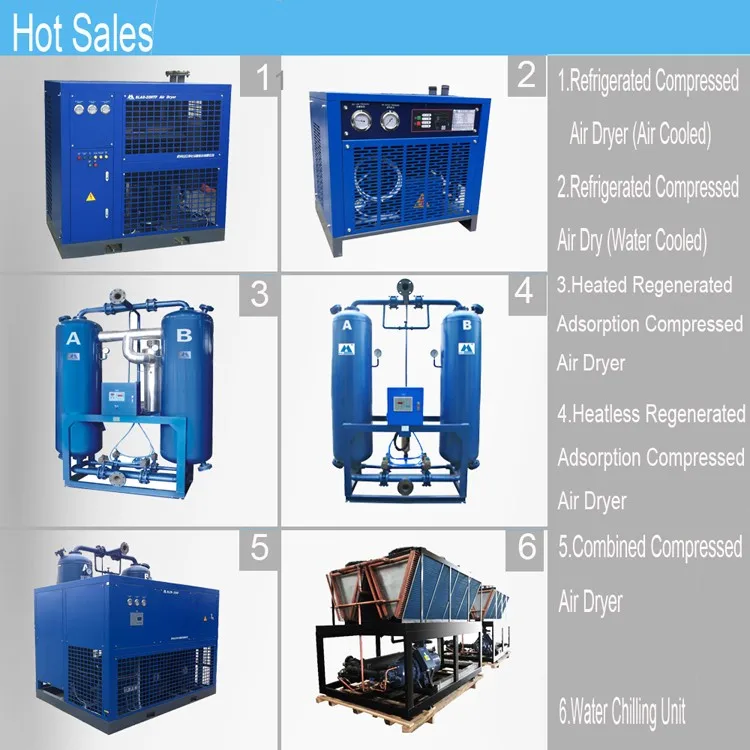

Hot Sales:
Applications:

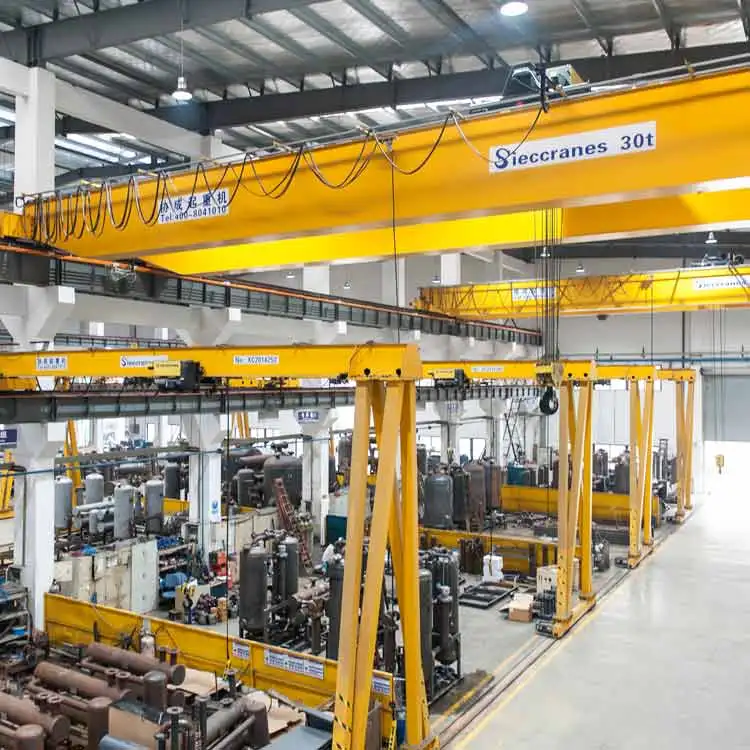

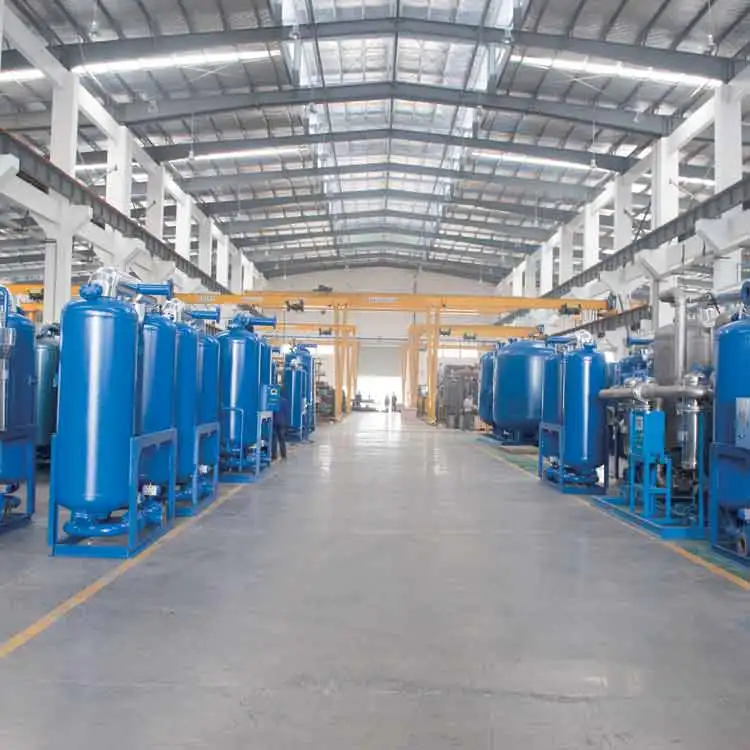

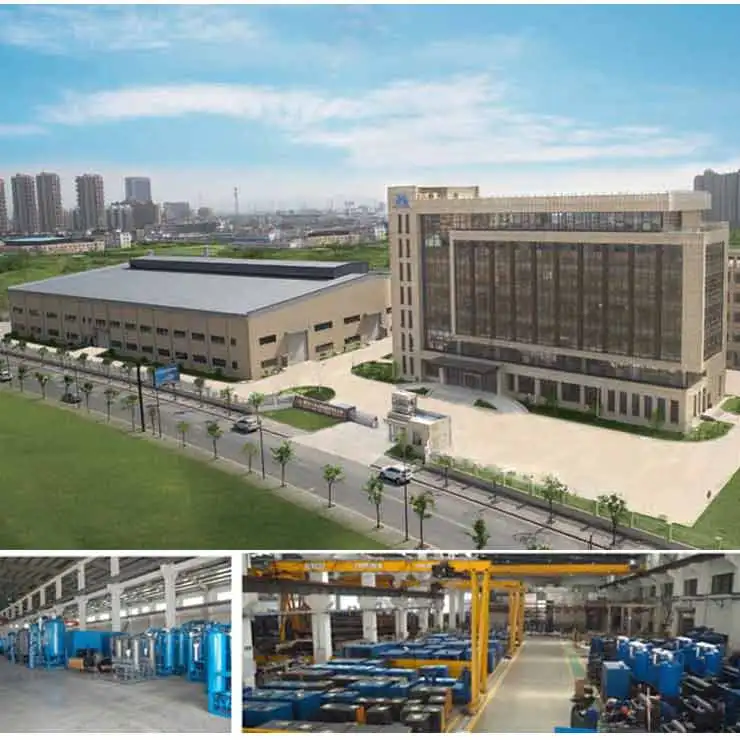

Our Factory:
Certification & Famous Suppliers:
Packing & Delivery
FAQ
1. Do you OEM or ODM?
Yes.We do.
2.Do you produce high pressure equipement?
Yes,we produce the pressure above 1.0MPa,until now ,max pressure 3.6MPa
3. Do you have any quality certifications?
Yes,we have CE,IAF,TUV,BV ,ISO9001,ECM,and if you need special certifications for your country,then we will apply it for you.
4.How to repair when any problems happen?
We will arrange the engineers to flight to your local site to slove it .
5.How long will you offer the quality promise?
We will offer you 18months guarantee after the shipment.
