Auto Jumbo Roll Cutting Machine
- Category: >>>
- Supplier: Dongguan Yongle Machinery Co. Ltd.
Share on (60524819992):
Product Overview
Description
Auto Jumbo Roll Cutting Machine
Product Description
Application :

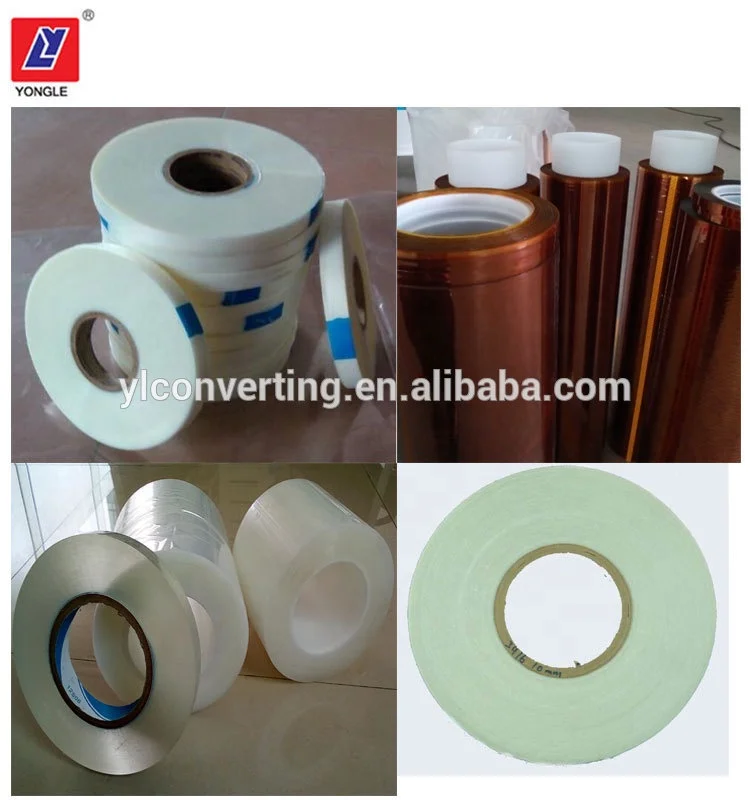

Auto Jumbo Roll Cutting Machine for cutting BOPP, OPP, Cellophane tape, 3M, Mylar, Kapton, EVA,PE, PVC, Masking tape, Double-side adhesive tape, Kraft tape , Protective film, Duct tape , film roll etc. Auto Jumbo Roll Cutting Machine including the Semi-automatic roll cutting machine , single shaft roll cutting machine , double shaft roll cutting machine, YL-708 Fully Automatic 4 Shaft Tape Roll Cutting Machine.
Feature:
For fully automatic roll cutting machine :
1. Machine with PLC control and color touch screen , easy and convenient to operate to worker,also improves the quality of the finished cut roll;
2. Can accoring to customer's requirments to set 10 differents cutting width and the angle of cutting.( if cutsomer needed maximum can reach 20 types);
3. with automatic spary silicone oil cooling system, thus the finished products with smooth and beautiful cutting surface;
4. Cutter with servo-motor control, apply for different material roll, also machine cutter move forward stablly and smoothly.
5. Cutter and the main shaft adpots AC motor. The high precision ball screw work with servo motor and he straight liner slide rail, machine running smoothly and cutting the material with high precision.

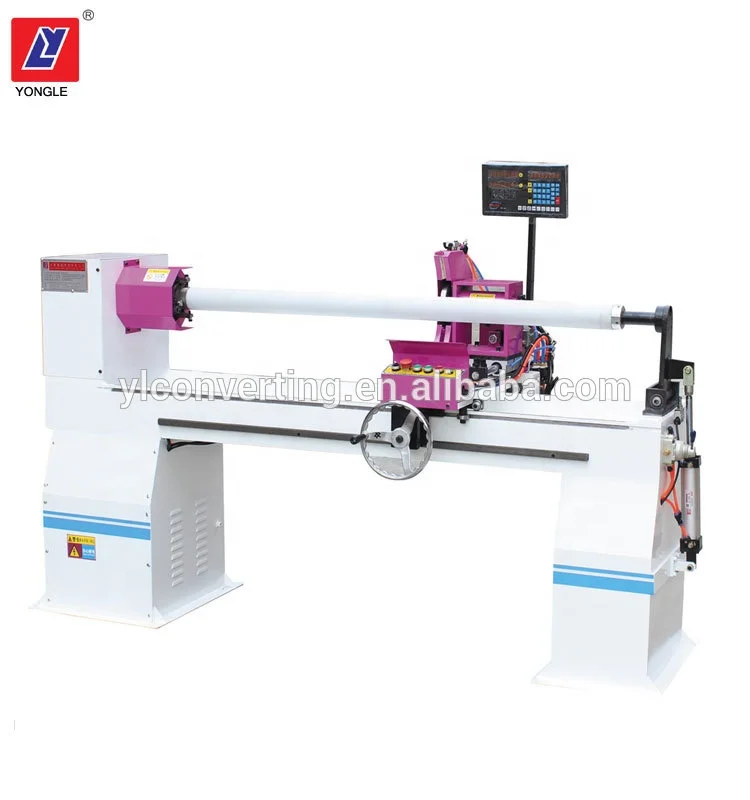

For Semi Automatic roll cutting machine :
1. With round blade, pneumatic cutter forward and return, the finished roll with smooth cutting surface.
2. Machine with digital system, the cutting width will display on it, improve the accuracy of cutting.
3. Customer can easy adjust the cutting width and cutting angle.
Technical Data:
For fully automatic roll cutting machine :
maximum roll cutting diameter
| 300mm( depends on the shaft number and material ) |
minimum roll cutting width
| 0.3-1600mm( according customer's requirement) |
paper core inner size
| 76.2mm ( or others ) |
maximum roll cutting speed
| 34 cuts/min for one shaft cutting machine |
| 68cuts/min for two and four shaft cutting machine | |
voltage
| 380V/415V/220V(according customer's required ) |
speed of turnable
| 300-1800rpm |
main motor power
| 4 KW |
Power of round blade
| 1.5 KW |
option
| With Single , or double or 4 shaft , or semi-automatic cutting machine |
| With sound cover or not |
Semi automatic roll cutting machine :
roll cutting width
| 1300mm/1600mm |
width control system
| electrical digital system |
paper core inner size
| 30-76.2mm |
maximum roll cutting diameter
| 180mm |
main motor
| 1.5 KW |
Cutting way
| round knife /blade |
colding way
| automatic sprinkler |
Machine's picture :

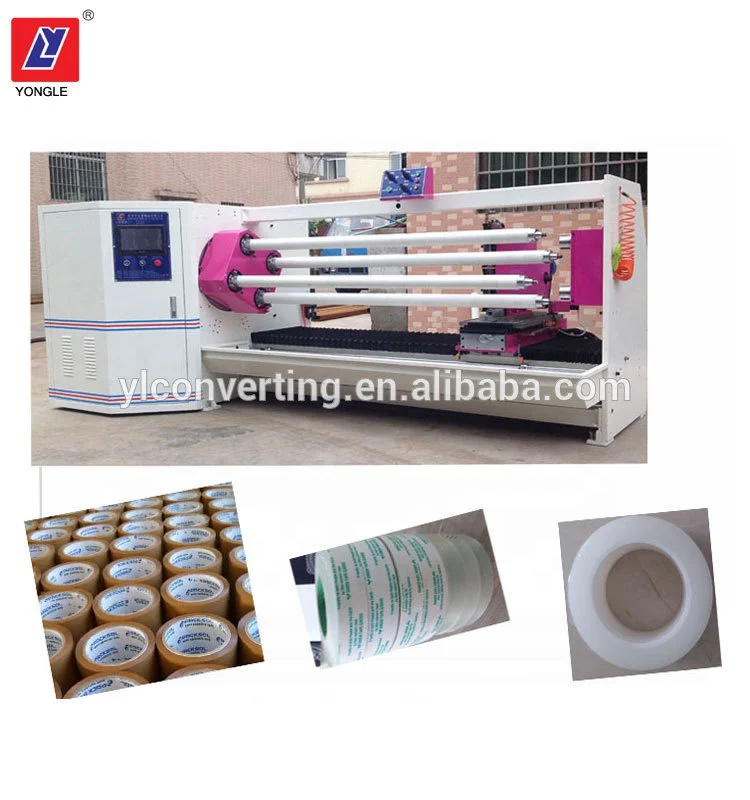

Four Shafts roll cutting machine :

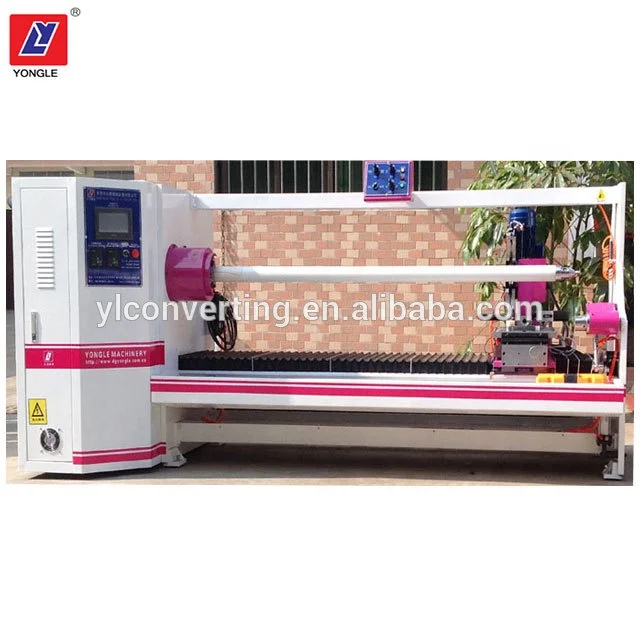

Single shaf roll cutting machine :

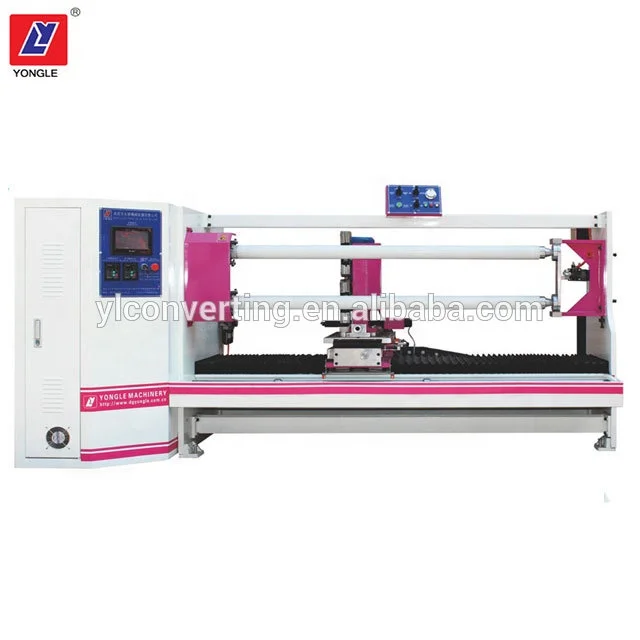

Double shafts roll cutting machine :
Company Information
Yongle Machinery CO.,LTD located at Dongguan City, Guangdong Province, China. We are specialize in all kinds of slitting, cutting, rewinding, coating, paper core making machine since 1999, and accept customized
With more than 18 years experience in manufacturing machine, company owns professional design department and machine making manufacturer plant. We are committed to provide high quality products and suitable machine for our customer.
From the feedbak and assitant by our customer, we improves and avoid the potentail problem for the machine.
company pictures:
Packaging & Shipping
Delivery:
1. Machine will be delivery within 35 working days.
2.Machine with film packaing at first , then with wooden case.
Delivery picture:
Our Services
1. 12 months warranty for the machine .
2. Machine will well test before delivery
3. 24 hours online.
4. Company accepted customized.
Single shaft cutting machine working video on youtube : https://www.youtube.com/watch?v=0dZUgEV4FV0
Four shaft roll cutting machine working video on youtube :https://www.youtube.com/watchv=N_zD6PbM3l4
Semi-automatic cutting machine working video :https://www.youtube.com/watch?v=MK-AiXoHQU8
Skype:Gina hu123, whatsapp:+8613929463759, Wechat:13929463759
FAQ
1.Are you a trade company or manufacturer ?
We are a manufacturer located at Dongguan City, Guangdong Province, China. Customers are warmly welcome to visit our factory.
2.What's your main products ?
Our company mainly manufacturing slitting, roll cutting, rewinding, coating line and
making paper core machine for tape, film, and paper. Also we accept customized.
3.What’s your machine ‘s advantage ?
1)High quality-all main accessories are imported, machine will be well test before packaging and delivery.
2)Customer can come to visit our factory and take their material for test.
3)12months warranty.
