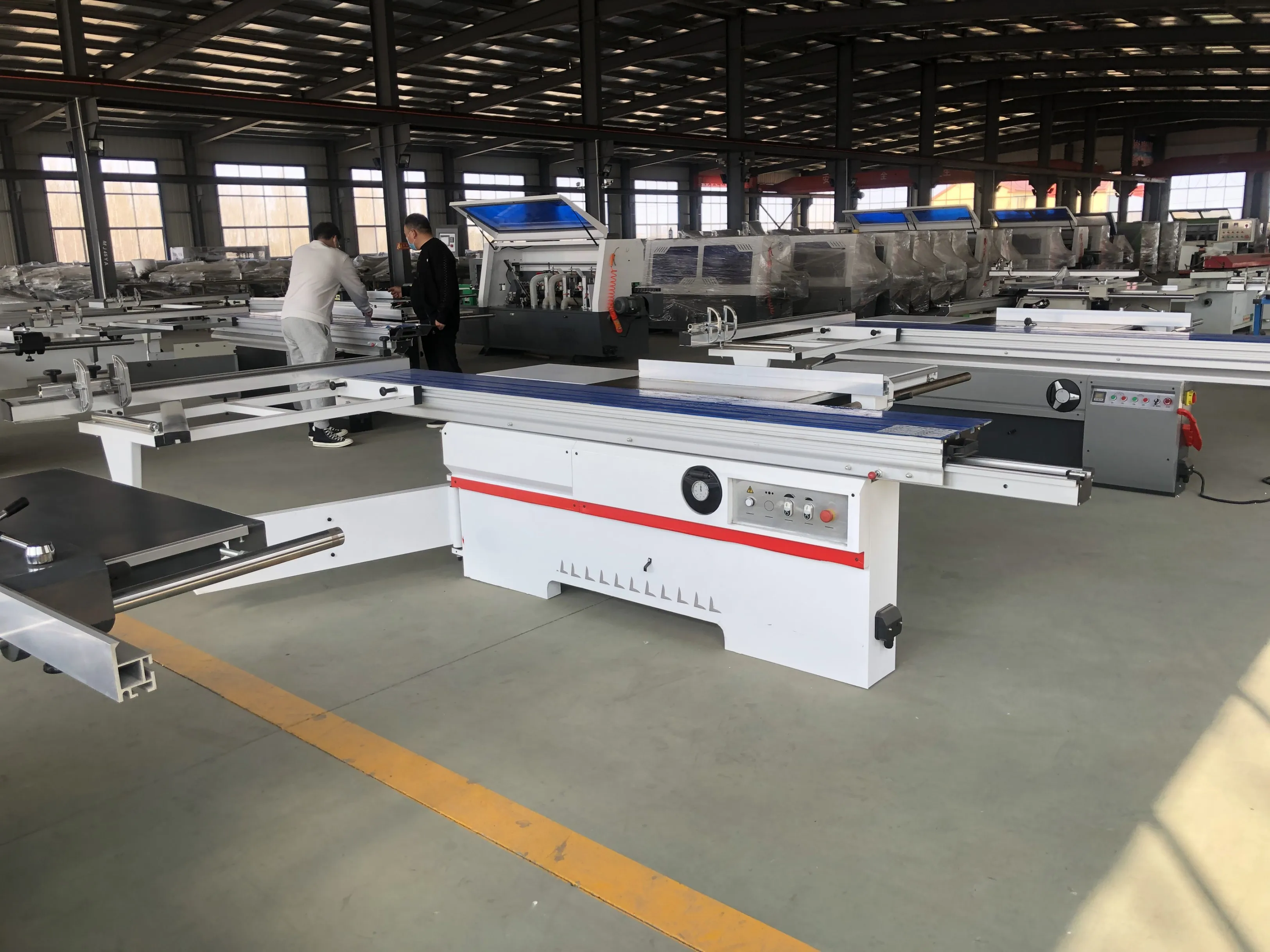

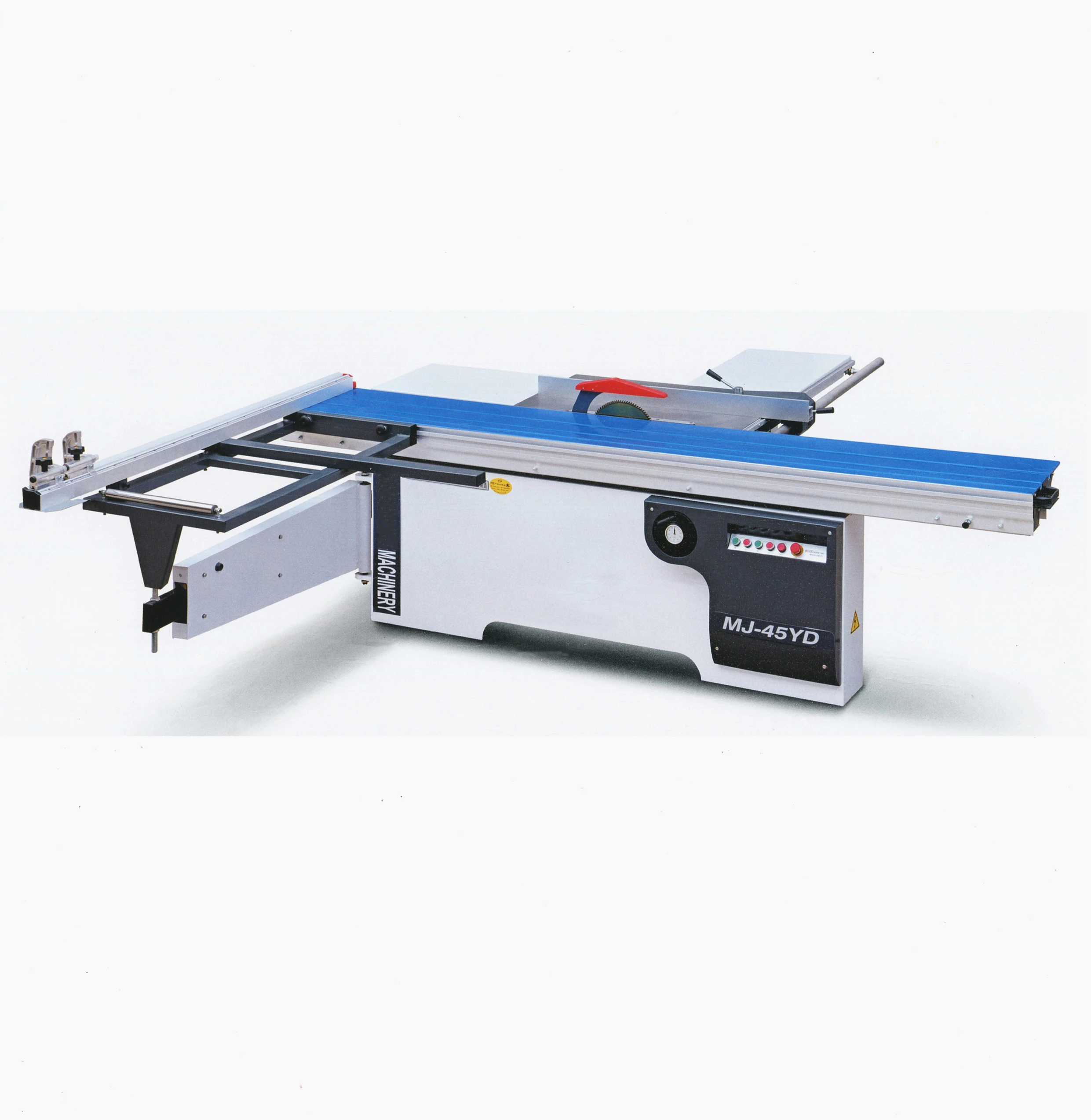

Woodworking Machinery Table Sliding Panel Saw
- Category: >>>
- Supplier: Qingdao Haozhonghao Woodworking Machinery Co. Ltd.
Share on (60525157409):
Product Overview
Description
Product Paramenters
Model | MJ45YD (2800mm) | MJ45YD (3000mm) | MJ45YD (3200mm) | MJ45YD (3800mm) |
Dimensions of sliding table | 2800*370mm | 3000*370mm | 3200*370mm | 3800*370mm |
Max cutting length | 2700mm | 2900mm | 3100mm | 3700mm |
Max cutting width | 1250mm | 1250mm | 1250mm | 1250mm |
Max cutting thickness | 75mm | 75mm | 75mm | 75mm |
Power of main saw spindle | 4kw | 4kw | 4kw | 4kw |
Rotary speed of main saw spindle | 3600-6000r/min | 3600-6000r/min | 3600-6000r/min | 3600-6000r/min |
Saw tilt | 0-45° | 0-45° | 0-45° | 0-45° |
Diameter of main saw | ø300(250-350)mm | ø300(250-350)mm | ø300(250-350)mm | ø300(250-350)mm |
Main spindle diameter | ø 30mm | ø 30mm | ø 30mm | ø 30mm |
Power of grooving saw | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
Rotary speed of grooving saw | 7200 r/min | 7200 r/min | 7200 r/min | 7200 r/min |
Diameter of grooving saw | ø 120mm | ø 120mm | ø 120mm | ø 120mm |
Grooving spindle | Ø20mm | Ø20mm | Ø20mm | Ø20mm |
Dimension | 3050*3500*870mm | 3250*3500*870mm | 3450*3500*870mm | 4000*3500*870mm |
Weight | 580kg | 600kg | 620kg | 650kg |
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, MDF board, organic glass plates and solid wood and others with wood structure and similar hardness. Movable table guide track is plating chromium steel bar structure, exact and durable.
Made of high-strength extruded aluminum alloy, movable table is high in strength and won’t bend.

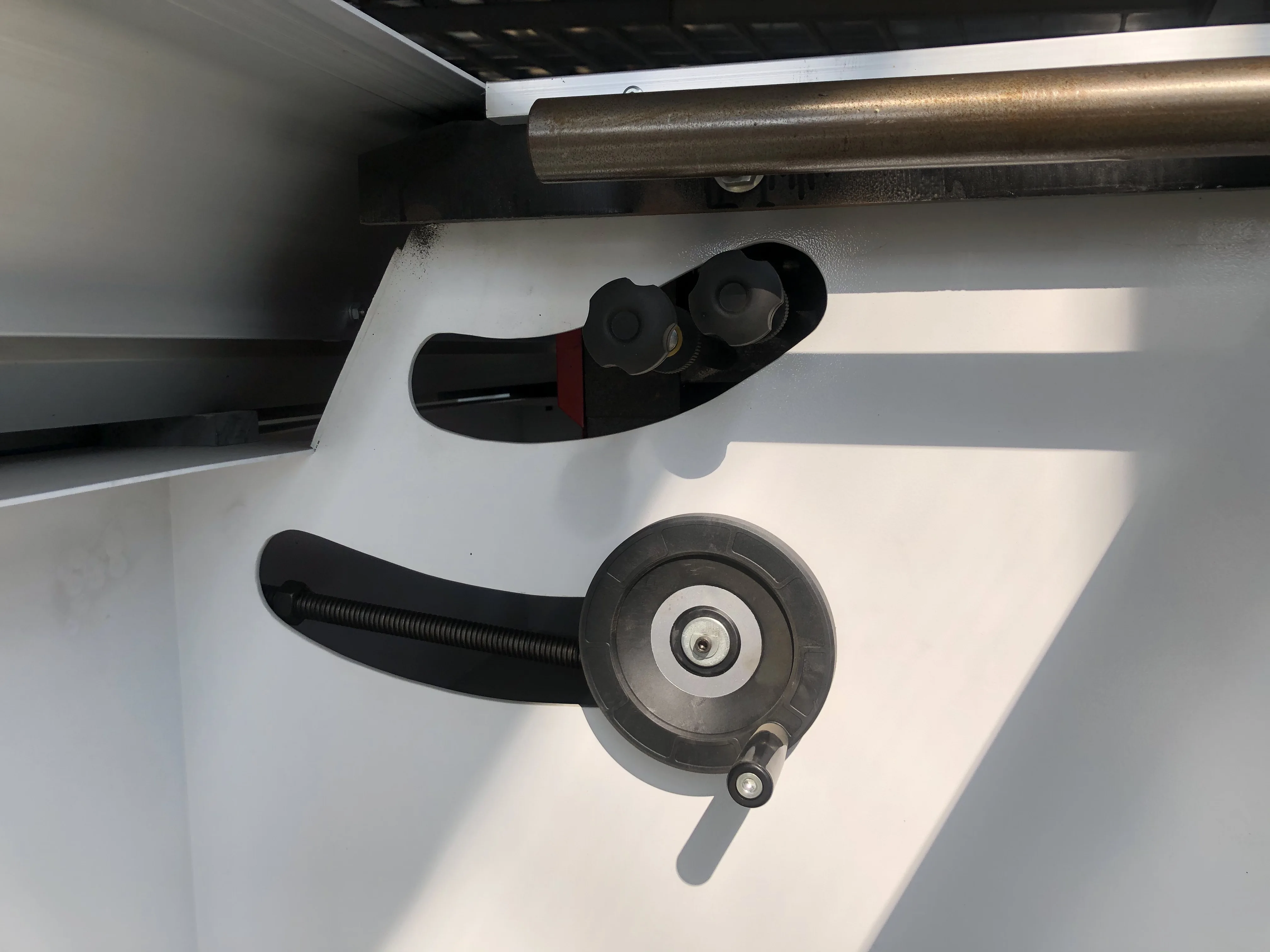

With oxidation treatment, movable table surface is beautiful and hardwearing. Tilt angles of main and grooving saw blades are displayed precision inclinometer by precision inclinometer. Its saw blade can tilt 45 degree.
Made of high-strength extruded aluminum alloy, movable table is high in strength and won’t bend.
With oxidation treatment, movable table surface is beautiful and hardwearing. Tilt angles of main and grooving saw blades are displayed precision inclinometer by precision inclinometer. Its saw blade can tilt 45 degree.

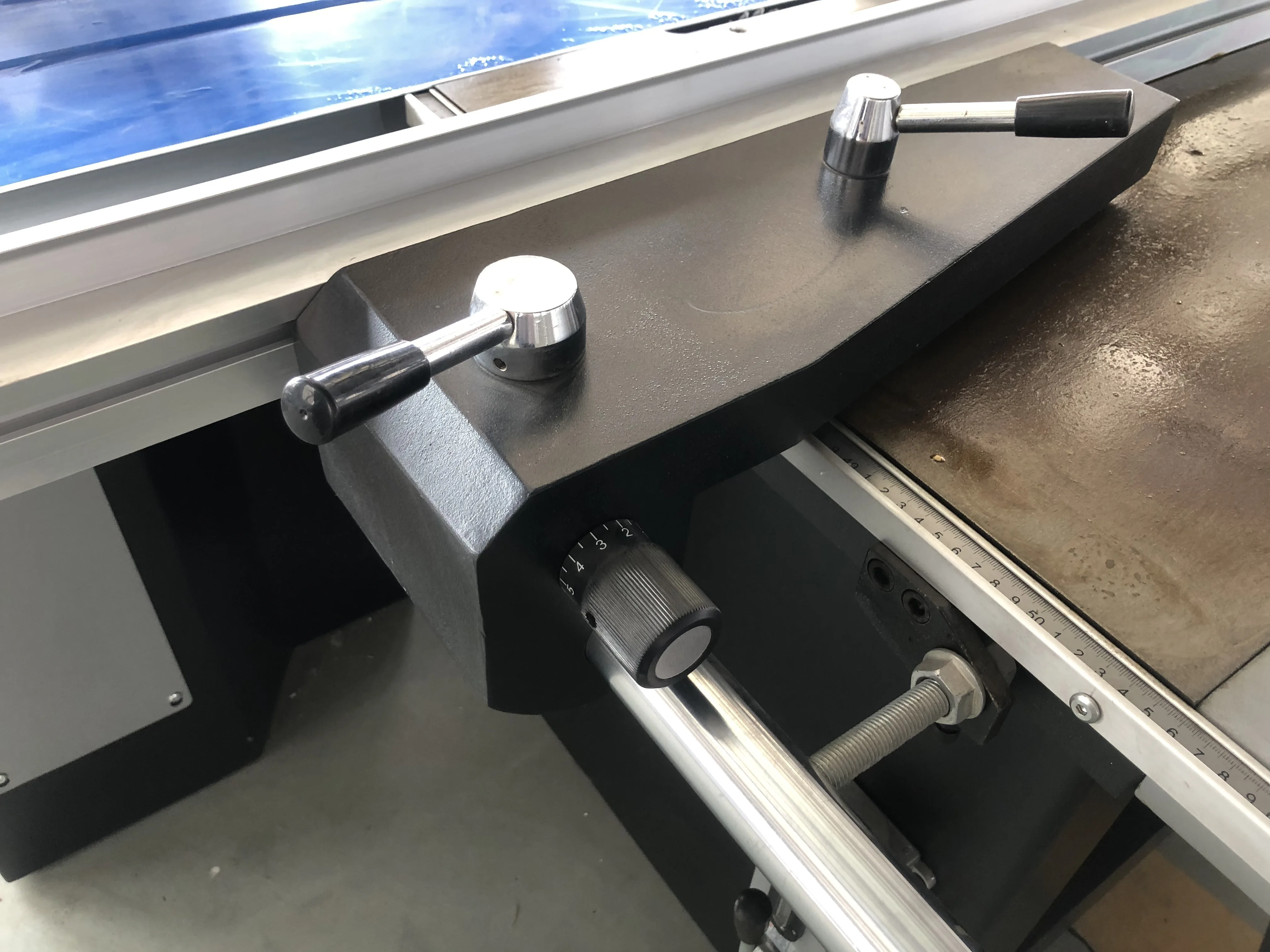

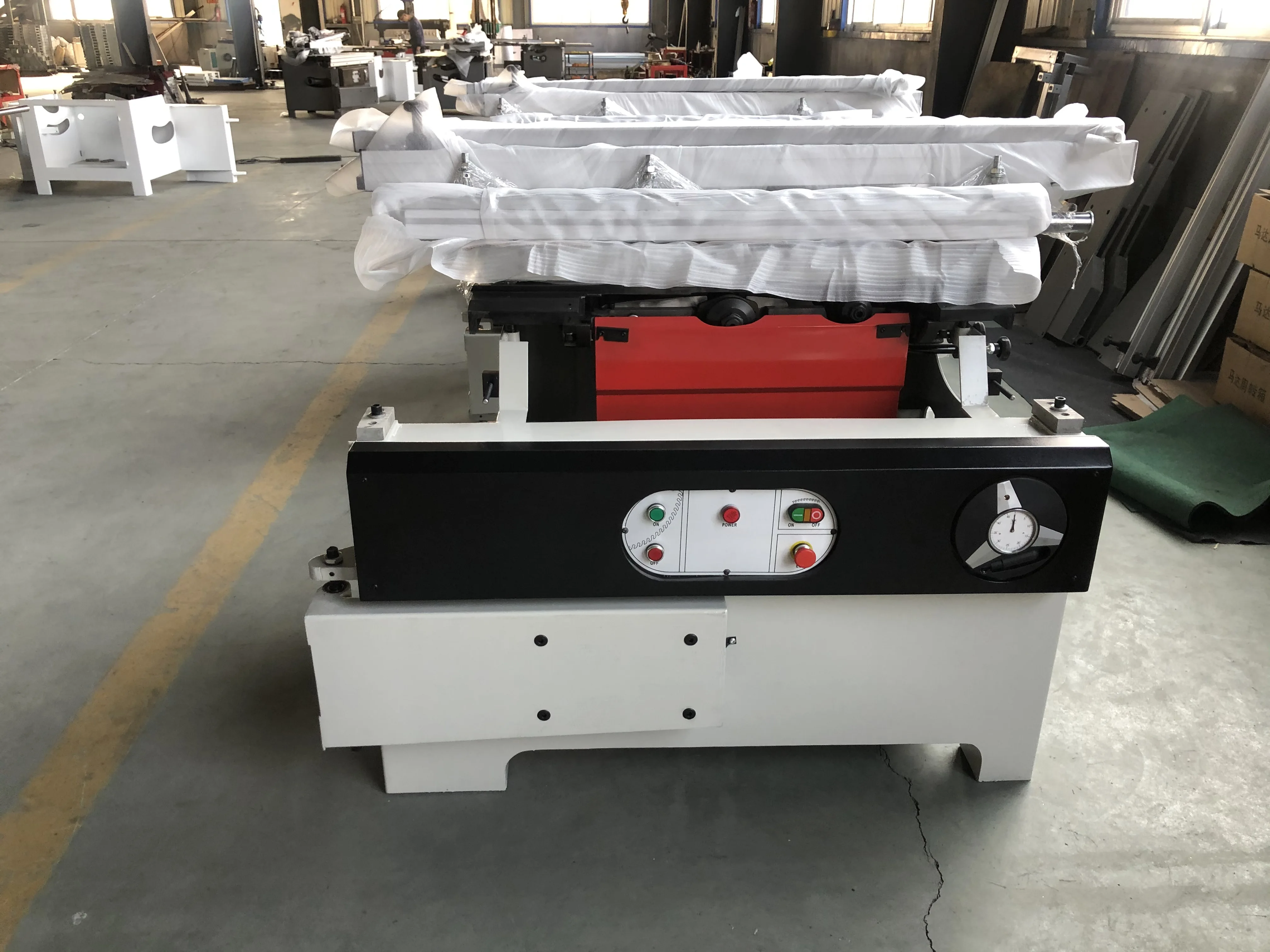

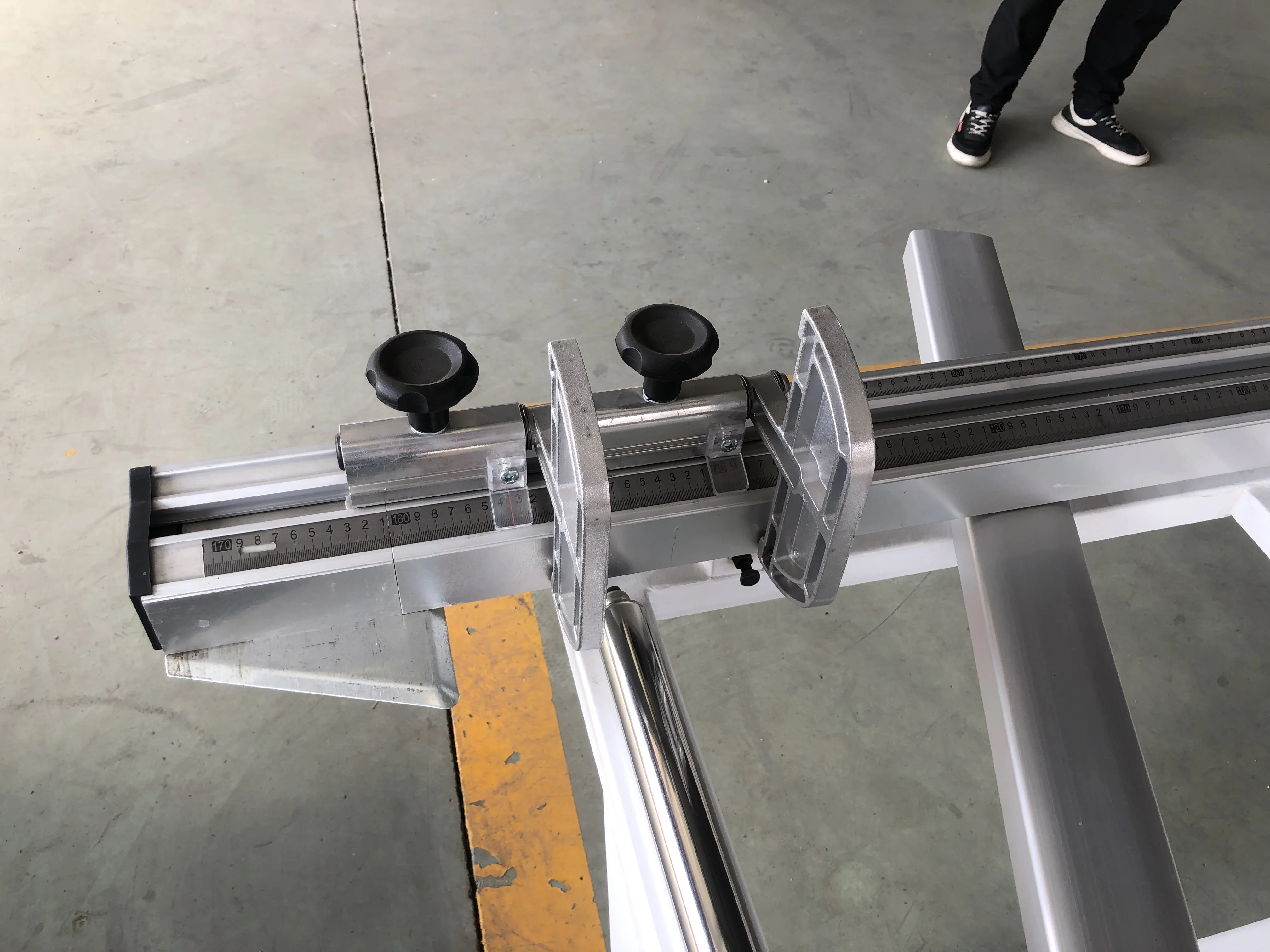

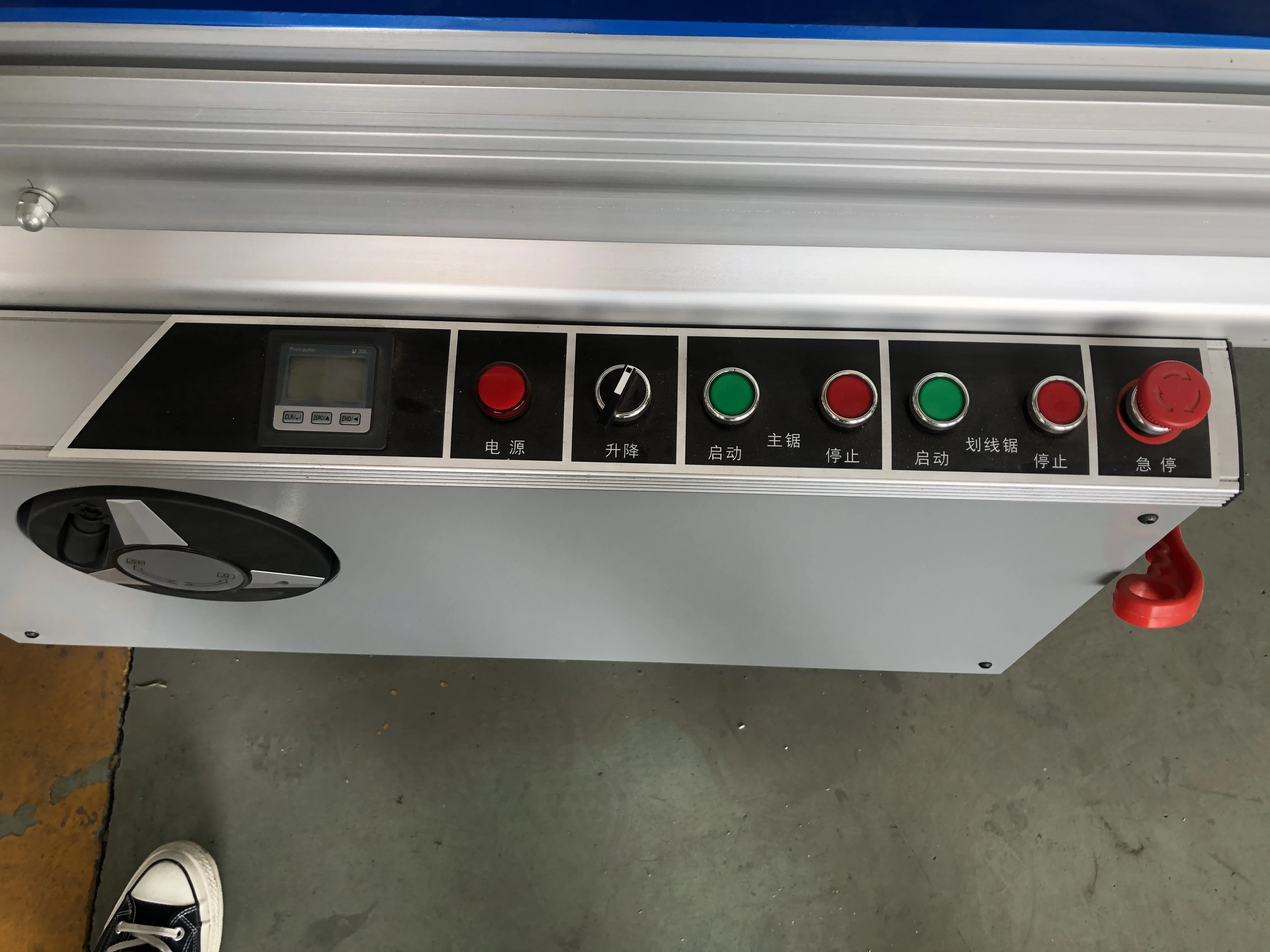

Details Images
