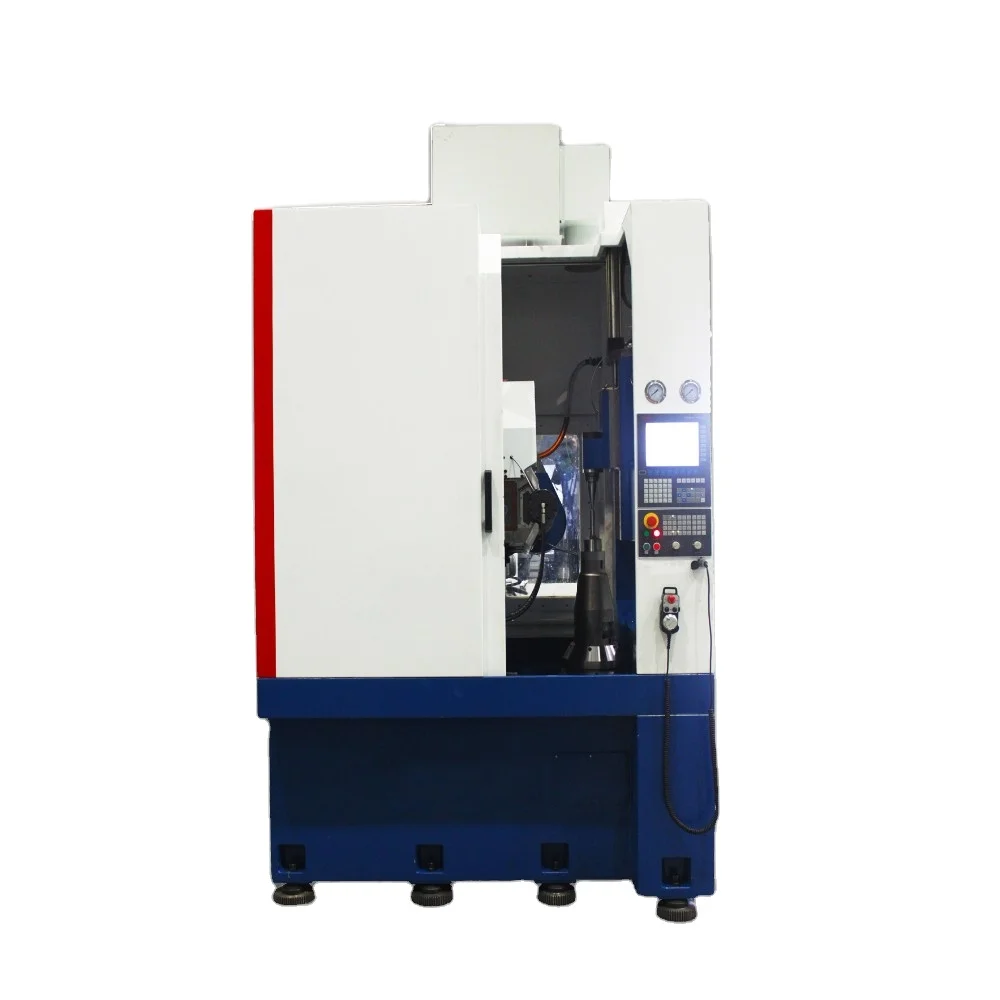

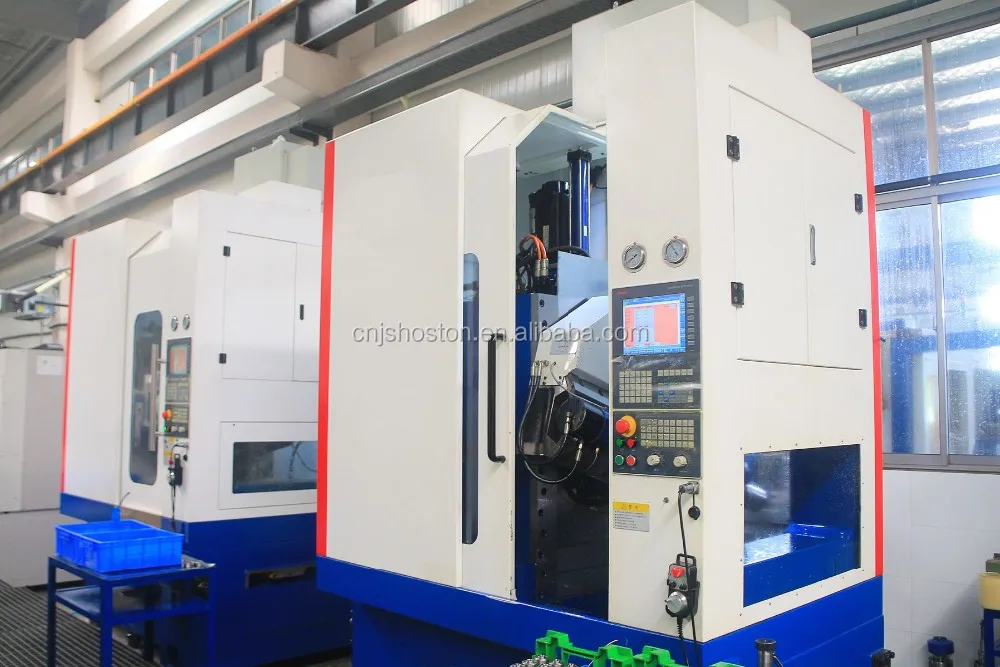

Hoston Brand CNC Internal Gear Grinder

Product Overview

Description

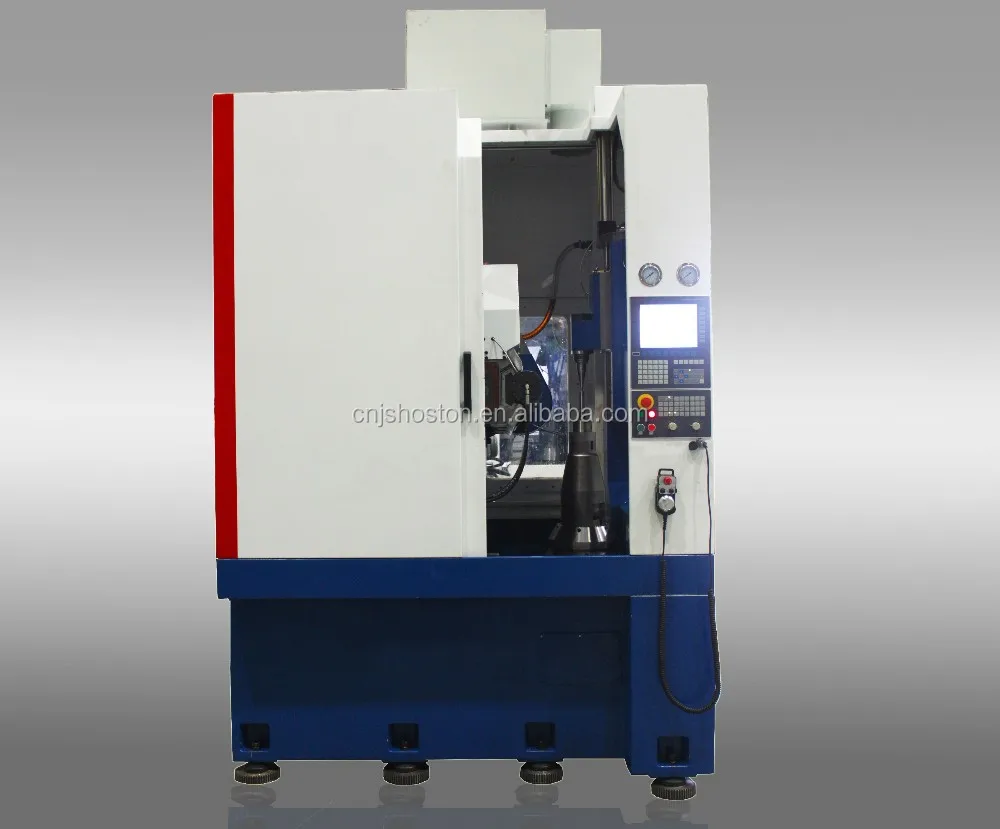

CNC Gear Hobbing Machine:



Machine Features:
1. Modular design and manual list interface provide different selections and broad applications to users

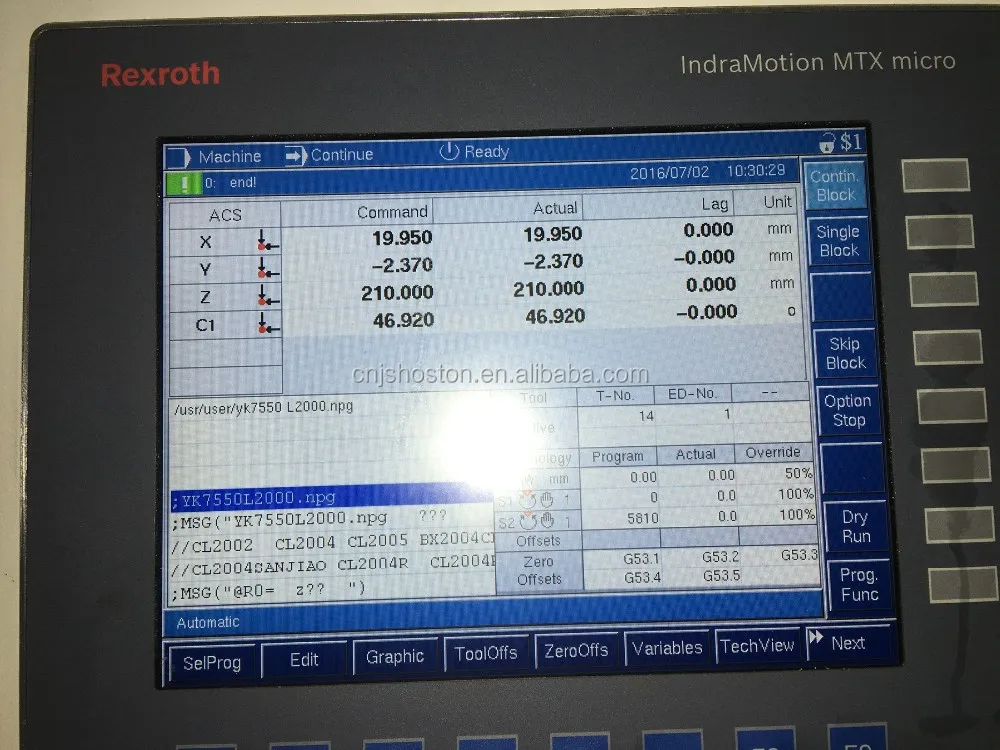

2. Adoption of IndraMotion MTX micro system from REXROTH to provide selection from 4 to 6 axies options. EGB (electric
gearbox) allow synchronization of 4 axies

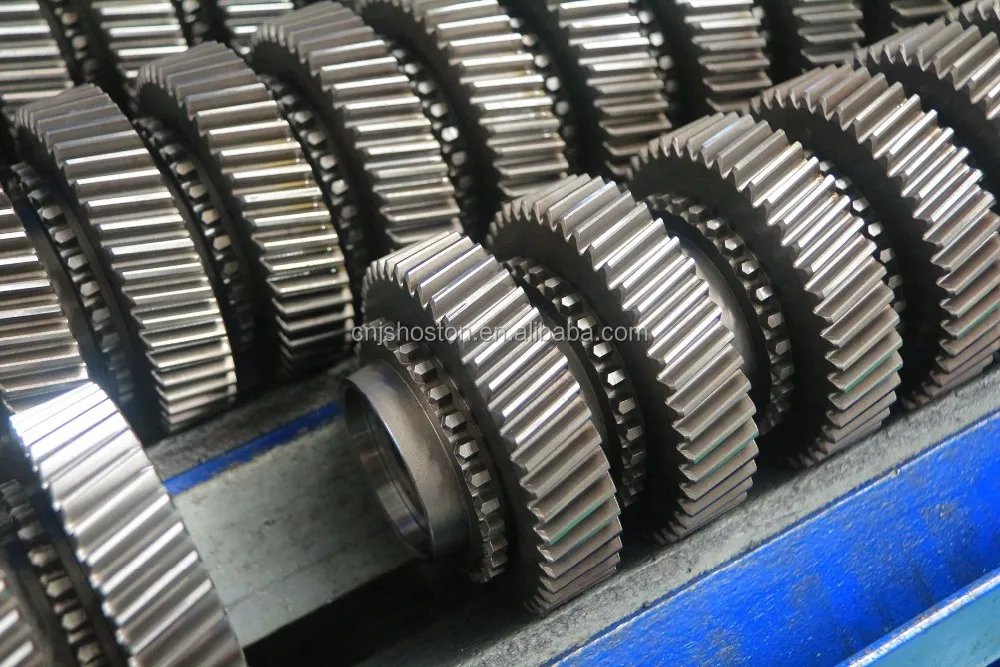

3. Generating cutting concept is applied to cut spur/helical gear, multi-mounted gear, small taper gears, crown gears.
gear spline, worms and sprockets in small and large batch.
4. Form cutting concept is also provided to cut symmetric gears
5. Two kinds of table size are provided for selection, gear type is suitable for small specs and high speed applications,
worm sets type is most favorable for large size & heavy duty cutting applications
6. Built-in temperature sensor combined with special software allow constant machining accuracy.
7. Infinite element design is used in order to achieve better structure characteristics, main machine body adopt HT300
high performance heat treated gray iron casting to obtain highest level of rigidity and reliability. Upgraded headstock
structure is ideal for high speed cuttings

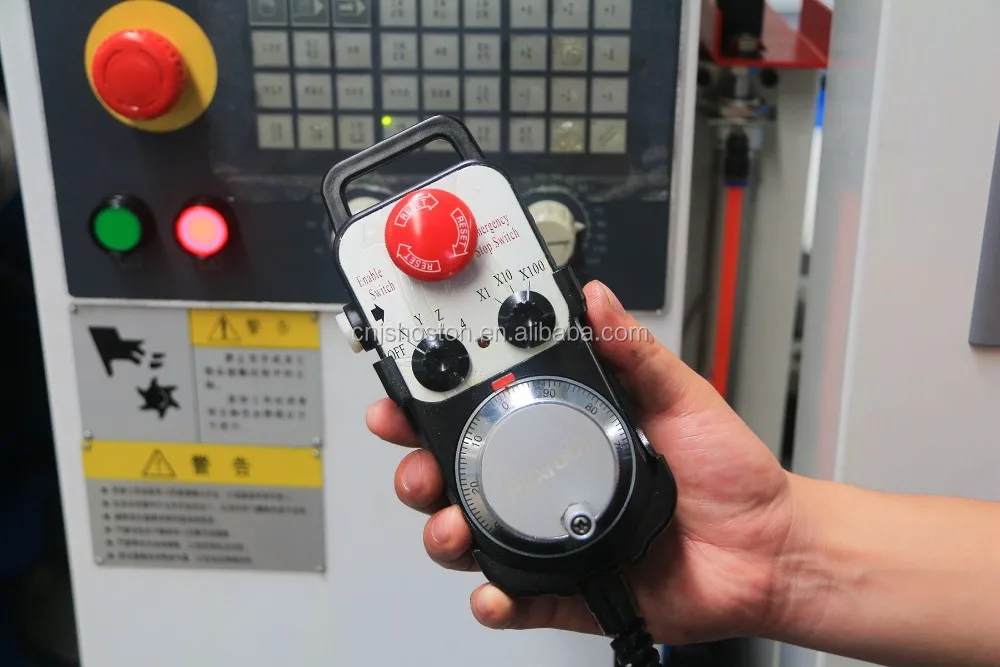

8. Special interface with manual input for easy operation, combinations of parameters are preset for selection, signal
status could be easily checked on operation panel for convenient maintenance.
9. Function of Online remote diagnosis is provided
10. Environment-friendly dry cutting concept is adopted in combination of chamfering and debarring function
11. Unique auto loading/unloading unit enable machine reliably operated in high volume production environment
12. Different type of cutting program and cutter auto positioning software are preset
13. Compact design for installation at limited floor space,Rear Chip removal and dry/wet cutting chip removal are options
for selections
14. Complete enclosure of machine
15. Simple and compact enclosure design with built-in hydraulic and piping system
16. Convenient tool change



Standard Configurations:
-Main Machine
-Full Enclosure
-Electric Cabinet
-Rexroth IndraMotion MTX micro Control System.
-Hydraulic System
-Lubrication System

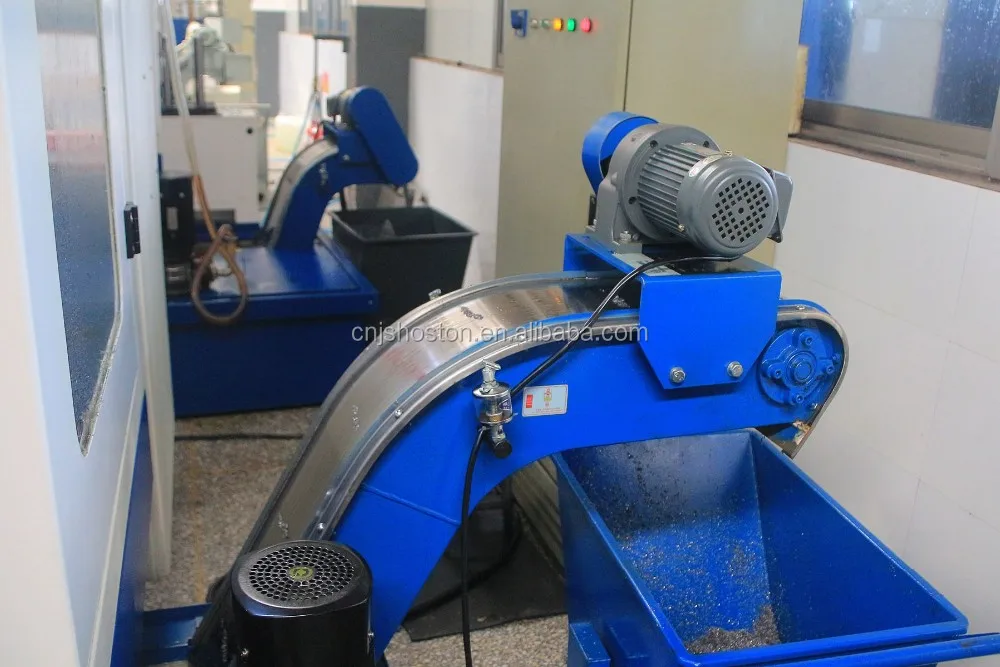

-Magnetic Chip Remover
-Air Blowing
-Standard Arbor
-Parallel
-Lightings
-Parts Auto Clamping System
-Tailstock
-Mist Extractor



Optional
-Control System 4-6 Axies
-Dry and Wet Cutting
-Auto Load/Unloading System
-Stocking System
-Auto Fixture
-Special Arbors
-Debarring System
-Cooling System for Hydraulic Oil and Cooling Oil
-Form Cutting Program
