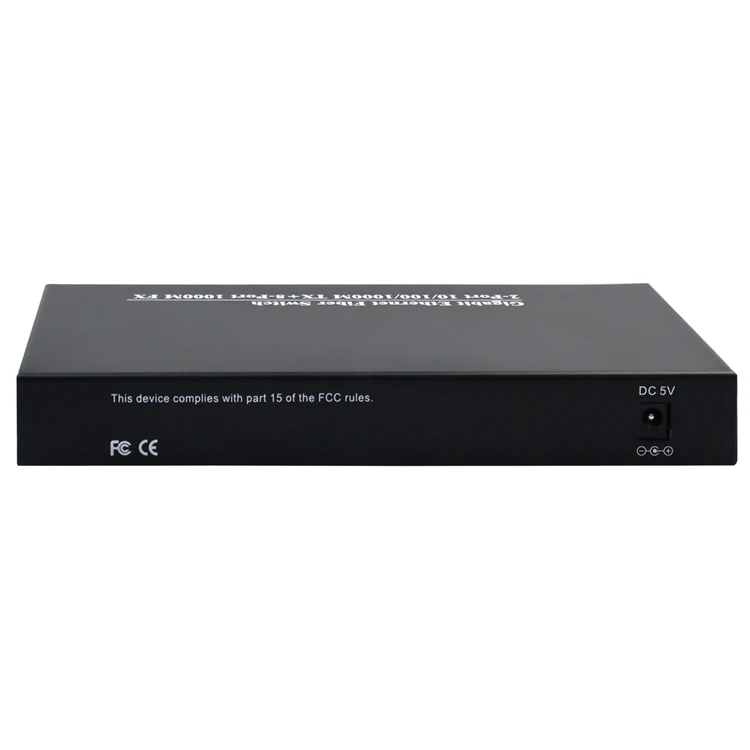

Gigabit 8 Port sfp fiber switch with FX Rj45 Port Network cctv fiber optic Optical fiber equipment

Product Overview

Description



     8 Port 10/100/1000Mbps sfp fiber switch with 1000 base-FX Rj45 Port Network fiber optic Switch converter

Overview



IEEE802.3z/AB 1000Mbps 8/9 port Gigabit SFP FIBER Ethernet Switches supports two types media for network

 connection and switching such as 10/100/1000Base-T and 1000Base-SX/LX. The switch is designed with

switch controller and buffer memory that connects two types segments to operate smoothly.

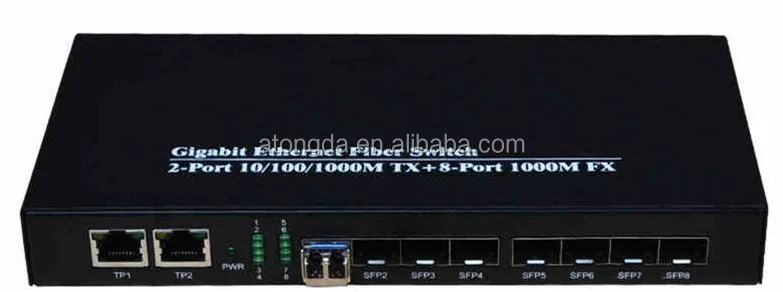

The Switch with 8 SFP port 1000Base-T/SX/LX and 2 RJ45 port 10/100/1000Base-T(selectable).

The RJ45 port support Half or Full Duplex modes. All SFP ports support only 1000Mbps and Full-Duplex modes. With external power unit, it provides good stability and reliability.





Technical Specifications





1. Standerds: IEEE 802.3z/AB 10/1001000Base-T



1000Base-SX/LX/ZX



2.Fiber Cable:



1000SX: 50/125,62.5/125µm molti-mode

1000LX/ZX: 8.7/125, 9/125µm single-mode.



3. UTP Cable: Cat.5e or Cat.6 cable up to 100m.

(only 9 port switch)



4. Data Transfer Rate:

RJ45 port: 10M, 100M, 1000Mbps

SFP: 1000Mbps.



5.LED Indicators :

P1,P2,P3,P4,P5,P6,P7,P8, SPD, Act, PWR.



6. Duplex Modes: RJ45 port: NWay Full/Half  Duplex auto- negotiation

                 SFP: full-duplex mode

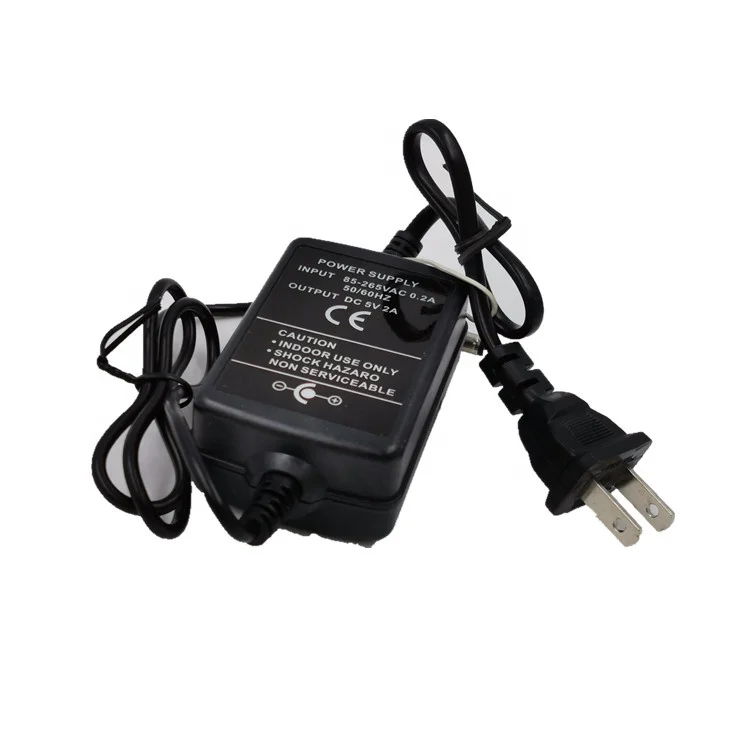

7.Power Requirement: 220V(100-260V)AC,50Hz DC5V/2A



8. Ambient Temperature: 0 ~ 50℃



9.Humidity: 5% ~ 90%



10. dimensions:30 × 172 × 110mm(H×W×D)



SFP Module Fiber Optic Technical Specifications







	1000Base-SX	1000Base-LX-20
Connector type	LC	LC
Fiber type	Multi-mode	Single-mode
Wavelength	850nm	1310nm
Max Distance	62.5µm: 224m 50µm: 550m	20Km
Min TX PWR	-12.0dBm	-11.0dBm
Max TX PWR	-6.0dBm	-5.0dBm
Sensitivity	< -19dBm	< -22dBm
Link Budget	7.0dBm	11.0dBm
	1000Base-LX-40	1000Base-LX-80
Connector type	LC	LC
Fiber type	Single-mode	Single-mode
Wavelength	1310/1550nm	1550nm
Max Distance	40Km	80Km
Min TX PWR	-5.0/-10dBm	-3.0dBm
Max TX PWR	0dBm	0dBm
Sensitivity	< -25dBm	< -25dBm
Link Budget	20.0/15dBm	22.0dBm



	1000Base-LX-20	1000Base-LX-40
Connector type	LC/SC	LC/SC
Fiber type	Single-mode	Single-mode
Wavelength	1310/1550nm	1310/1550nm
Max Distance	20Km	40Km
Min TX PWR	-10.0dBm	-5.0/-10dBm
Max TX PWR	-4.0dBm	0dBm
Sensitivity	< -22dBm	< -25dBm
Link Budget	12.0dBm	20/15dBm
	1000Base-LX-60	1000Base-LX-80
Connector type	LC/SC	LC/SC
Fiber type	Single-mode	Single-mode
Wavelength	1490/1550nm	1490/1550nm
Max Distance	60Km	80Km
Min TX PWR	-6.0dBm	-1dBm
Max TX PWR	0dBm	3dBm
Sensitivity	-25dBm	< -26dBm
Link Budget	19dBm	25.0dBm

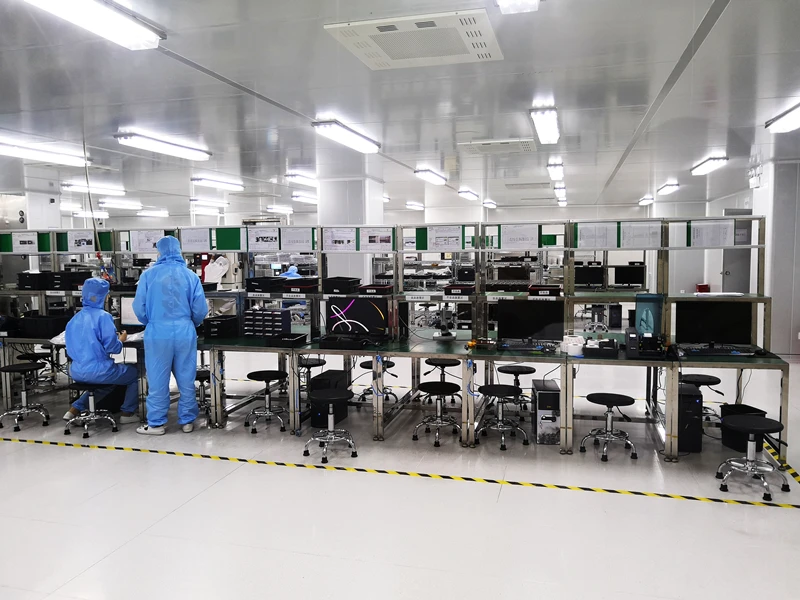

Production Show
