HWS Pipeline anti corrosion heat shrinkable tube / Anti corrosion joint sleeving / Anti corrosion sleeve

Product Overview

Description





HWS- Pipeline Heat Shrink Sleeve  Joint sleeve For Anti-corrosion









HWS-Pipeline Heat Shrink Sleeve  Joint sleeve for Anti- corrosion is also known as heat shrink weld belt/Heat shrinkable weld sleeve (belt), made by irradiation cross-linked polyolefin base material and special sealing hot melt adhesive. It has high mechanical strength, stable performance, aging resistance, anti chemical corrosion, sealing, strong adhesive strength, easy to operate, etc.

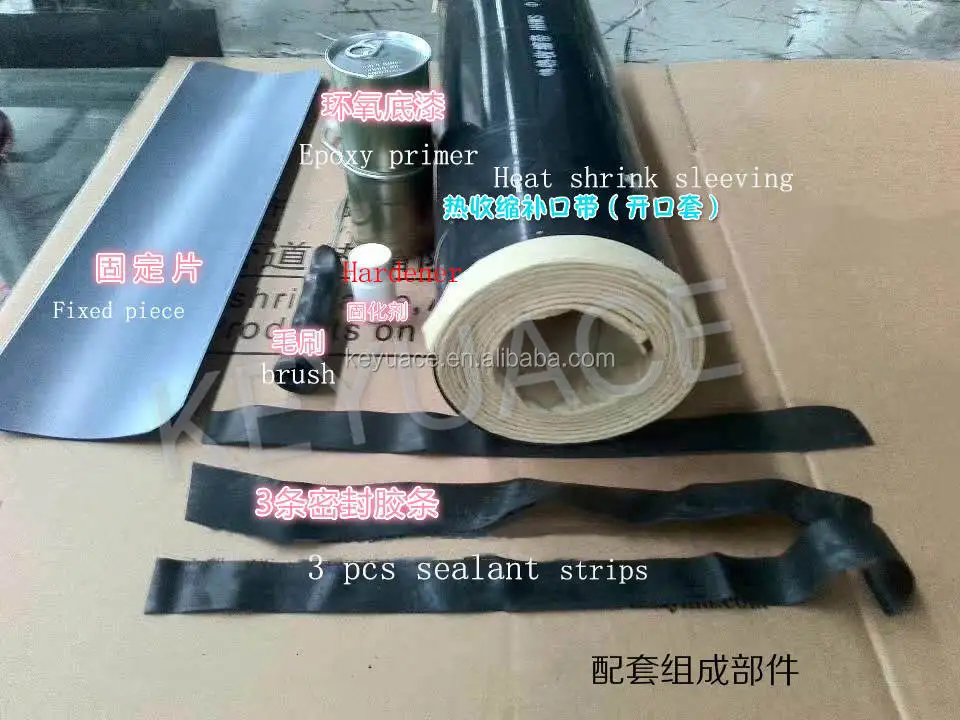

Hws- Anti corrosion heat shrinkable sleeving Supporting components as following:







Product Application:







1,   Apply to petroleum, nature gas, chemical engineering, fuel gas and others project pipeline network for anti-corrosion of steel pipeline repaired and welded junction.And also apply to corrosion resistant coating for repairing the breakage.
2,   Apply to 2PE, 3PE, FBE,PP,CTE anti-corrosion coating pipeline for anti-corrosion of welded junction and bend area.





Specification:

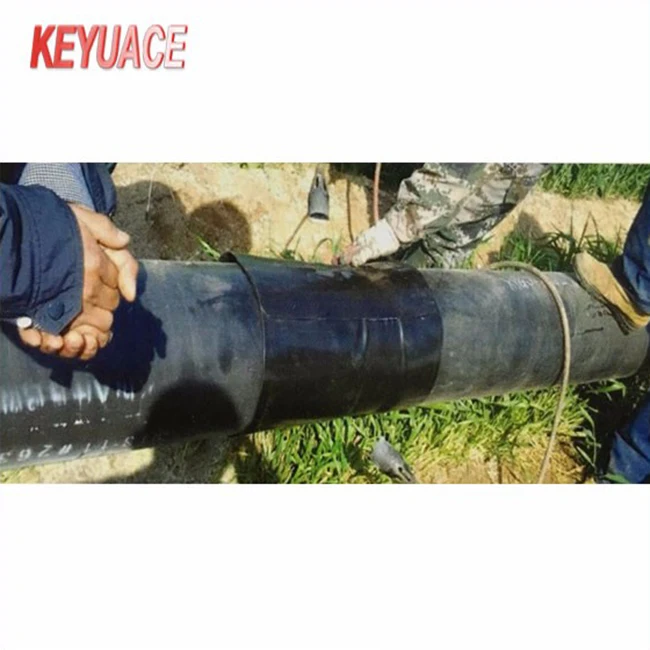

When using the heat shrink sleeves, first preheat the pipeline up to 55℃~60℃, and then wrap the joint belt around the treated pipeline with the heat shrink joint belt, make sure that the heat shrink joint belt lap width is more than 50mm, it will shrink at radial direction when the heat effects on it, at the same time the hot melt adhesive start to melt, fill and cover the surface of the pipeline, form continuous and close anti-corrosion system with original pipeline anti-corrosion coating.

Executive Standard:



SY/T0413-2002 and SY/T4054-2003 and GB-T23257-2009.





Features & Benefits

1, excellent adhesion ability, adhesion range is wide: can adhere with steel, PE, epoxy coating, etc.
2, strong in corrosion resistance:can effectively block a variety of medium permeability and corrosion, aging resistance, environment stress cracking resistance, resistance to UV irradiation.
3, High mechanical strength: compression resistance, shock resistance, shear resistance.
4, Wide use range: can instruct at -25~35℃ temperature range.
5, No volatilization, safety in use, can save energy, can protect environment
6, Long service life.
7, Shrink fast, easy to operate, simple to install.
8, low preheat temperature: when preheat -55℃~60℃, can install it to shrink.









Test standard			GB/T23257-2009(Buried steel pipe polyethylene anti-corrosion technology standard)
Text item						Unit	Test result	Technical date	Test method
Base material
Tensile strength					Axial direction	MPa	35	≥17	GB/T1040.2-2006
					Circumference direction	MPa	28.3	≥17
Elongation at break					Axial direction	%	456	≥400	GB/T1040.2-2006
					Circumference direction	%	432	≥400
Vicat softening point						℃	98.6	≥90	GB/T1633-2000
Brittle temperature						℃	<-65	≥-65	GB5470-1985
Electrical strength						MV/m	28	≥25	GB/T1408.1-2006
Volume resistance						Ω.m	2.1×1014	≥1×1013	GB/T1410-2006
environment stress cracking resistance (F50, 50℃)						h	>1000	≥1000	GB/T1842-1999
Resistance to chemical medium corrosion(7d)	10% HC1	Axial direction		Tensile Strength		%	88.4	≥85	GB/T2357-2009
				Elongation at break		%	102	≥85
		Circumference direction		Tensile Strength		%	95.3	≥85
				Elongation at break		%	125.6	≥85
	10% NaOH	Axial direction		Tensile Strength		%	168	≥85
				Elongation at break		%	96.6	≥85
		Circumference direction		Tensile Strength		%	112	≥85
				Elongation at break		%	96.3	≥85
	10% NaC1	Axial direction		Tensile Strength		%	98.5	≥85
				Elongation at break		%	89.4	≥85
		Circumference direction		Tensile Strength		%	123	≥85
				Elongation at break		%	106.3	≥85
Heat aging resistance (150℃,168h)		Axial direction		Tensile Strength		MPa	112	≥14	GB/T1040.2-2006
				Elongation at break		%	96.3	≥300
		Circumference direction		Tensile Strength		MPa	98.5	≥14
				Elongation at break		%	89.4	≥300
Heat melt adhesive
Peel strength (Cohesive failure)				Epoxy resin primer		N/cm	99.4	≥70	GB/T2792-1998
				Polyethylene		N/cm	88.2	≥70









Model	Outer diameter.(MM)	Width ((MM)	Base film thickness(MM)	Heat melt thickness(MM)	length (MM)	Fixed width(MM)	Sacrifice belt width(MM)
HWS 159	Φ159	500	1.2	1.0	680	100	≥150
HWS 219	Φ219	500	1.2	1.0	900	120	≥150
HWS 273	Φ273	500	1.2	1.0	1070	120	≥150
HWS 325	Φ325	500	1.2	1.0	1260	120	≥150
HWS 355	Φ355	500	1.2	1.0	1360	120	≥150
HWS 406	Φ406	500	1.5	1.0	1520	150	≥200
HWS 426	Φ426	500	1.5	1.0	1600	150	≥200
HWS 508	Φ508	500	1.5	1.0	1900	150	≥200
HWS 529	Φ529	500	1.5	1.0	1940	150	≥200
HWS 610	Φ610	500	1.5	1.0	2220	150	≥200
HWS 711	Φ711	500	1.5	1.0	2560	150	≥200



 Other size can customized according to customers' request.
