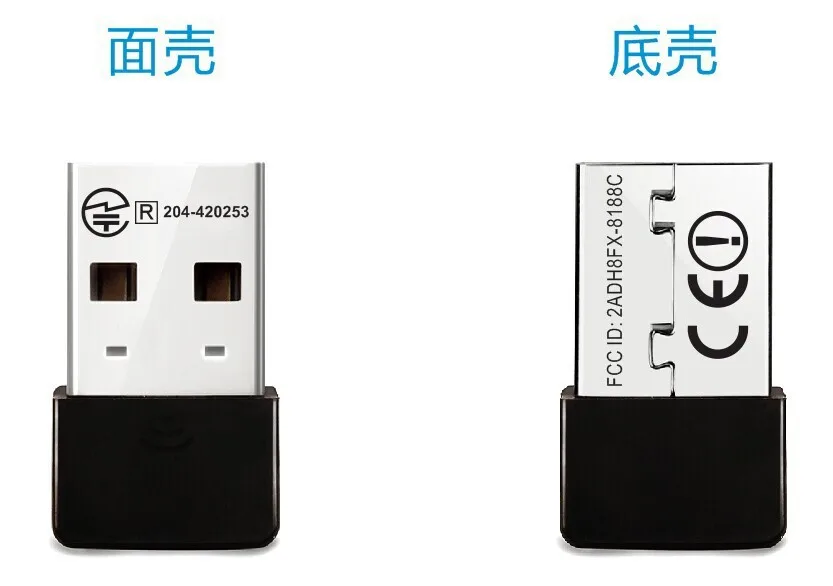

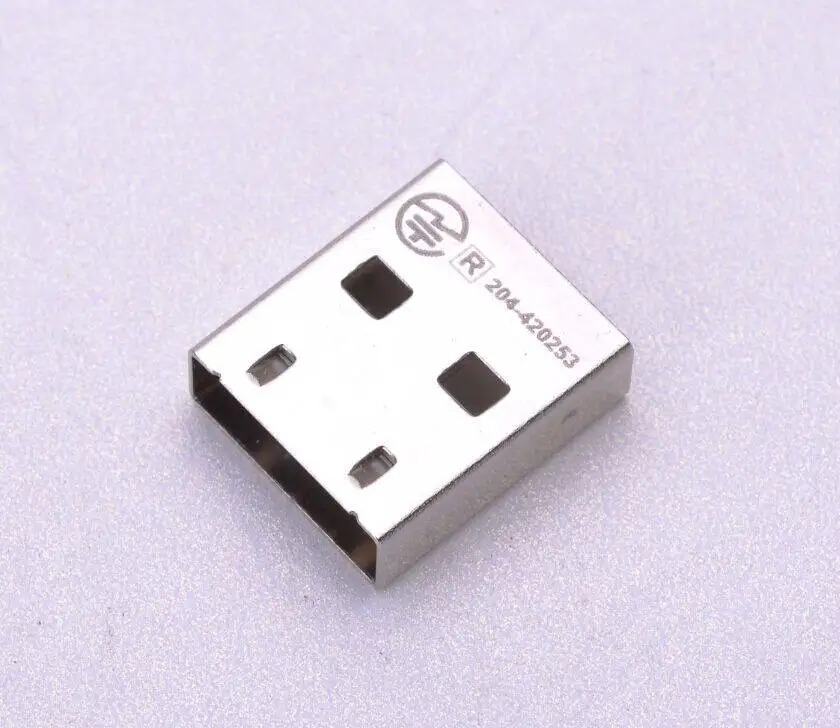

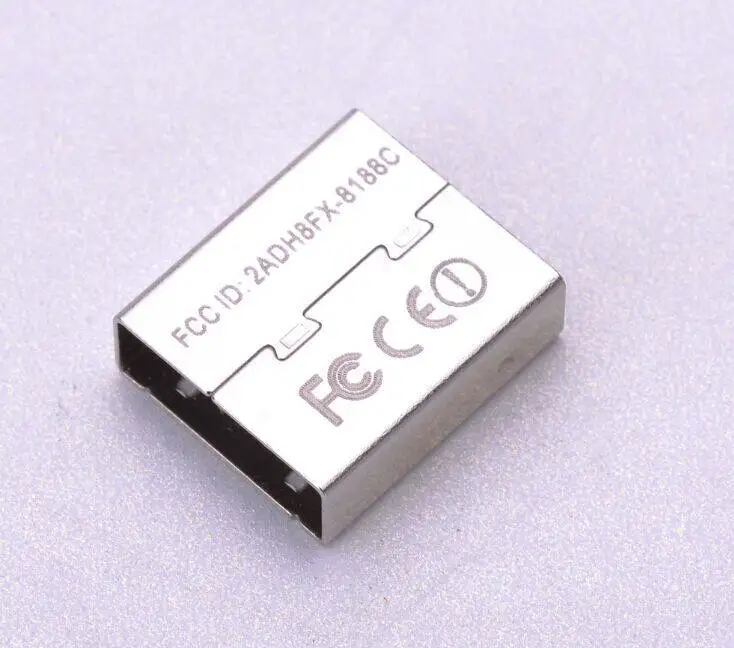

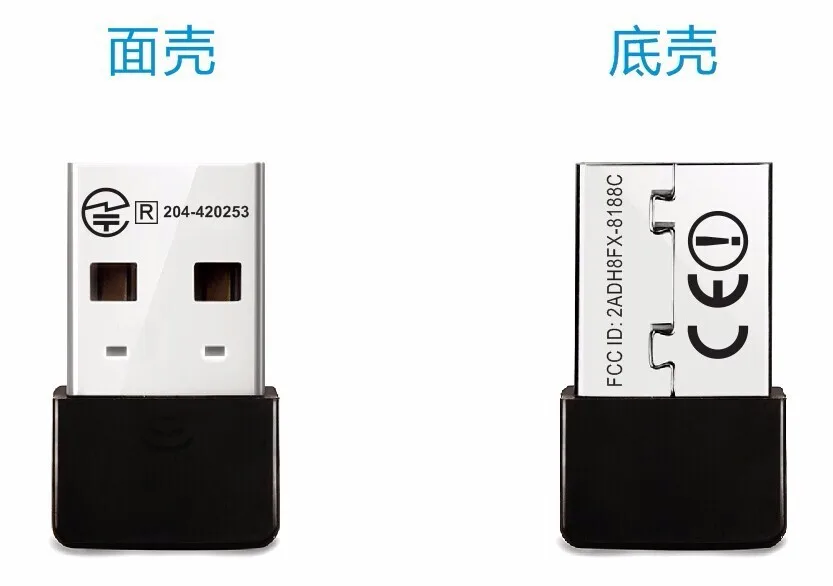

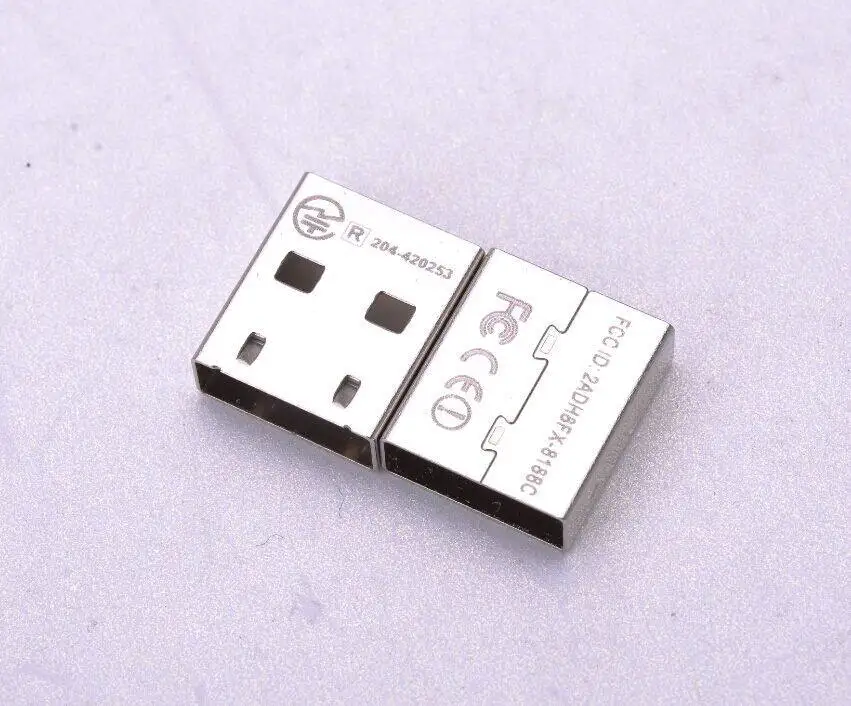

Japan Telec certified usb wifi dongle 150Mbps RTL8188 support Laptop,Desktop PC

Product Overview

Description

Japan Telec certified usb wifi dongle 150Mbps RTL8188 support Laptop,Desktop PC



Whatsapp : +86 18671057369



1. Description:



FX-8188 Wireless-N USB 2.0 mini usb wifi Adapter allows you to connect your laptop or desktop to any Wireless-N networks in your home or office. The Wireless-N (802.11n) USB 2.0 Adapter is great for those who want to upgrade older computers to be able to access the internet over a Wireless-N network.At 5 times faster than traditional Wireless-G (802.11b) networks, Wireless-N networks allow for high speed data transfers, online gaming, and lightning fast downloads. The Wireless-N USB 2.0 Adapter gives you access to all the high-speed features of Wireless-N networks on older and newer computers. Its simple and easy setup means you'll be surfing the internet, downloading movies, and e-mail in no time. This item also provide desktop,laptop, RPI,BPI,STB,IPTV, RPI/BPI/STB/3D printer/IPTV/Media

m

2. Features:

* Ralink RTL8188cus Chipset

* Mini portable USB 2.0 design.

* Wireless N speed up to 150Mbps, ideal for internet surfing and online gaming.

* Complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g, IEEE 802.11b standards.

* Provides two work modes: Infrastructure and Ad-Hoc.

* MIMO technology makes wireless transmission rates up to 150Mbps wifi antenna.

* 150Mbps Wireless Wifi USB Dongle/Wireless USB Adapter/Wireless Network Card

* CCA technology enhances your signal stablility by automatically avoiding channel conflicts.

* Quick secure setup, complies with WPS for worry free wireless security.

* Wireless security encryption easily at a push Of QSS button.

* Supports 64/128-bit WEP, as well as WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions.

* Supports WIN2K, XP, VISTA, WIN7, MAC, LINUX operating system.

* Supports wireless roaming technology for high-efficient wireless connections.

* Seamlessly compatible with 802.11b/g/n devices.







Hardware
Main Chipset	Realtek rtl8188
Host interface	USB2.0,type A connector
LED	Link/Activity
RF
Antennas	Built-in antenna (Peak Gain:-5dBi)
Operation Frequency	2412`2483.5
Typical Transmit Power (onboard-withou antenna)	802.11b(CCK)11Mbps:18+/--1dBm 802.11g(OFDM)54Mbps:15.5+/- 1dBm 802.11n(HT20 MSC7).14+-1 1dBm 802.11n(HT40 MCS7),14+/-1dBm
Receive Sensitivity (onboard-without antenna)	802.11b: 186+/-dBm 11Mbps 802.11g:   -74+/-1dBm 802.11n:   -70+/-1dBm 802.11n:   -67+/-1dBm
Software
Operate System	Windows XP,Vista,Win 7;MAC OS X and Linux
Security	Wep,WPA,WPA2,WAPI,QoA(802.11e and WMM)
Operation Conditions
Voltage Rnage	DC 5.0V+/-5%
Current Range	140+/-5mA 802.11g,54Mbps;185+,--5mA 802.11b;,11Mbps
Operating Tempreturer	-10°C - 60°C
Storage Temperaturre	-20°C- 80°C
Operating Humidity	RH95% (Non- Condernsin
Storage Humidity	RH95% (Non- Condernsin
Physical Specification
Dimensions	24.5x14x6.5mm
Weight	3.5g
