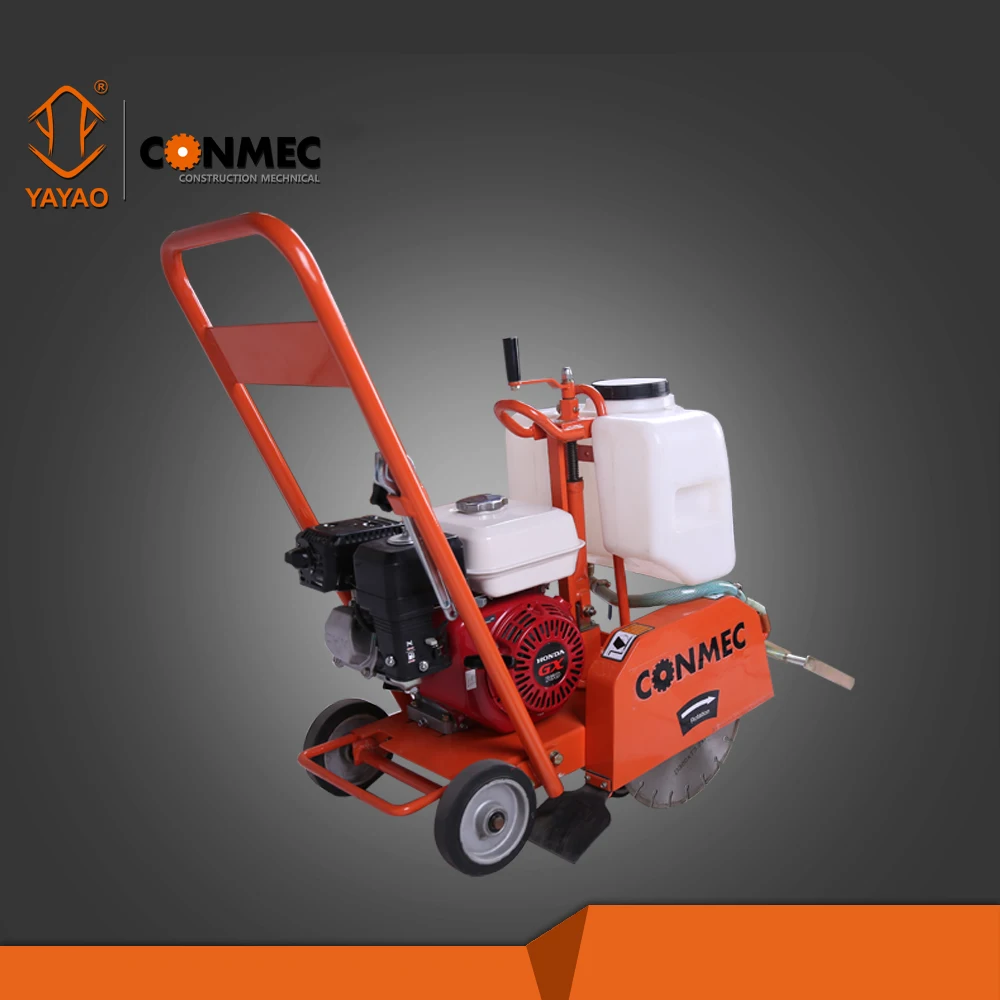

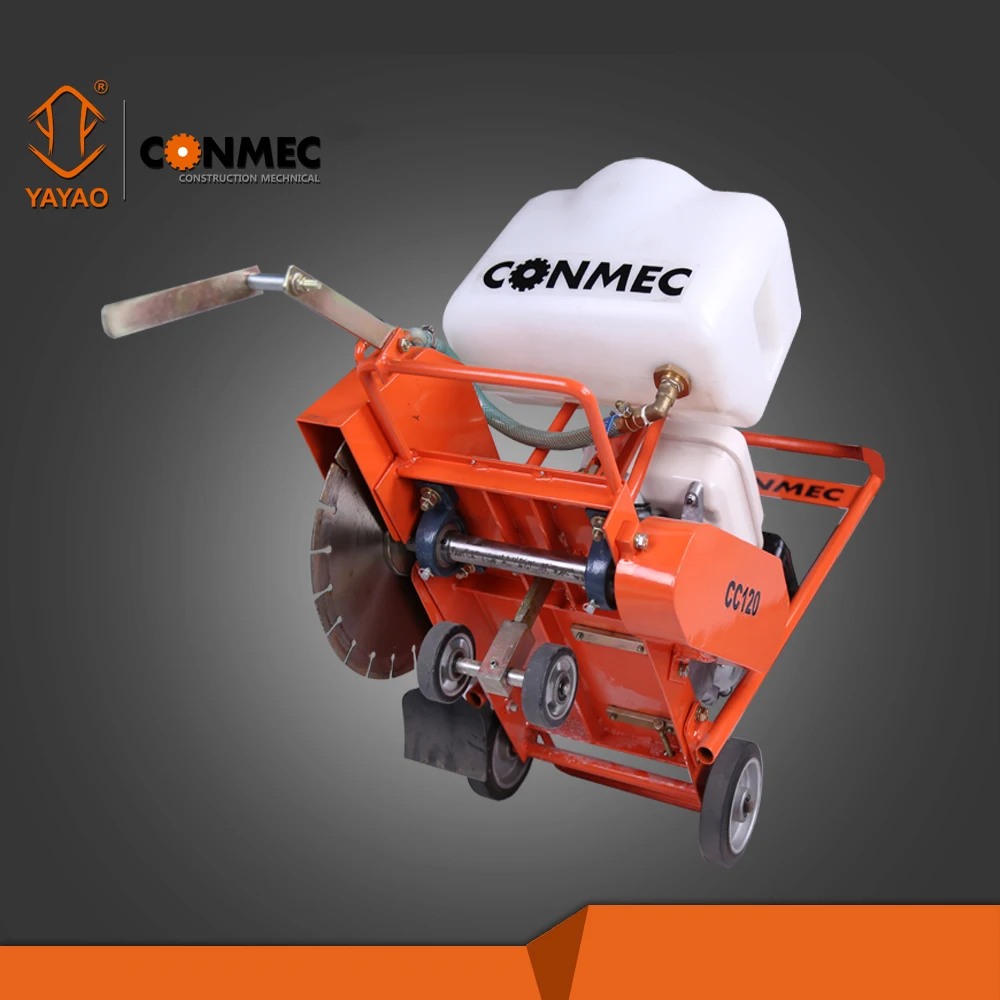

CONMEC small asphalt pavement cutter CC120 concrete cutting machine with CE
Technical Specification
Model
CC120-1
CC120-2
CC120-3
CC120-4
Engine Type
Chiese Diesel KM170F
Chinese Petrol Engine
Robin EX17
Honda GX160
Power kw(hp)
3.1(4.2)
4.8(6.5)
4.2(5.7)
4.0(5.5)
Weight kg(lbs)
62(136)
53(117)
52(114)
52(114)
Max. Cutting Depth cm
9
Blade Size cm
25-30
Depth Adjustment
Handle Rotation
Driving
Manual Push
Water Tank Capacity L
16

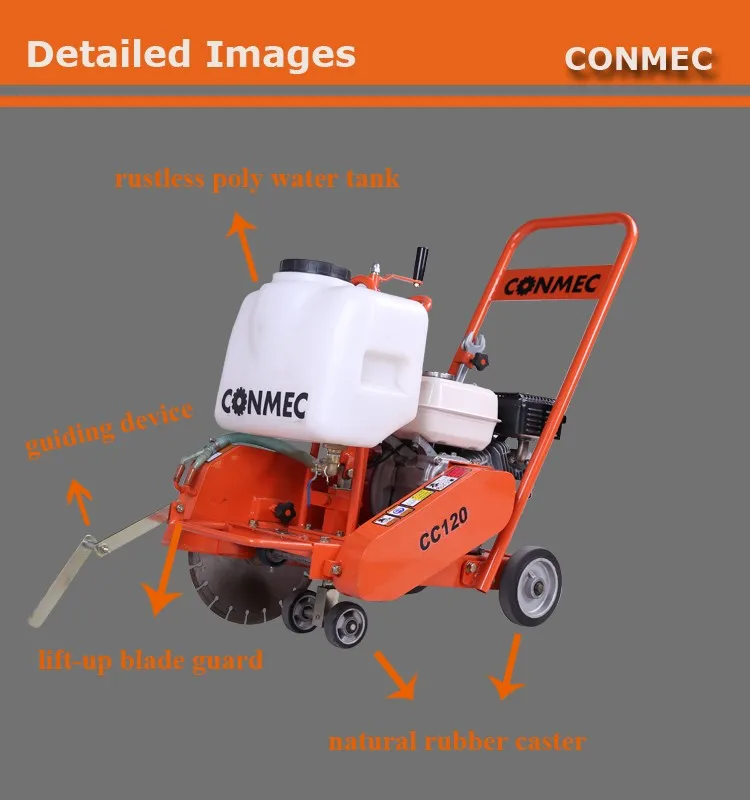

Features 1.Easy-remove, rustless poly water tank provides an optimum flow and volume of water to the blade 2.Double water pipe for cooling both sides of blade 3.Easy crank for raising/lowering cutting depth 4.Hinged front, lift-up blade guard is designed to provide easy blade replacement 5.Super-rigid box frame ensures straight cuts while resisting warping and vibration--prolongs saw life
6.Extends blade life

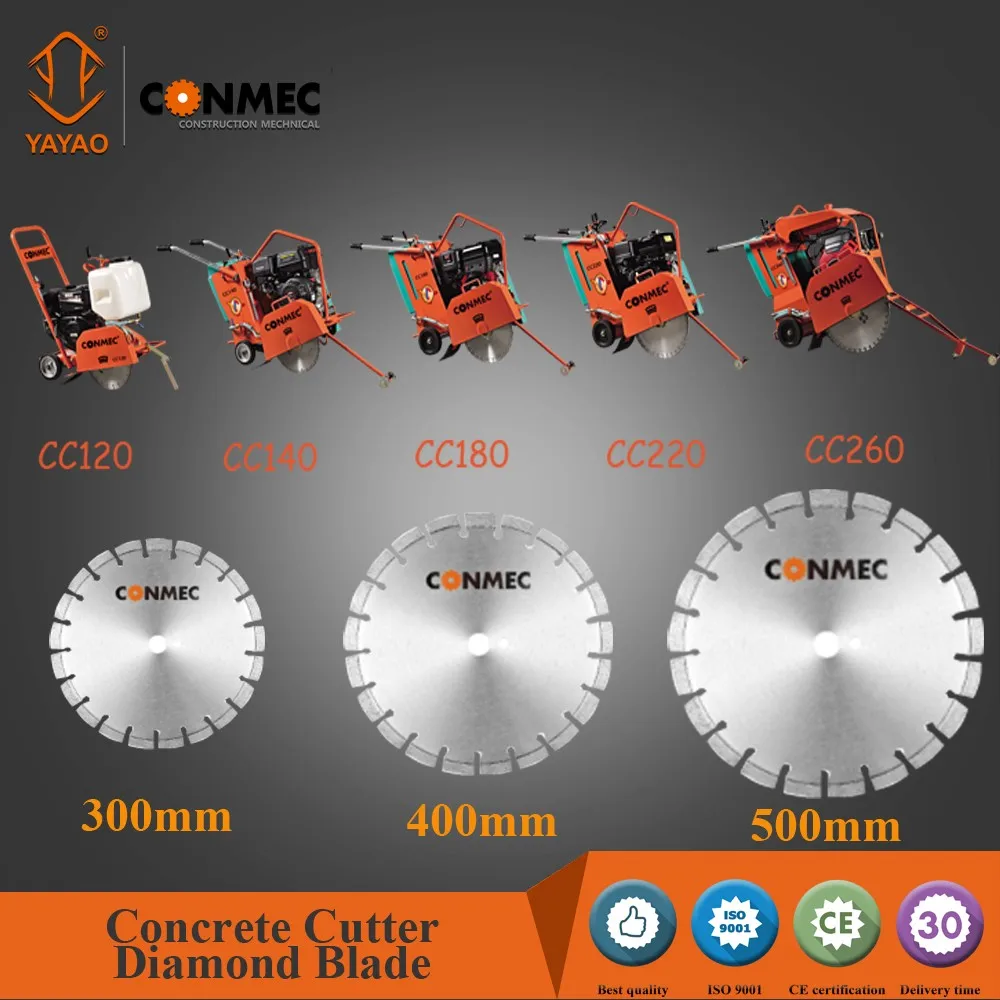

Concrete Cutter Series
All products
concrete cutter series,edging/walk-behind/ride-on power trowel series,tamping rammer,vibratory truss screed,surface finishing screed,scarifying machine,gasoline water pump,drum roller,vibratory plate compactor,etc. Application
Our products are widely used in municipal conservation, road construction, building construction, flooring treatment(epoxy floor, wear-resistant floor) and other fields. Products Advantages Compare with Mikassa’s(Japan) concrete cutter,Bartell’s(Canada)ride-on power trowel and Allen(America)’s walk-behind power trowel,we have higher cost performance.
Bearing:FYH(Japan).
Belt:Gates(US).
Joint bearing:IKO(Jap.). Certificates Company Introduction Conmec Engineering Co., Ltd.,a leading manufacturer of concrete finishing equipment for over 10 years,is an enterprise combine manufacture\import agents\scientific R&D and professional services.We offer a full complement of equipment for the entire light construction machinery. Main products include concrete cutter series,edging/walk-behind/ride-on power trowel series,vibratory truss screed,surface finishing screed,etc. Products are equipped with international famous brand engines such as Honda(Japan),Kohler(US),B&S(US) and Robin(Japan), all having excellent performance and quality. By providing perfect technical support and adhere to the spirit of "quality, reputation, services, adherence", we have won high reputation from customers at home and abroad.
