HATC honeycomb ceramic monolith/alumina/cordierite/ corundum heat exchanger

Product Overview

Description

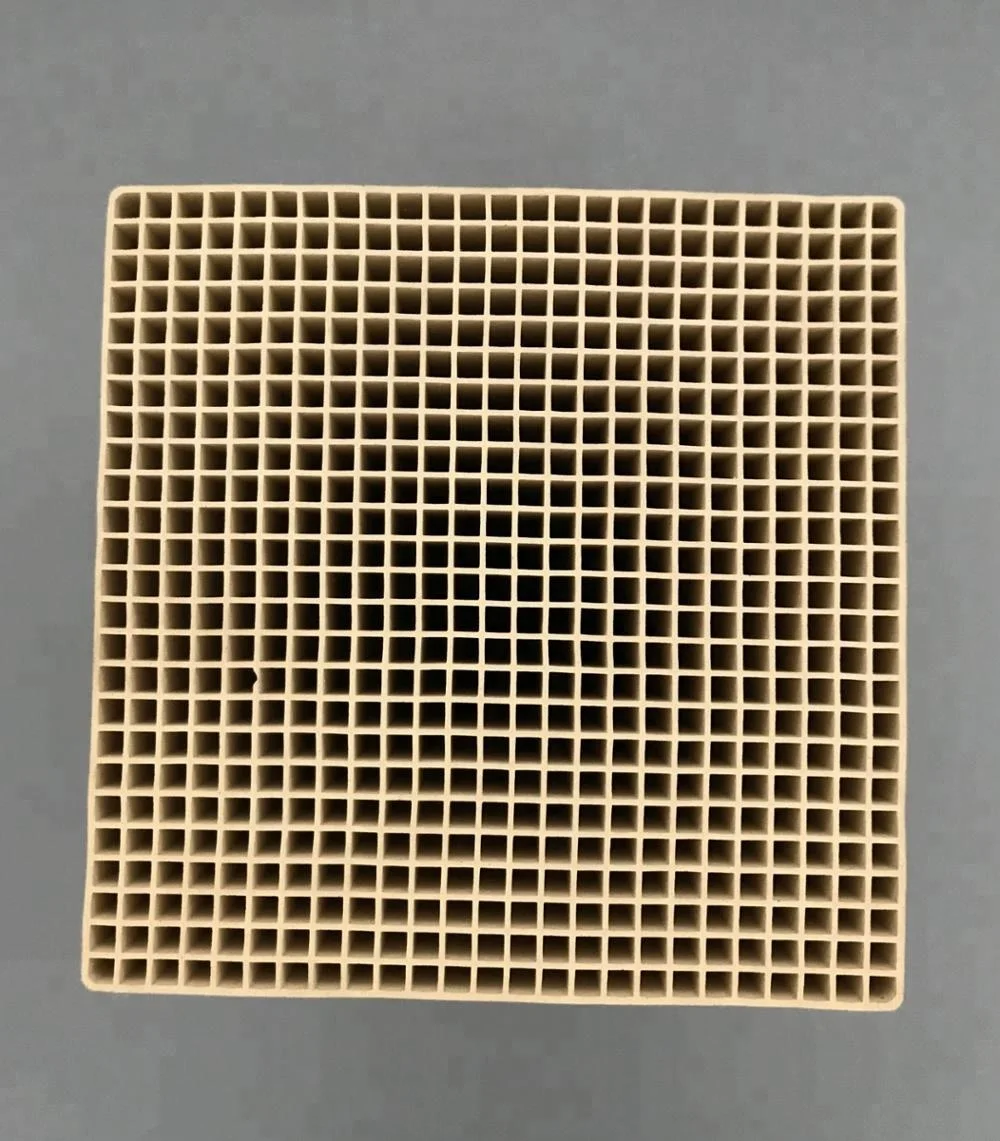

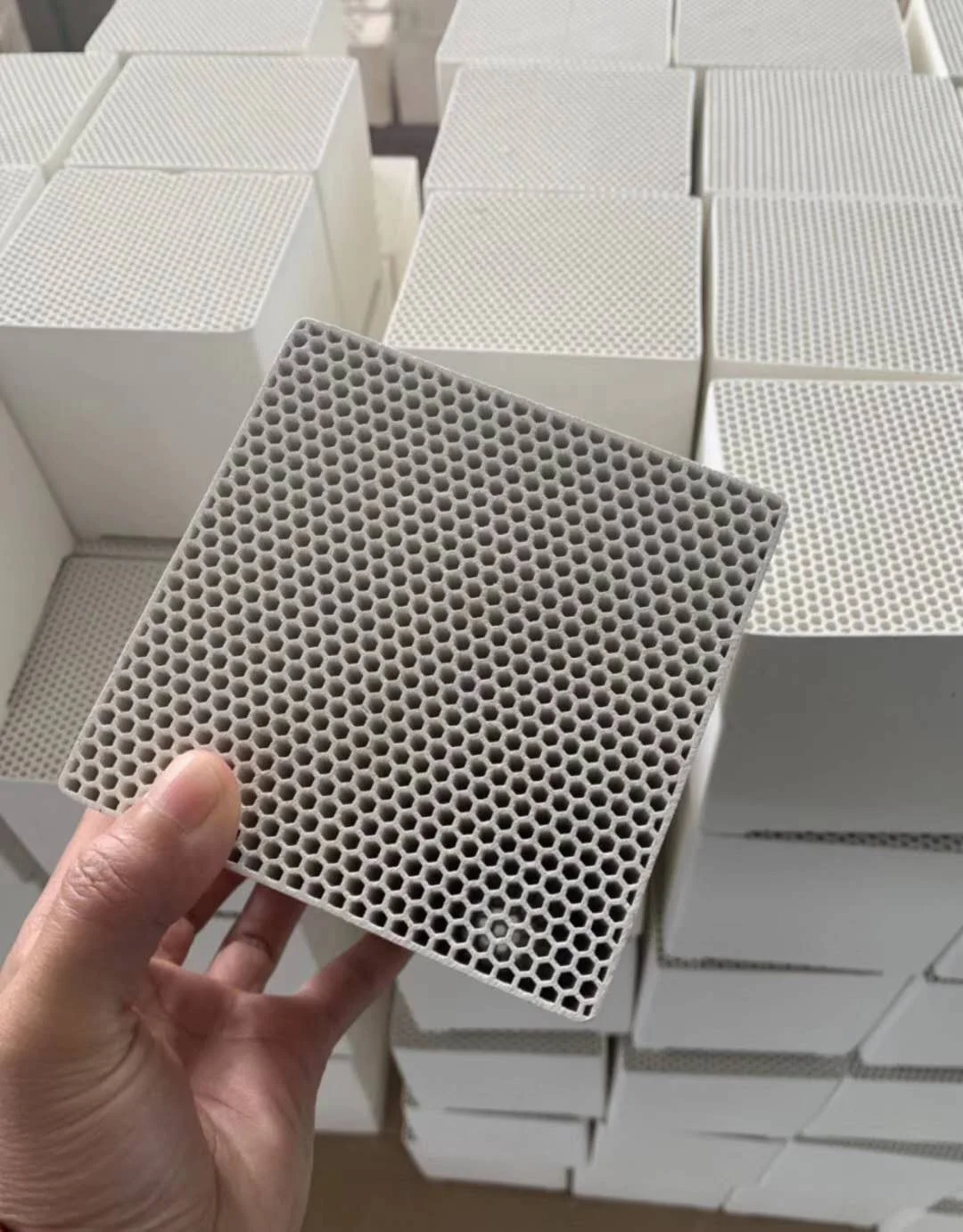

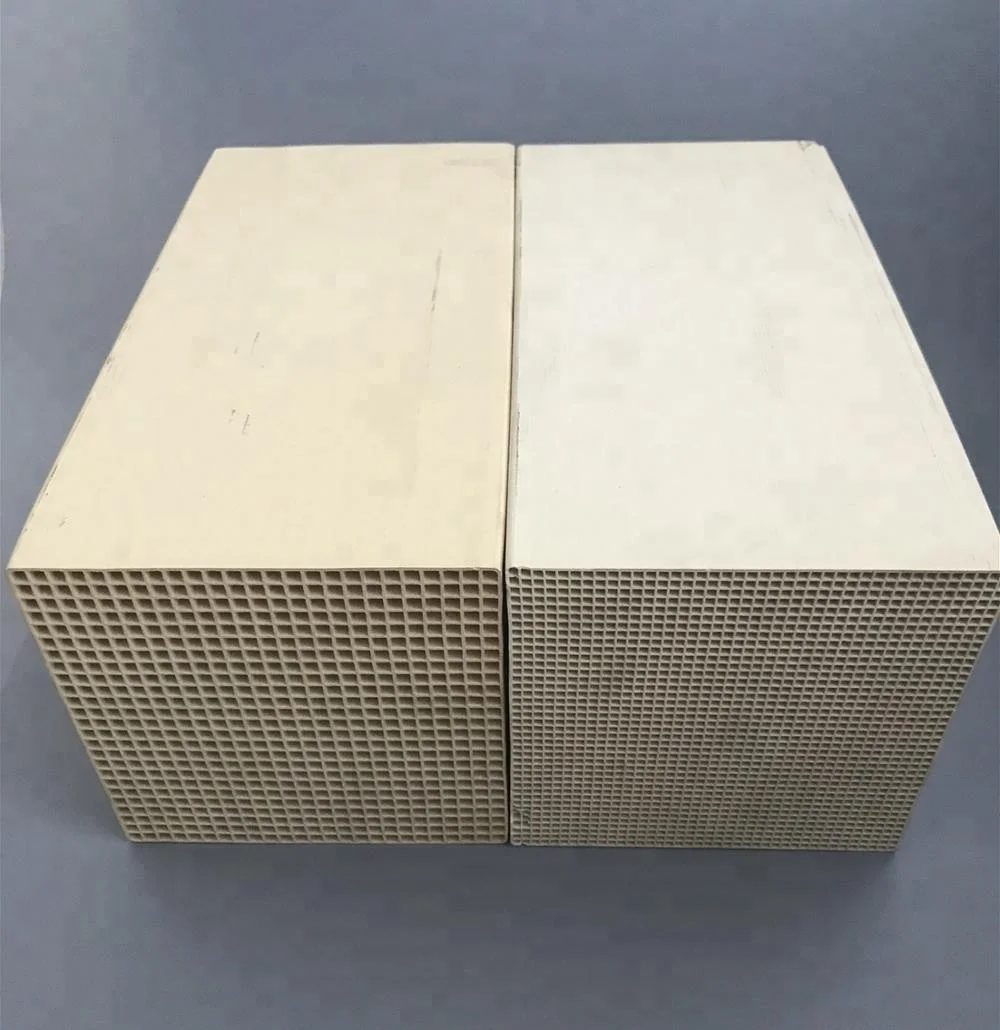

Thermal store honeycomb ceramic heat exchanger





With the High Temperature Air Combustion Technology, honeycomb ceramic has been widely used in fields of smelting metallurgy petrochemical electric power boiler and so on.

Our company has researched and developed a series of honeycomb ceramics for heat storage according to the different features of industrial furnaces.

Our own research and developed honeycomb ceramic has characteristics. Large surface area, low pressure strong heat storage, low average linear expansion, strong corrosion resistance against acid and alkali and so on. Technical performance of our products are superior to domestics ones and get the level of same ones abroad.

Further more, we can supply in according with your requirements.







 Regular sizes for reference:(for other sizes and shape, we can customize as per requirements)

(mm)	Quantity of channels	Wall thickness(mm)	Channel Width(mm)	Surface area(m2/m3)	Void section (%)	Packaging density(kg/m3)	Weight per piece(kg)
150*150*300	25*25	1.0	4.96	580	68	696	4.7
150*150*300	40*40	0.7	3.03	891	65	814	5.5
150*150*300	50*50	0.6	2.39	1090	63	903	6.1
150*150*300	60*60	0.5	1.99	1303	63	932	6.3
150*100*100	40*40	1	2.5	784	49	799	1.2
150*100*100	33*33	1.1	3.0	691	52	750	1.13
150*100*100	20*20	2.0	5.0	392	49	692	1.04
100*100*100	40*40	1.0	2.5	784	49	810	0.81
100*100*100	33*33	1.1	3.0	691	52	750	0.75
100*100*100	20*20	2.0	5.0	392	49	680	0.68
Note: Other shapes and specification can be customized
