Motorized Hydraulic Compressor Hydraulic Crimping Tool with Gasoline Engine 100 tons 200 tons

Product Overview

Description





Motorized Hydraulic Compressor Hydraulic Crimping Tool with Gasoline Engine 100 tons / 200 tons

Hydraulic Press with Petrol Engine Double Acting



Application

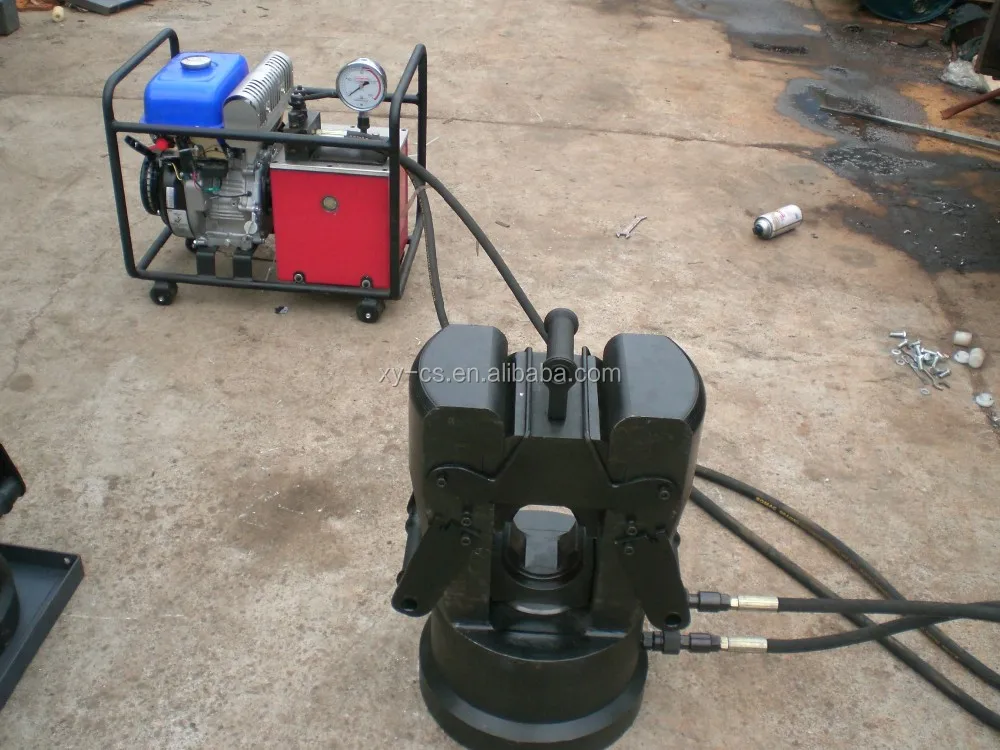

Motorized Hydraulic Compressor / Hydraulic press  is used to join wire ends and strengthen damaged condcutor (restorative-repair).



Technical Data

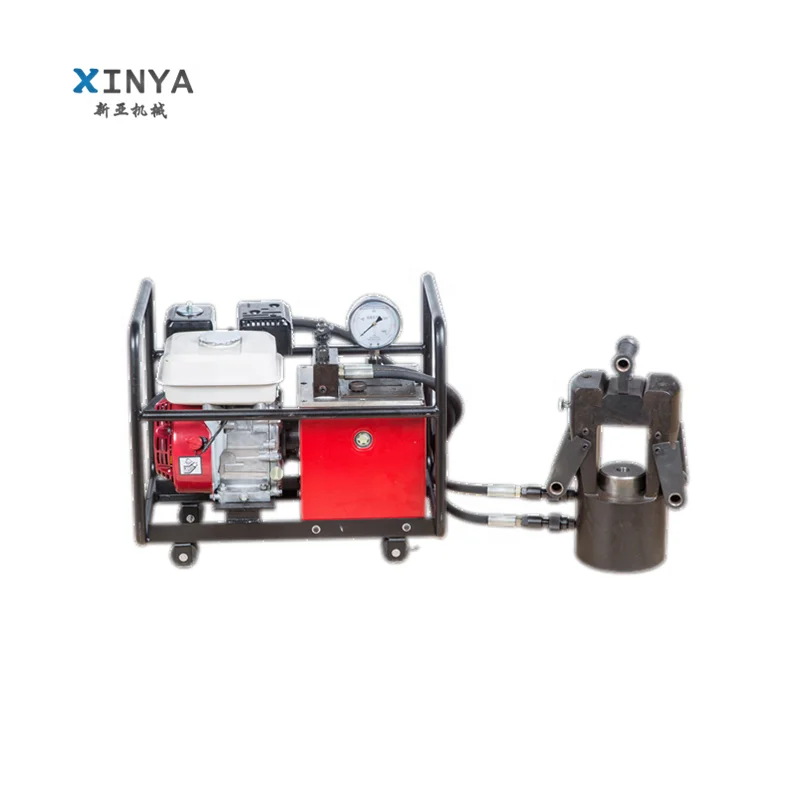

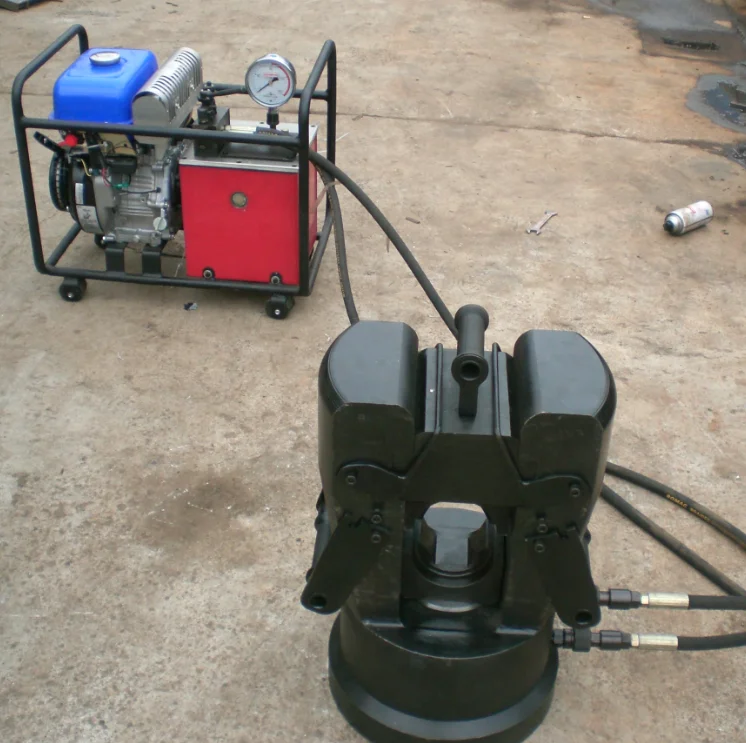

Superhigh Hydraulic Pump SP2H
Model	SP2HHX-1
Engine Power	5.5HP(3.4KW) HONDA GX160 Petrol engine
Engine Rotational speed	4000r/min
Rated Press/Delivery Capacity	800bar / 1.8L/min (High)
	90bar / 9L/min (Low)
Hydraulic Oil Model	46# antiwear hydraulic oil
Capacity of Hydraulic oil box	19L
Filling quantity of hydraulic oil	15L
Overall Dimension	620×420×430mm
Total Weight	40kg(without hydraulic oil)
Acting Style to the hydraulic cylinder	double acting
Hydraulic reversal valve for middle position	M(up-hold-down)

Oil Hose standard length: 2m/pc * 2pcs



Note:

Length of oil hose can be made as per your requirement.

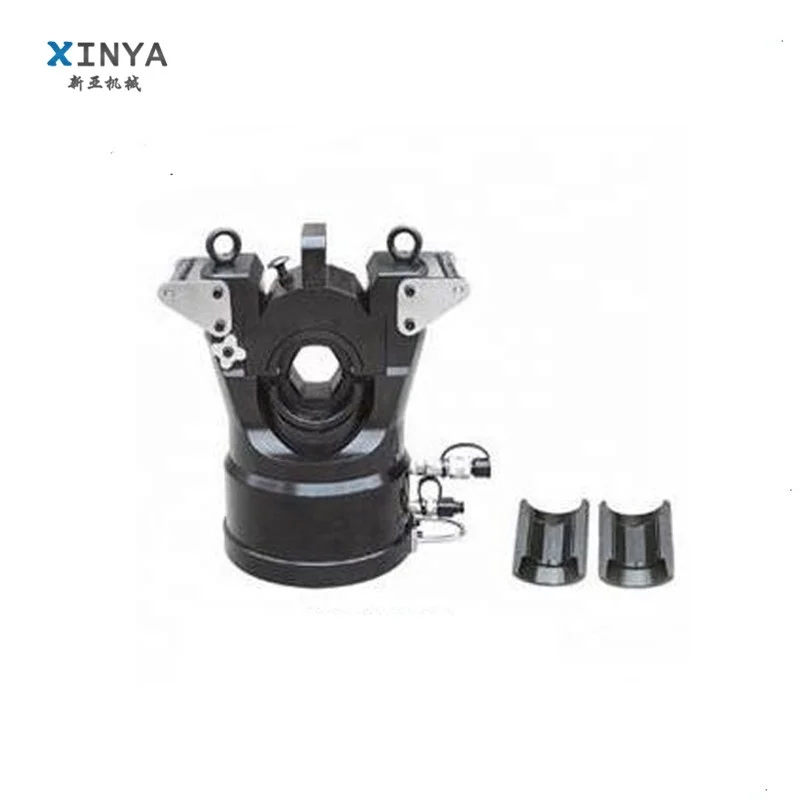

Hydraulic compression head HP-100W:

Output pressure:100 tons

Rated working pressure:80MPa;

Stroke:22mm

Weight:33kgs



Hydraulic compression head HP-200W:

Output pressure:200 tons

Rated working pressure:80MPa;

Stroke:40mm

Weight:90kgs

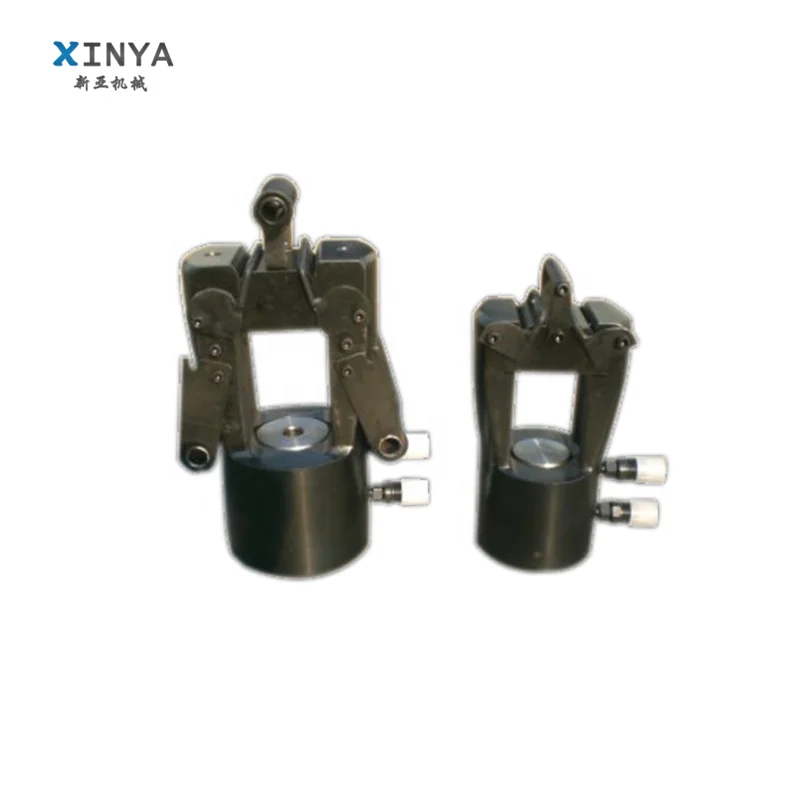

Hydraulic compression head HJC125:

Max output pressure:125 tons;

Rated working pressure:80MPa;

Stroke:25mm;

Weight:40Kg;



Hydraulic compression head HJC200:

Max output:200 tons;

Rated working pressure:80MPa;

Stroke: 25mm;

Weight:86Kg;
