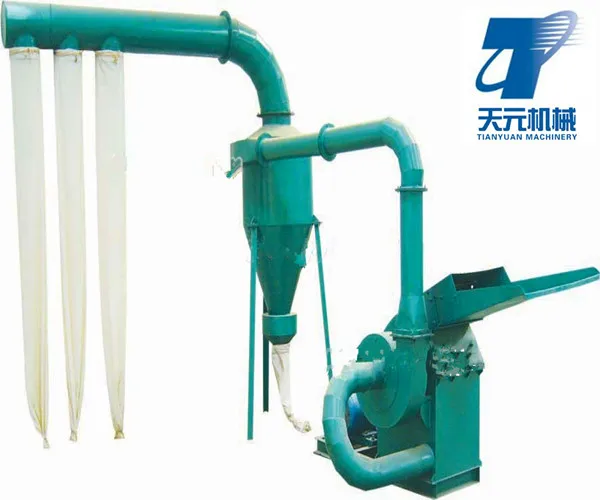

Zhengzhou Tianyuan high capacity 6 8ton/h wood shredder machine for sale

Product Overview

Description

Zhengzhou Tianyuan high capacity 6-8ton/h wood shredder machine for sale

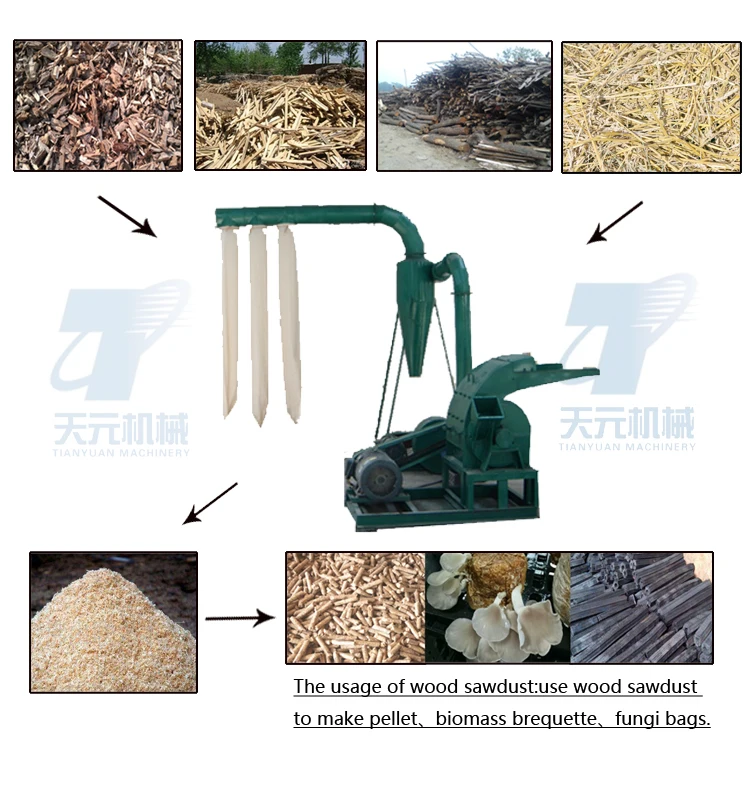

 Wood shredder machine Application :

1.wood,tree trunk,tree branch,straw,Bamboo stick etc.

2.wooden piece, small tree branch,leaf,tree bark ,feedstuff and chemical material etc material

3. Orchard garden , Botanical garden, Landscaping department.( Trimmed branches, trunk, leaf can be crushed as fertilizer .)



Wood shredder machine Main purpose:

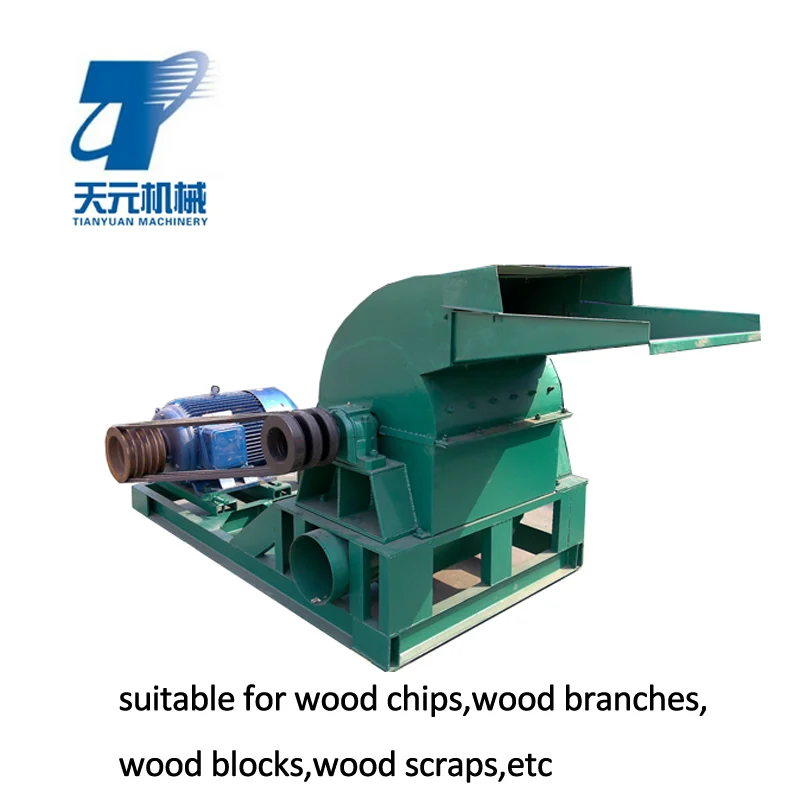

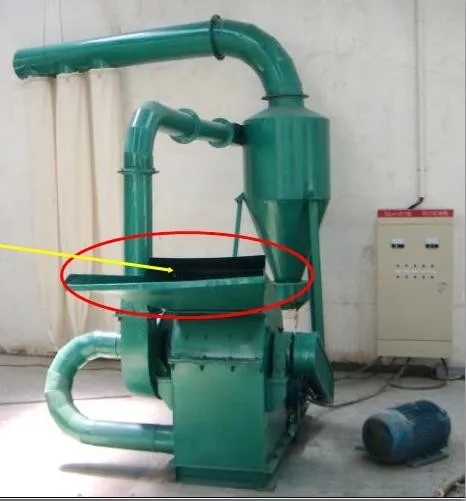

Sawdust Crusher(Blade Crusher) set of slices,crushed as a whole, can chip in diameter 25 cm

of twigs and branches can also be used for bamboo, grass, corn stalks, sorghum stalks and other cellulose stalk-like material of chips.Wide choice on power:electric motor or diesel engine,can with wheels for farm or outside work.







wood shredder machine data parameters:

Model	TYFS40	TYFS60	TYFS80	TYFS100	TYFS120
Power (kw)	5.5	7.5	22	55	75
Fan power	-	-	-	5.5	7.5

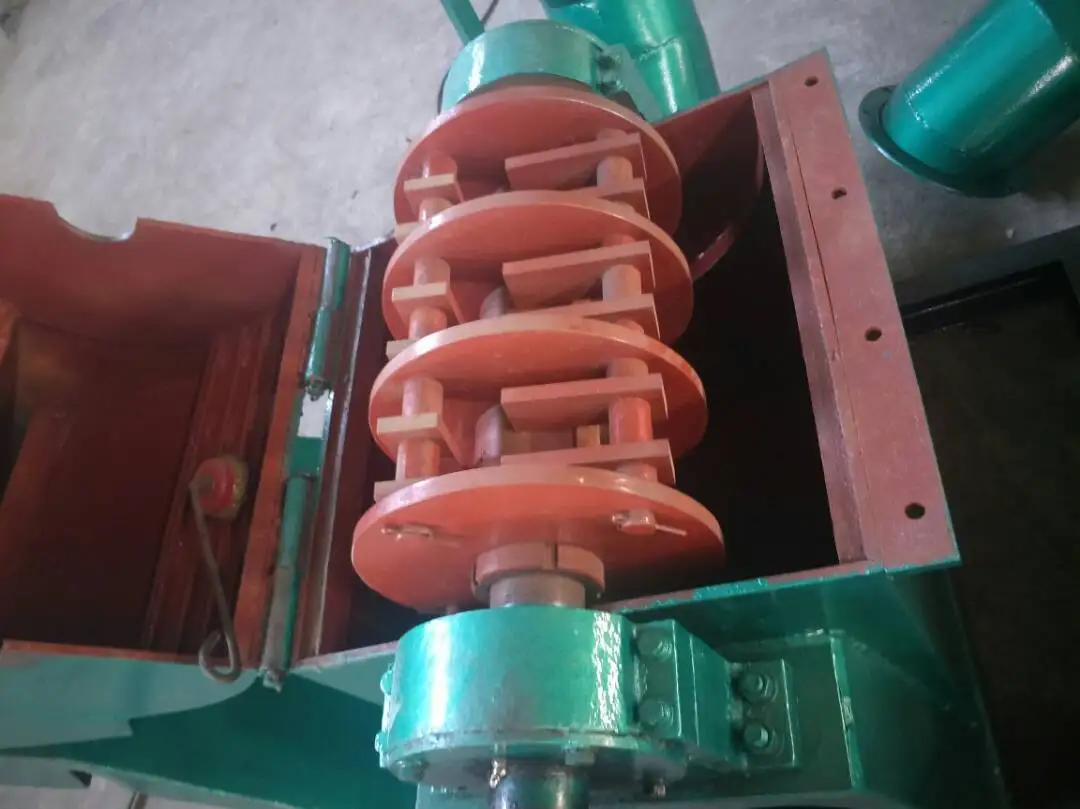

Hammer (pcs)	16	24	32	60	80
Feeding hole size(mm)	400*250	500*300	600*350	800*450	1000*550
Max feeding diameter	30 mm	40mm	50mm	80mm	100mm
Final size (mm)	1-20 mm	1-30 mm	1-40 mm	1-40 mm	1-40 mm
Capacity(t)	0.3-0.8	0.4-1.2	0.7-2	1-4	1.5-8
Dimension m	1.5*1*0.9	1.8*1.1*1.1	4*1.8*3.5	7*2.2*4	8*2.5*4
