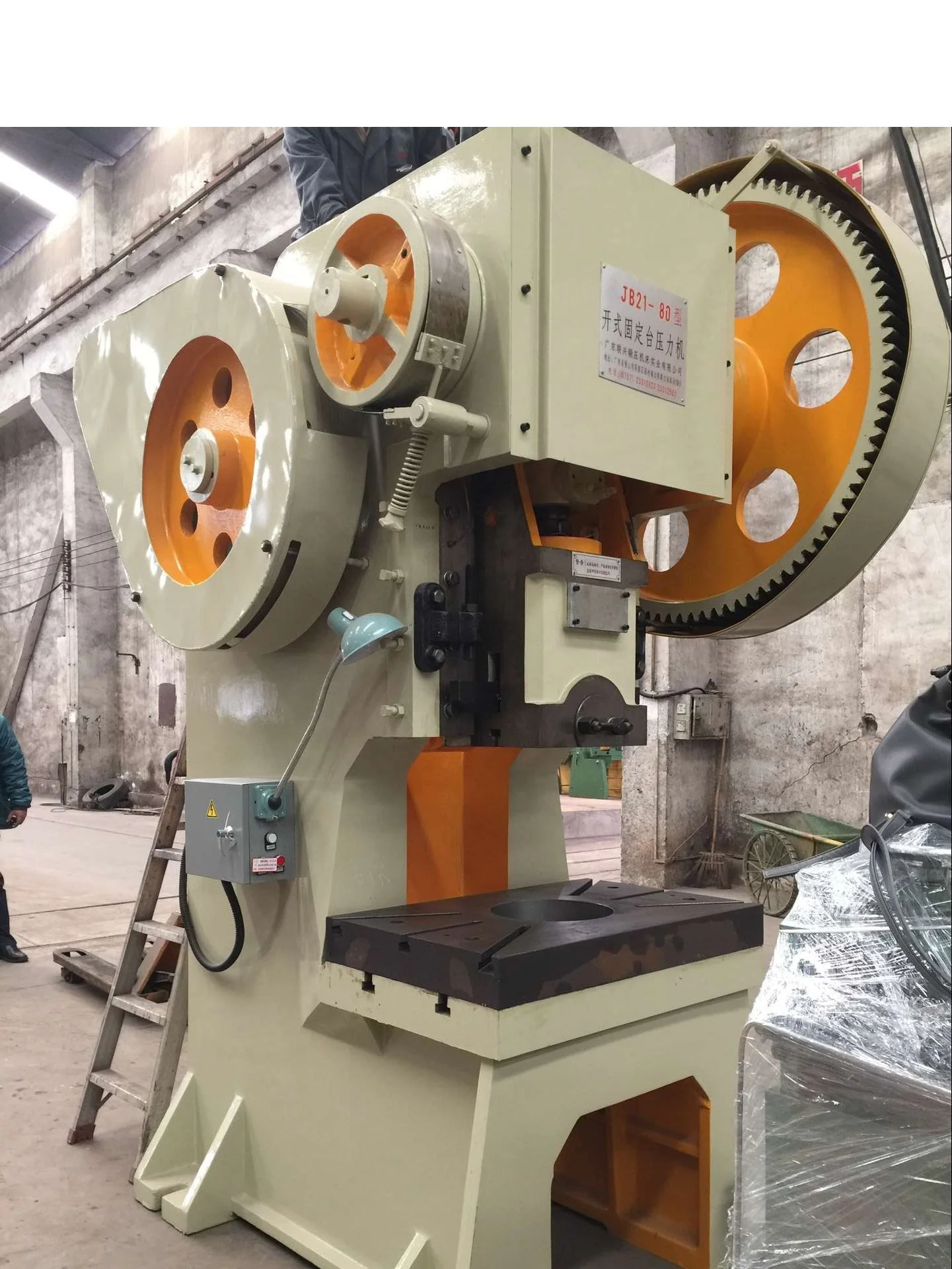

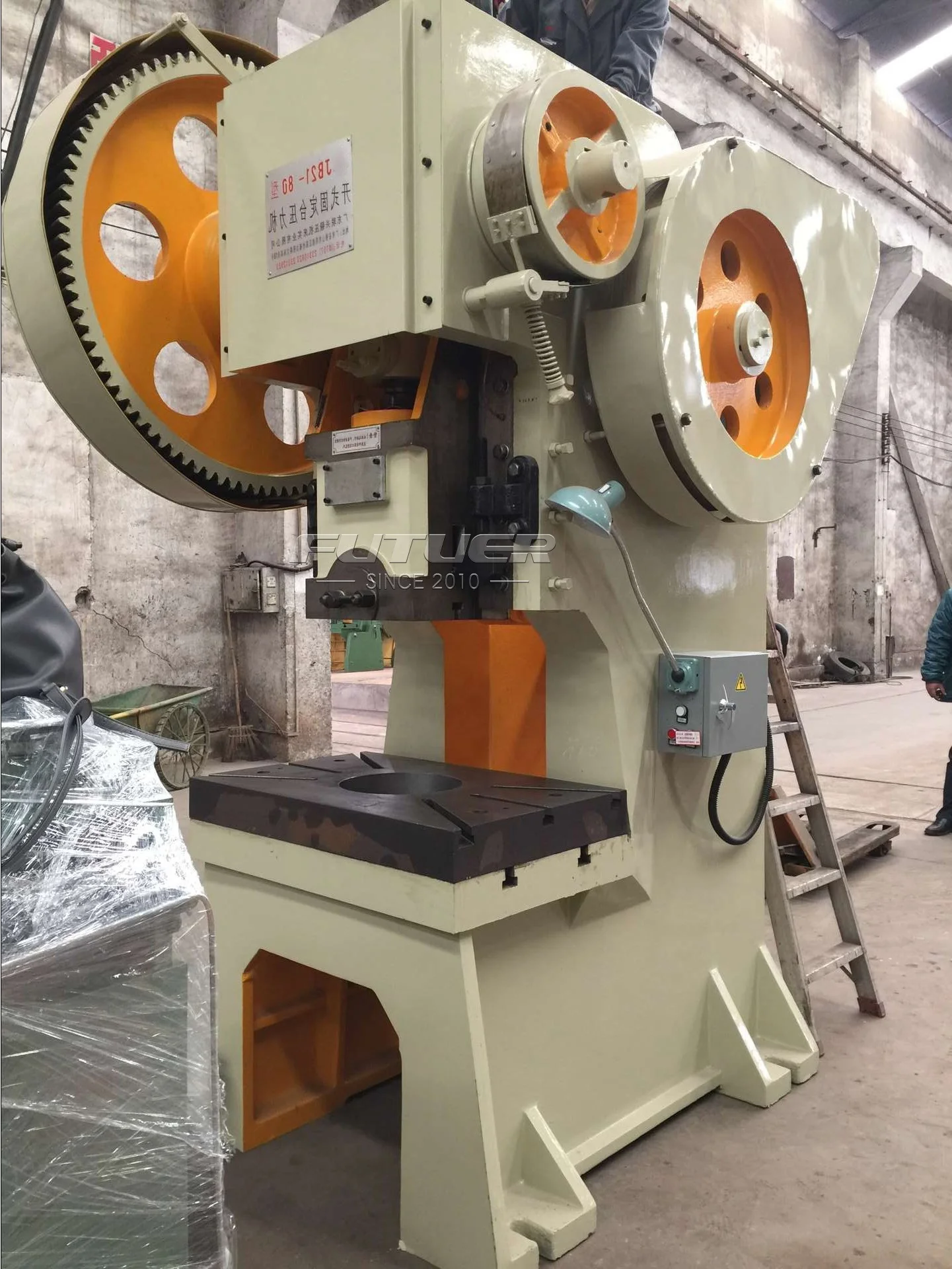

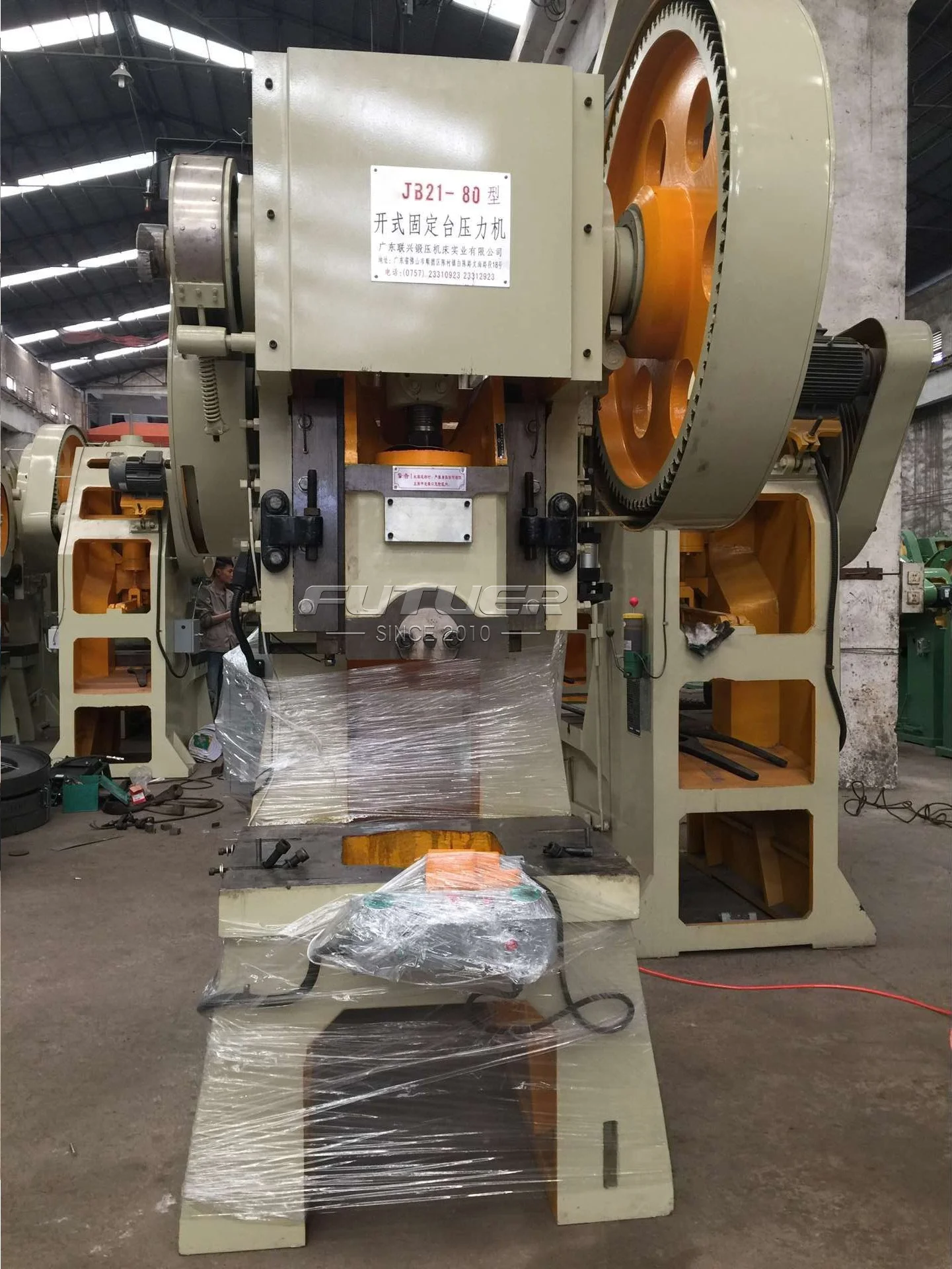

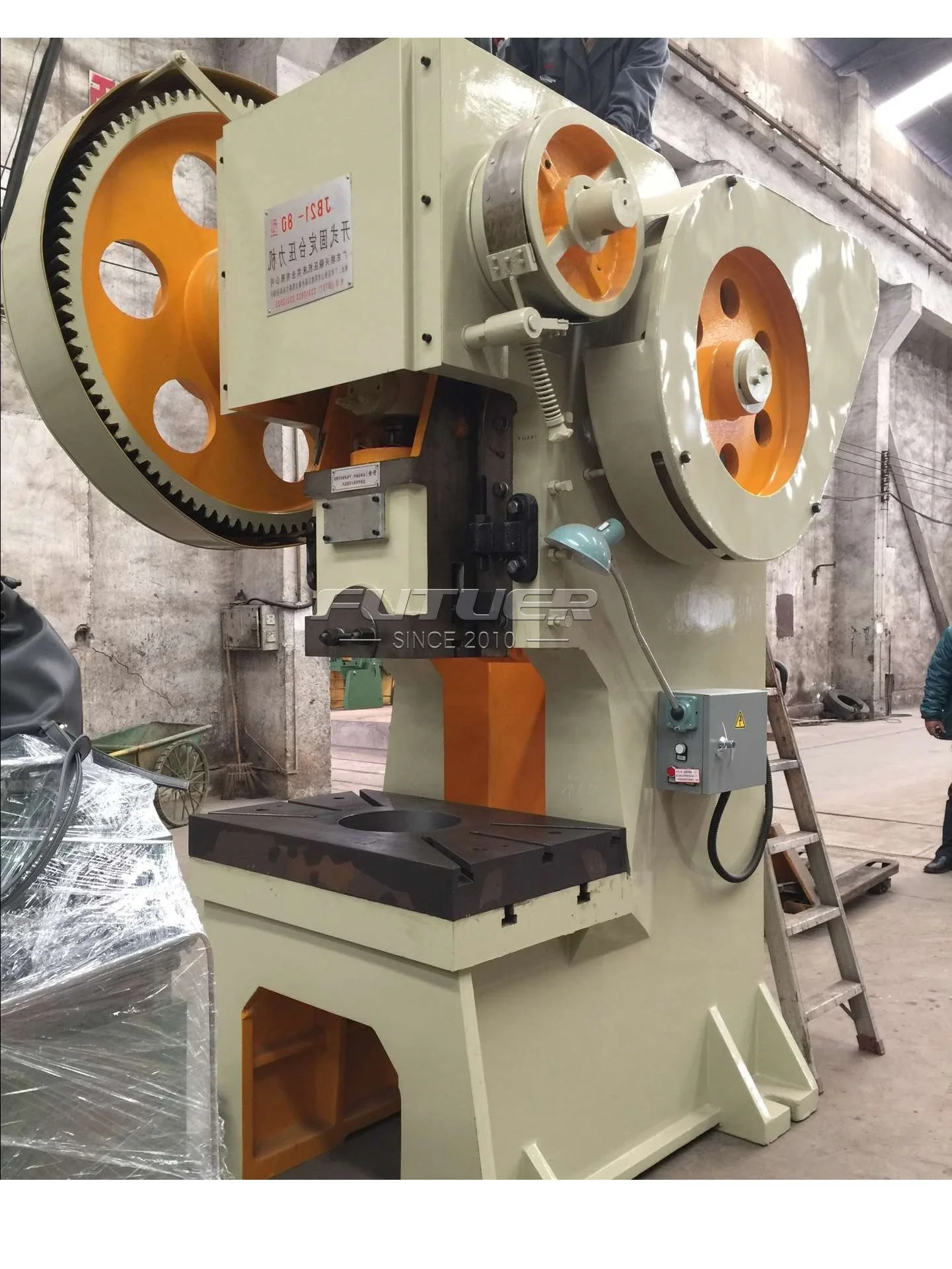

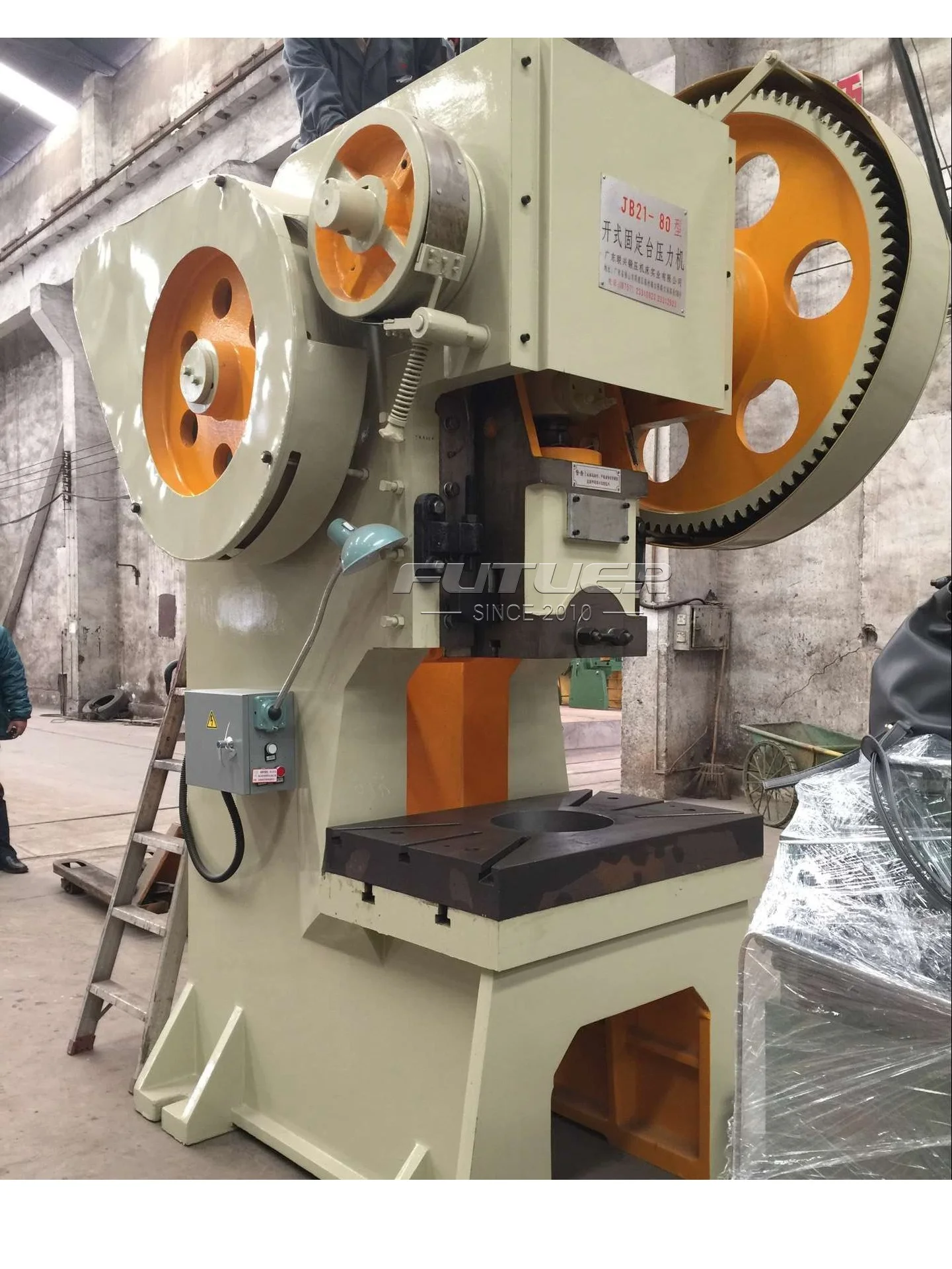

Factory Hot Sale Mechanical Power Press Metal Stamping Machine Door Hinge Automatic Die Power Press
- Category: >>>
- Supplier: Foshan Fanshun Machinery Co. Ltd.
Share on (60526009388):
Product Overview
Description
Products Description
production size

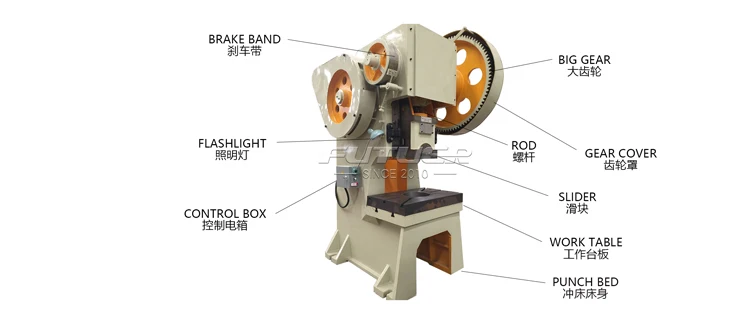

The working principle of the punch press is to convert circular motion into ordinary linear motion.
The flywheel is driven by the motor, the gear is driven by the clutch, and the crankshaft rotates.
The slider is pulled by the connecting rod to achieve linear reciprocating motion. Only need to install the corresponding mold, various stamping processes can be obtained in the simple reciprocating motion of the slider,
Such as cutting, punching, blanking, bending, rolling, forming, stretching and other processes.
The flywheel is driven by the motor, the gear is driven by the clutch, and the crankshaft rotates.
The slider is pulled by the connecting rod to achieve linear reciprocating motion. Only need to install the corresponding mold, various stamping processes can be obtained in the simple reciprocating motion of the slider,
Such as cutting, punching, blanking, bending, rolling, forming, stretching and other processes.
specifications | unit | JB23-10 | JB23-16 | JB21-25 | JB21-40 | JB21-63 |
Nominal capacity | kN | 100 | 160 | 250 | 400 | 600 |
rated tonneage point | mm | 2.5 | 3 | 3.5 | 3.5 | 5 |
length of slide stroke | mm | 63 | 70 | 80 | 80 | 120 |
strokes per minutes | min | 135 | 125 | 55 | 50 | 45 |
max shut height | mm | 160 | 180 | 200 | 265 | 300 |
adjustment of pifman length | mm | 35 | 45 | 50 | 65 | 80 |
distance from slide median to frame | mm | 160 | 180 | 200 | 265 | 300 |

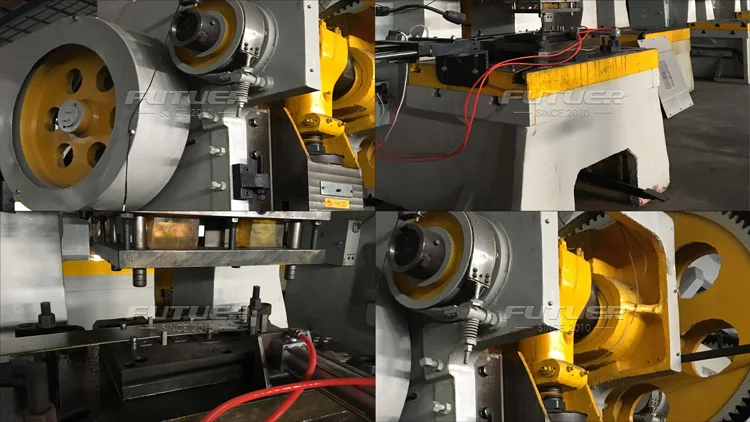

Details Images
