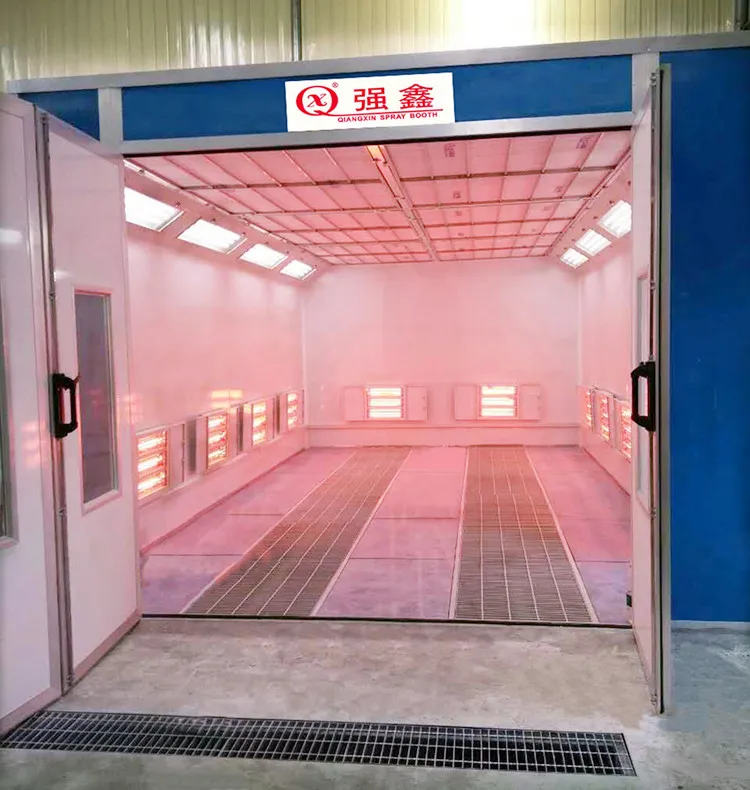

Environmental Electric Heating Spray Painting Booth

Inside Dimenions

6900×3900×2650(mm)(L×W×H)

Outside Dimenions

7000×5500×3300(mm)(L×W×H)

Entrance Door

Aluminum alloy binding framework(thickness: 1.8mm),1 set folding door size: 2830*2600(mm)(W*H)

Personal Door

1 set side hung door:700*1700mm(W*H)

Wallboard

50mm EPS(epispastics polystyrene )insulation material with S=0.476mm two side steel panel

Lighting System

Lamp boxes are 45° fixed on upper two side,with 8 groups*3pcs=24pcs 20w energy saving LED lamp

Air Intake and Exhaust System

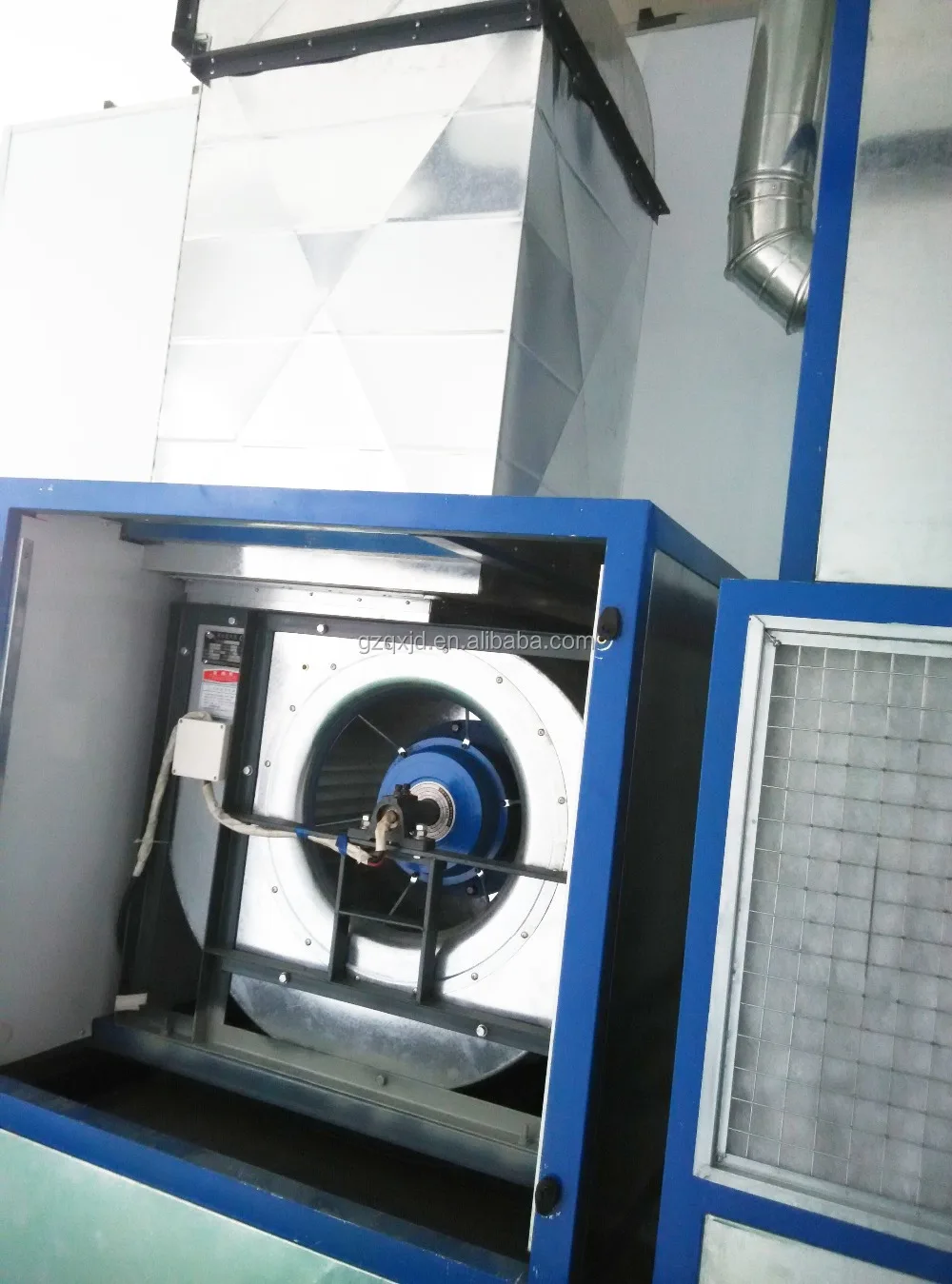

With 2pcs centrifugal air blowers,Total parameter:YOW5.6m.2*4kw.25000m3/h
With 1pcs centrifugal air blower,Single parameter:TAE-710H.5.5KW.18000m3/h

Cabinet Setting

Intake air from upside,downside exhaust wind.
Frame is made of tube 50*50mm, body plate is made of galvanized plate(thickness:0.8mm).

Air duct

Made of Galvanized plate(Thickness is 0.6mm),700*700*1000,2 pcs straight,1 pc elbow

Heating System

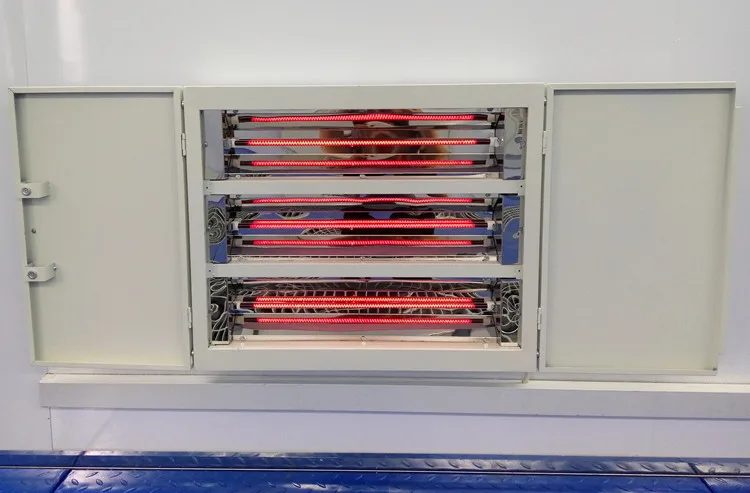

30pcs infrared carbon fiber heating lamps,1000W/piece.
The operating temperature:50℃-75℃.Max.temperature:80℃

Filtration System

Filters
1.Air inlet with prefilter.
2.Ceiling equipped with CC-G650type high-efficiency filter,which can effectively filter the 5PM dust particles.

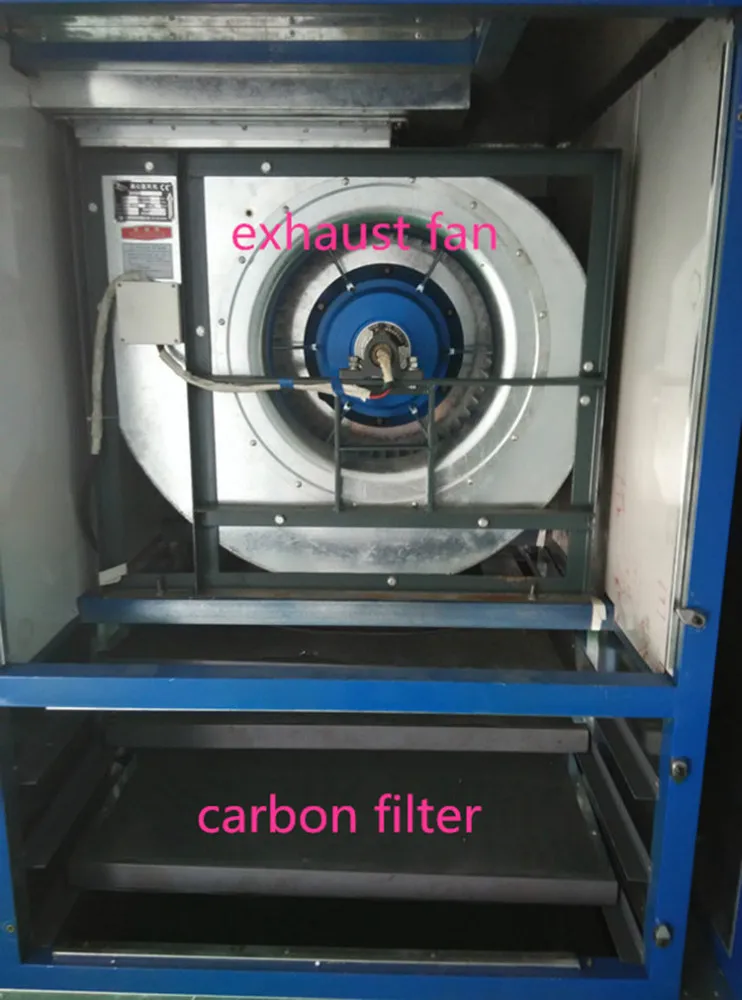

3.With three layers of activated carbon, plus an Environmental protection cabinet.
4.Outlet with fiber glass filter

Roof

Galvanized steel panel

Basement

High performance antirust treatment grille galvanized and checkered plate(2 rows of checkered plate,3 rows of grilles).
Channel steel column.2pcs antirust treatment ramps :2000*630mm(L*W).

Control System

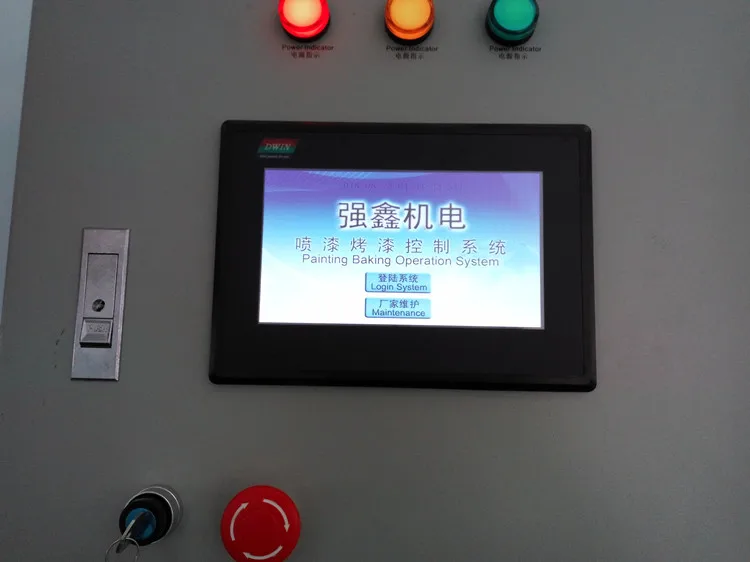

Microcomputer touchable control system,Painting , Baking, Temperature Controller,Light Switch, Breakdown Indicator, Power Switch,
Emergency Stop Switch, and Time Setting

Voltage Frequency

380V 50HZ

Light Intensity

1000luxes

Air Flow Speed

0.25m/s

Total Power

44KW
