10ton per hour CE Manufacture price complete wood pellet line
- Category: >>>
- Supplier: Jining Tiannong Machine Co. Ltd.
Share on (60526050203):
Product Overview
Description

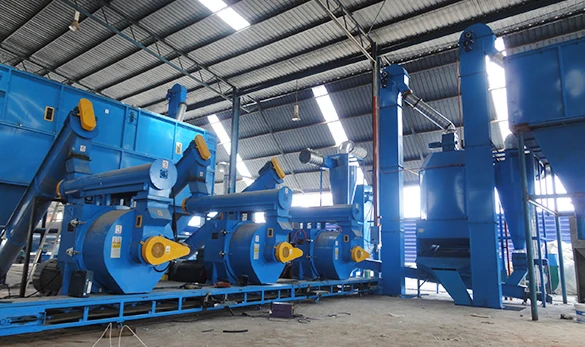

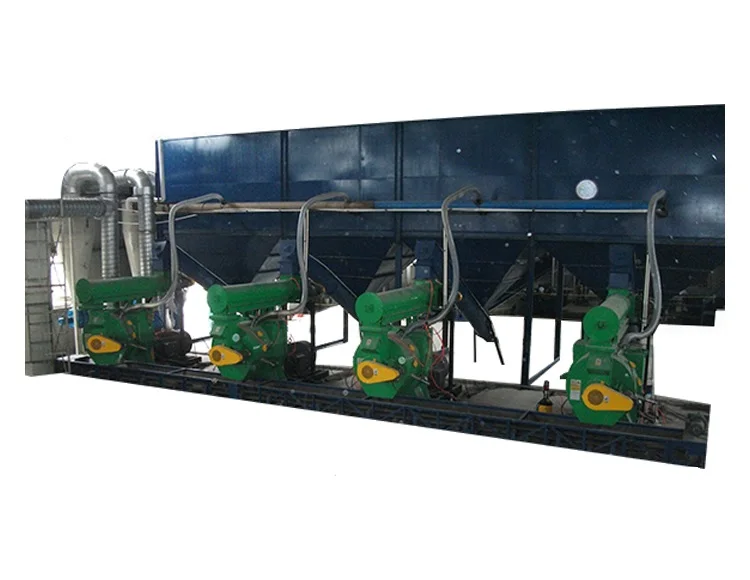

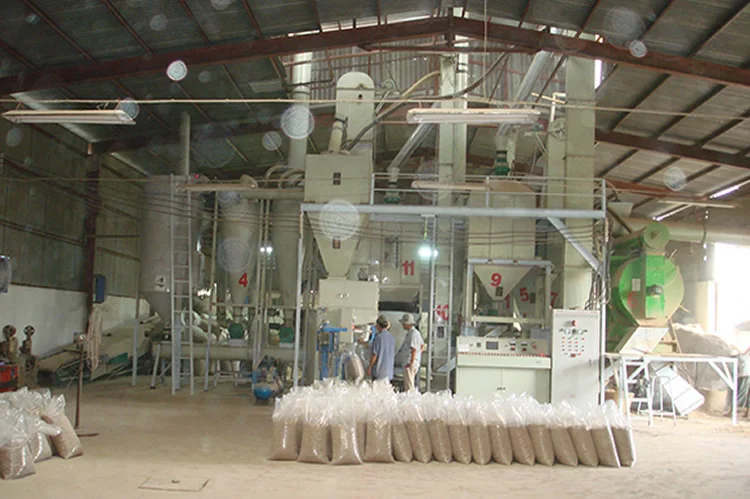

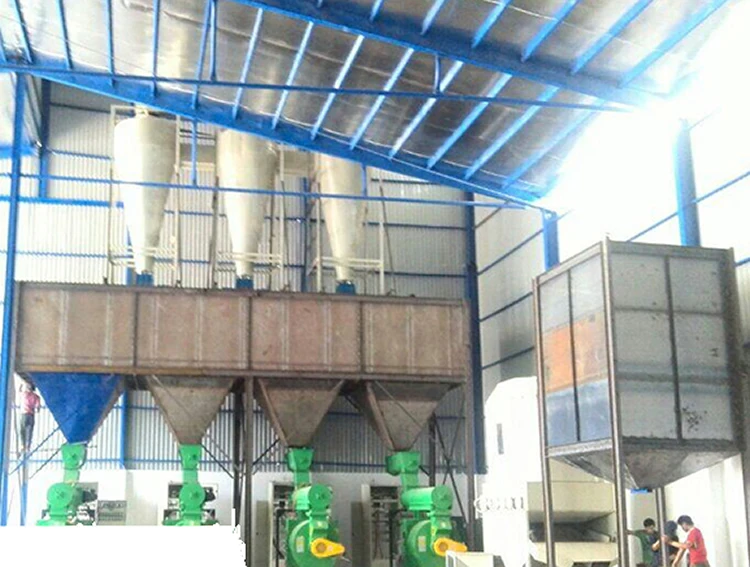

10ton per hour Complete wood pellet line with CE
Application
Pelletizing is the process of making waste materials into solid fuel. The objects are used for burning purposes. Wood pellet can be made from any type of agro-forestry waste: groundnut shell, sugarcane bio-gases, caster shells/stalk, saw dust, coffee husk, paddy straw, sunflower stalk, cotton stalks, tobacco waste mustard stalk, jute waste, bamboo dust, tea waste, wheat straw, palm husk, soybeans husk, coir pitch barks/straws, rice husks, forestry wastes, wood chips and many other agro wastes.
Product Description
1-30 Ton/1Hour Pellet Line is the complete one to make pellet from any type of agro-forestry wastes with output 1ton/1hour; 2ton/1hour; 3ton/1hour; 4ton/1hour; 6ton/1hour; 8ton/1hour; 10ton/1hour; till 30ton/1hour
0.1-1Ton/1Hour Pellet Line is developed to meet with the family and small farm use which is made up of Wood Chipping Machine, Hammer Mill, Air-Current Dryer / Small Rotary Drum Dryer, Mixer, Screw Conveyor, Conditioner, Flat Die Pellet Machine, Grade Sieve and Cooler, small Semi-auto Packing Machine. Any of the process can be run independently, doesn’t affect the overall equipment effectiveness, and the user can equip the whole line freely base on the different raw material and the space.
Flowchart
Specification
Name | Model | Power (kw) | Capacity (Ton/Hour) | Pellet Diameter. (mm) | Ring Die’s Diameter (mm) | Roller (Piece) |

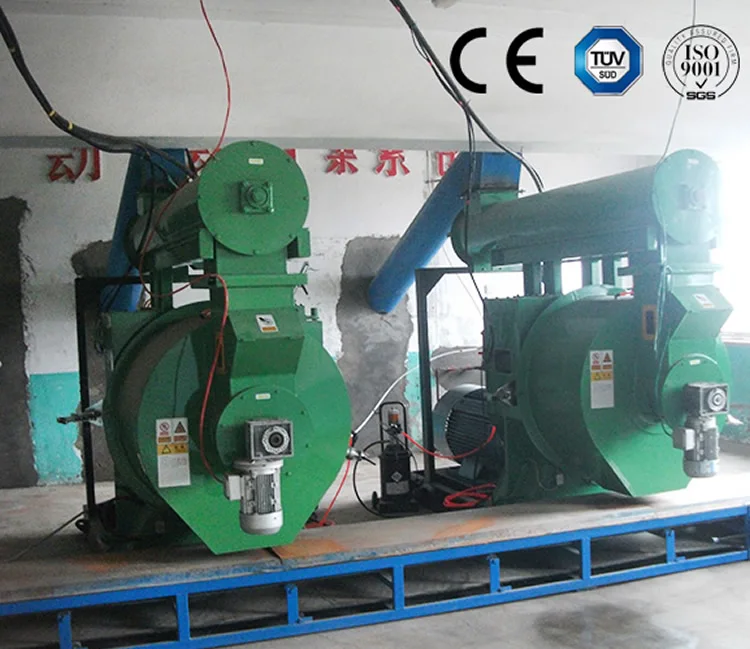

Pellet Machine | MZLH420A | 90 | 1-1.2 | 6-8 | 420 | 2 |
MZLH420B | 110 | 1.2-1.5 | 6-8 | 420 | 2 | |
MZLH420C | 132 | 1.51-1.8 | 6-8 | 420 | 2 | |
| ||||||
Pellet Machine | MZLH600A | 160 | 2-2.5 | 6-8 | 600 | 2 |
MZLH600B | 190 | 2.5-3 | 6-8 | 600 | 3 | |
MZLH600C | 240 | 3-3.5 | 6-8 | 600 | 3 | |
| ||||||
Pellet Machine | MZLH800A | 320 | 4-5 | 6-8 | 800 | 4 |
MZLH800B | 440 | 6-7 | 6-8 | 800 | 4 | |
Other | 10ton per hour Complete wood pellet line with CE | |||||
Model | Technical Parameter | Power (Kw/Hp) | Packing Dimension(mm) | Net/Gross Weight |
MZLP-200 Pellet Machine | Carbon steel, movable style, the capacity is 55-100kg/1h to make biomass pellet with diameter 6mm |
5.5/15 | 1000*800*1000 | 250/300Kg |
MZLP-300 Pellet Machine | Carbon steel, movable style, the capacity is 150-250kg/1h to make biomass pellet with diameter 6mm | 15/30 | 1200*1000*1200 | 480/530Kg |
MZLP-400 Pellet Machine | Carbon steel, movable style, the capacity is 250-350kg/1h to make biomass pellet with diameter 6mm | 22/40 | 1200*1100*1250 | 850/900Kg |
Other | 10ton per hour Complete wood pellet line with CE | |||
