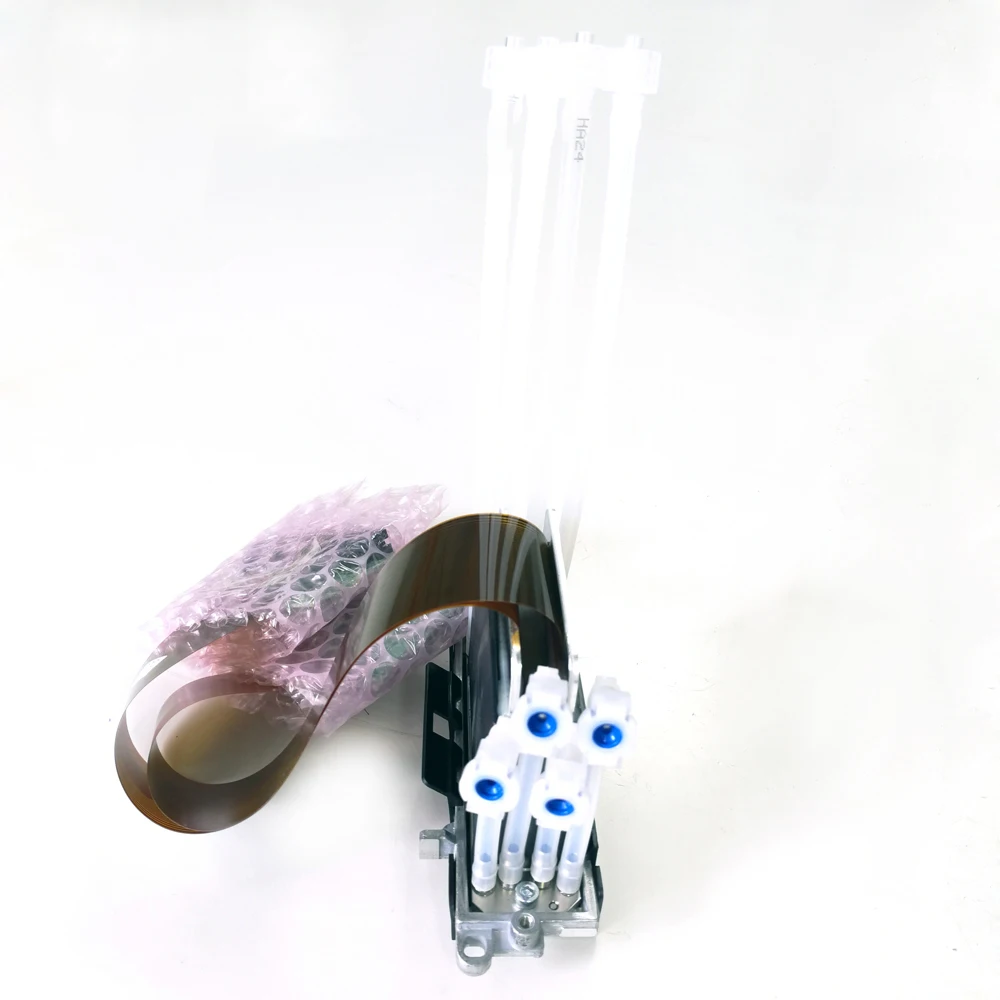

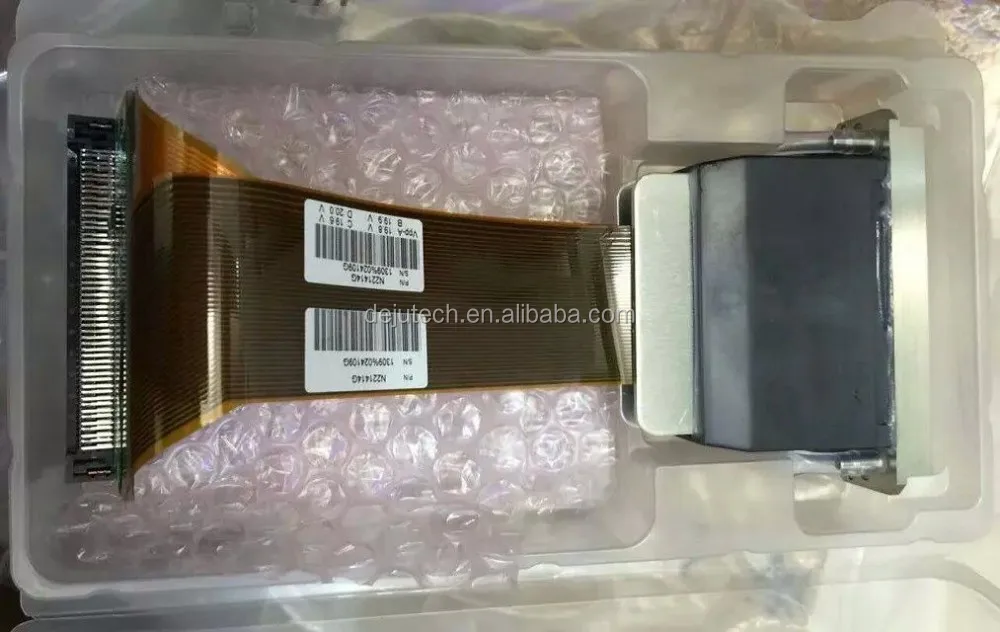

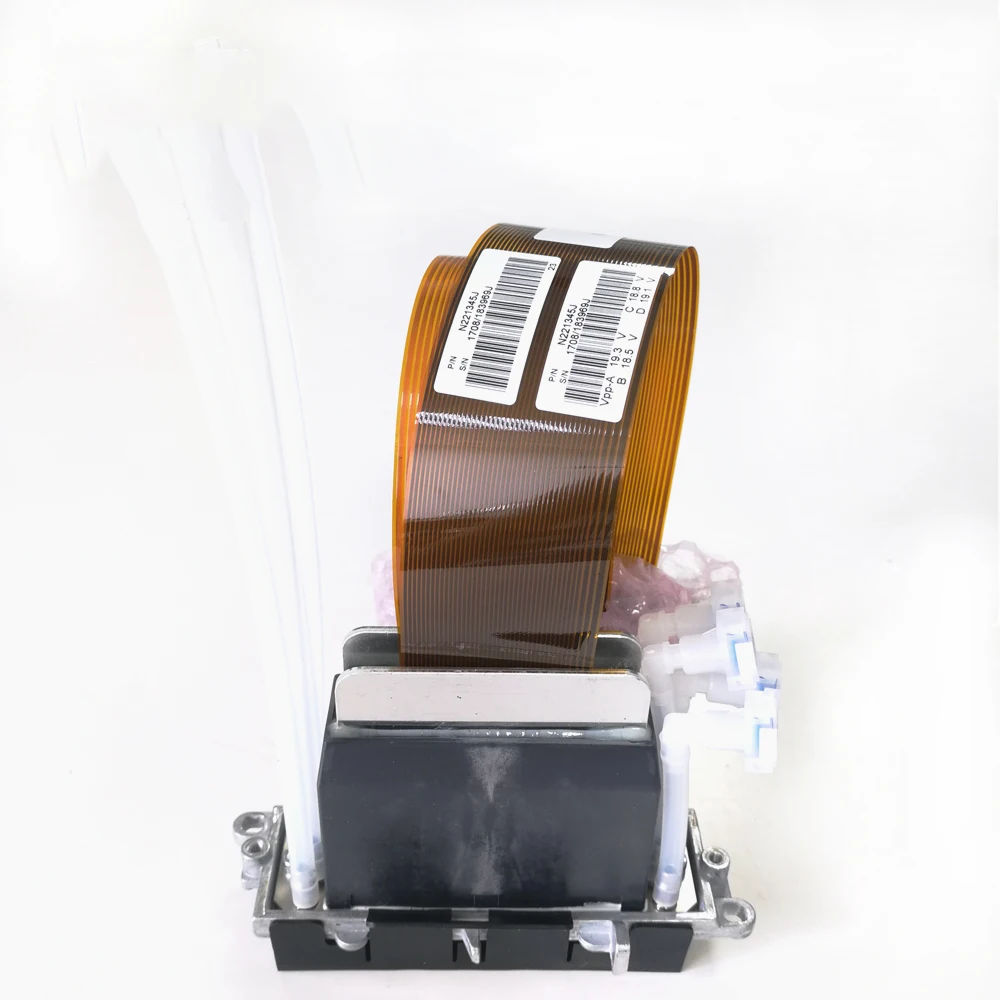

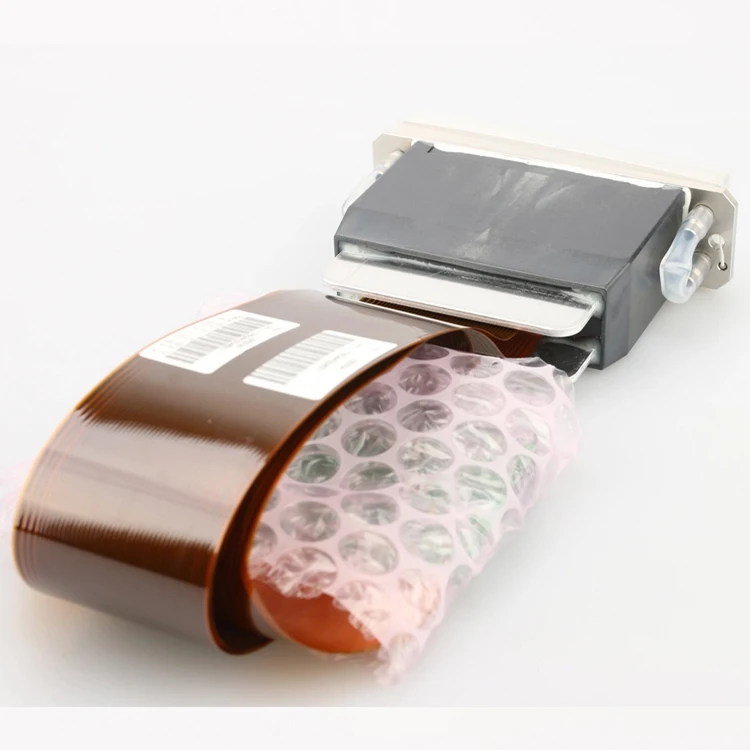

Inkjet printer Print Head Gen 5 Print Head

Size

89(W)*25(D)*69(H)mm(excluding cables&connections)

Head Materials

SST,Nickel alloy*Epoxy adhesive(Direct contact with ink)

Compatible jetting fluids

Compatible with water,solvent,oil,UV curable inks

Nozzle plate surface

Coated SST

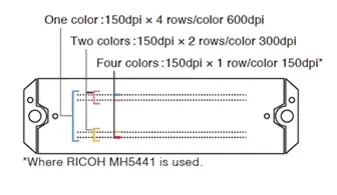

Nozzle spacing

A:within a single row

B:Within a color

C:Single pass

D:Row to row distance

E:Color to color

0.1693mm(1/150”)

0.0847mm(1/300”)

0.0423mm(1/600”)

0.55mm

11.811mm

Ink inlet port

2*dual ports

Piezo type

D33 stacked PZT

Drop ejection mode

Piston pusher with metallic diaphragm plate

Integrated electronics

Low-voltage serial to high-voltage parallel converter;

3-bit shift resistors;transmission gate outputs

Temperature control

Integrated heater and thermistor

Viscosity

11 CP(at operating temp)

Surface tension

32 dynes/cm

Native drop volume

7 pico-liter

Drop volume range/variation

7-35 pico-liter with grey-scale/±10%

Drop velocity nominal/variation

7 m/sec/±15%

Crosstalk

10% or less with all channels firing

Jet straightness 1 sigma

<3.5 milli-radian from nozzle centerline

Native drop operating frequency

60kHz(Higher burst possible under ideal condition)

Life

100 billion actuation’s per nozzle
