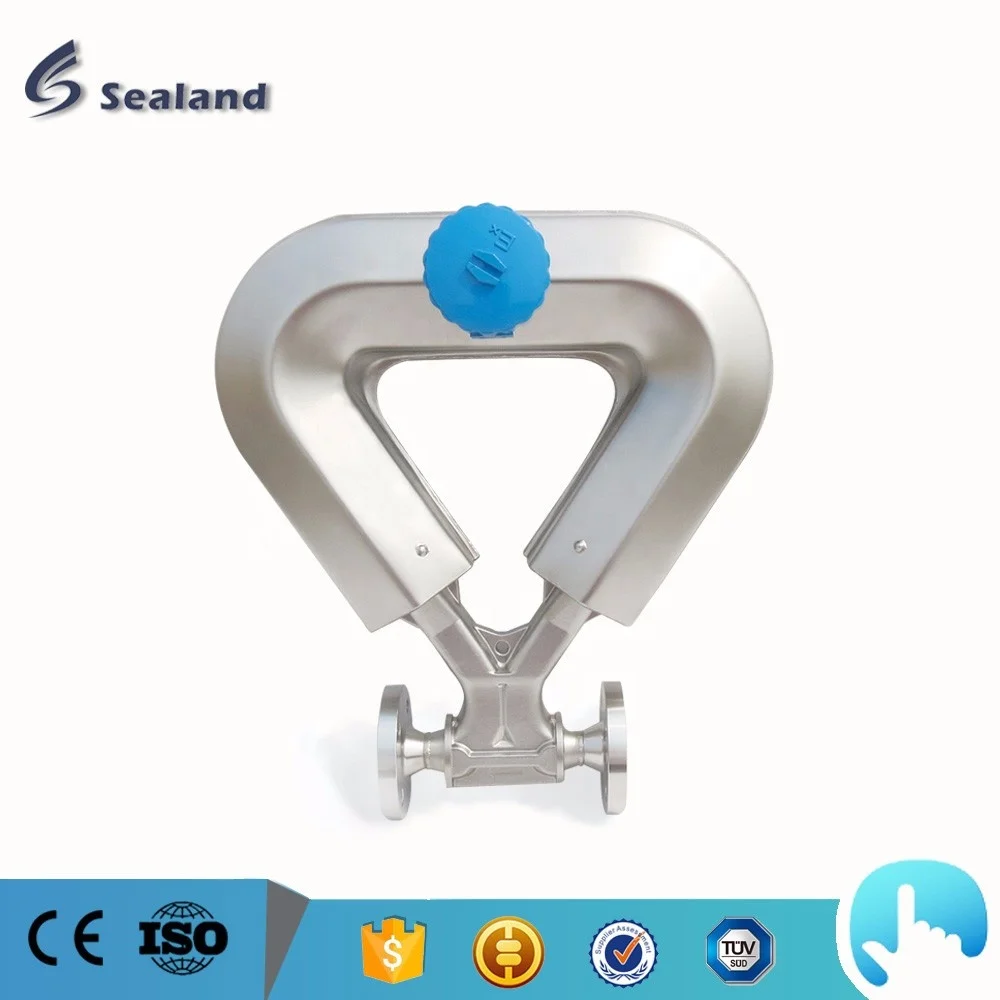

LPG semi trailer mass flow measuring skid bobtails coriolis mass flow meter
Specifications

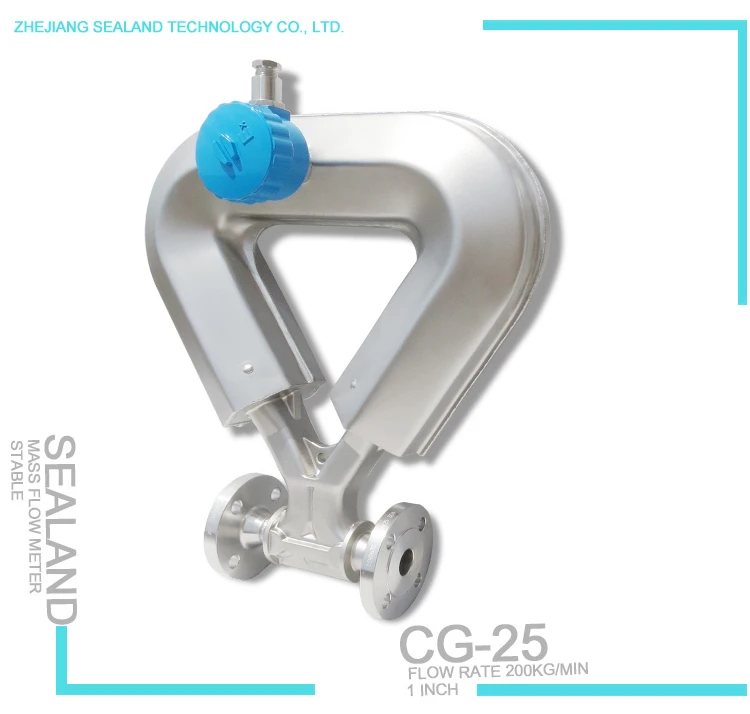

Specifications of Coriolis mass flow meter
Model No.
CG-25
Max. Flow rate
200kg/min
Nominal diameter
25mm( 1 inch )
Mass accuracy grade
0.2
Zero stability
0.017kg/min
Repeatability
0.02%
Warranty
2 years
Temperature accuracy
±1°C
Fluid temperature
-200~200°C
Wetted parts
Stainless steel 316L
Sensor housing
Stainless steel 304
Packing
1set/carton
Package size
670*650*310mm
G.W.
21kgs
Specifications of Coriolis mass flow sensor
Gas accuracy
±0.5% for mini flow, ±0.1% for high flow
Liquid accuracy
±0.2% for mini flow, ±0.1% for high flow
Temp. accuracy
±1°C
Pressure drop
≤0.2MPa
MWP
4MPa
Temp. rating
-50°C~+200°C
End connection
Customizable
Ex-mark
Ex[ib]IIBT1~T6 Gb / Ex[ib]IICT1~T6 Gb

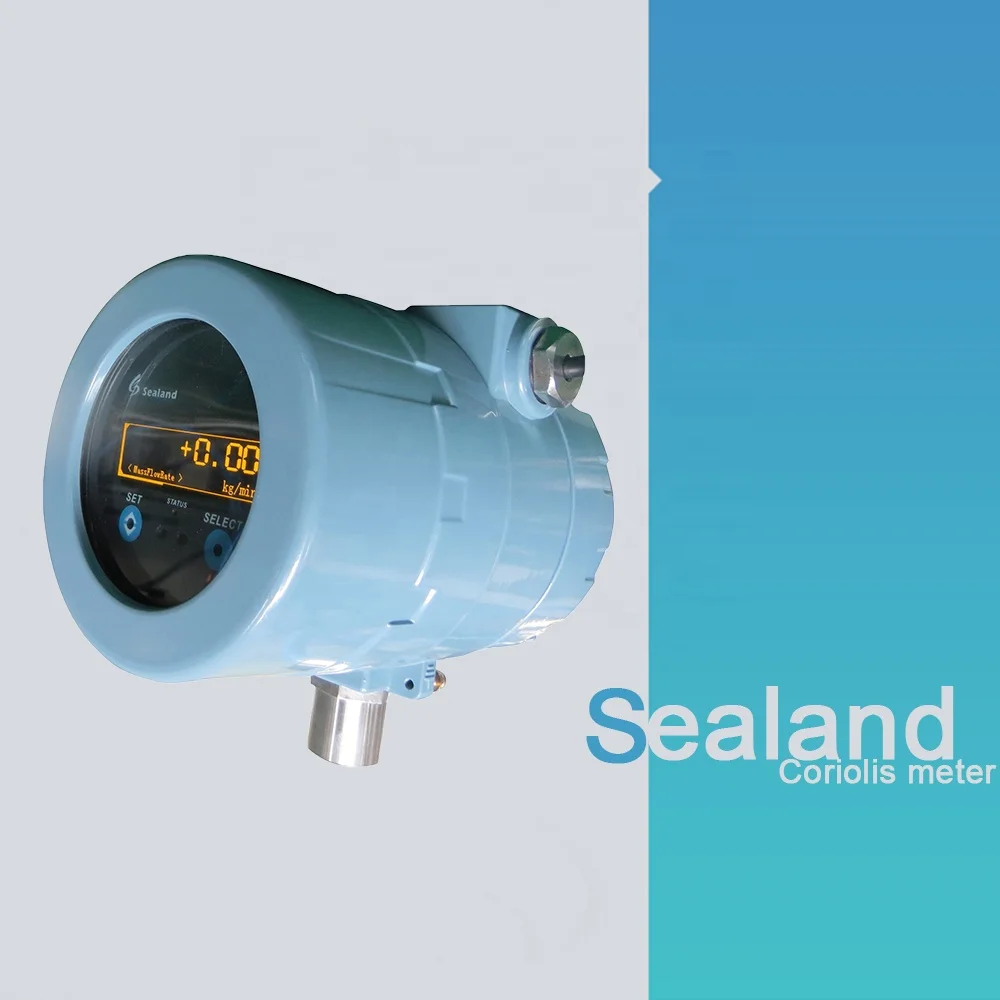

Specifications of Coriolis mass flow transmitter
Temp. rating
-20°C~+50°C
RH
≤95%, non condensed
Atmospheric pressure
86~106KPa
Operating voltage
AC85~265V, DC12~28V
Communication port
RS485 Modbus RTU
Ex-mark
Exd[ib]IIBT4Gb
2 options are available, F231 with display & F210 without.

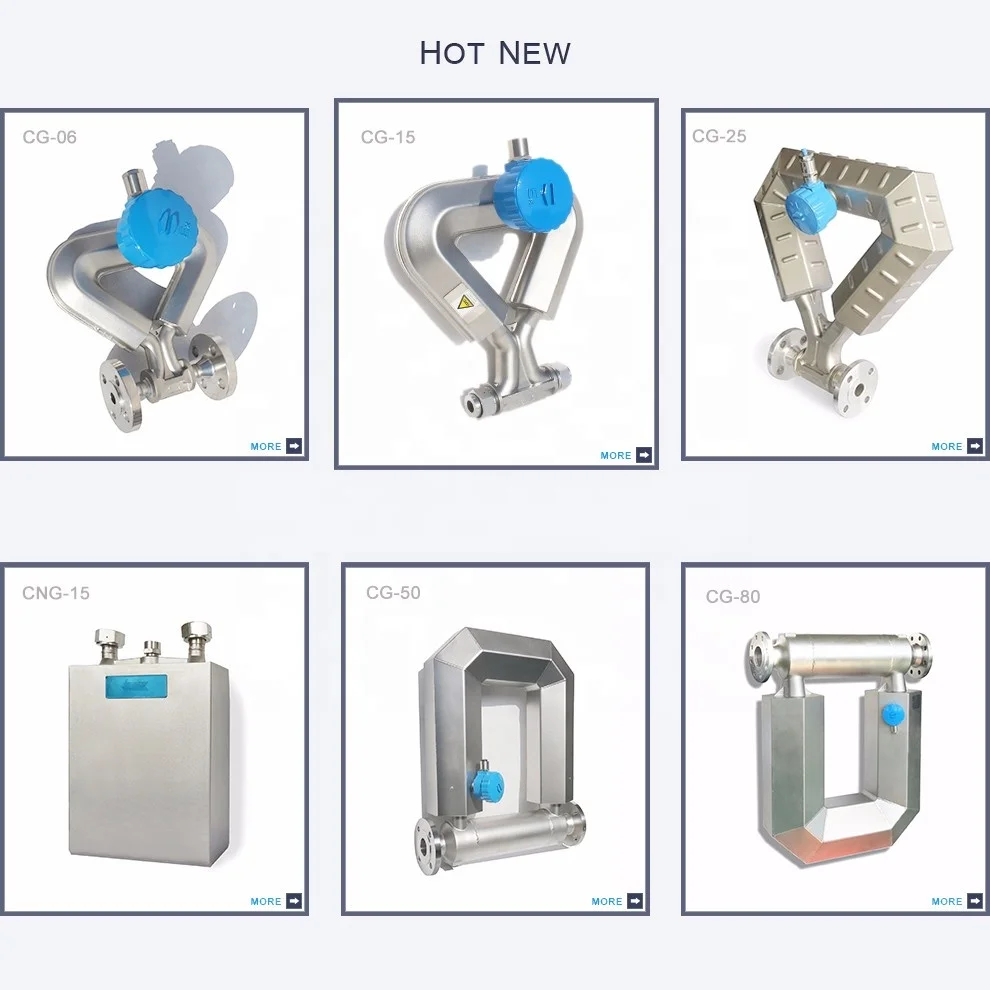

Related Products
Please click the following pictures for details of each model :)
Model No.
Diameter
(mm)
Max. flow rate
(kg/min)
MWP.
(MPa)
Accuracy grade
Zero stability
(kg/min)
CG-06
06
18
4
0.2
0.003
CNG-15/CG-15
15
70/50
25
0.2
0.009
CG-25
25
200
4
0.2
0.017
CG-50
50
1000
4
0.2
0.038
CG-80
80
3000
4
0.2
0.115
CG-100
100
5000
2.5
0.2
Under development
Applications of Coriolis mass flow meter
Sealand Coriolis flow meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.
Alternative Energy
Oil & Gas
Chemical
Food & Beverage
Industrial Energy
Life Sciences
Marine
Metals and Mining
Power
Pulp & Paper
Refining
Water & Wastewater
Others
Advantages of Coriolis mass flow meter
1. Maintenance-free
2. HIgh accuracy & reliability
3. Shows many parameters simultaneously, such as mass flow, temperature & desity
4. Compact design with no moving parts, no special mounting and no flow conditioning required.
Certificates
ATEX, CE, and all Chinese certificates approved.
Packing
Packed with specific foam, professional & safe.
About Sealand
Zhejiang Sealand Technology Co. Ltd. is a professional hi-tech enterprise, specialized in development, production & sales of Coriolis mass flow meter, located in Binhai ETDZ, Wenzhou, Zhejiang, China. Read more!
Standardization line
The standardization line is equipped with world famous brand METTLER TOLEDO instrument with accuracy 0.02%, and other devices imported from South Korea, national institute approved.
Mass production of Coriolis mass flow meter
Why Sealand?
1. Sealand is professional, with senior engineers from the first research team in this field in China, and junior one from college, to keep improving.
2. Sealand is experienced. It started to research and develop in 1990. All employees are stable here; even the production-line workers have worked here for more than 5 years.
3. Sealand strictly controls the quality from raw material to finished products, and all products will be inspected and tested for 3 times before shipment.
4. The warranty is 2 years, but technical support is always available. Read more!
FAQ.
1.Customer: May I release trial order, 1 pc for example? Sealand: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.
2.Customer: Could you design according to my requirements? Sealand: Of course, our team will design for you, to make our mass flowmeter work perfectly at your end.
