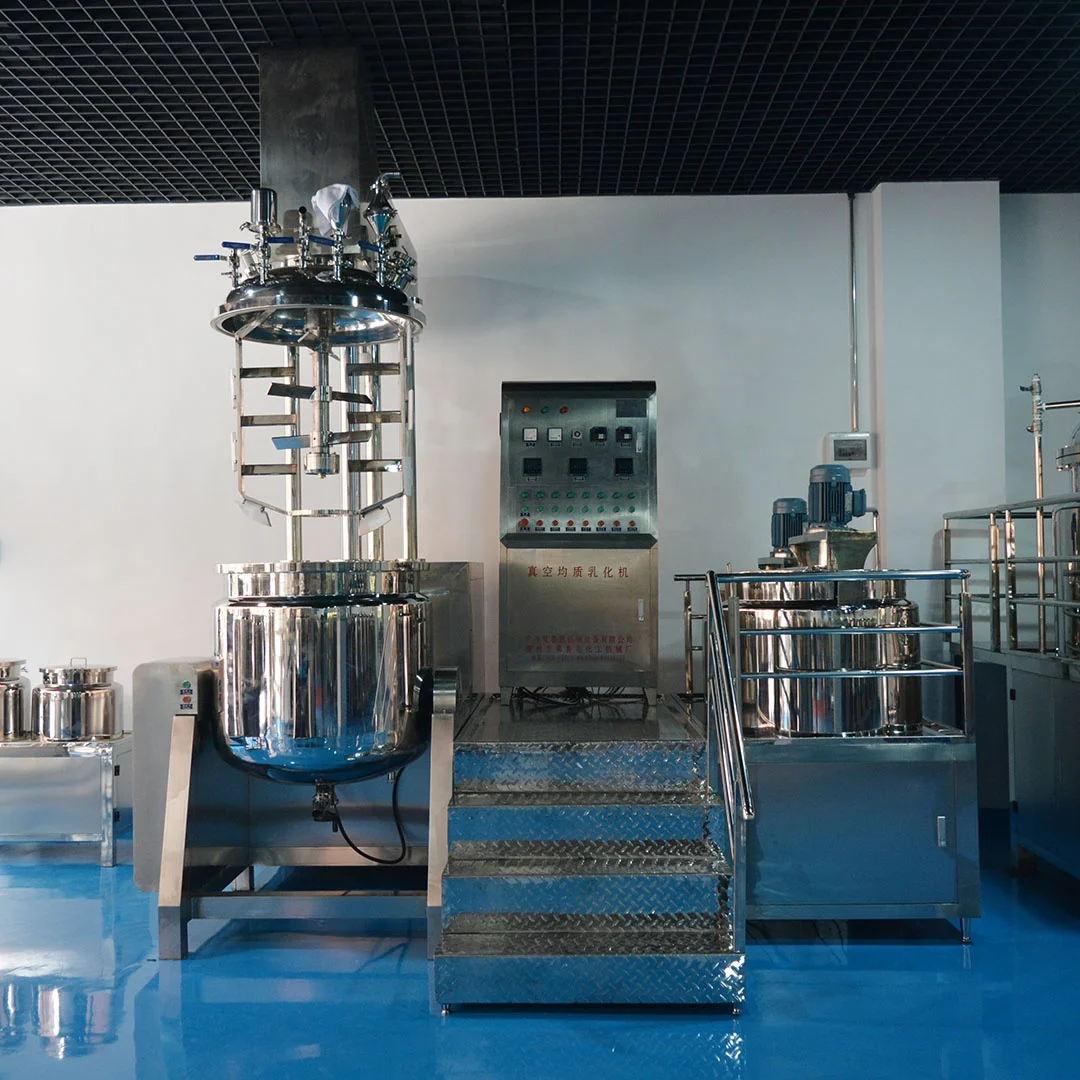

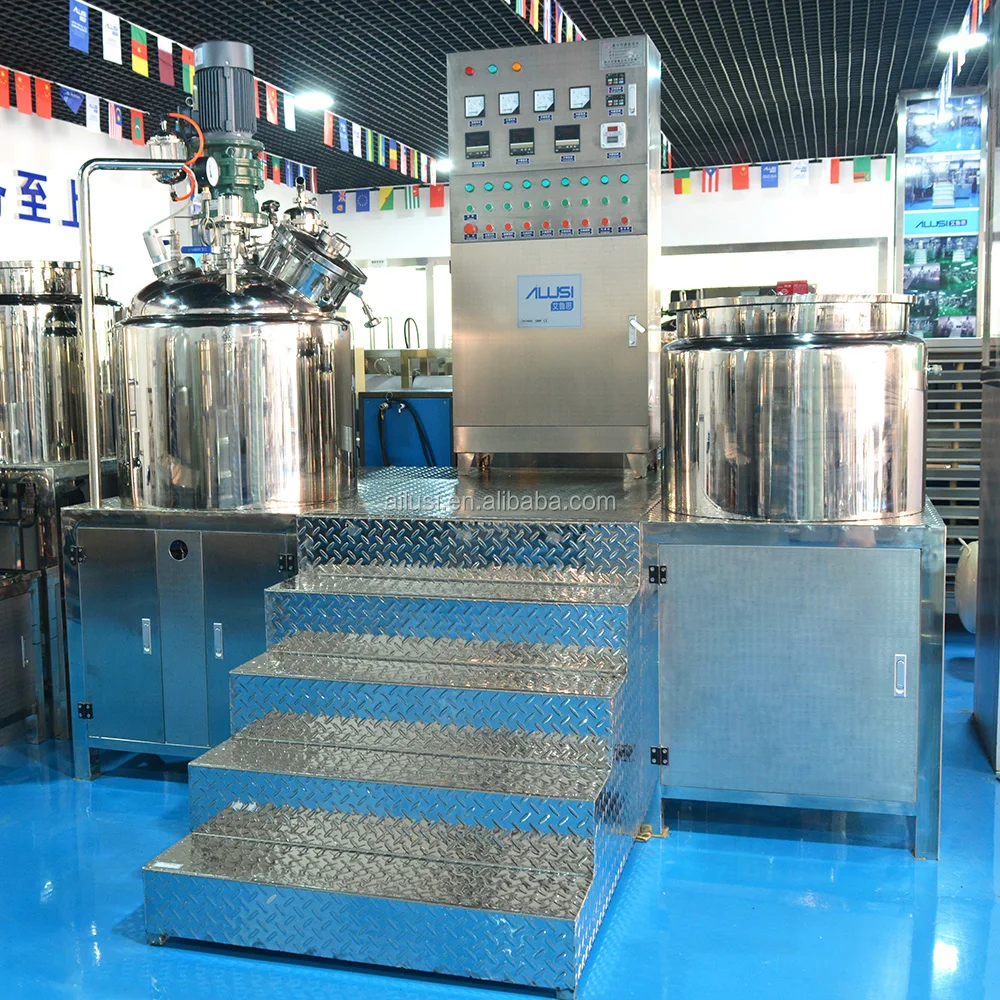

Small scale production semi auto cosmetics machinery production line
- Category: >>>
- Supplier: Guangzhou Ailusi Machinery Co. Ltd.
Share on (60526499066):
Product Overview
Description
Product Description
Standard configuration
◆ Emulsifier, water phase tanks, oil phase tank
◆ Vacuum pumps and sync solenoid valves ◆ emulsifier and material filter
◆ Hydraulic lifting system and mixing system
◆ Stainless steel platform
◆ Inverter and electrical control box

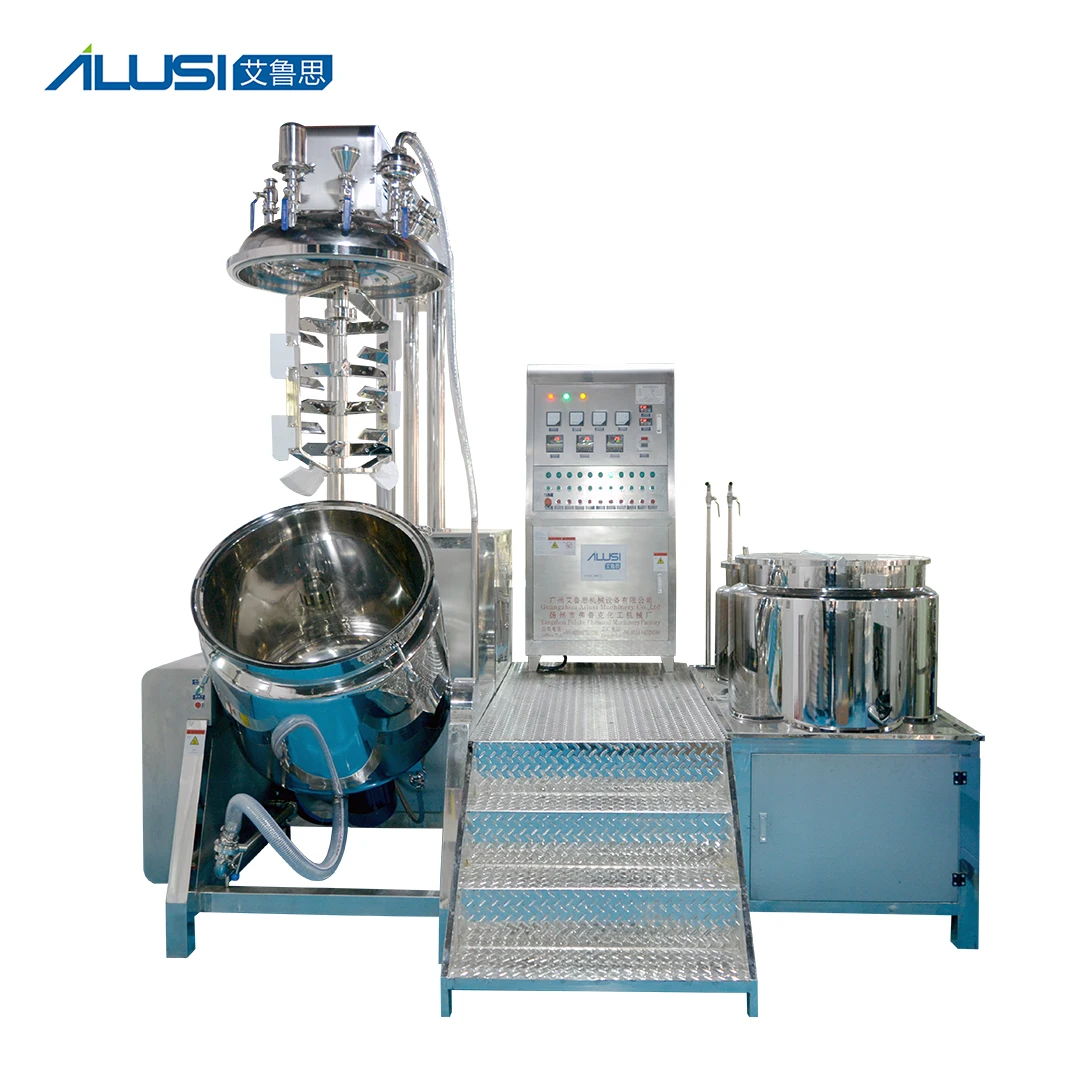

Hydraulic lifting vacuum emulsifying mixer：
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical
factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes,
etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes,
etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
Working Principle
The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm – 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.

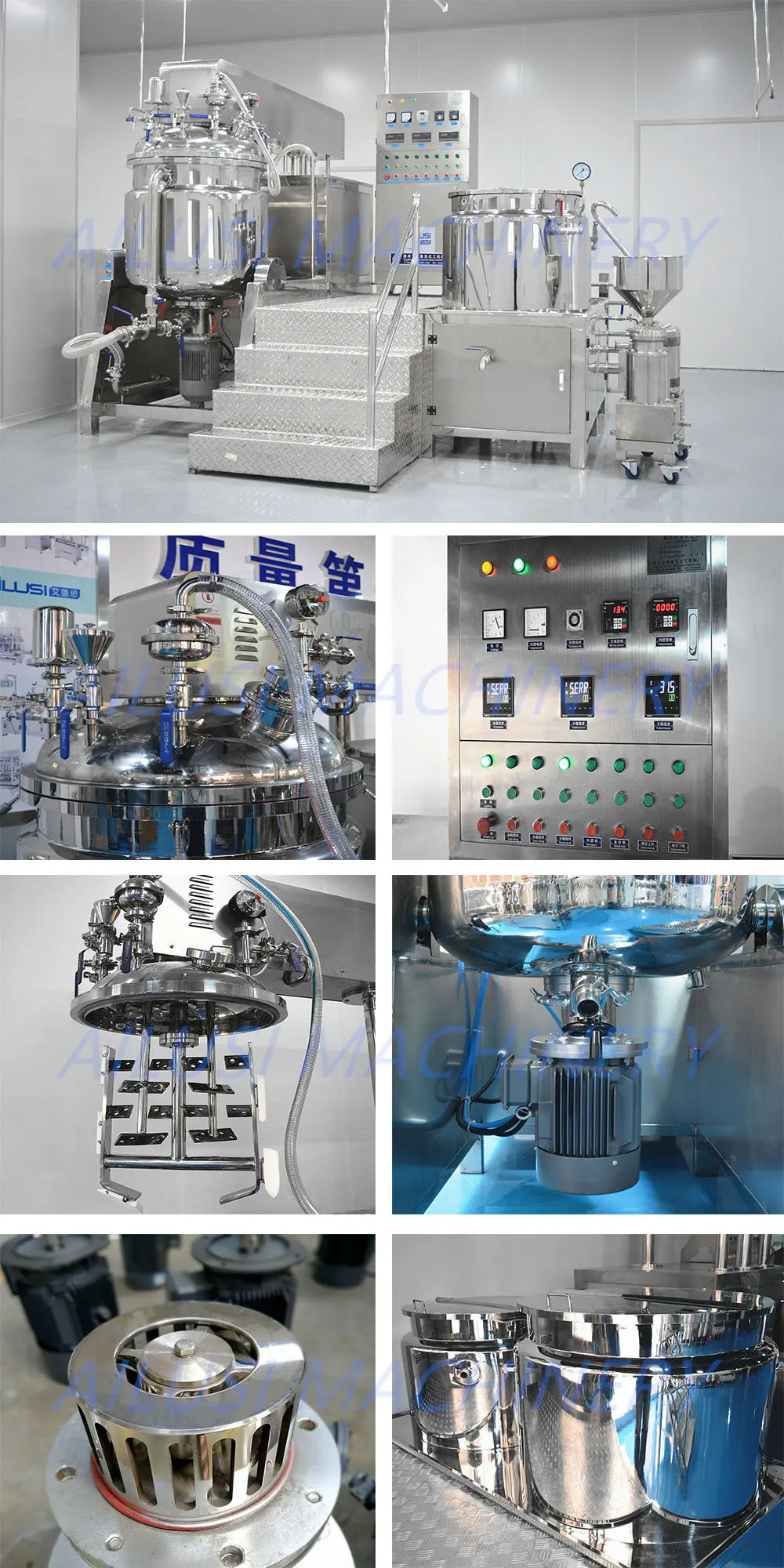

Detailed Images

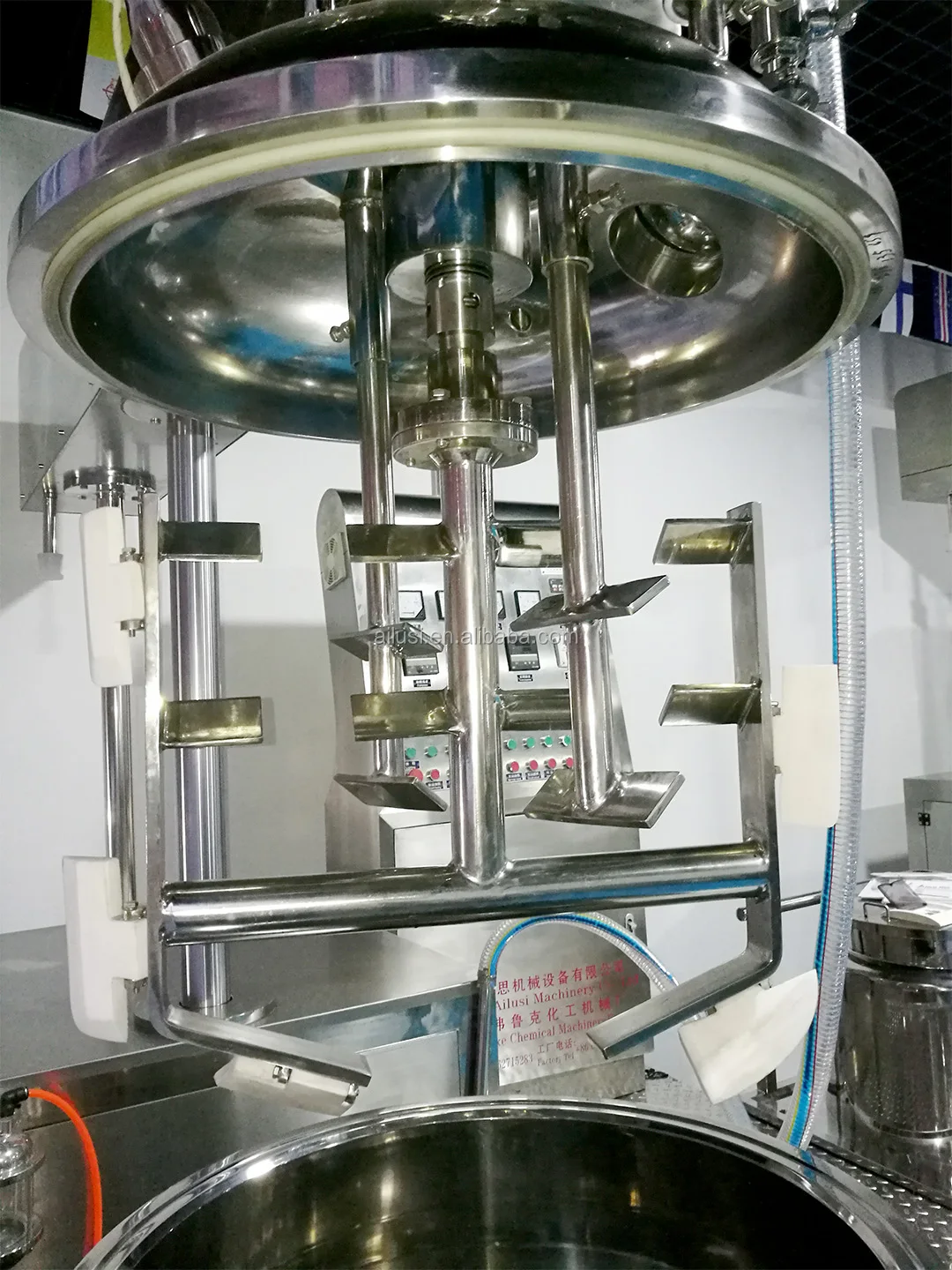

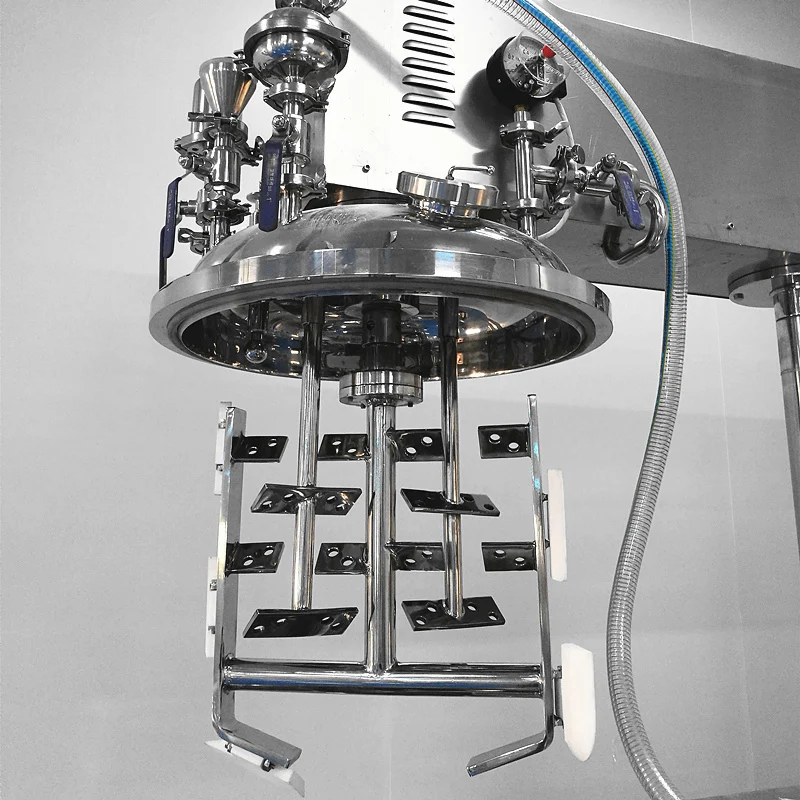

Blender
Type: frame oar scrape blender, single way or double way rotating
Material: SUS316L
Speed: 0-75rpm
Burgmann mechanical seal, NSK bearing, Siemens motor, Panasonic frequency inverter

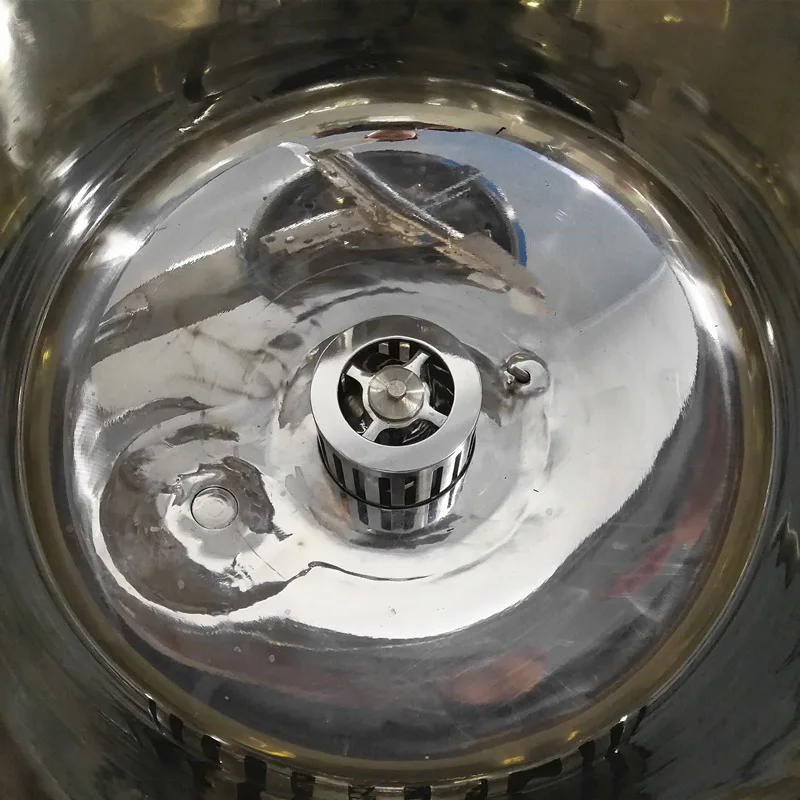

Homogenizer
Name: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm
Burgmann mechanical seal, water circulation cooling, cooling and homogenizer synchronization, NSK bearing, Siemens motor, Panasonic frequency inverter

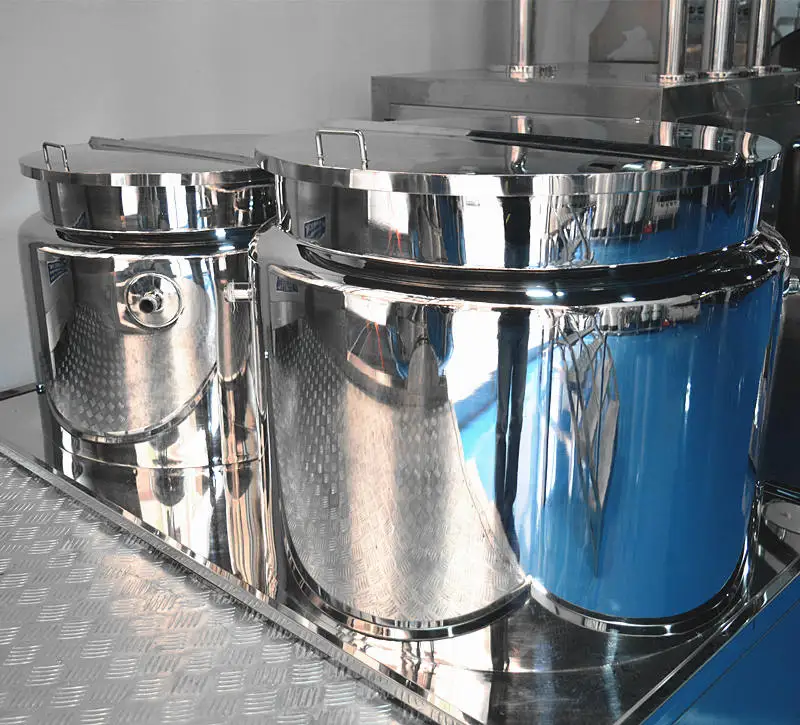

Oil and water pot
Name: Hygiene grade mirror polish & SUS304&316L,
Half open lid, easy for operation;
Jacket Electric heating;
High shearing disperser plate;
Disperser on bottom
Half open lid, easy for operation;
Jacket Electric heating;
High shearing disperser plate;
Disperser on bottom
Water pot and oil pot drainer pipe connect to one outlet.

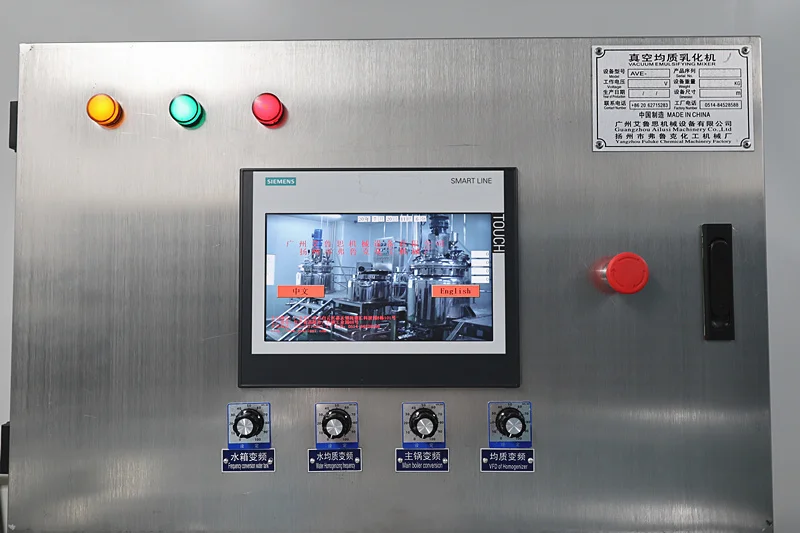

Controller
Name: Electric control cabinet
Brand: Siemens, Schneider, Omron, Delixi etc
buttons control or PLC touch screen controller design.
Related Products
Guangdong facial cream making machine, vacuum emulsifying mixer
99.00% Response Rate
Small volume toothpaste emulsifying mixer machine
99.00% Response Rate
Food cream fixed type vacuum emulsifying mixer
99.00% Response Rate
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package of CE certification cosmetics vacuum emulsifying mixer, cream homogeneous mixer emulsifying machine is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |

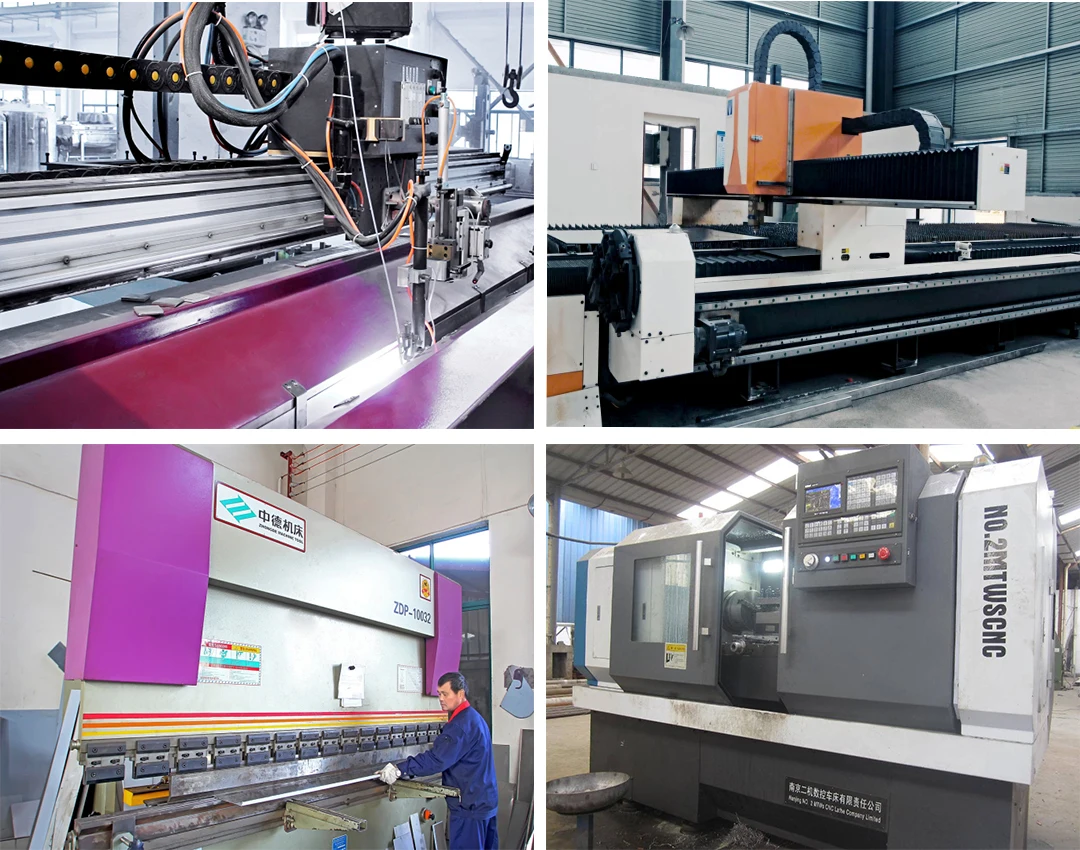

Material Sources
Certifications

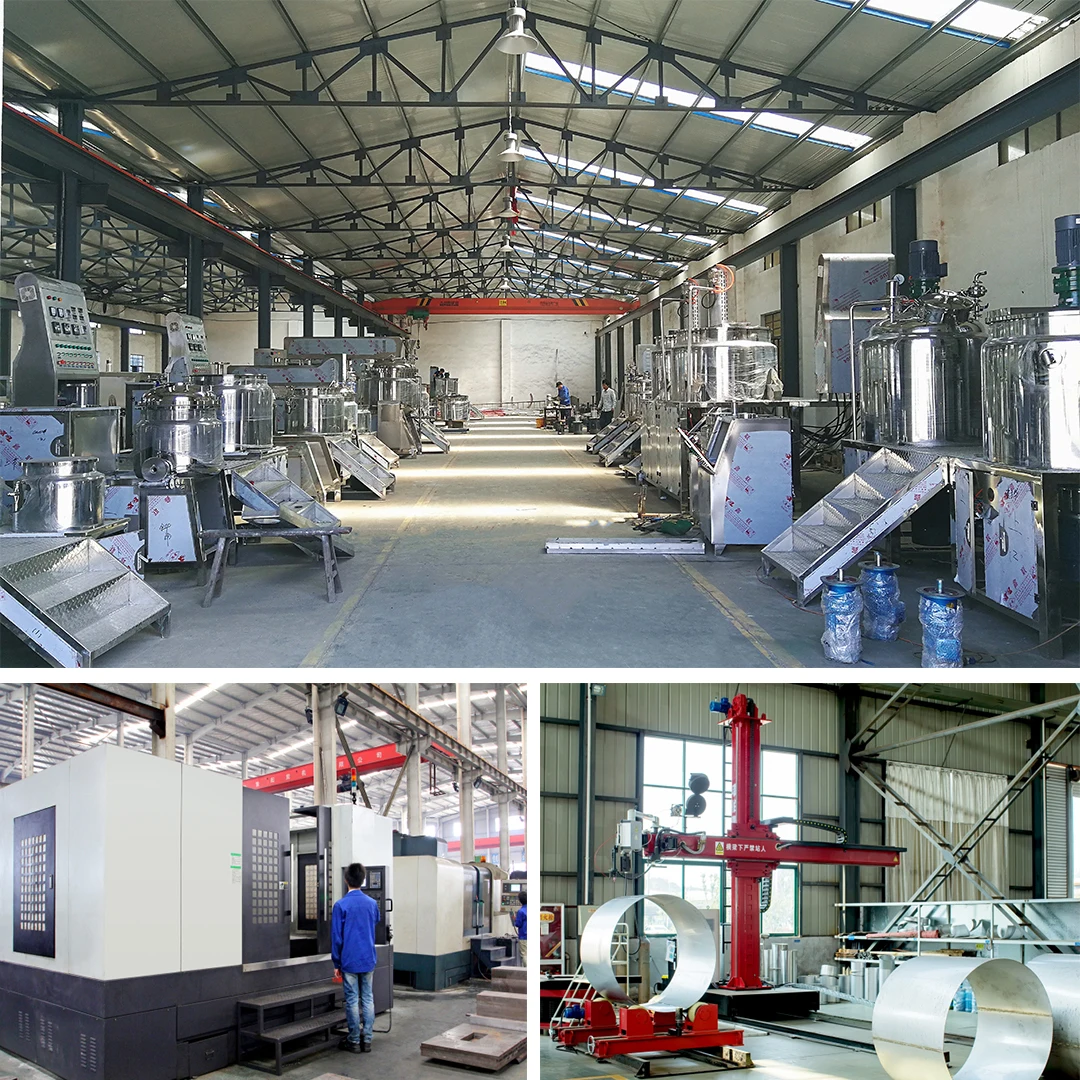

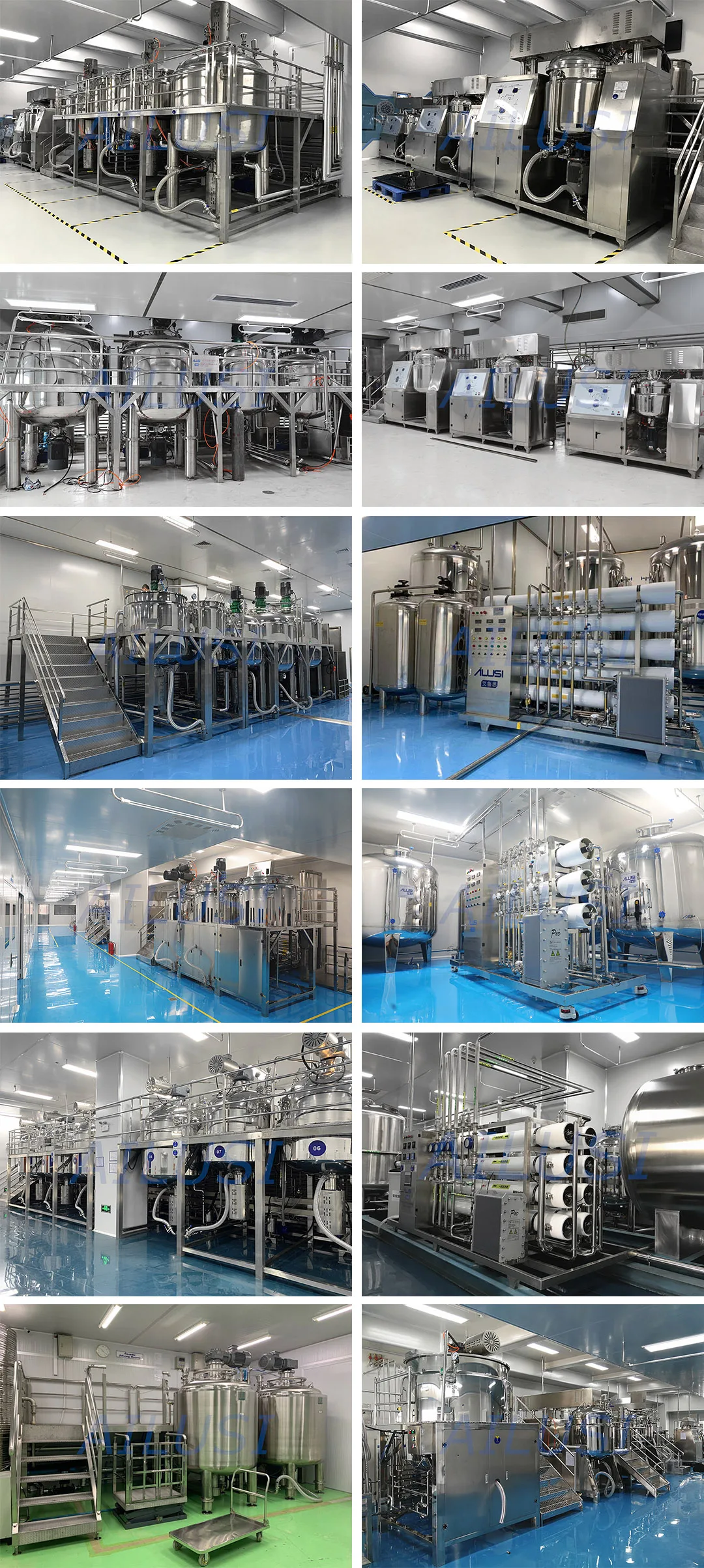

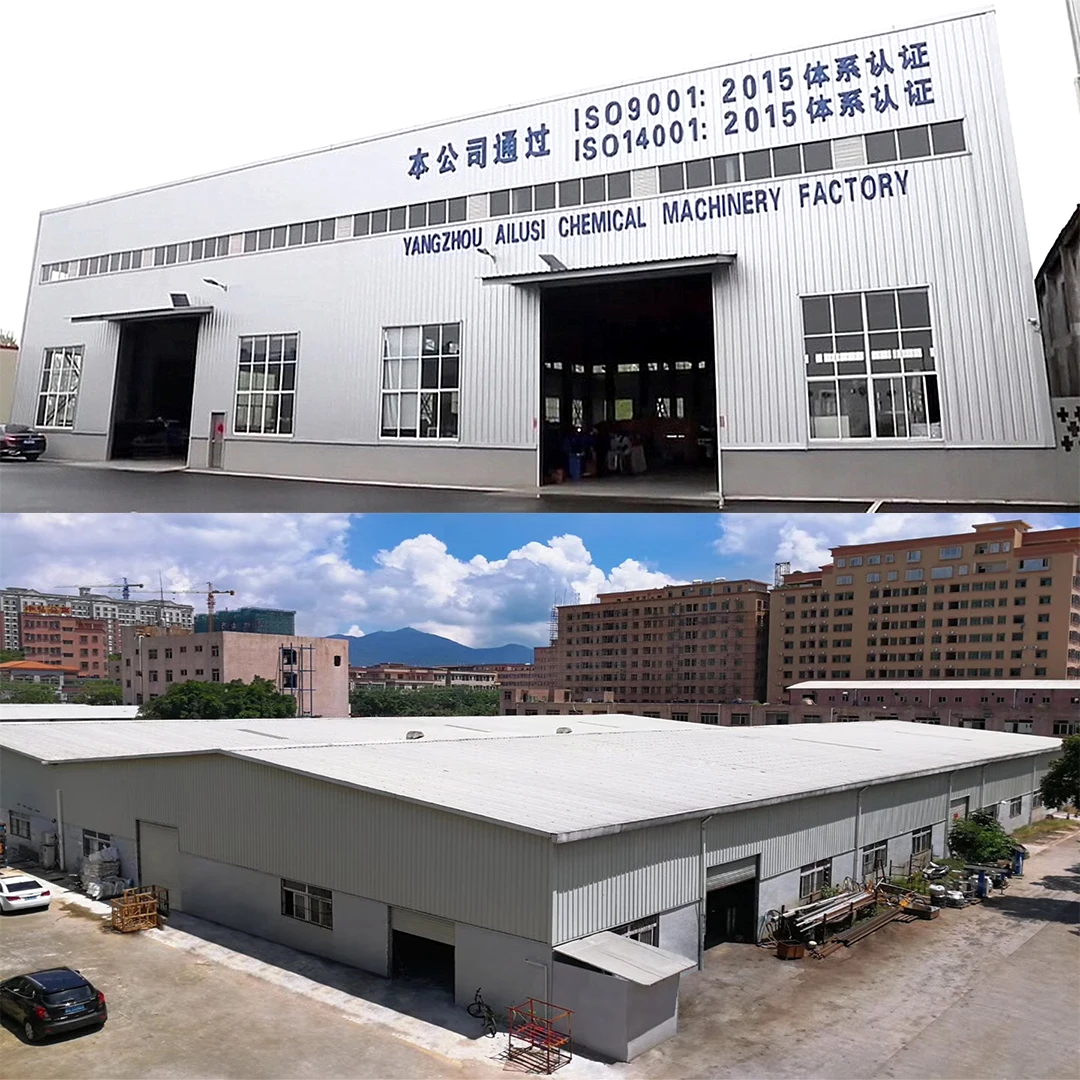

Overviews of company
FAQ
FAQ
1.Are you Factory or Trading company ?
We are integrated industrial and trade enterprises, Our factory located in an ancient capital Yangzhou, and we found Ailusi company in Guangzhou to search more business opportunities at domestic and overseas. You could ask to check or test machines anytime to the factory, we will arrange everything for you.
2. Why your machine similar with other supplier?
We have been in this industry for more than 10 years, We design machines by ourselves with advanced technology. Appearance just a part of machine, Quality and Service is more important than it.
3. I'm new in our industry, but I'm planning to setup a factory, What can I do?
We offering Turnkey service from A to Z to customers, we will can suggest customer the most suitable machines according to their Formula, Raw material. Support you Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of operation and maintenance.
4.What kind of machines can you supply to customer?
We could offer various kinds of machines and whole production line.
(1) Cream, paste Products,
•\tIn cosmetic industry: face cream, body cream, washing cream, vaseline etc
•\tIn food industry : sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc
•\tIn chemical industry: welding paste, ink, paint, pigment etc.
Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(2) Liquid products
shampoo, lotion, liquid soap, detergent, juice, solution etc.
Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(3) Make-up products:
Lipstick, lip gloss, nail polish, marscara etc
Machines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine etc
(4) Perfume products:
Service and contact
Pre-Sales Service
* Inquiry and consulting support.
* Turn key service from start to the end.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
