Plasterboard Metal Profiles Production Line Steel Ceiling Tile production Line

Product Overview

Description

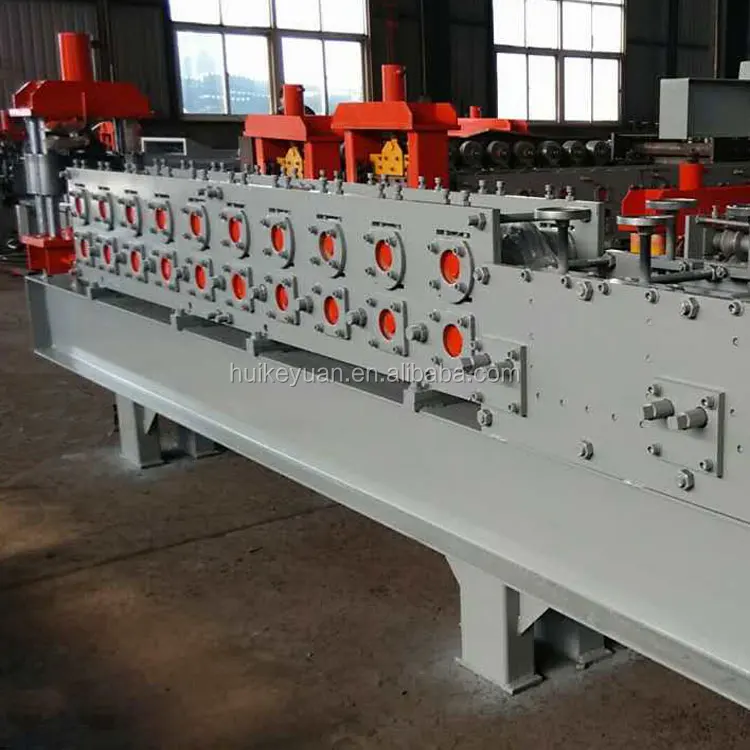

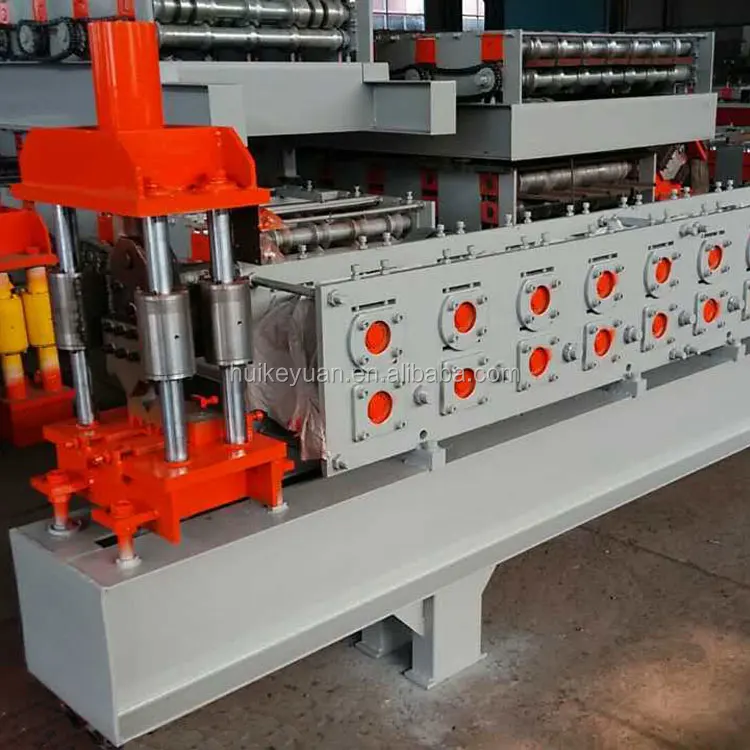

Light Steel Keel Roll Forming Machine Auto-production Line



vineyard trellis equipment



Service Commitment & Quality Assurance



Installation:If necessary, engineer is available to service machinery overseas; but all the relevant cost and extra 100USD/day for our engineer will be paid by the buyer.



Warranty:2 yearssince the machine leave seller's factory.

During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged, those new spare parts will be supplied free by us, but  normal wear and tear excepted. And the freight should be bore equally by both parties.

We will provide the technical support for the whole life of the equipment.





Machinery Parameters and Others Related Parameters, as follows:



Main Technical Parameters:
Auto Machinery Equipment With PLC Control System
1. Manual Un-coiler
Max Capacity	5000 kgs
Inner diameter of coil	400-600 mm
Manual with brake
2. Leveling Device
Ensure the material level and straight
The width can be adjusted
3. Punching Device
Punching way	pre/post punching (pause to punch or Tracking)
Material of punching mould	Cr12 with heat treatment
Punching Mould	as per drawings
4. Main Forming System
Max Feeding Width	as per drawings
Product Max Effective Width	as per drawings
Thickness of Panel	0.2-2.0 mm
Material Type	GI sheet coil or cold rolled coil or Aluminium etc.
Diameter of Main Shaft	95mm
Rollers Station	12 Rows
Roller Material	C45 steel,Heat Treatment
Surface of Roller	Chrome plating, Heat Treatment
Driving Mode	By Chain and Gear Box
Main Motor Power	5.5 Kw
Machine Body	Electrostatic Spraying Treatment
Forming Speed	Min. 0-15 m/min
The machine base is assembled and welded by high quality steel

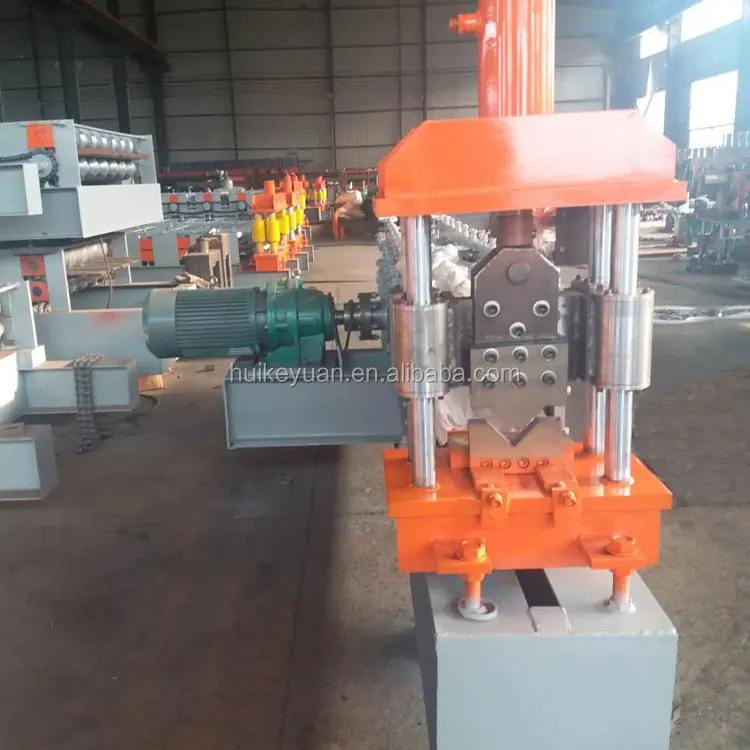

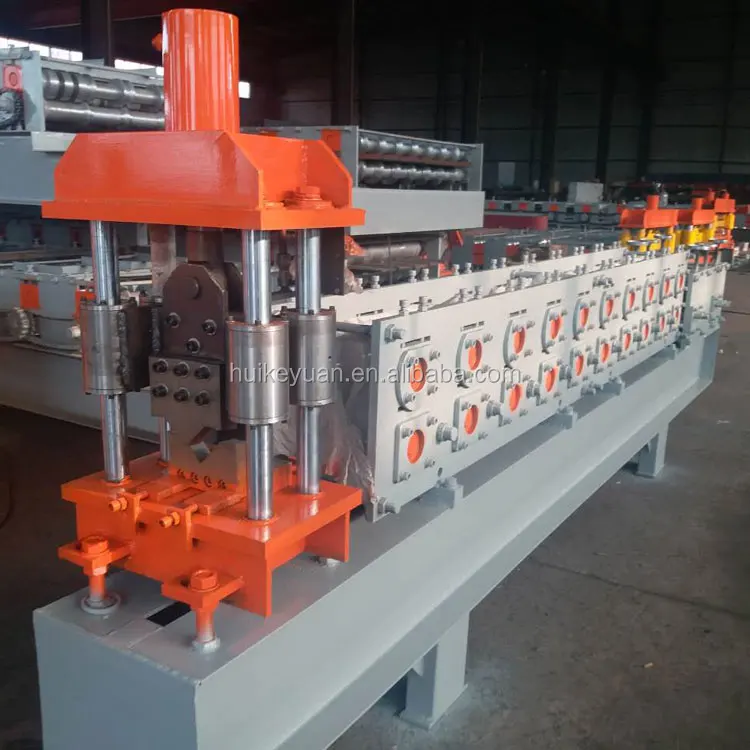

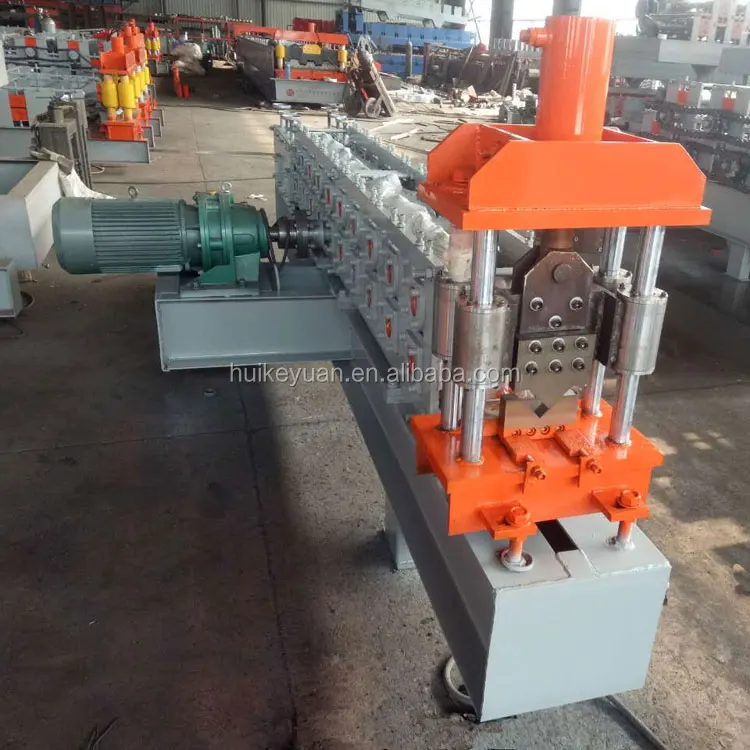

5. Hydraulic Cutting System
Cutting Way	Pause to Cutting or Tracking (Flying) ,Non-stop
Oil pump station	1 set
Hydraulic Oil Pump	CB-E310
Hydraulic Station Power	7.5 Kw With Cooling System
Blade Material	CR12 with heat treatment HRC60-62
Cutting mould	as per drawings
Forced air cooling device available
6. Electrical System (PLC&HMI Control System)
Electrical System	PLC and HMI touch Screen (Taiwan Delta)
Automatic Measuring Length Function Available	Yes, Rotary Encoder
Automatic Counting Function Available	Yes
Current Protection Function Available	Yes, Aviation Plugs
Power Supply	380V, 50Hz, 3 Phase  (as per local requirement)
7. Run-Out Table
Frame	8# steel groove welded
	roller type
Quantity	1 pc
(They can be modified according to customer requirements)

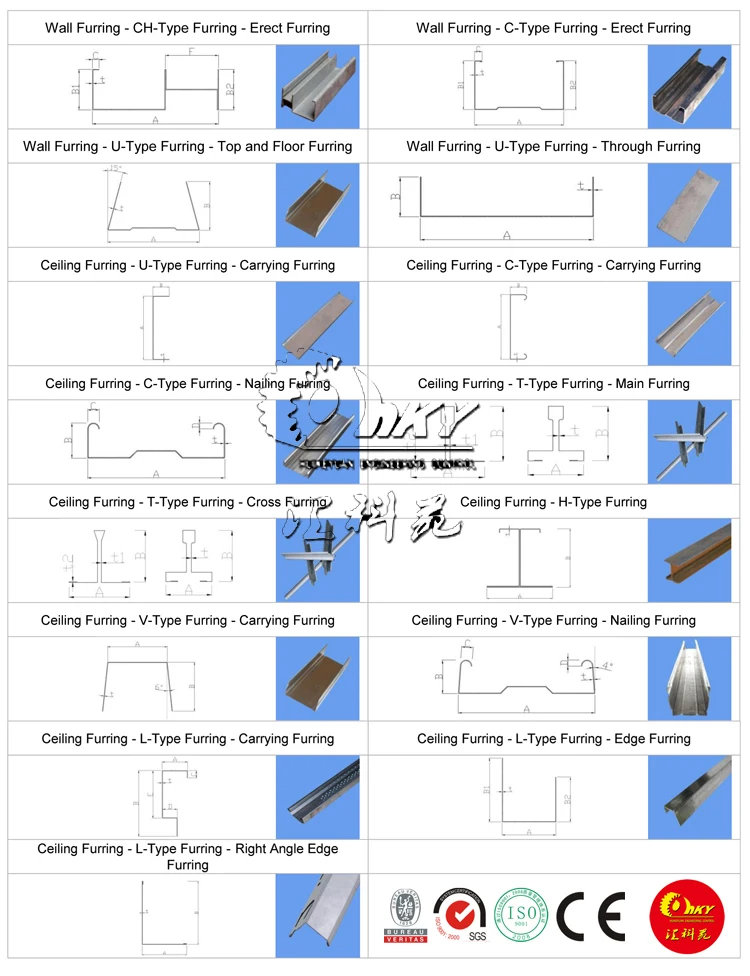

This machinery can produce a range of products, as followings:

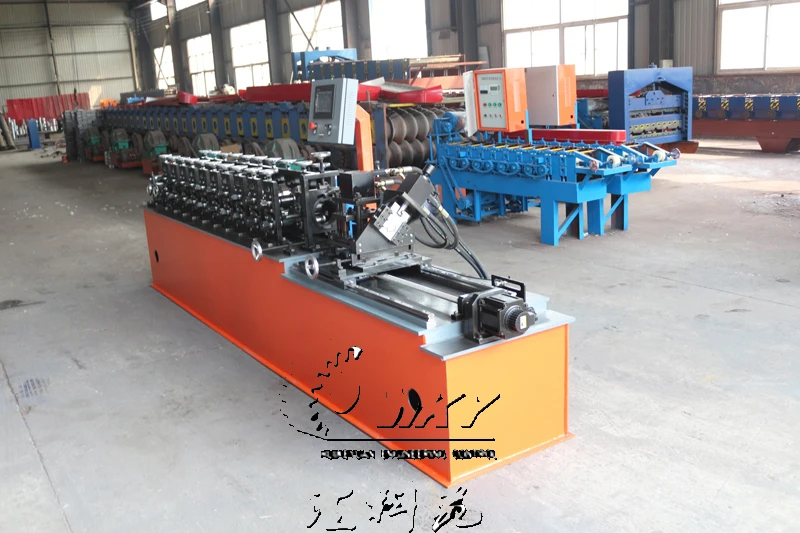

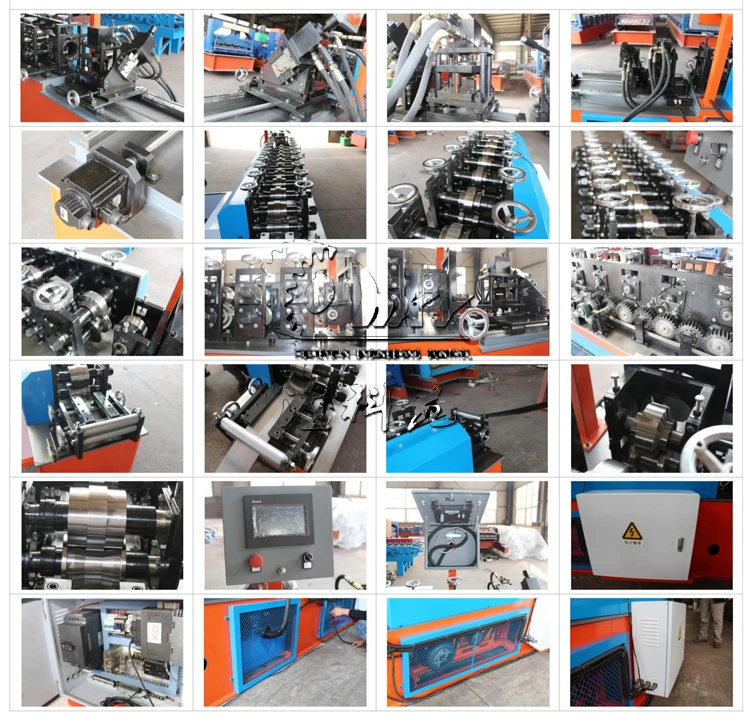

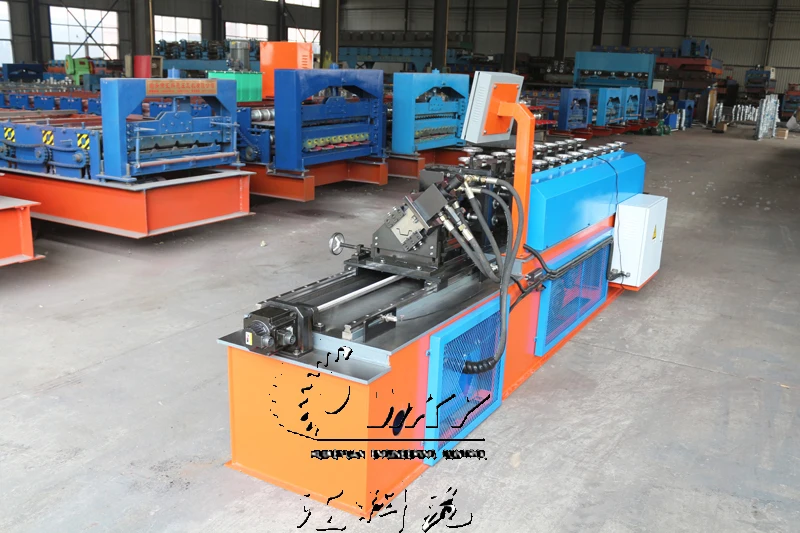

HKY Light Steel Keel Roll Forming Machine Series Images









Q & A



1. How many years since you have been in this field? our company has been producing roll forming machines for almost 20years. We have rich experience for manufacturing and designing the machine.
2. How about your quality and price? Our machine uses the advanced technique, we are leading in this field. You can see "More Detailed and Accurate Images of Machinery" But the price is not high. Because our rich experience help us to do the highest   quality machine but with lowest cost. Then our  price is not high. The most important point is that when the machineries leave our factories, we  will do the Production Trial Run, so that you can see the quality of the machineries.
3. What is the status of After-sale Services for customers and machineries? Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.

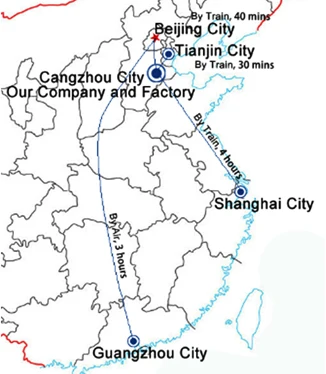

4. Where is the nearest airport & seaport? The nearest airport:  Beijing Airport and Tianjin Airport You can see the map.
5. How can I contact you? Please look at my contact card. You can talk to me anytime.   Or send me enquiry email,  I will reply you in 24 hours  and offer the optimum solution  to you.





Exellent Quality And Competitive Price!



HUIKEYUAN ROLL FORMING MACHINES:

MORE PRACTICAL , MORE PROFESSIONAL , MORE EFFICIENT , MORE DURABLE , MORE BEAUTIFUL , MORE WORTHY OF HAVING IT!



WELCOME TO VISIT OUR COMPANY AT ANY TIME!!!!!



Please send me your email, and then I will send you Full Selection Machine Catalogueswith all parameters of machines and products!



We can send the Videos of Roll Forming Machines to you, so that you can directly see our machines!!!
