100 200km COFDM Microwave Video Sender Professional Wireless Video Drone Transmitter

Product Overview

Description

Safe Guard Military-grade COFDM Wireless Communication Video Transmitter SG-S20

Safe Guard Military-grade COFDM Wireless Communication Video Transmitter SG-S20

SG-S20:

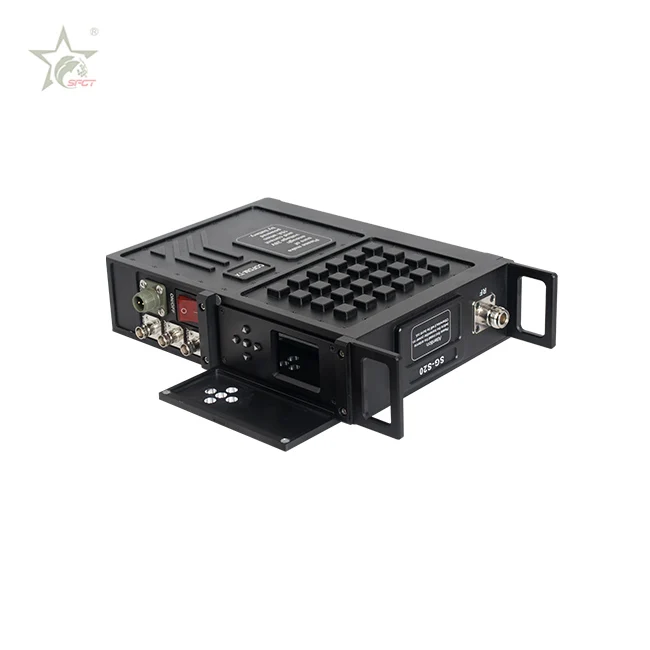

100-200km COFDM Microwave Video Sender Professional Wireless Video Drone Transmitter

       This is a new arrival digital wireless video audio transmitter which adopts the latest technologies of

       COFDM modulation and H.264 image compression that enables good NLOS (Non line-of -sight)

       transmission with DVD quality video. The transmitter is compact size with strong power amplifier for

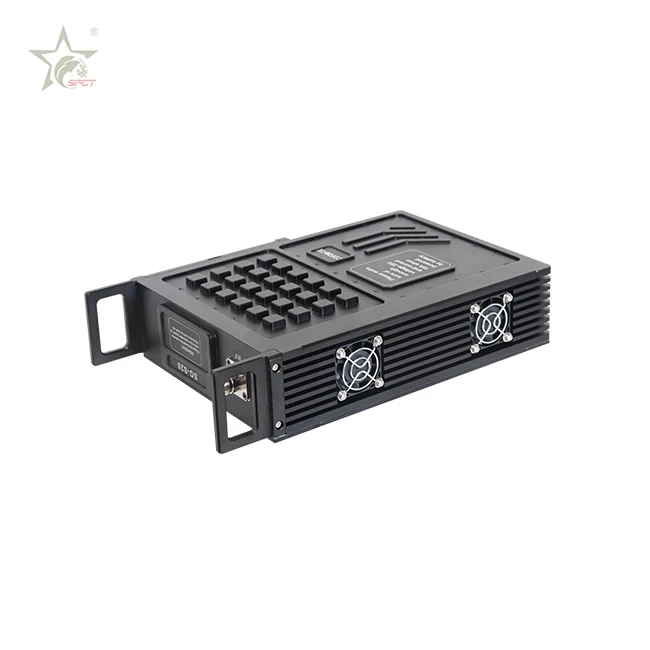

       long range transmission. Good heat resistant with two cooling fans. Be safety with AES128/256bits.

      Can work well in fast-moving transmission.

Safe Guard Military-grade COFDM Wireless Communication Video Transmitter SG-S20

Safe Guard Military-grade COFDM Wireless Communication Video Transmitter SG-S20

Safe Guard Military-grade COFDM Wireless Communication Video Transmitter SG-S20

Modulation	CODFM
DC input	DC12V-DC14V
Working Current	≤4.7A@DC12V
Constellation	QPSK,16QAM,64QAM (optional)
FEC	1/2,2/3,3/4,5/6,7/8 (optional)
Carrier	2K
Guard Interval	1/32,1/16,1/8,1/4 (optional)
Frequency	300-4400MHz (available)
RF power output	15W
AV interface	BNC
RF interface	N type
Flatness	≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
Video Harmonic	1Vp-p @ 75Ω, NTSC/PAL adaptive
CBER	<2.0E-4
Video Compression	H.264
Resolution	1280*720P/i
Video Rate	6Mbps
Casing Protection	IP66 (dustproof, rainproof)
Work environment	-30~70°
Dimension	270*165*65MM
Weight	3.9kg
