2T Full Automatic Terminal Crimping Machine/Wire Cutting,Stripping And Crimping Machine

Product Overview

Description

Product Name : 2T Full Automatic Terminal Crimping Machine



Product Model: HL-02

Payment Terms : 100% In Advance

Date of Shipment: 1-5 days

Warranty Terms: One Year Free Warranty



Features:



This machine will cut and strip your wire firstly and then crimp a terminal on two wire head automatically. You can also close the crimping function, then it becomes to an automatic wire stripping and cutting machine.



Specifications:



Available Wire Size: 0.5 ~ 3.5mm ( AWG20 ~ AWG30)

Cutting Length: 30 ~ 900mm

Stripping Length: 0.5 ~ 10mm

Tolerance: ±(0.1 + 0.005×L) L = Total Length

Crimping Force: 2.0T

Speed: 4500pcs/hour

Air Pressure: more than 6.0Kg/cm2

Power Supply: 500W / 220V / 50Hz ~ 60Hz

Gross Weight: 230Kg

Dimension: 55 × 70 × 179cm

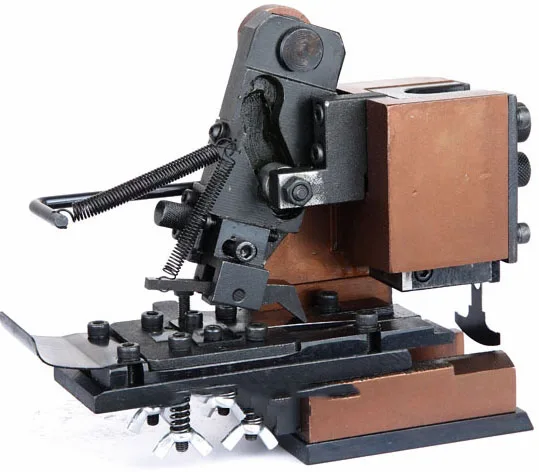

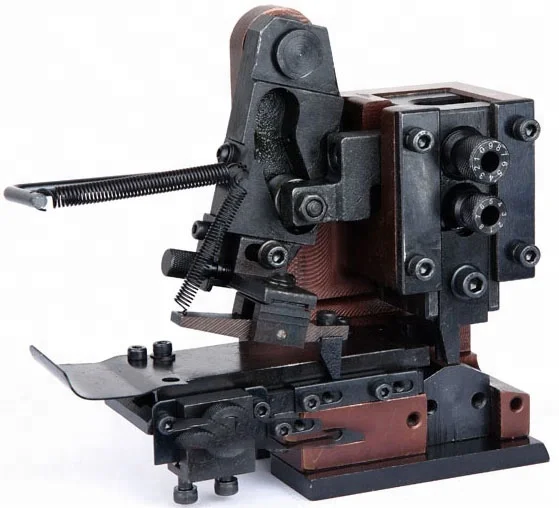

Remarks: This machine can crimp various terminals, we can design the crimping die according to your samples. If you want to use one machine to crimp different terminals, you only need to change applicator!
