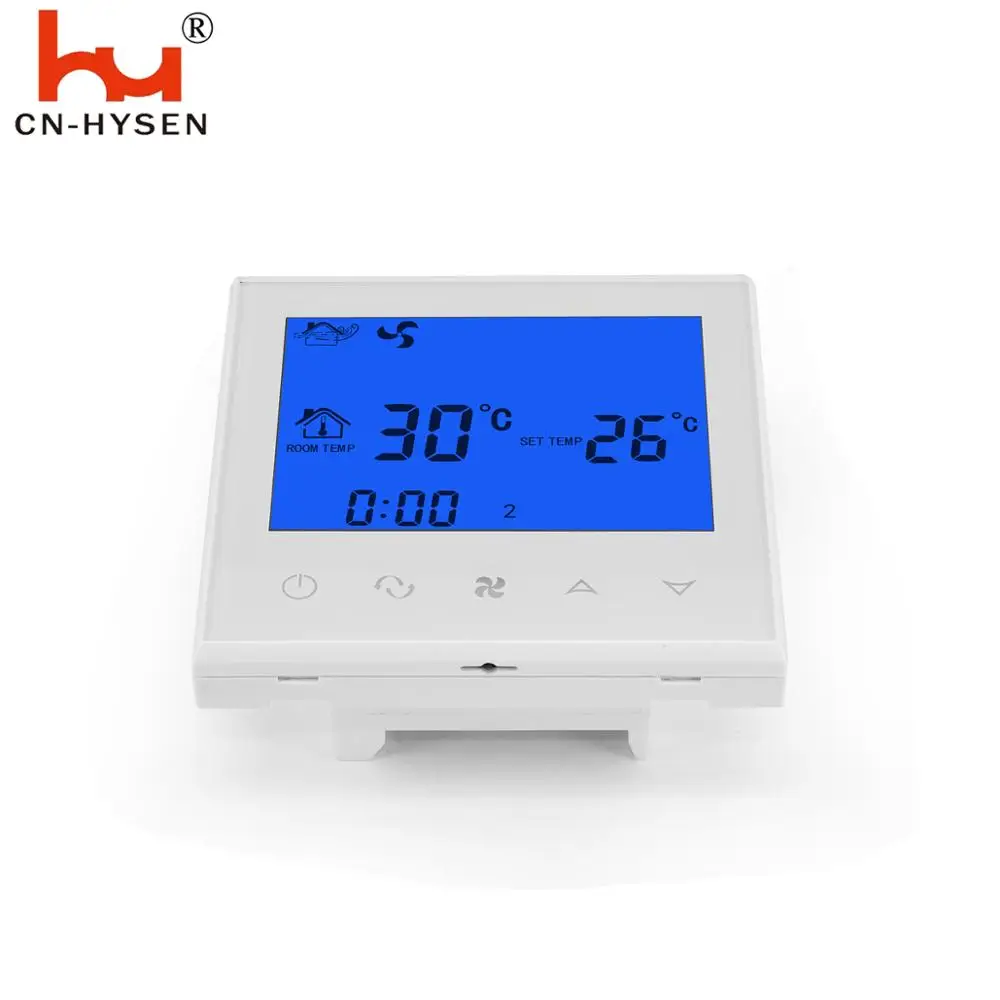

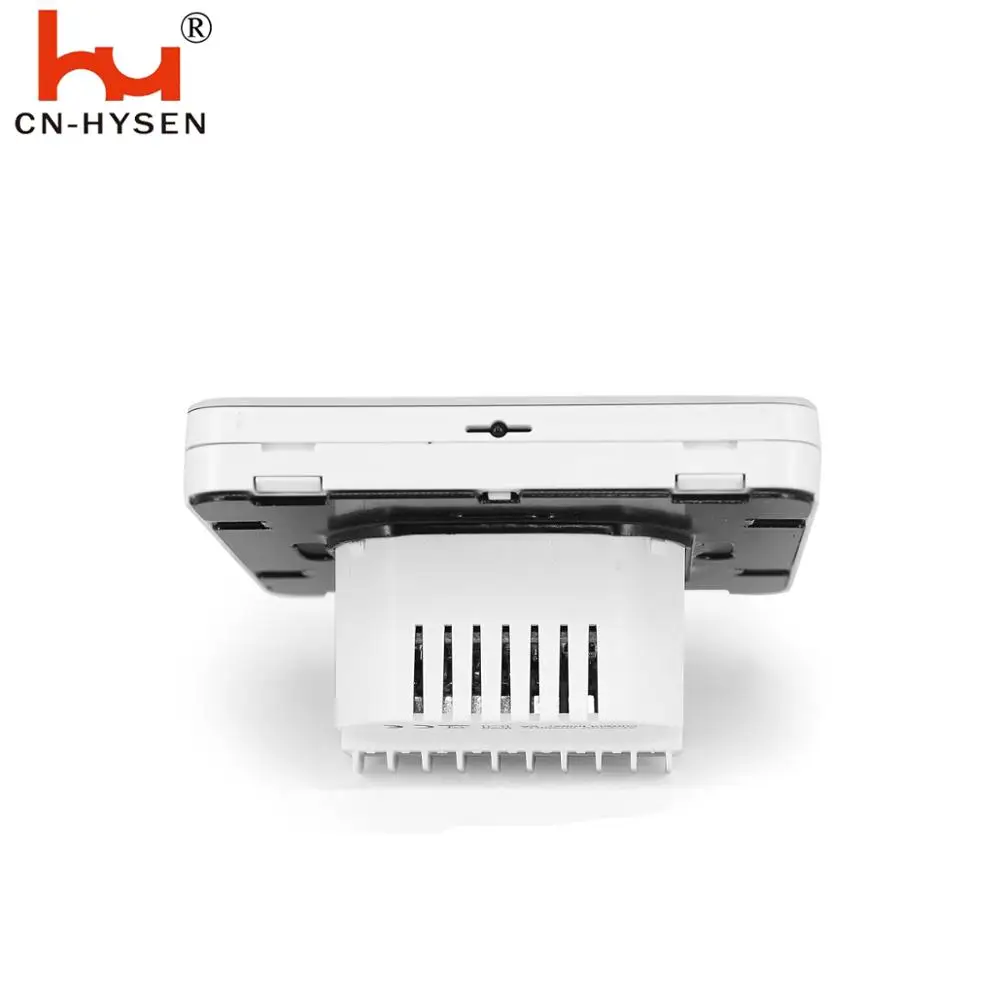

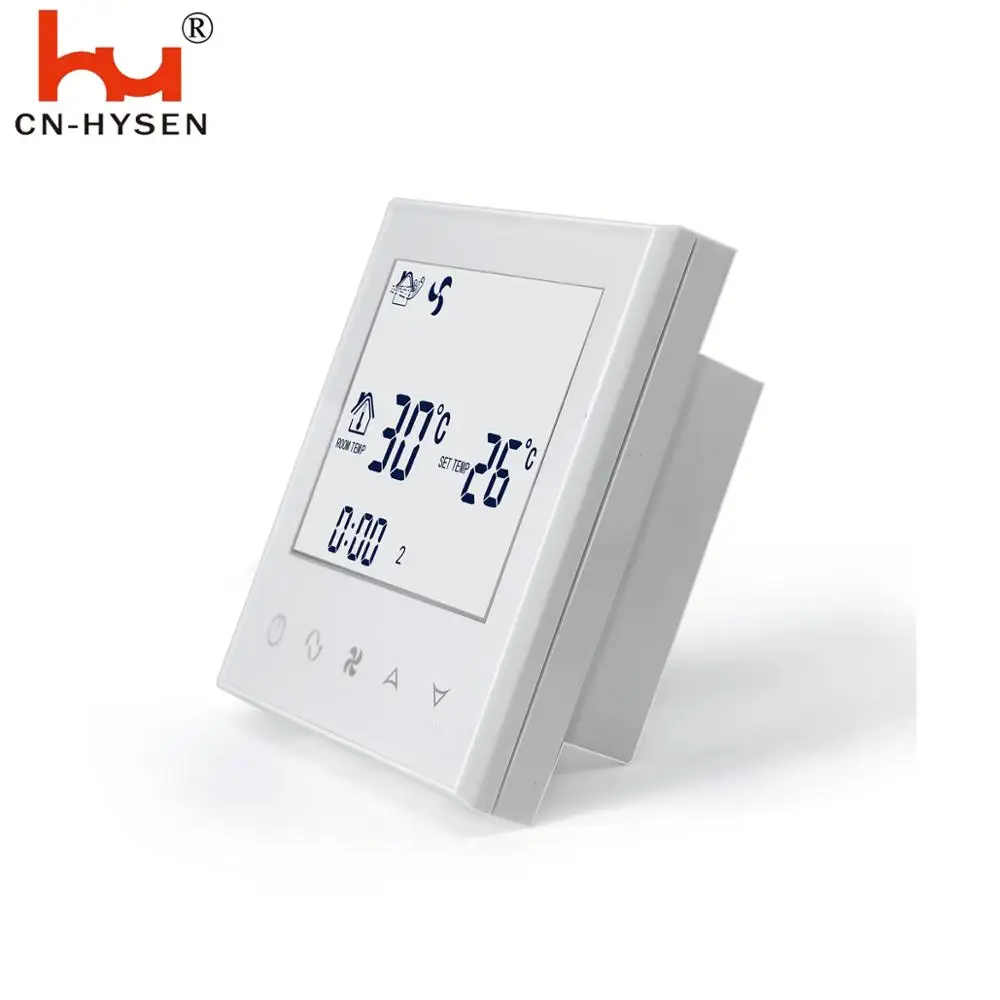

HY03AC Tuya wifi control digital thermostat programmable Thermostat For Fan Coil With Modbus Or RS485

Product Overview

Description

NEW LUXURIOUS !!!

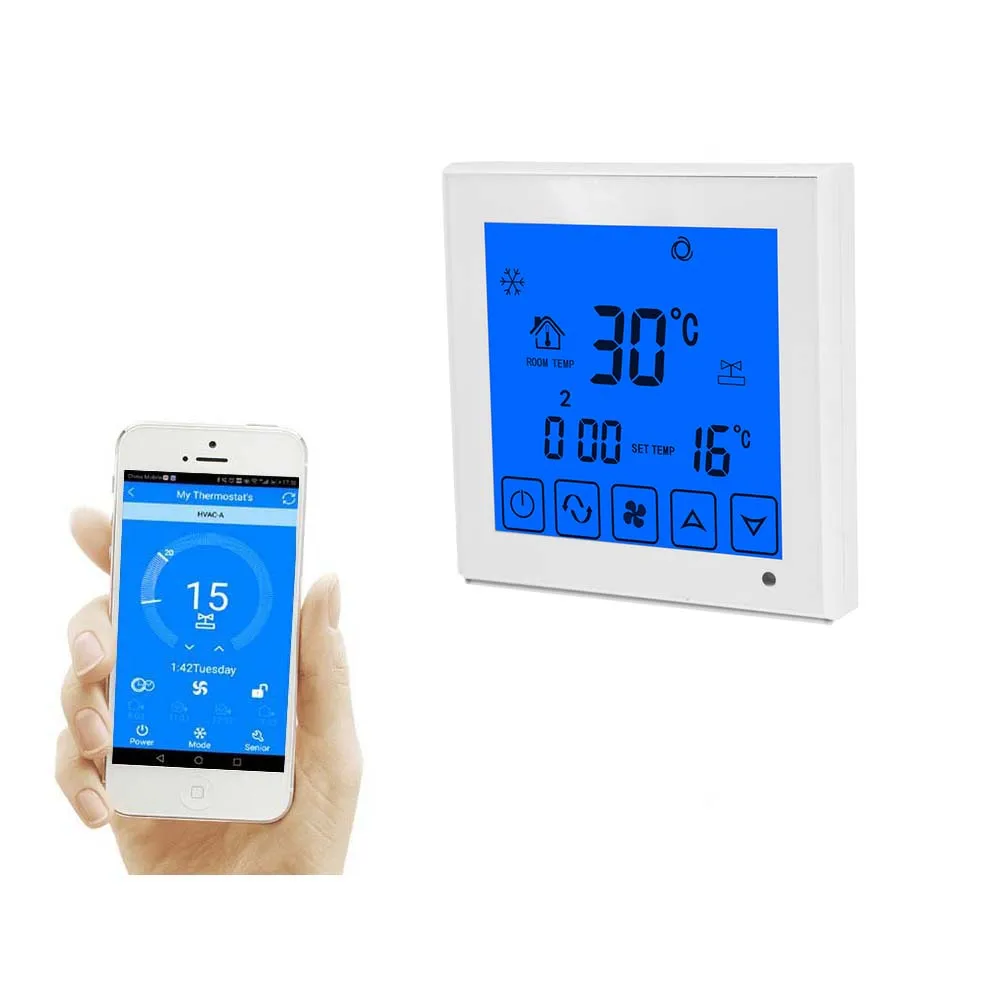

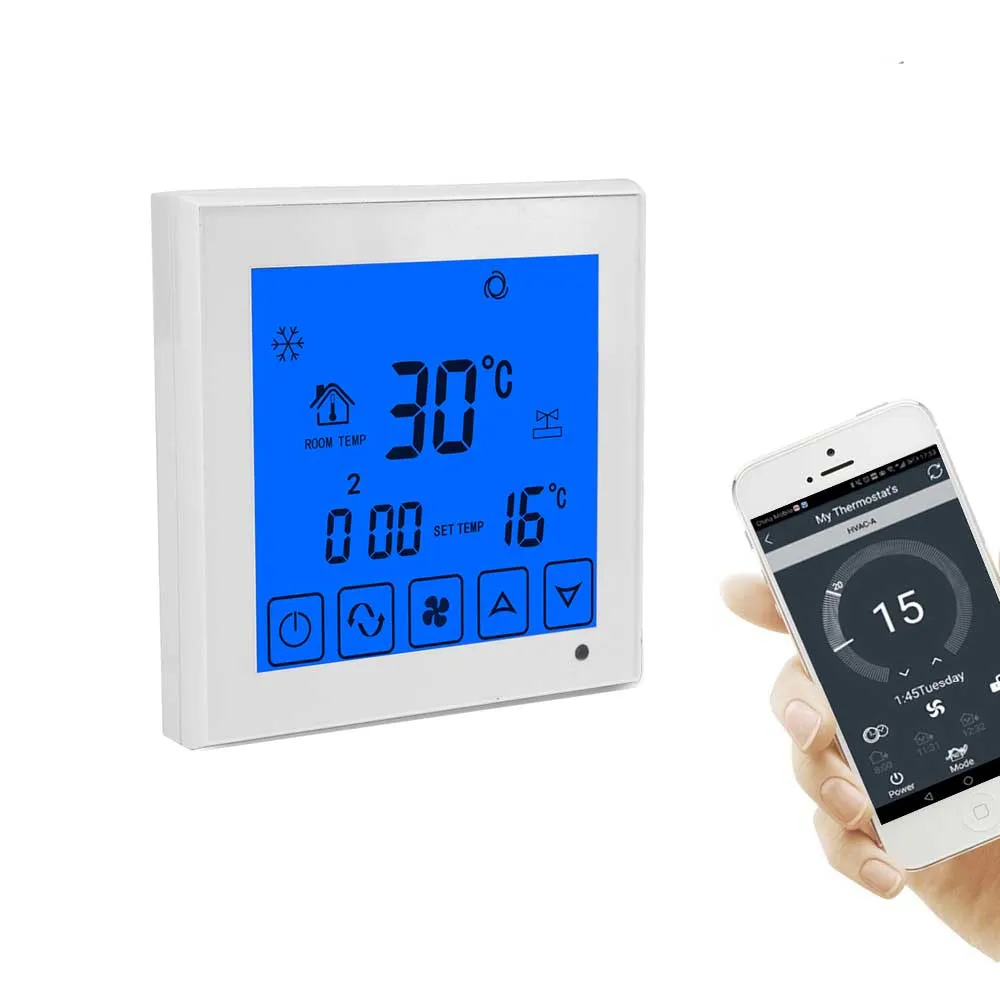

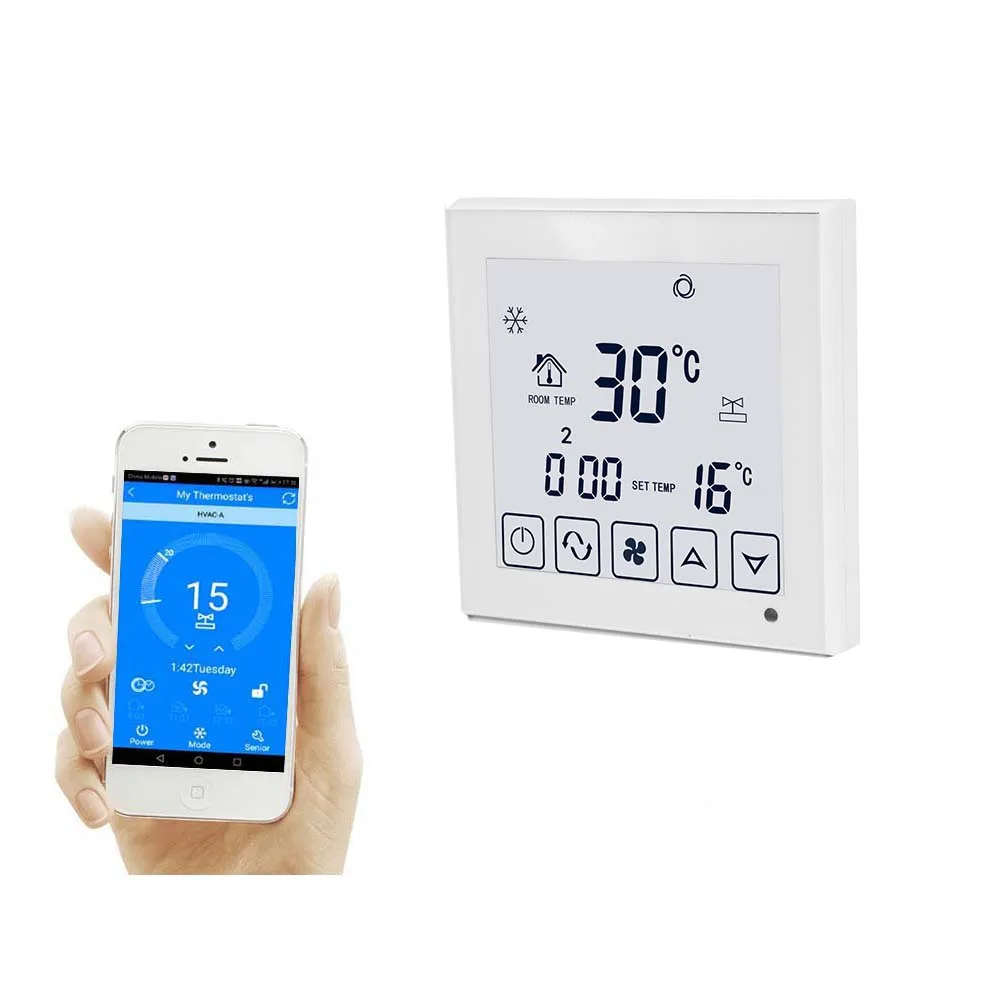

Smart WIFI room thermostat for fan coil system with Google Assistant and Amazon Alexat



Product Summary





HY03AC series of 7 days programmable touch screen thermostat designed for fan coil units  or wind pipe system of central air condition helps to adjust the indoor temperature by comparing the room temperature with the setting temperature .



The thermostat applied to water system or wind system (two pipes or four pipes) of air condition,control fan coil ,motorifzed valve,motorized ball valve or air valve to adjust room temperature,reaches the setting point and achieves the purpose of saving energy.



What is more,it can be with wifi function selection.



Thermostat Technical Parameter



3 SPEED FAN: High,Middle,Low,auto

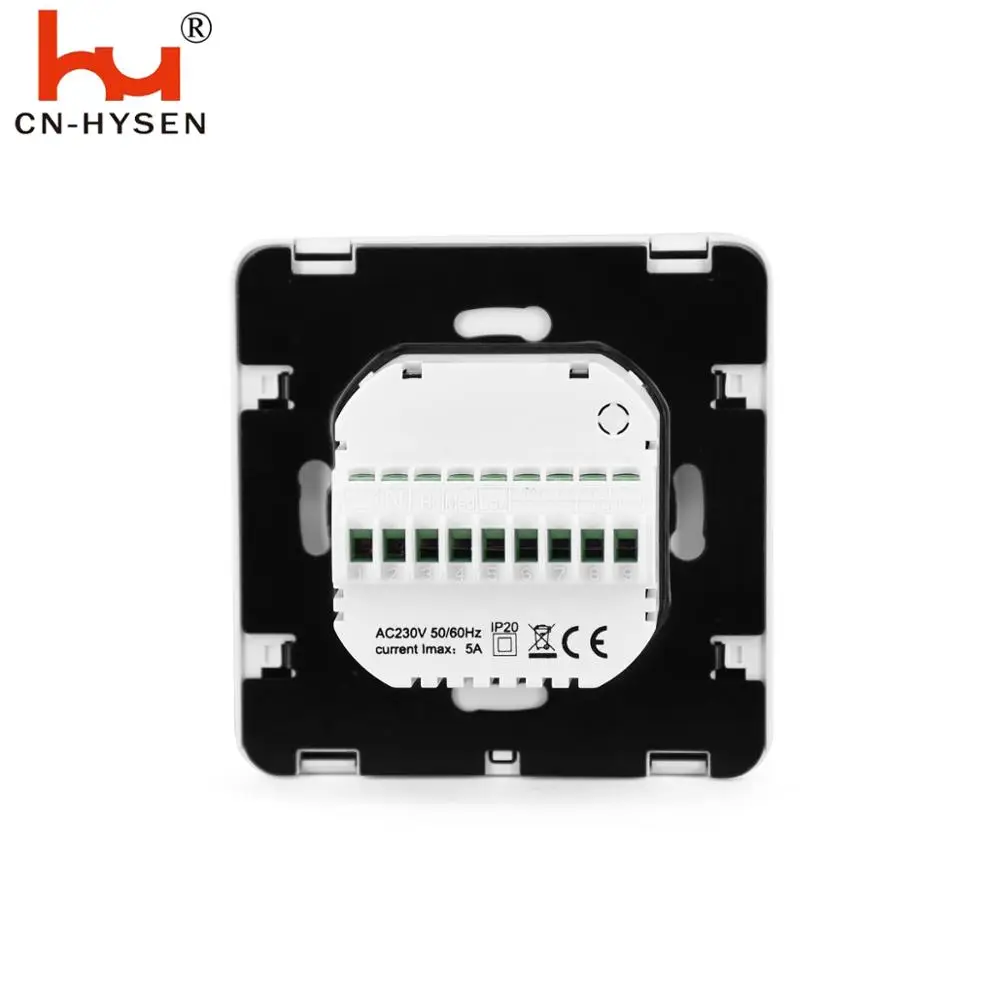

Working Voltage:210V~240VAC, 50/60HZ;



Working Environment:Temperature:0~50℃;



Relative Humidity:RH <95%;



Setting Temperature:10~40 ℃(Internal Sensor);



Temperature Control Precision:   ±1℃;



Temperature Control Range:  -10~60 ℃



Temperature Sensing Element: NTC Resistance;



Surface Material: ABC Engineering Plastic;

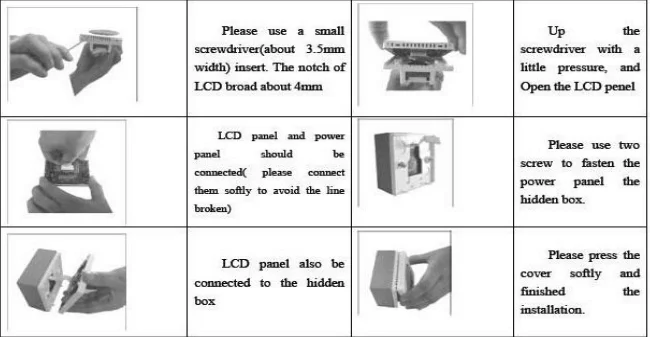

Install Way: Wall Insert;



CE Certificated





Thermostat Feature Function











1. Modern design similar as a cell phone;

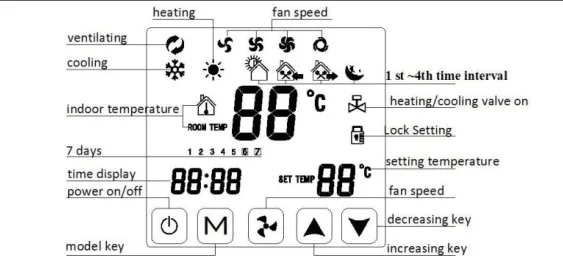

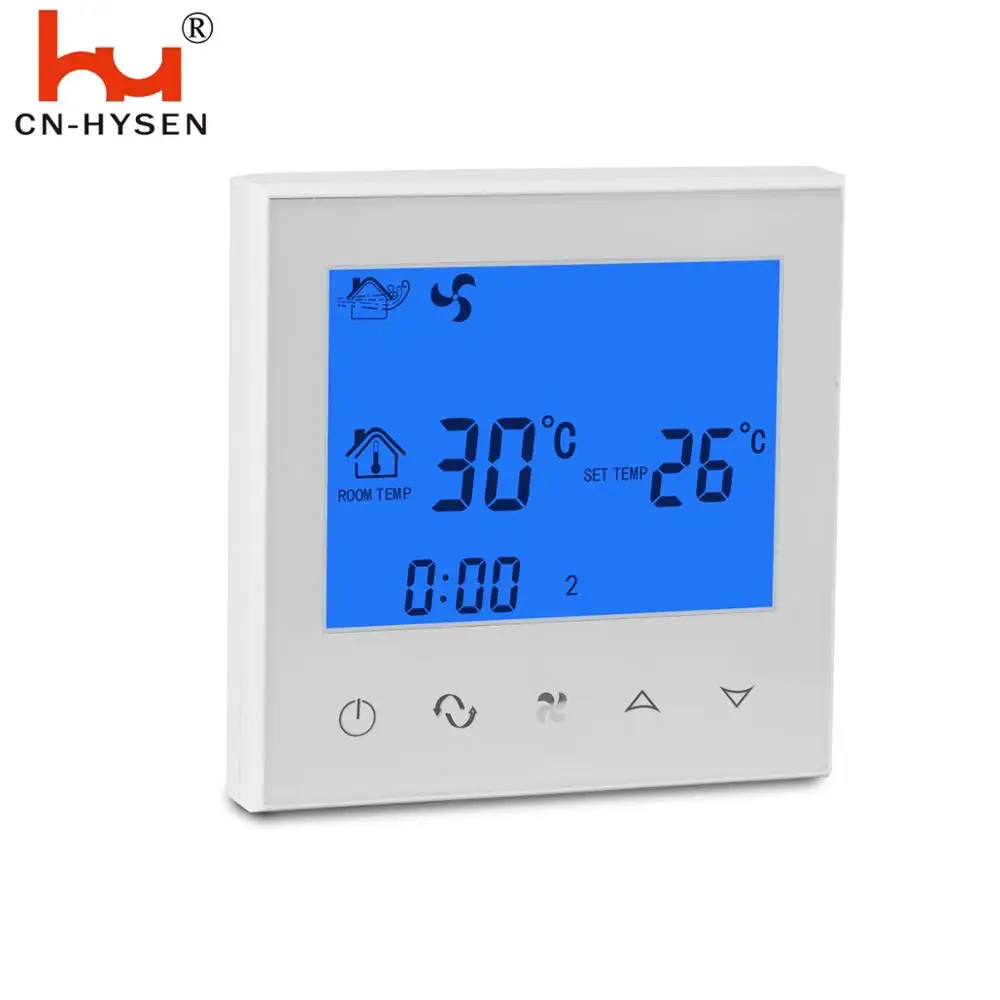

2. Large  Screen display with Blue back light, BLACK words show;



3. With Child Lock Function, to prevent wrong operation;



4. 5+2 or 6+1 or 7 days Weekly Programmable Function for choice;

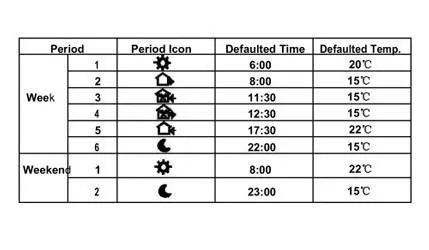

5. 6 periods per day program for setting;



6. Date Memory Function when suddenly power off;



7. Anti-freezing Function;



8. Temperature differential adjustment;



9. Easy for manipulation and installation;



10. 2 sensor modes for setting;
