Product Overview

Description



Product Description


BS 13amp 1 Gang Switched Socket ,Single Pole





Product Characteristic





The switch contacts are made of high quality silver alloy material,which have a good performance against electric arc and melt weld.The on-off operations exceed40000 times.


The socket are made of phosphor bronze, which have the character of good electrical conductivity and lasting elasticity.

























Outline size:


86x86mm
Installation size:60
Material:BAKELITE
Copper:QSn5.6-0.1 H62 Hpb59




Switch Specification



































Lifetime≥40000
Heat-resistant100 • C / 1h
Insulation Resistance≥5M Ω
Damp Resistance48h > 5M Ω
Temperature Raise≤ 45K
Earthing Provision≤0.05M Ω





 Socket Specification







































Lifetime≥5000
Heat-resistant100 • C / 1h
Insulation Resistance≥5M Ω
Damp Resistance48h > 5M Ω
Temperature Raise≤ 45K
Earthing Provision≤0.05M Ω
Electric Strength2000 V ~1 min

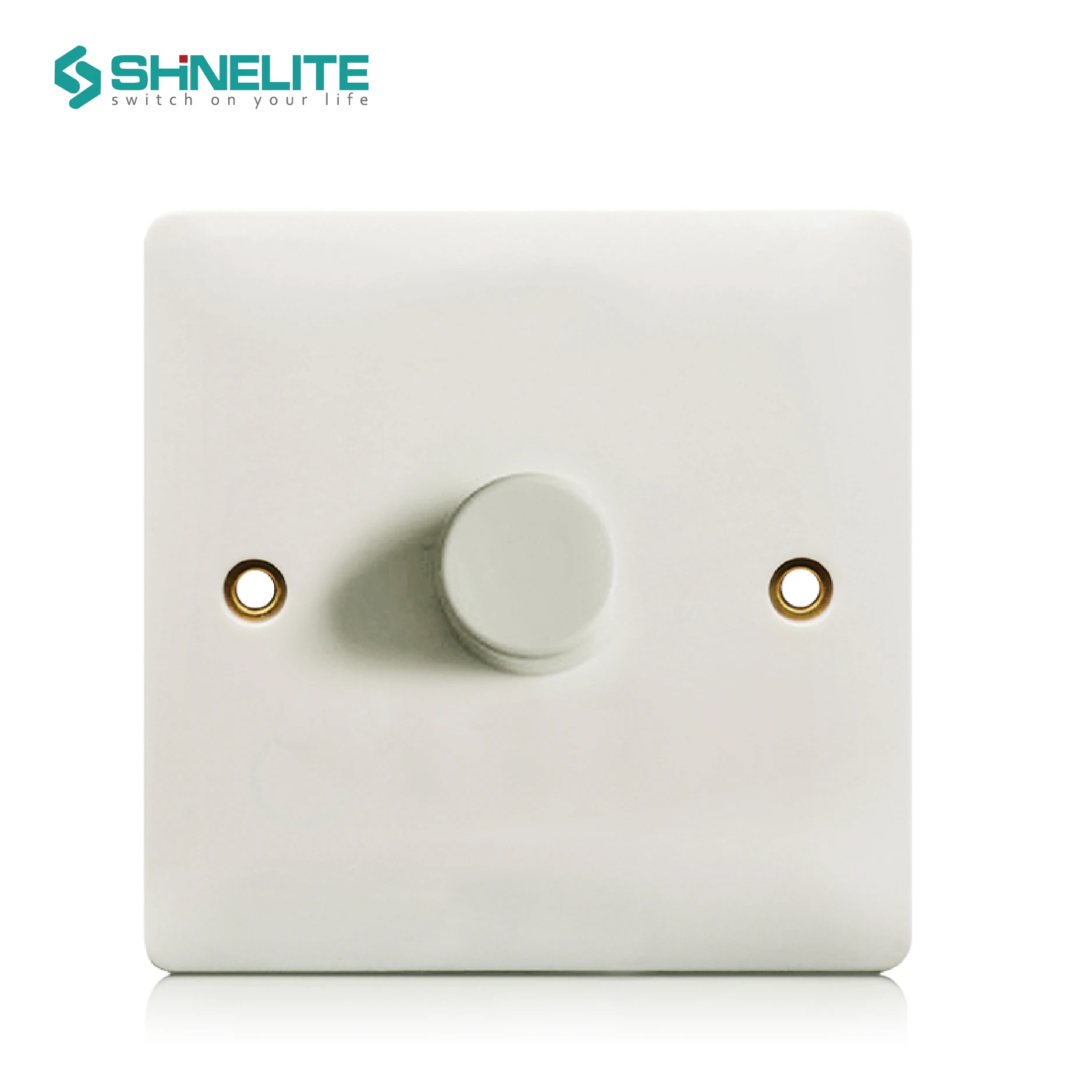

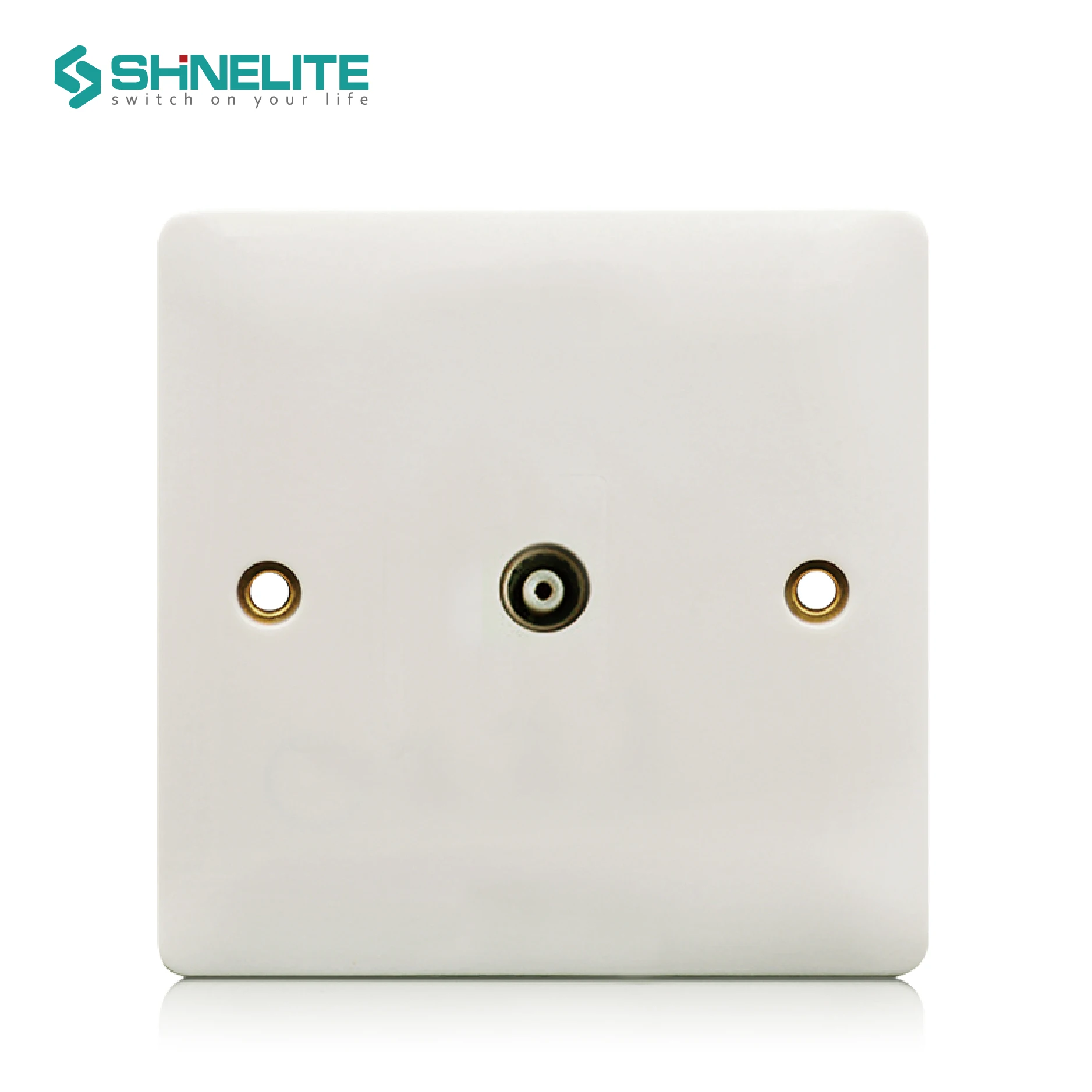

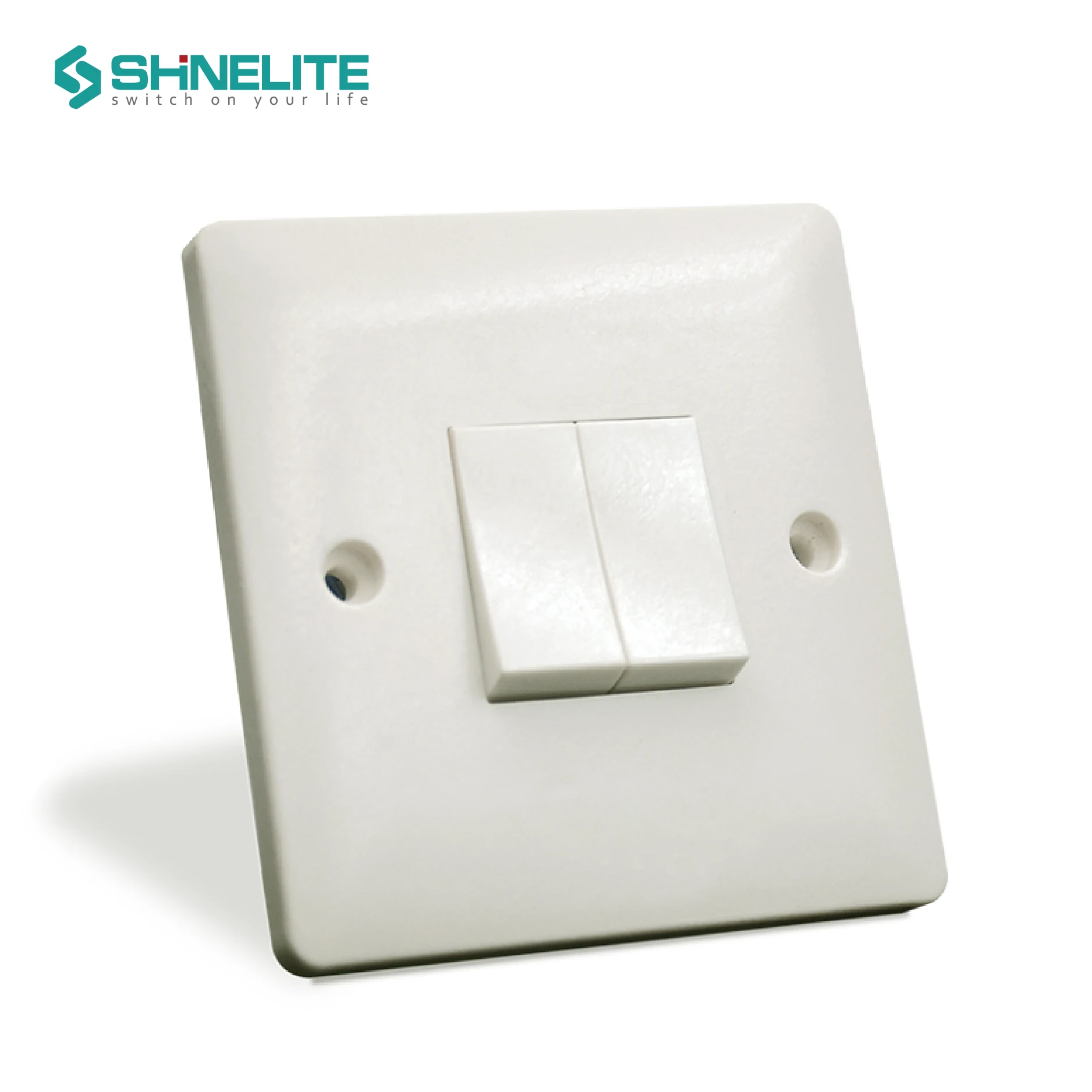

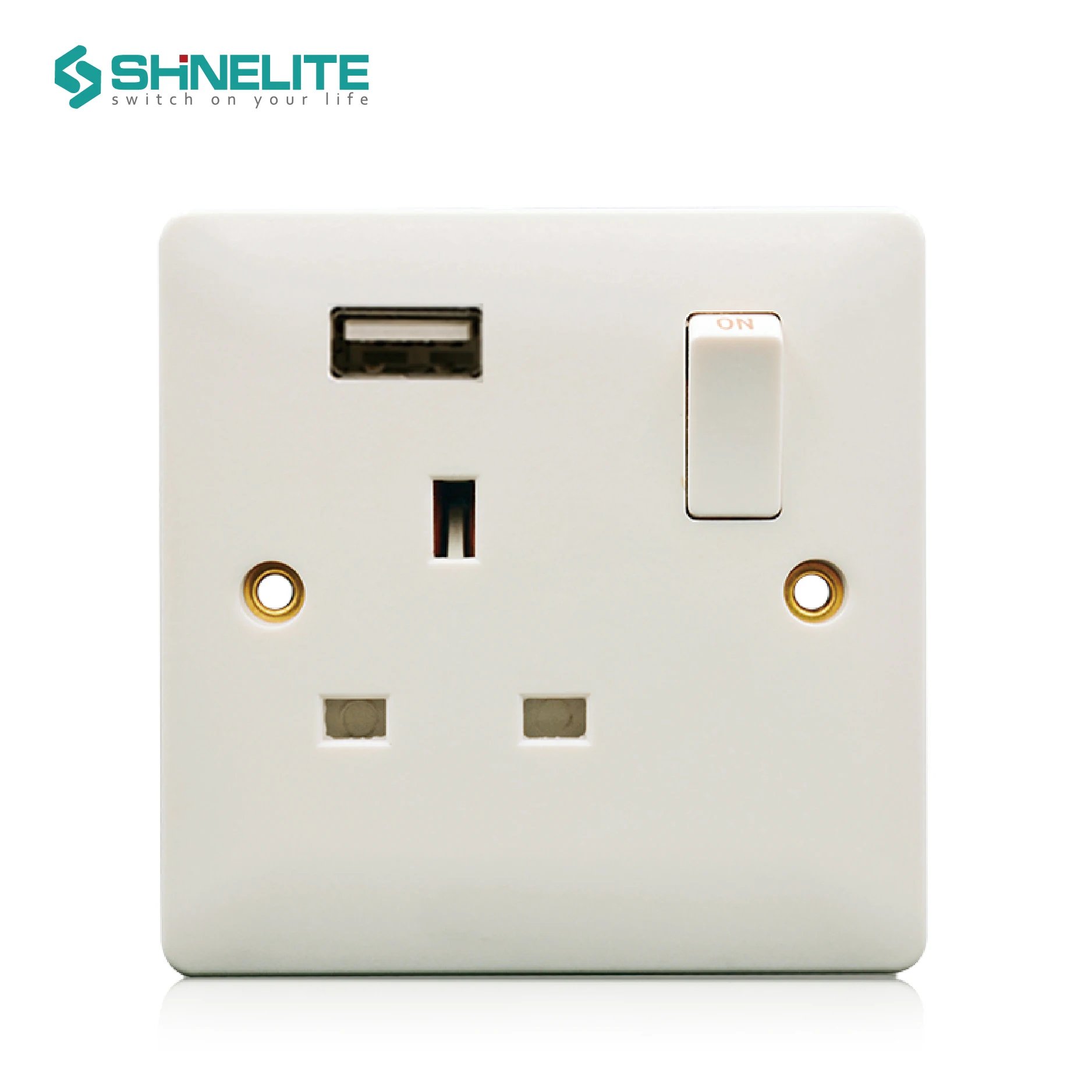

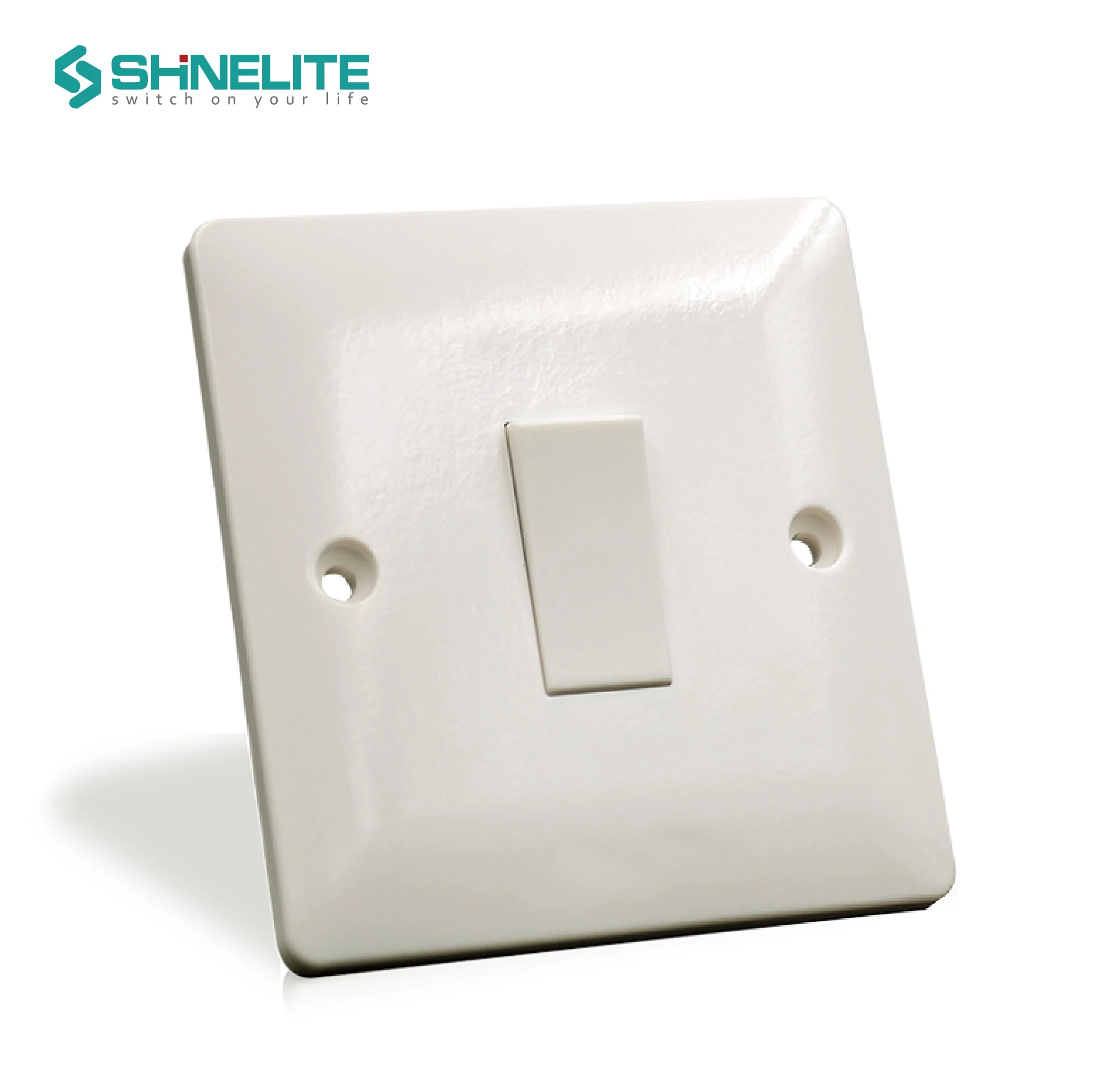

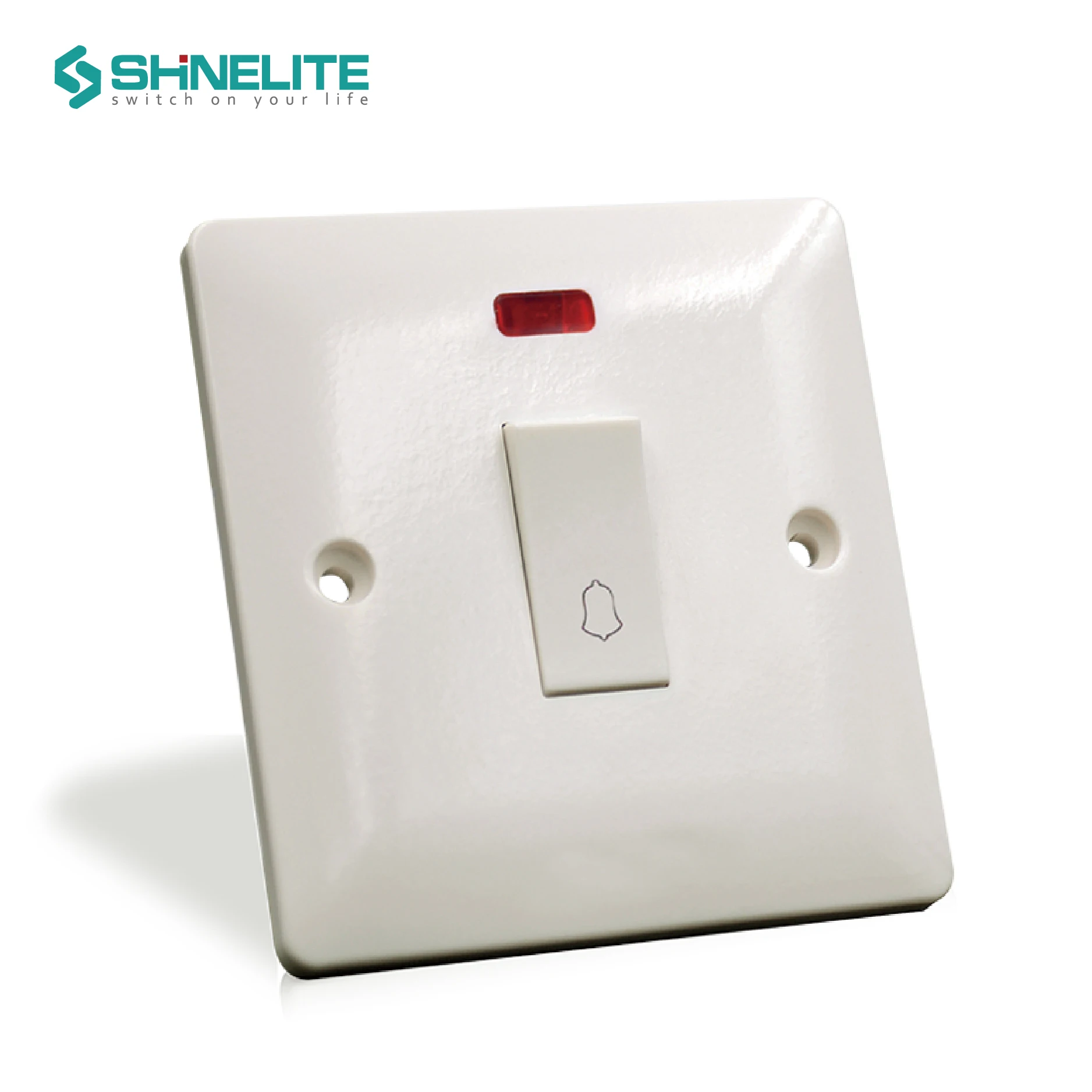

 A -17A -30A -49A -46A -27A -07A -02A -47
