BW250 powerful small triplex mud pumps drilling mud pump for sale

BW250 powerful small triplex mud pumps drilling mud pump for sale

Category: Oil Field Equipment >>>
Supplier: Zhengzhou Lead Equipment Co. Ltd. [Henan China]Zhengzhou

Price:RUB 118,892.96 - RUB 668,029.82

Quantity:

Product Overview

Description

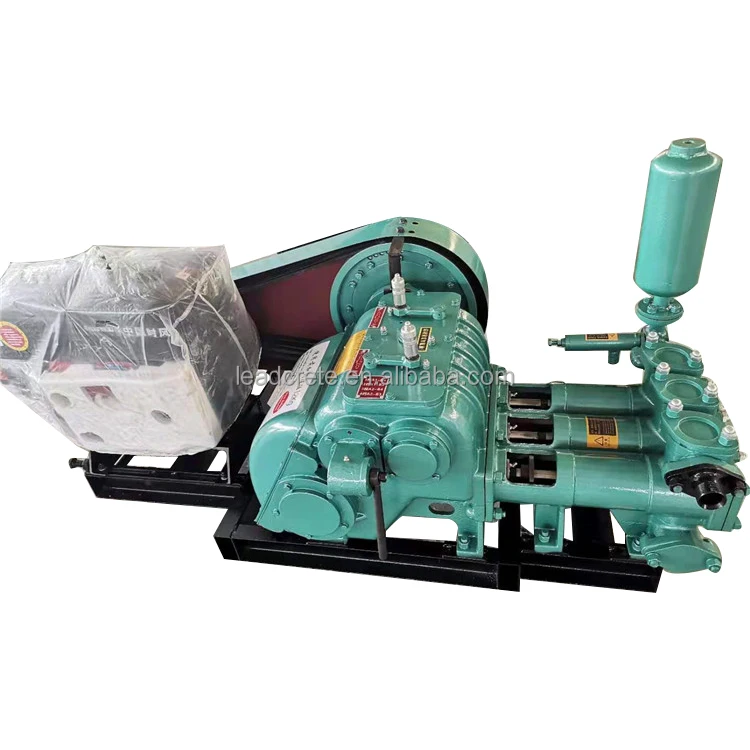

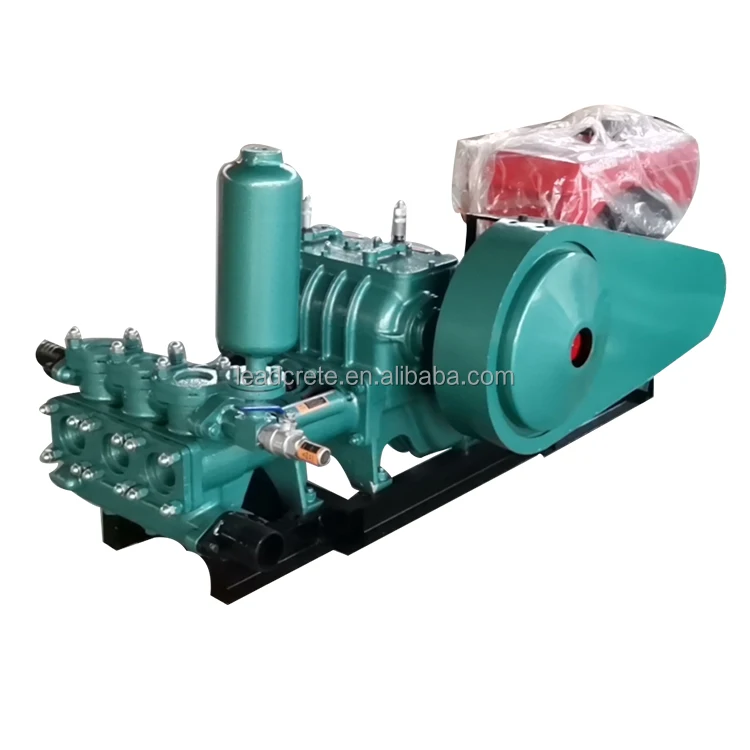

BW250 powerful small triplex mud pumps drilling mud pump for sale

Product Description

A mud pump or drilling pump is a vital piece of equipmetn for drilling operations that is used to circulate drilling fluid downhole, often referred to as the heart of the rig. BW250 powerful small triplex mud pumps drilling mud pump is horizontal ,tri-cylinder ,recipocating triplex-acting piston pump . Can be transformed into different pressure and flow.Its max pressure can arrive at 7 Mpa.

BW250 powerful small triplex mud pumps drilling mud pump for sale

Technical parameters:

Type	250L Output Horizontal Triplex Reciprocating piston mud pump for drilling rig
Stroke	100mm
Bore	80 mm
Handle position	1	2	3	4
Pump Speed(s.pm)	200	116	72	42
Output volume(l.pm)	250	145	90	52
Discharge pressure(Mpa)	2.5	4.5	6.0	6.0
input power	15KW
Multiple grooved pulley D.P.	B*410mm
Input speed of pump (rpm)	500r/min
Max. suction head	2.5m
Inside diameter of suction hose	76mm
Inside diameter of discharge	51mm
Weight	500KG
*Overall dimensions(LWH)*	100015501200mm

Application

Application:

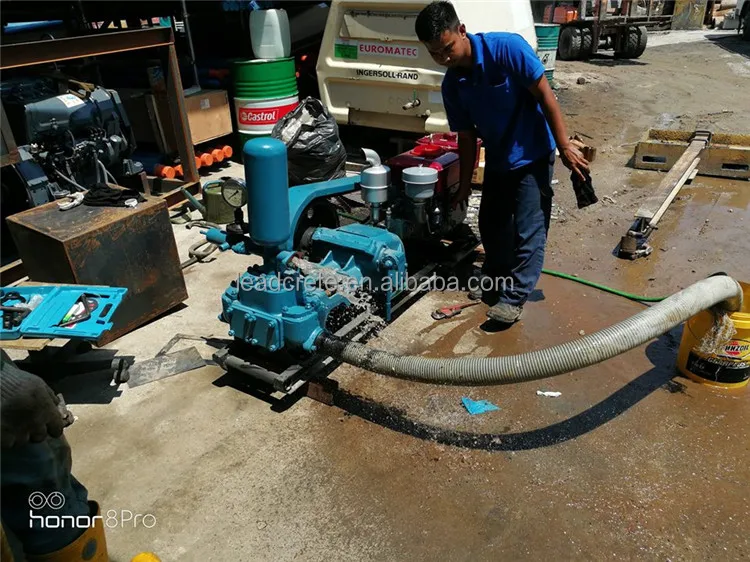

BW series mud pump is widely used to transfer water, mud and other flushing fluids when drilling in water well, oil and gas well area, such as mining, drilling, coal, railway, highway, water conservancy and hydropower, bridges. It can be also used for high-rise buildings, foundation reinforcement works.
