Super Market Bath Ball/Egg/Fruit/Vegetable/Garlic Net Making Machine
- Category: >>>
- Supplier: Longkou Sunvo Plastics Co. Ltd.
Share on (60527074892):
Product Overview
Description
Product Overview

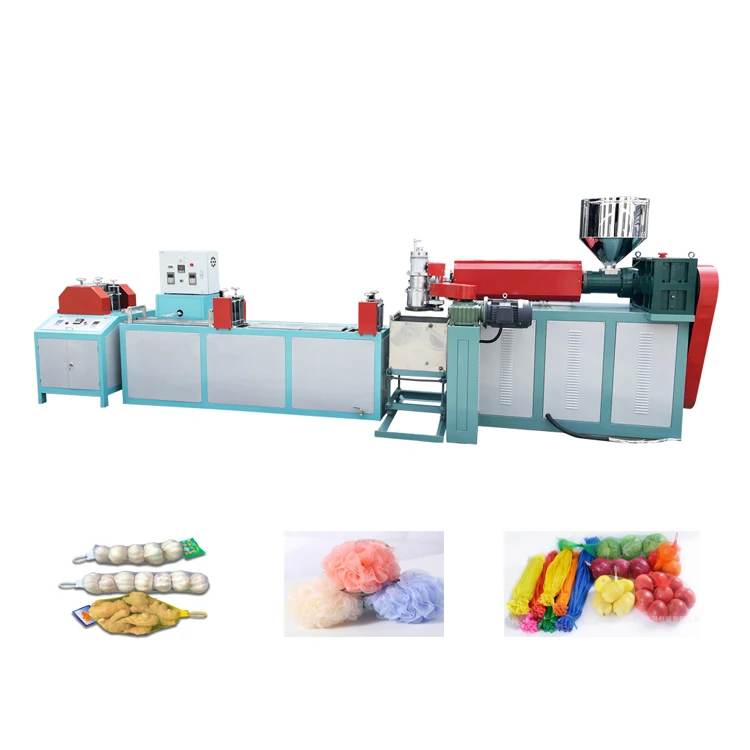

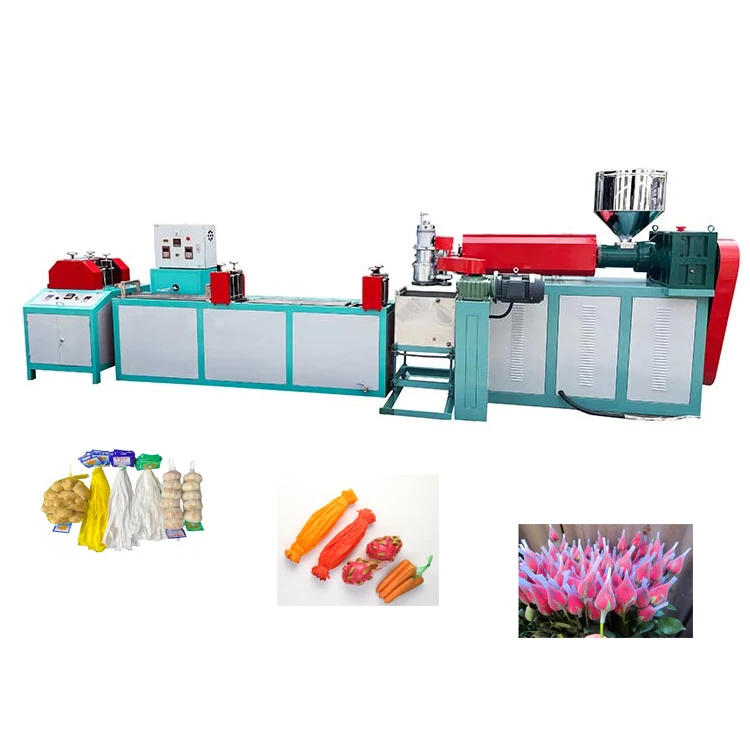

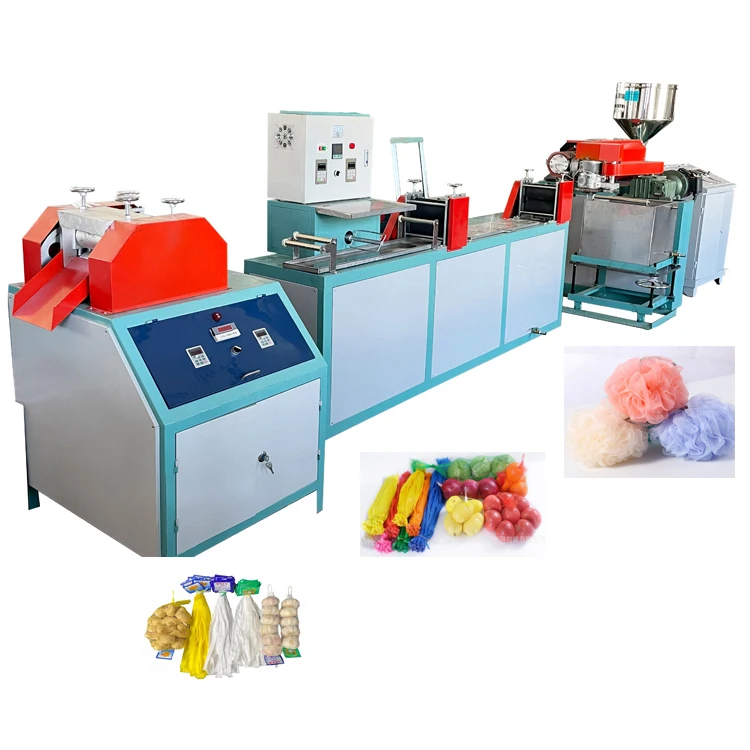

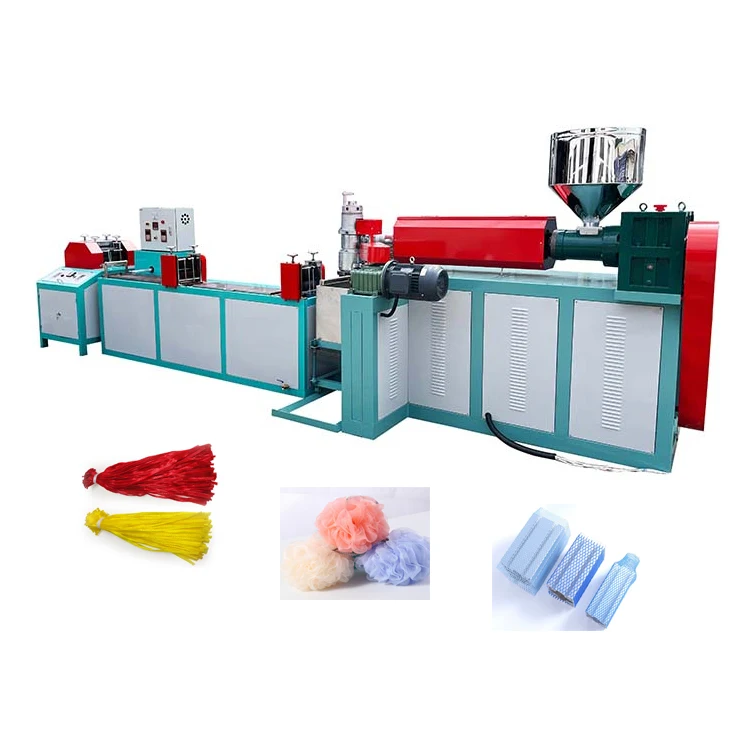

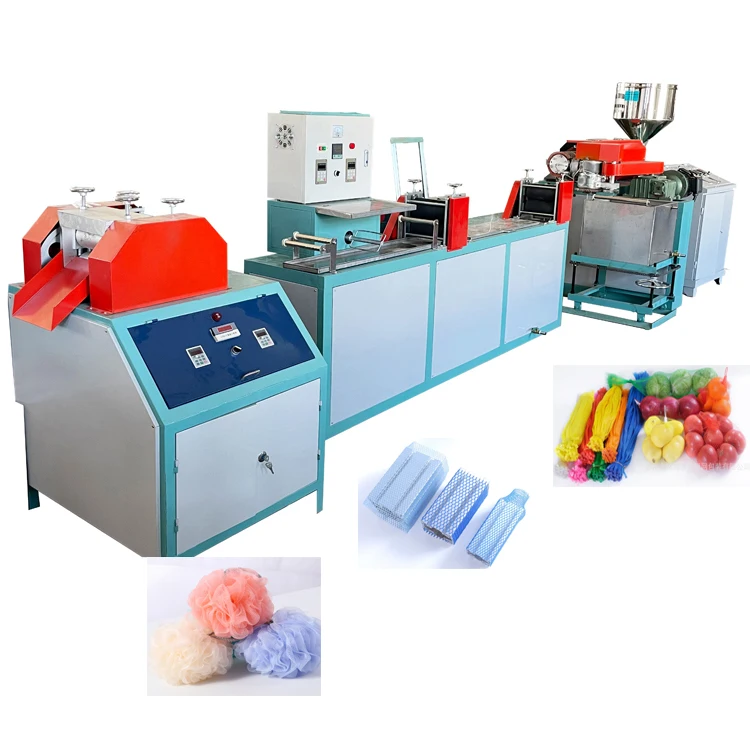

Super Market Bath Ball/Egg/Fruit/Vegetable/Garlic Net Making Machine
This machine applies to plastic material once-through form the plastic material and continuous automatic production. It can produce different material and size such as a filter of top-grade appliance, the package of breeding at sea, wine, fruit,
vegetable and so on.
vegetable and so on.
PRODUCT SPECIFICATIONS
Model | SHWJ-45 | SHWJ-60 | SHWJ-65 | SHWJ-70 |
Screw diameter | 45mm | 60mm | 65mm | 70mm |
Production Efficiency | 6-8kg/h | 10-12kg/h | 12-14kg/h | 14-15kg/h |
Installed power | 25kw | 30KW | 35kw | 40kw |
Machine weight | 2T | 2.5T | 3T | 3.5T |
Main technical parameter:
Material: LDPE/PP
Product: Shower ball, fruit and vegetable packing net, flower net
Power: 35KWScrew
Diameter: 65mm
Outside diameter of barrel: 105mm
Outside diameter of barrel: 105mm
Screw L/D: 25:1
Screw material: 38CrMoALA
Manpower needed: one person
Layout: 10.0X3.0X2.0m
Main features:
1.This machine applies to plastic material once-through form the net and continuous automatic product.
2.It can produce different materials and size such as a filter of top-grade appliance.
3.It is the new replacement of the traditional mesh bags,and cost only half of that.
4.Screw and barrel adopts 38CRrMoALA nitriding process with long life.
5.Drive motor adopts variable frequency control which has high speed control precision,wide adjusting range,low
consumption and reliable running,
6.Intelligent digital temperature controller are adopted with high efficiency and low consumption.
Details Introduction
Main motor power | 7.5 kw |
Mode of main motor control | Frequency control of motor speed |
Screw material | 38CrMoALA |
Outside diameter of barrel | Φ105mm |
Mode of speed change | Extruder dedicated reducer |
Heating ring | Cast aluminum heater |
Heating power | 12kw |
Extruder head | High speed extruder head, frequency control of motor speed |
Extruder head motor power | 4kw |
Mode of extruder motor control | Frequency control of motor speed |
Heating zone of extruder head | 2pcs |
Heating power | 3kw |
Sizing method | Size type |
Cooling method | water cooling |
Sizing width | according to customer requirement |
Material of water tank | Stainless steel |
Temperature control | electric heating water constant temperature control |
Heating power | 9KW |
Material of water tank | Stainless steel |
Size | 2000×230×200mm |
Tension power | 2.2KW |
Driving type | Speed Converter |
Reeling position | double position |
Driving moment | 10N.M×2 |
Dehydration power | 0.75KW |
