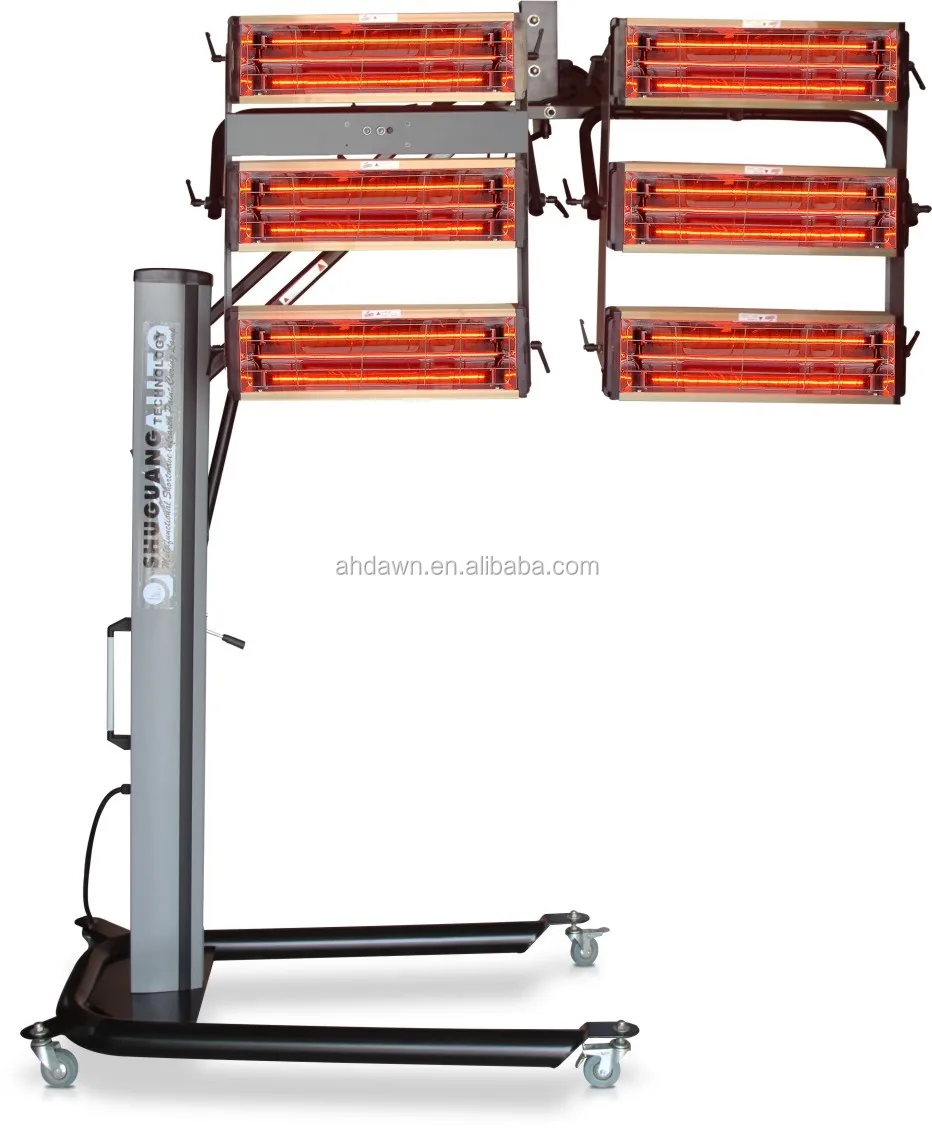

SG 6DC shortwave infrared paint curing lamp,infrared lacking lamp,testing distance& testing temperature

Product Overview

Description

SG 6DC shortwave infrared paint curing lamp,infrared lacking lamp,testing distance& testing temperature





Technical parameters



Model:SG-6D/C
Input voltage:1PH220V
Frequency:50/60Hz
Rated power: 6KW
Adjustable height:400-2500mm
Preheating time:1-5min
Drying time:1-15min
Curing distance:600-800mm
Working current:5-30A
Curing temperature:60-70℃
Curing area:1000x2000mm
Adjust current:0-99
Testing distance:15-800mm
Testing temperature:25-80℃



Functions and Features



1,Made from aluminum alloy, 304 stainless steel mirror reflector and other special material;
2,Applying to drying the painting work for spot damage from the car body, avoiding the heating up the whole spray booth which highly reduce the cost;
3,Curing area is 1000*2000mm, suitable for drying the spot damage under one area of three panels.
4,Unique electronic timing function, with an advanced digital control and display for half-power or full-power option, independent control of the lamp groups .
5,Selection of 21 inches quartz shortwave infrared tube lamp.
6,Aotomatic devices,LED display with an electronic timer,digital display power.
7,Hydraulic lifter,can rotated 300 degrees,independent switch.
8,Having pulse ultrasonic paint functions.
9,With temperature setting function.
10,With distance of the automatic measurement function
11,It has automatic temperature measurement function.
12,With automatic paint function.
13,The independently control each lights.



Curing time reference



Primer antirust coating	10min
PUTTY	10-15min
Undercoat	5min
Intermediate Coat	5-10min
Finishing coat	5-10min
Varnish	10-15min

























Constructed specification

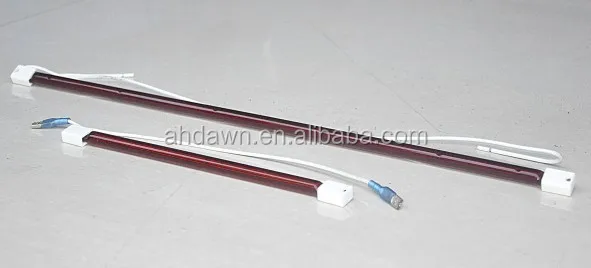

Equipped with 21" quartz short wave infrared halogen lamp tubes with Chinese-Foreign joint  technique .

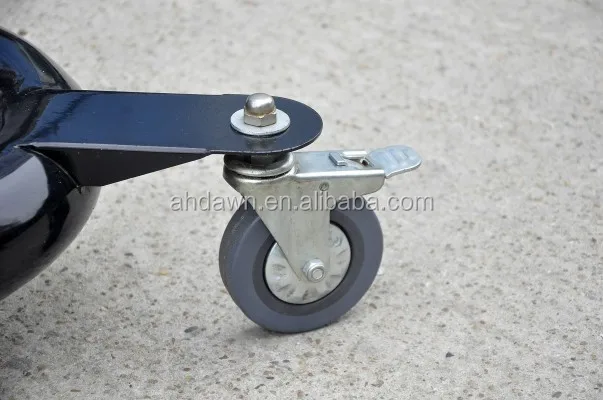

High load capacity  Casters with brakes to fix the working position avoiding

the unexpected touch to the around cars or staffs caused by the unconscious movements of the lamps.

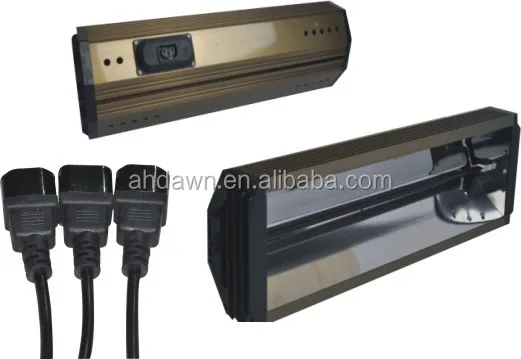

Aluminum alloy molded lampshade with cooling system , using  internationally-advanced  connector for power supply ,easy to disassemble , highly fastened , in accordance with  Euro insulation grade standard.

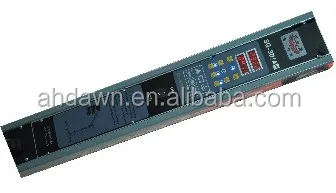

Unique Electronic  timing function ,an advanced digital control and display system, half-power and  full-power operation design , Packet Control Function for the lamps groups .



Unique Electronic  timing function ,an advanced digital control and display system, half-power and full-power operation design,packet control function for the lamps groups.

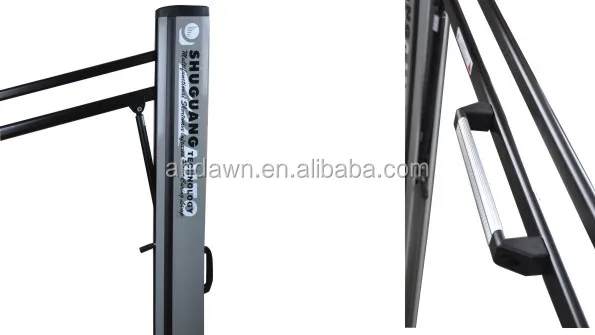

Extrusion molded aluminum alloy stand column,convenient and beautiful .

 Beautiful and durable Double spring  is used for the supporters.

 Independently control the height of the top and side ,equipped with  dedicated switch handle.

 Aluminum alloy handle with  antiskid lines .

 Aluminum alloy connector by Extrusion molded

Durable and beautiful handles.



 Shortwave Infrared Curing lamps Models

(SG-1D,SG-2D,SG-3DA, SG-3DC,SG-6DA, SG-6DC)
