- shampoo/daily chemical/juice stainless steel mixing tank with heating

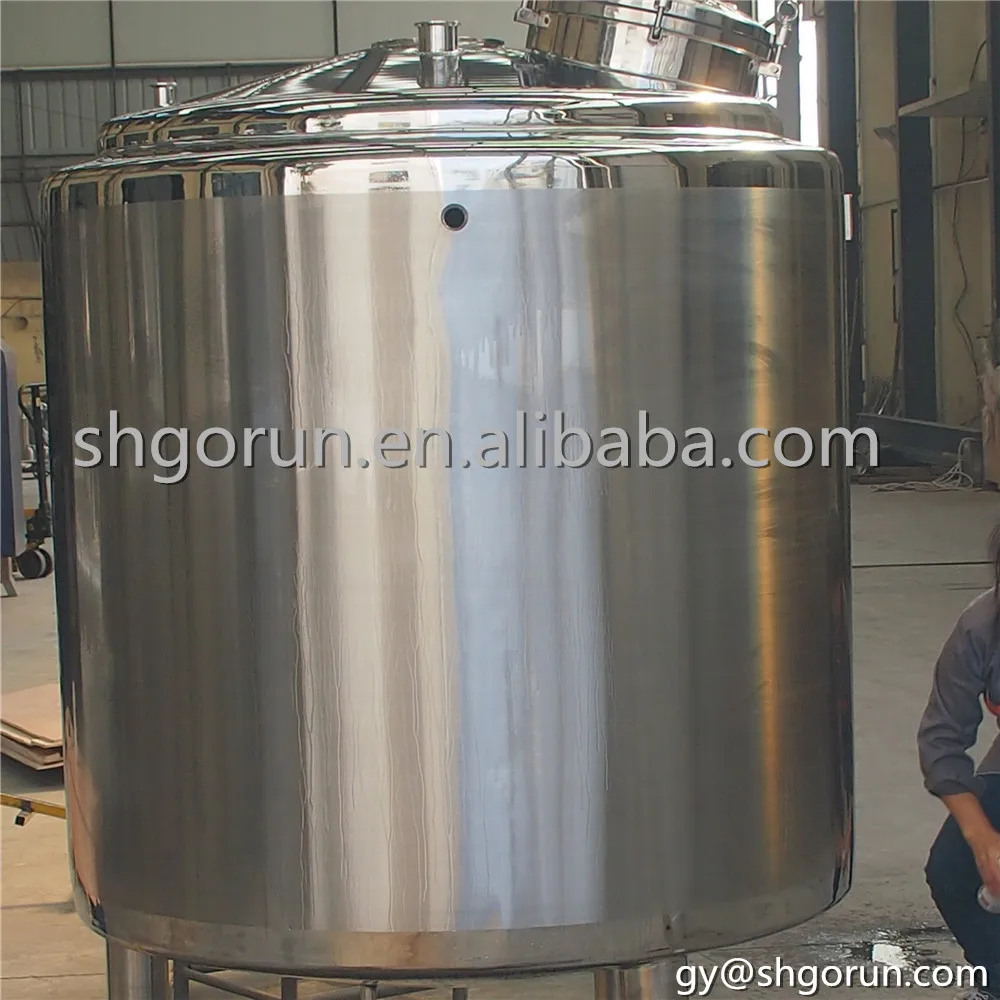

shampoo/daily chemical/juice stainless steel mixing tank with heating
- Category: >>>
- Supplier: Shanghai Gorun Machinery Technology Co. Ltd. [Shanghai China]Shanghai
Share on (60527462399):
Product Overview
Description
Production
Safet lock of mixing tank
Cleaning ball to clean up tank
shampoo/daily chemical/ juice mixing tank
Sample:
| shampoo/daily chemical/ juice mixing tank | |
| Specification | 1.Matreial: ss304 2.Capacity:3000L(Ø1500*1500) 3.Structure:three-layer , with agitator, head top with manhole cover, with spray ball,inlet&outlet 4.Mixing type:scraper type 5.Surface:interior Ra0.3μm, exterior matte polish |
| Application | salad dressing,flavors,beverage,juice,liquid fertilizer, biological liquor, paint,etc. |
| Cutomize service | Can be totally customized,see below |

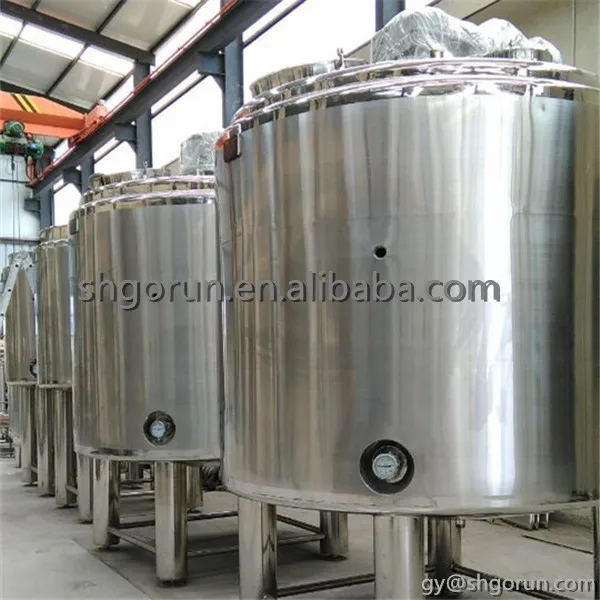

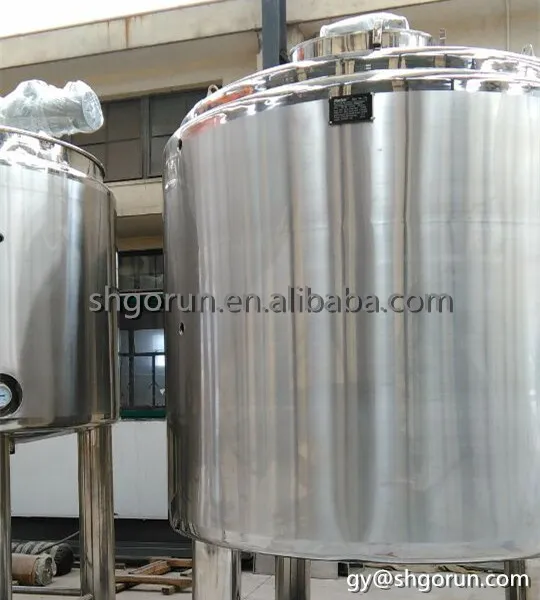

Detailes Pictures:
Safet lock of mixing tank
paddle&scraper type mixer
Optional: paddle type/anchor type/scraper type etc.
Cleaning ball to clean up tank
Slection guide:
| Custom Your Products | |||||
| Mterial | Capacity | Mixing | Layer | Working Pressure | Usage |
| ss304/ss316 | 50L-20000L | Agitator: Paddle Anchor Frame Scraper Disperser Homogenizer | Single layer Double layer:insulation Three-layer: heating/cooling jacket or coil+ insultaion (Heating:steam/hot water/electric Cooling:water/cooling unit) | Vacuum ATM 0-1Mpa | Pharmaceutical Food Beverage Cosmetic Chemical etc. |
| Customize | Customize | Customize | Customize | ||
Case Introduction

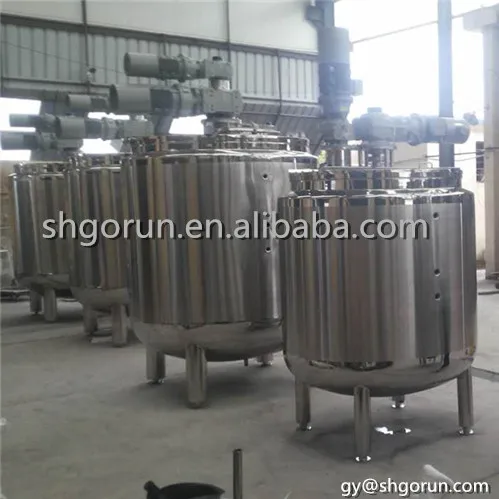

shampoo/daily chemical/ juice mixing tank:
with two motors,one for paddle type mixer,one for scraper type mixer;
two mixers with opposite direction;
ABB MOTORS，SIMENS REDUCER
with two motors,one for paddle type mixer,one for scraper type mixer;
two mixers with opposite direction;
ABB MOTORS，SIMENS REDUCER
Related Products
Kinds of stainless steel tank
Filter housing&cartridge
CIP system
Other products:
Water purification system:electronic water,food&beverage water,pharmaceutical use water
Tube and shell heat exchanger:using heat exchnage to cool down or heat up
Pumps: centrifugal pump/homogeneous pump/rotor pump/double screw pump
Accessories:pipes,valves,instruments etc.
Water purification system:electronic water,food&beverage water,pharmaceutical use water
Tube and shell heat exchanger:using heat exchnage to cool down or heat up
Pumps: centrifugal pump/homogeneous pump/rotor pump/double screw pump
Accessories:pipes,valves,instruments etc.
Processing&Shipping
STEP 1:
STEP 2:
STEP 3:
STEP 4:
STEP 5：
STEP 6:
Package&Delivery:
Raw Material:
Guaranteed stainless steel 304/316(Test acceptable)
Normal Thickness:1.5mm-16mm
Surface Treatment:
Interior Ra0.3µm,Exterior matte polish or mirror polish
Optional:Electrolytic polishing or Acid passivation
EVERY WELD JOINT WILL BE TREATED CAREFULLY.
STEP 1:
Rolling and welding
STEP 2:
Bottom welding
STEP 3:
Jacket making(jacket tank)
STEP 4:
Jacket welding
STEP 5：
Polishing
STEP 6:
Details treatment

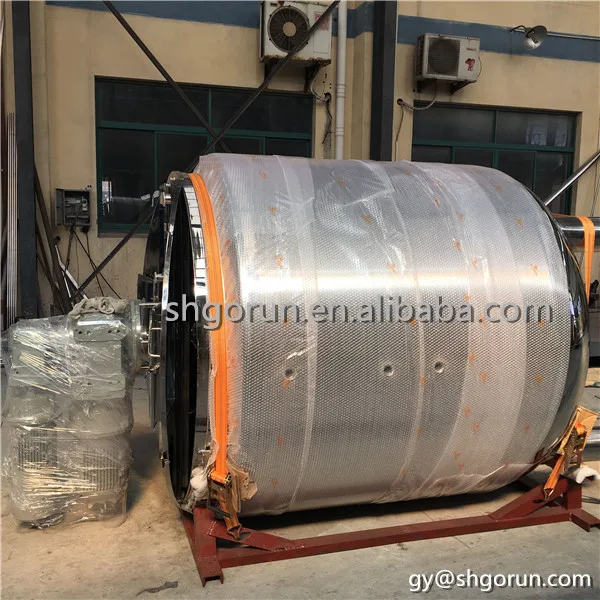

Package&Delivery:
Filter cartridge(Few) and small accessories: Carton box
Tanks(50L-1500L) and big accessories: plywood case
Tank(1500L-50000L) and big system:Support and bubble film
YOUR PRODUCTS WILL BE PACKAGED CAREFULLY.
Company Porfile
Shanghai Gorun Machinery Technology Co.,Ltd
Derived from Shanghai Geshi filter company which is founded on 1993. Company has more than 3000 square meters dust-free workshop for filter cartridge, and more than 6000square meters machineing workshop. Products are widely used in pharmaceutical,food&beverage,cosmetic,chemical indutries. As for now,more than 1000 enterprises has chose us as long term partner. Believe there will be more in the future.
Company capability:integrated research,design,production,installation etc. Both single equipment and production line can be provide.
Factory&Workshop Show:
Our Team:
Factory&Workshop Show:
Our Team:
Advantages
Our Advantage, Your Benefit:
Our Advantage, Your Benefit:
| Price | We are factory,direct manufacturer,no middle cost | ||
| Porducts | 1.High quality: every prodcuts will be tested before delivery 2.Products diversification: filter cartridge&housing,stainless steel tank,water purification system,CIP system,heat exchanger,pumps,accessores etc. 3.Wide application: pharmaceutical,food&beverage,cosmetic,chemical etc. | ||
| Custom made | 1.Related products can be customized according to customer's requirement 2.Engineering: we can provide whole production line based on our products including pipes, valves and control system | ||
| Production | Company has more than 3000 square meters filter cartridge workshop and more than 6000 square meters machining workshop | ||
| Service | Your any consultation will be replied within 0-8hours. | ||
| Location | We are located in Shanghai of China. It convenient to visit factory | ||
Win customers' approval and trust by quality products and professional&sincerity service.
Our Mission: Win-Win Solution,Grow Up Together.
Our Mission: Win-Win Solution,Grow Up Together.
Our ServicePre-sale
Pre-sale
Any consultation will be replied in hour;
Quotation will be provided in time;
Professional advice and design can be provided.
After-sale
Engineer is available to install and debug;
One year warranty after customer receive products;
Lifetime technical support;
