Hot air cycle drying oven Application:heating and dehumidifying raw materials for pharmaceutical, chemical, foodstuff
Main application
This drying oven is suitable for heating and dehumidifying raw materials and products for pharmaceutical, chemical, foodstuff, light industry and heavy industry.
Main feature
Most of the hot winds are cycled within the box. It has high transmission efficiency, and saves energy. By making the forced ventilation, the upper and lower temperature difference can be reduced. It is characterized by low noise, stable operation, automatic temperature control and convenient maintenance. This is according with the requirement of GMP.
Working principle
The steam or electricity is used as the heat source. The axial fan is used for heating the air of the heat exchanger in node of convective heat exchange. The hot air stream transfers the heat to the material through the drying tray. The fresh air enters the drying box through air inlet hole for making-up. The humid air is exhausted from the dehumidifying hole. In this way, the machine keeps the proper relative humidity in the drying box.
Characteristic
Temperature range
Room temperature add 10℃~+200℃(392℉).
Heating rise time
Room temperature~200℃,about 25 minute.
Temperature uniformity
SAO-1~4equal±1%.
Number setting
Control number display and current output control -SCR.
Use material
Outside use SS41#armor paint,inside can choose stainless steel or steel paint.SAO-1~4 single side blowing.
Heat insulation
Doors and other five surfaces with high density of glass and fiber cotton to prevent the heat loose, so it can save power.
Durable electric heater
Use special oval electric heating porcelain,With the black heat effect,Low radiation not easy oxidation,can use 5years
Tray
10 centimeters per case,the tray can freely change high.(There are four kinds of dishes to choose)
Model
Inner size
W×D×H mm
Outer size
W×D×H mm
electric power
KVA
Outer electric
50/60Hz AC
Tray
Layer
Door
Note

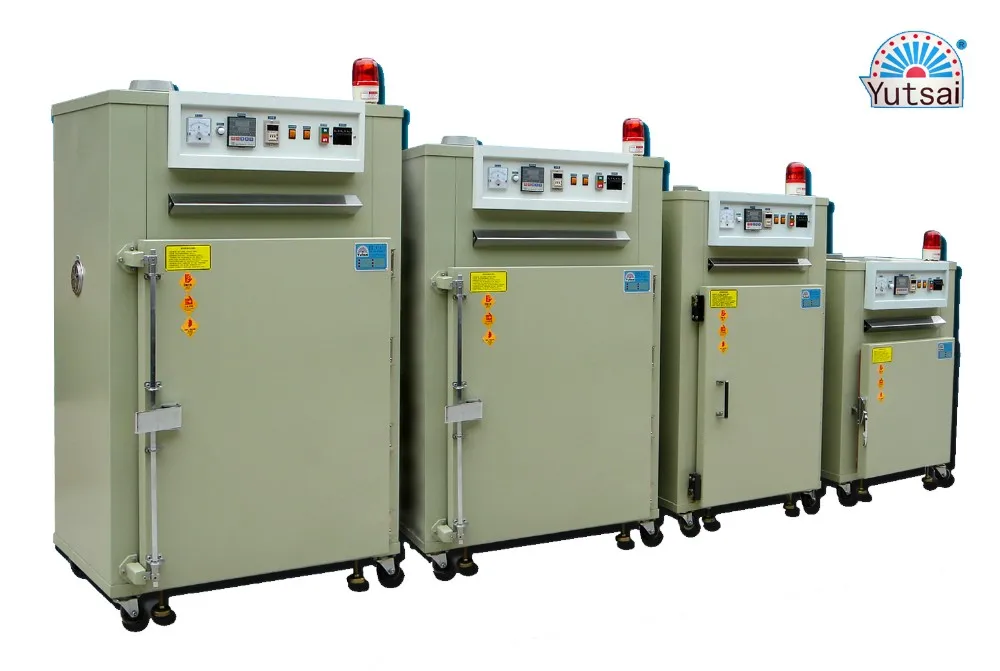

SAO-1
450×400×400
780×600×990
3
1∅220V/380V
4
1
Control board on top
SAO-2
600×500×600
930×700×1250
4
1∅220V/380V
6
1
Control board on top
SAO-3
600×500×900
930×700×1250
5
1∅ 220V/380V
9
1
Control board on top

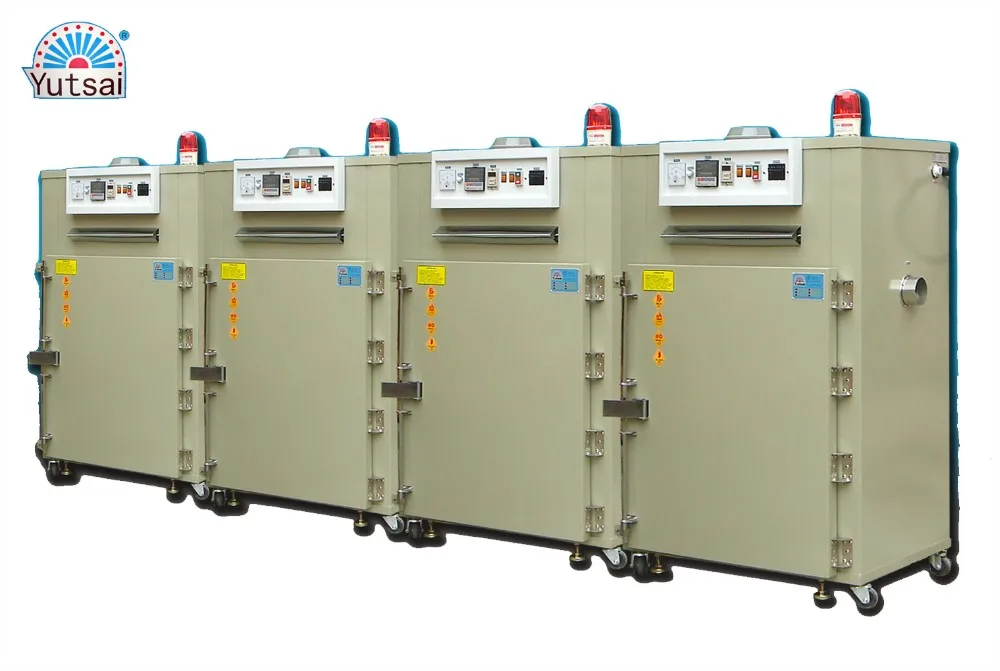

SAO-4
800×600×1000
1130×800×1650
7
3∅ 220V/380V
10
1
Control board on top
Hot aircirculation ovenis our original product, with carefully designed and continuously update,it have reach the international advanced level. The device is a kind of Oven, and can be installed, divided into CT type (centrifugal fan) CT-C (axial fans) series products, it is the use of steam, electricity and gas as heat source, through the heater heating,a large number of hot air will circulate in the Oven, and then continue to dehumidify from the outlet,increase the heat transfer effect, and keep reducing the moisture. The oven equipped with low noise and high temperature proof axial flow fan and automatic temperaturecontrol system, the circulatory system fully closed, the thermal efficiency of the oven is from the traditional drying room 3 - 7% increase to the current 35 - 40%, the highest thermal efficiency up to 70%. The device named SAO series is according to the National Pharmaceutical Administration released the industry standard.
Advantage 1.Strong durability: As the haater is sealed in the housing,the contact area with air is small,it is difficult be oxidized. 2.Heated air circulation: Baked good is heated uniformly.
Accurate and reliable electrical control:reasonable structure,effective working area,full-function,simple operation,easy to maintenance and adjustment,low noise,high reliability,low cost,low energy consumption and high production efficiency. Application Apply for baking of food and goods with chemical gas ,removal of the substrate,curing of the lnk and drying of film and so on. Widely used in the precision baking,drying,tempering,preheating,stereotypes and processing of electronics,electrical,communications,plating,plactics,metal,chemicals,food,printing,pharmaceutical,PC board,power,dipping,spraying,glass,ceramic and building materials and so on.
With the help of our experienced professionals, we offer a comprehensive range of Hot Air Oven that gives accurate control over
temperature setting. These are provided with double walled insulation, which keeps the heat in and conserves energy. To assure
Our Services

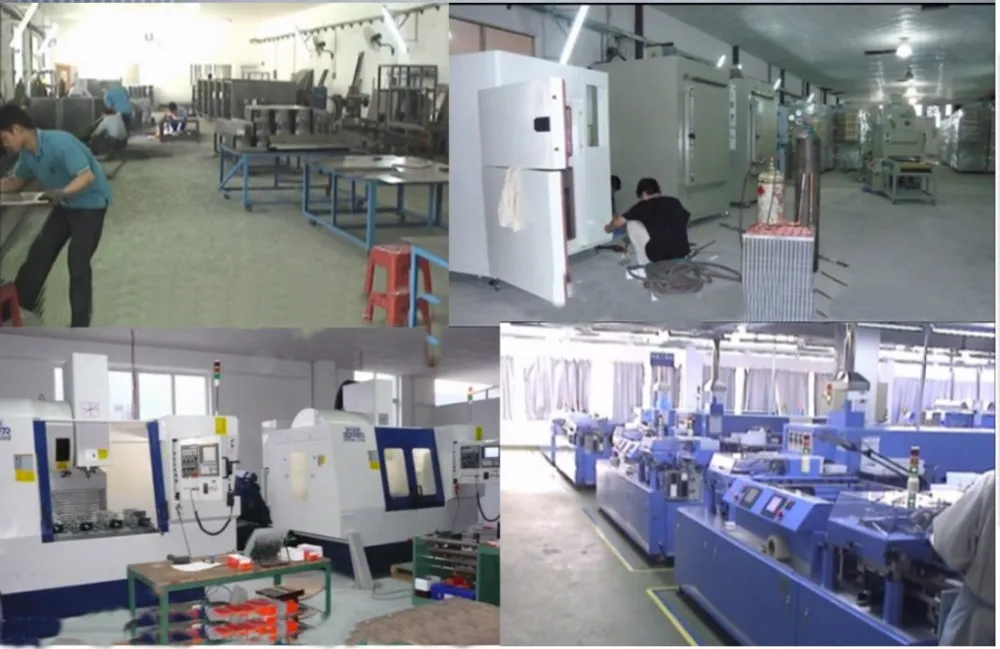

Package and shipping & work shop:
Company Information
About Us
Dongguan city Jinyao precision Equipment co., LTD is one of Enterprise combining develop, produce and sale. Established in 1980, already have 30 years experience to produce: precision Hot-air drying oven; IR/UV deliver drying equipment; environmental test equipment; printing machin; automation industrial equipment etc.
Our company always keep the aims that provide high quality product; quick service attitude and the great design. We keep the company spirit that has advance technology and high quality team. Our product receive a lot of client trust, and stand firmly front of others.
Dong Guan Yutsai Precision Device Enterprise LTD. is registered capital achieve ten million RMB. It has 4800 square meters factory. More than three million RMB fixed assets. Value of output achieve 24million RMB each year.
We has the steady domestic clients such as: Foxconn, HuohYow, Fu Brothrt industrial company, Huaxin technology company, PuYao group etc. It's all about more than 500 company include domestic ,foreign and military enterprises. We also has the long-term relationship with Thailand, India and England.
The company toward higher, farther, more perfect operating system. the Taiwan Head Company as the axis, and we make efforts in mainland market development.
