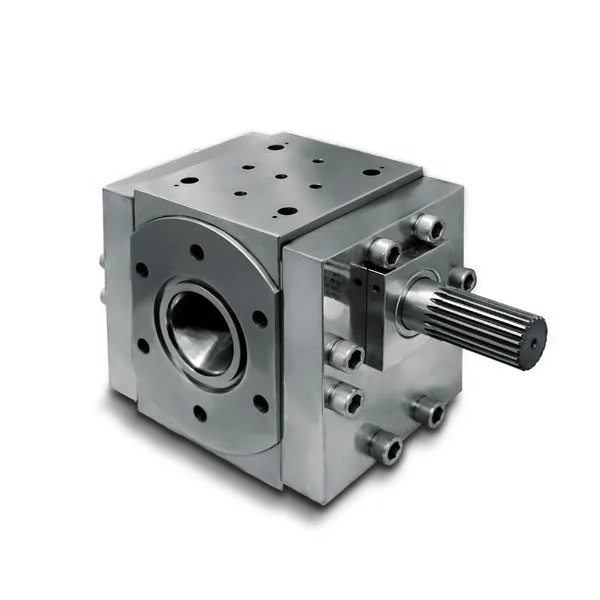

chemical industry abs pvc plastic extrusion 0.5cc 12000cc herringbone BATTE ZBC gear melt pump

Share on (60527712774):


Price:$1,500.00

Quantity:


Product Overview

Description

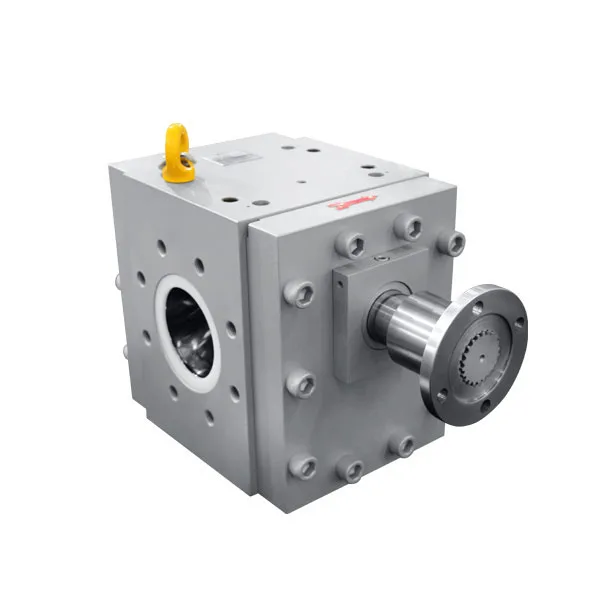

Continuous extruding miniature melt pump



Product Description








































1. Introduction of ZB-C miniature melt pump
Batte melt pump have a unique positive displacement design which provides consistent, accurate polymer delivery under varying extruder output conditions of pressure, temperature and viscosity. With Batte melt pump providing the pressure between the extruder and the die, extruder parameters can be configured to provide a homogeneous melt at increased throughout and tighter gauge tolerances.
2. Application of ZB-C miniature melt pump
1). Polymer extrusion molding, such as granulation, film, pipe, plate, sheet, etc;

2). High-viscosity materials such as PC, PMMA, ABS, HIPS, PET, PVB, PS, PP, PA, PE, PVA .etc;


3). Rubber, asphalt, paint, adhesives, coatings, lubricants, polyalcohol, non-particulate impurities;


4). Polyester for cotton-fiber, polypropylene and other chemical fiber melt.


3. Technical Parameter of ZB-C miniature melt pump


  • Melt Pump Body: High Temperature Tool Steel or Stainless Steel

  • Gear: M2 Steel (Optional)

  • Sliding Bearing: High Temperature Tool Steel or Stainless Steel

  • Shaft Sealing: Double Spiral Sealing

  • Heating System: Electrical Heating


4. Operating Parameter of ZB-C miniature melt pump


  •  Volume Range: 0.5CC - 3200CC

  • Viscosity: ≤40000 Pas

  • Working Temperature: ≤400°C (750°F)

  • Cleaning Temperature: ≤450°C (850°F)

  • Outlet Pressure: 40MPa(6000psi)

  • Differential Pressure: ≤25Mpa


5. Parameters of ZB-C miniature melt pump


































































































































Pump Model



Pump


Volume


 (CC)



Driven


Power


(kw)



Heating


Power


(kw)



Working


Temperature



Working


Pressure



ZB-0.6



0.6



0.37



0.5
























≤400℃


(750°F)















Outlet Pressure:


≤ 40Mpa


(6,000psi)





Outlet


Differential


Pressure:


≤ 275Mpa






ZB-1.2



1.2



0.75



0.5



ZB-2



2



0.75



1



ZB-5



5



1.1



2



ZB-10



10



1.5



2



ZB-20



20



2.2



2



ZB-31.5



32



3



2



ZB-50



50



4



3



ZB-100



100



5.5



4



ZB-150



150



7.5



5



ZB-90/90



200



11



6



ZB-100/100



250



15



8



ZB-100/100



315



18.5



8



ZB-115/115



500



22



12



ZB-130/130



800



30



15



ZB-160/160



1200



37



20



ZB-180/160



2500



45



24



ZB-180/180



3200



55



24



ZB-224/224



6000



75



30

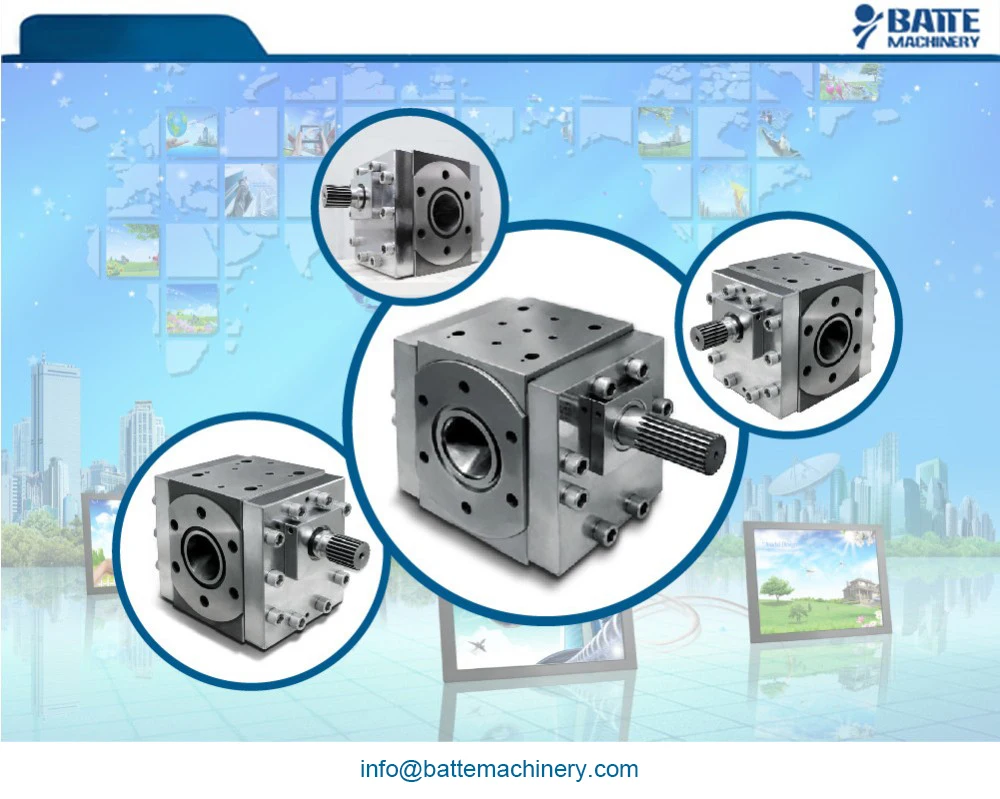

ZB-C._



Application


 2

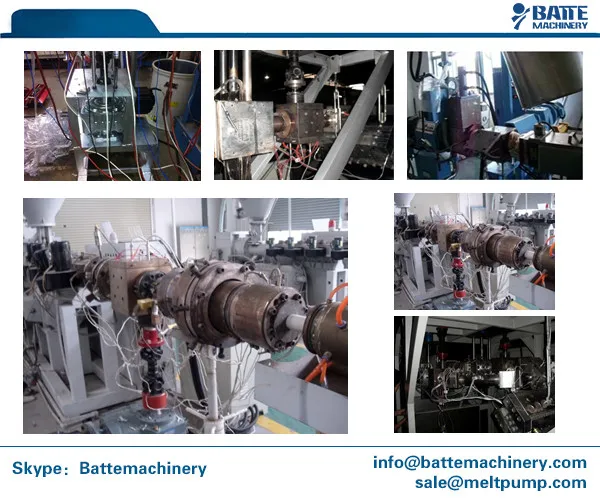

Successful Case


-

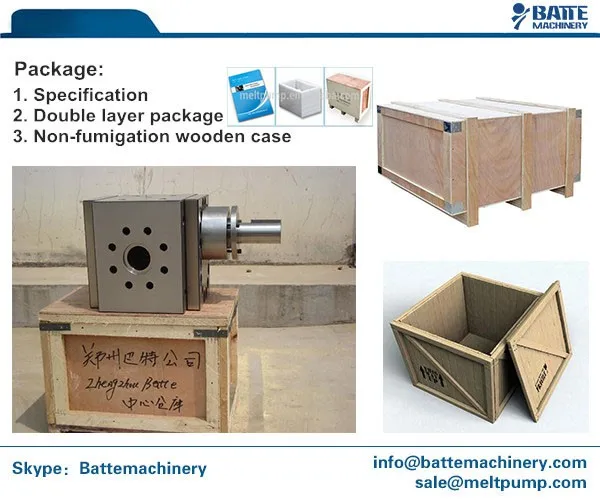

Packaging & Shipping





-











Company Information


Batte is high-tech company which integrate R&D, design and manufacture. Batte’s main product includes high-qualified screen changer, metering gear pump, extrusion dies. Batte has advanced processing equipment and rich experience in production, has a perfect quality control system and perfect after-sale service system. Batte has right to import and export.


Batte have extra years experience in melt filtration system. And Batte make our products multivariate, long lived, with high degree of accuracy, leak-proof, and so on, to stand out in our profession and take leading position so that we are welcomed and trusted by the market. And combination with the practical requirements of customers, continuously improve the quality of products and using function to meet customers’ demand for products of high quality.


Our product are exported to Taiwan, Japan, USA, Turkey, Mexico, Brazil, Russia, India, Malaysia, Vietnam, , and other countries and regions and received high praised by our customer.


Our advantages:





2. we have 11-year experience;


3. we are a leading brand in China;


4. we have over 100 workers to ensure quick delivery;


5. we have 10 engineers to design special concrete plants for our customers;


6. we have after sales service like: installation, debugging, operator trainning and spare parts supply.









Our Services


Batte persists in the business philosophy that technology goes with quality: technology is the root, innovation is the soul, customers come first.


1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation and maintenance.


2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.



  • When trainning your operators, our engineers will give them advice on how to operate the machines correctly;

  • We will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;

  • Call us at any time if you have problems about our equipment;

  • If needed, we will send engineers to your site to solve your problems.


3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.


4. Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
