MONDE mini ripper for excavator standard digging rippers
US $1150-$1250
Всегда качество первоклассные материалы мини экскаватор Потрошитель костюм 12t экскаватор для продажи
- Category: Rippers >>>
- Supplier: Xuzhou Ransun Machinery Co. Limited
Share on (60527737952):
Product Overview
Description
Product Description

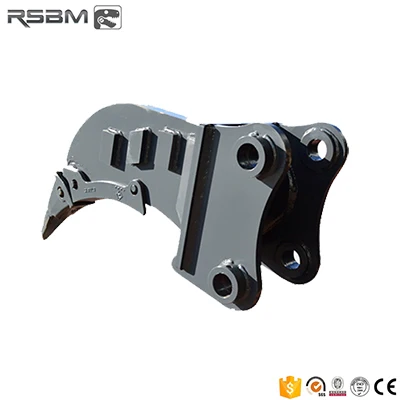

Excavator Ripper
Shank ripper which is with a sharp tooth on the front which goes beneath the ground deeply to release the dirt for further excavation.
Applied Size: It’s for 1 to 50 tons under most circumstances, but we could make it larger to fit customers’ s require.
Characteristic: a. Designed just for ripping, the ripper could reduce the amount of pressure added to the excavator itself, achieving more safety.
b. It could dig deeply into the earth which is handpicked or frozen.
Features: a.Generally with one single tooth could be two or three;
b.Strong digging and penetrability.
Applications: Breaking of hardpan, sub-hard rock, and weathered rock. It’s commonly applied in any area which is with frozen, rock, or paved ground which impedes further excavation.
Applied Size: It’s for 1 to 50 tons under most circumstances, but we could make it larger to fit customers’ s require.
Characteristic: a. Designed just for ripping, the ripper could reduce the amount of pressure added to the excavator itself, achieving more safety.
b. It could dig deeply into the earth which is handpicked or frozen.
Features: a.Generally with one single tooth could be two or three;
b.Strong digging and penetrability.
Applications: Breaking of hardpan, sub-hard rock, and weathered rock. It’s commonly applied in any area which is with frozen, rock, or paved ground which impedes further excavation.

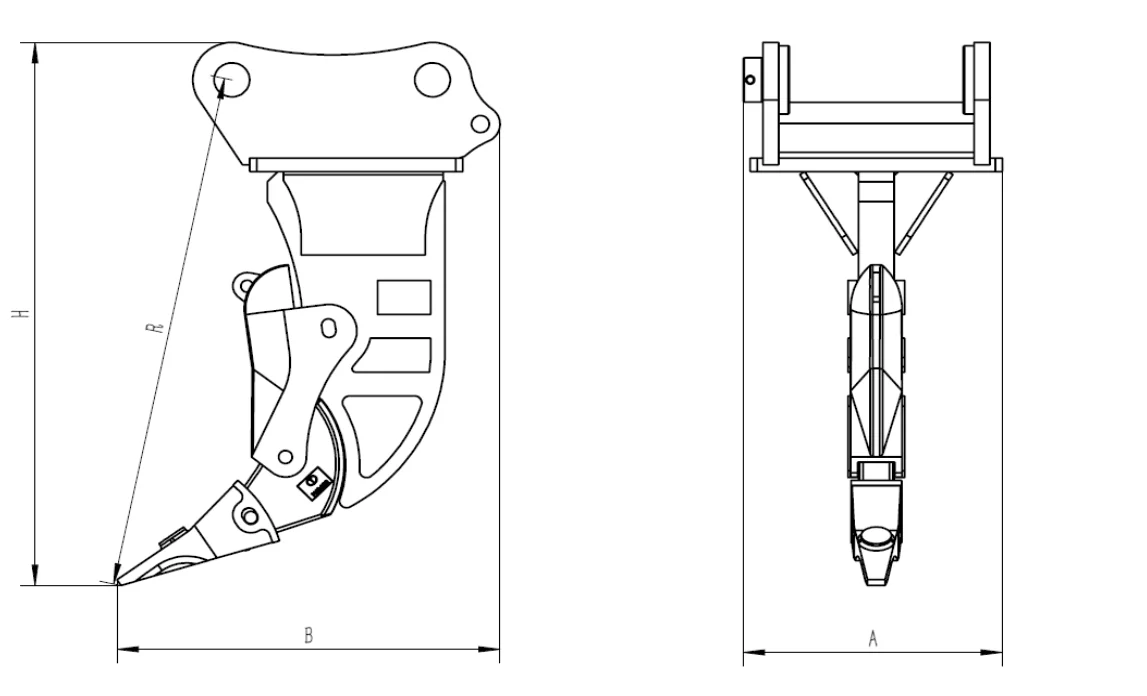

Model | Ton Range | Width A (mm) | Height H (mm) | R (mm) | Length B (mm) | Weight (kgs) | Tine Thickness | Teeth | Material |
RS-RMINI | 1-3T | 240 | 470 | 450 | 320 | 45 | 35 | J220 | Q345 |
RS-R40 | 3-5T | 280 | 530 | 480 | 360 | 55 | 35 | J220 | Q345 |
RS-R50 | 5-8T | 290 | 600 | 550 | 410 | 65 | 40 | J-250 | Q345 |
RS-R80 | 8-12T | 345 | 720 | 642 | 492 | 135 | 50 | J-250 | Q345 |
RS-R120 | 12-16T | 410 | 1065 | 1030 | 760 | 266 | 60 | 1U3352RC | Q345 + NM400 |
RS-R200 | 18-23 | 533 | 1365 | 1267 | 862 | 510 | 80 | D8 4T5451 | |
RS-R250 | 23-29T | 580 | 1406 | 1306 | 850 | 610 | 80 | D8 4T5451 | |
RS-R300 | 30-36T | 636 | 1541 | 1452 | 930 | 836 | 100 | D9 4T5502 | |
RS-R450 | 40-52T | 760 | 1650 | 1515 | 974 | 1080 | 100 | D9 4T5502 | Q345 + NM400 |
RS-R500 | 55-65T | 830 | 1760 | 1609 | 1050 | 1670 | 110 | D11 9W4551 | Q345 + NM400 |
RS-R850 | 70-100T | 930 | 1934 | 1836 | 1120 | 1970 | 110 | D11 9W4551 | Q345 + NM400 |

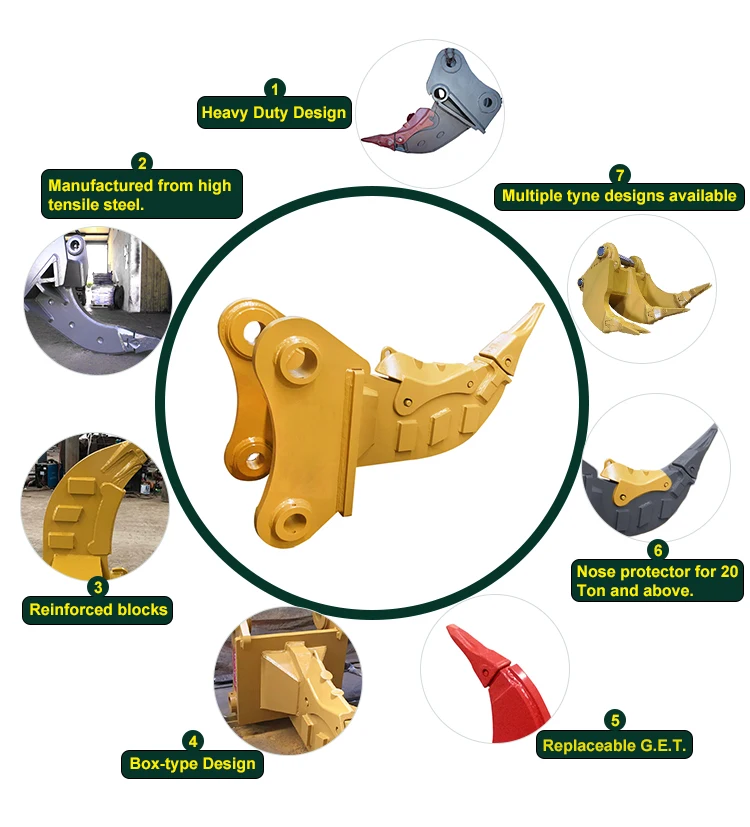

Products Features
Choosing the right excavator, bucket, and Work Tool attachment combinations to meet your application needs.
Our Advantages
Process Technology Advantage
Boring Machine Processing
Heated before welding
Welding work
Detection of temperature during welding
Display after welding
Polishing after welding
High-quality Raw Materials
Ceritfications
Raw Materials
Testing
About Us
Xuzhou Ransun Machinery Co., Limited
Ransun Industry Co., Limited is a leading manufacturer and trader of excavator and loader attachments. We have more than 10 years of experience in the manufacture, sale, and service of construction machine parts. Our products sell well in Europe, the Middle East, Africa, Southeast Asia, and America. Product ranges: We offer a full range of buckets for machines from 0.01m3 to 12m3 in bucket capacity for a large variety of applications. The applications include light and general construction, road, and rail construction as well as quarrying and mining industries...
Feedback
Related products
FAQ
Q1. How to choose the correct Bucket?
Tell us the brand, type of your excavator and the inner width of your bucket.
Offer the pin size, width of quick hitch and the forearm width of your buckets.Just like this in the below.
Tell us the brand, type of your excavator and the inner width of your bucket.
Offer the pin size, width of quick hitch and the forearm width of your buckets.Just like this in the below.
And we can give you the best solution.
Q2: Do you provide ODM/OEM service?
A: OEM/ODM is welcome, From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.
Q3. What are your terms of packing?
A: Generally, Plywood Case+Pallet 1 piece/box and customer request
Q4. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5: When would be your delivery date?
A:Usually 7-10 days after get your payment, and we will try our best to fill in your requirements.
Q6.Warranty
A: RSBM attachments are guaranteed against failure due to defective design, materials, or workmanship for a period of six months.
Q2: Do you provide ODM/OEM service?
A: OEM/ODM is welcome, From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.
Q3. What are your terms of packing?
A: Generally, Plywood Case+Pallet 1 piece/box and customer request
Q4. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5: When would be your delivery date?
A:Usually 7-10 days after get your payment, and we will try our best to fill in your requirements.
Q6.Warranty
A: RSBM attachments are guaranteed against failure due to defective design, materials, or workmanship for a period of six months.
